Belden RV6MJKUEWB24 REVConnect CAT6+ UTP Modular Jack - T568 A/B - Bulk 24 Pack - Electric White

ITEM #: BL-RV6MJKUEW-B24 MFG #: RV6MJKUEW-B24

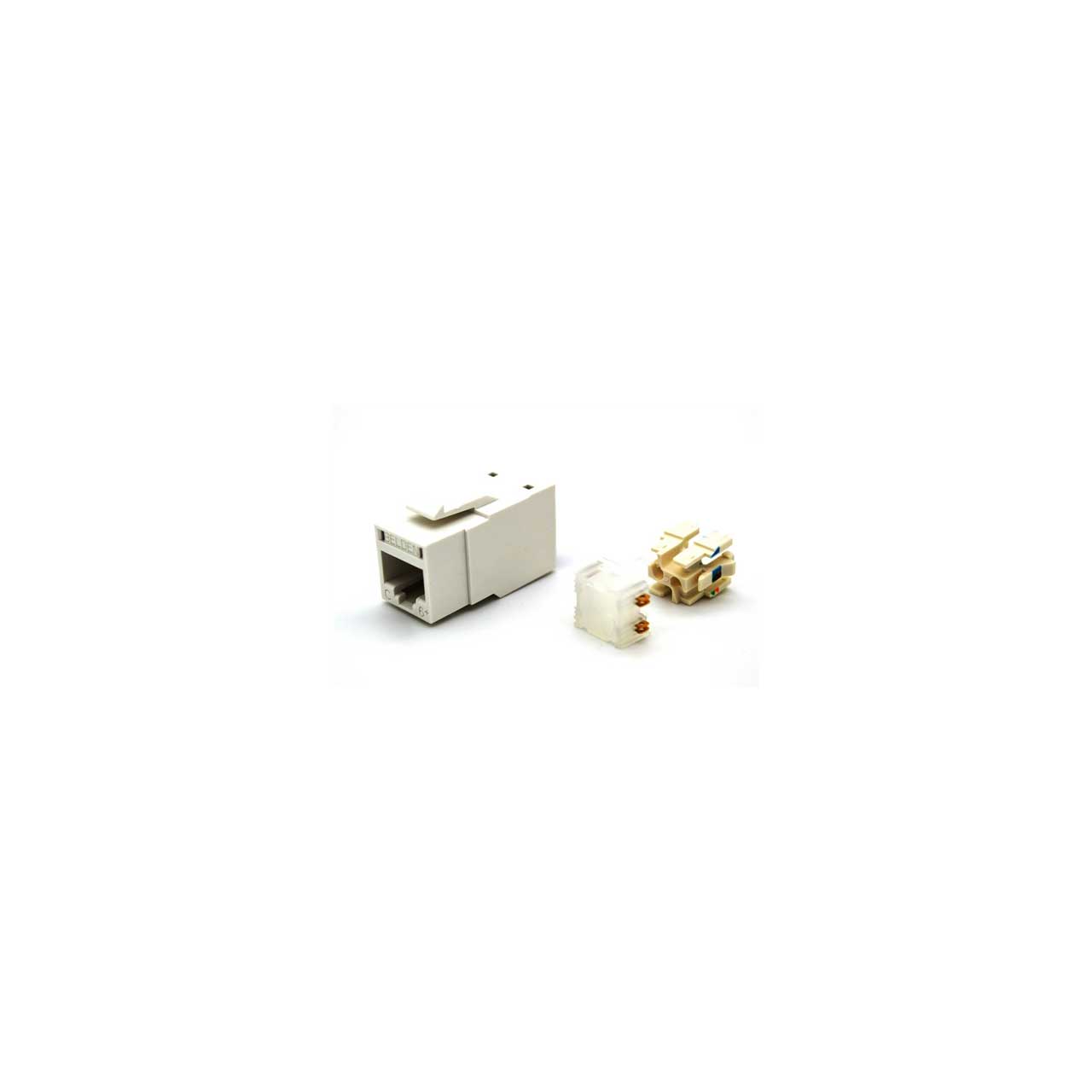

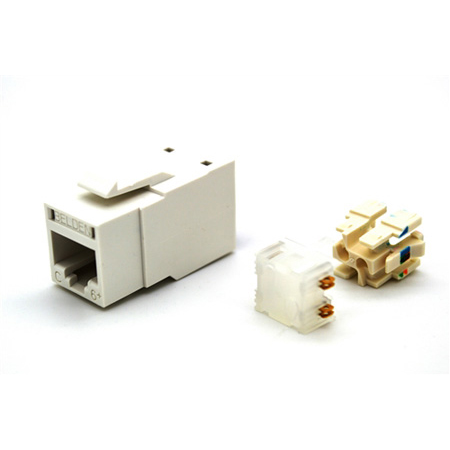

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$251.35

Our Price:

$230.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

RV6MJKUEW-B24 - Overview

The Belden RV6MJKUEW-B24 REVConnect CAT6+ UTP are a pack of 24 modular jacks. These modular jacks are suitable for 2400, 3600, 4800 systems, TIA Category 6, ISO Class E, and 1GBASE-T.

Belden RV6MJKUEW-B24 REVConnect is a complete connectivity solution for CAT 5e, CAT 6 and CAT 6A UTP and STP. The REVConnect system is designed to make deployment easier and put hours back in your day. Increasing the speed of your installation will allow you to complete more jobs and increase your overall revenue. The REVConnect system provides maximum reliability and ease of install for the contractor. Suitable for use with 10GX System, TIA Category 6A, ISO Class EA, 10GBASE-T.

  • Features:

    • Suitable Applications: 2400, 3600, 4800 Systems, TIA Category 6, ISO Class E, 1GBASE-T
    • Related Parts: Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels


  • Specifications:

    • Physical Characteristics
    • Dimensions (HxWxD): 0.94 x 0.64 x 1.337"
    • Wiring Scheme: T568A/B
    • Packaging: Individually packaged in a plastic bag
    • Weight: 0.016 lbs

      Connectors
    • Front Connection Type/Material: RJ45 / Copper Clad Flexible PCB, 50uin Gold plated contacts over Nickel
    • Rear Connection Type/Material: REVConnect / Copper alloy, Gold plated contacts over Nickel
    • Connector Body: PBT glass reinforced UL94V-0

      Electrical Characteristics
    • Dielectric Strength: 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)
    • Current Rating: 1.300 A
    • Insulation Resistance: 500 M-Ohm Minimum
    • Max Contact Resistance: 20 mOhm
    • Termination Resistance: 2.5 mOhm

      Temperature Range
    • Installation Temperature Range: -10°C To +60°C
    • Storage Temperature Range: -40°C To +70°C
    • Operating Temperature Range: -10°C To +60°C

      Mechanical Characteristics
    • Footprint/Type: REVConnect
    • Tool Compatibility: REVConnect Termination Tool (p/n RVUTT01)
    • Plug /Jack Compatibility: RJ45, RJ11
    • Termination Front Connection: Mated Connection
    • Termination Front Connection
    • Durability: 750 cycles
    • Termination Rear Connection: Mated Connection
    • Termination Rear Connection
    • Durability: 20 cycles
    • Cable/Connector Retention: 15 lbs.
    • Connector/Hardware Retention: 20 lbs
    • Plug/Connector Retention: 11.250 lbs

      Standards
    • UL Rating: UL94V-0
    • Data Category: Category 6A
    • TIA/EIA Compliance: Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
    • IEEE Compliance: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM
    • (up to 100W)
    • Other Specification: UL 1863, IEC 60603-7, FCC part 68-F

      Applicable Environmental and Other Programs
    • Environmental Space: Indoor
    • EU Directive 2002/95/EC (RoHS): Yes
    • MII Order #39 (China RoHS): EUP 50

      Flammability, LS0H, Toxicity Testing
    • UL Flammability: UL2043 Air Handling Spaces
    • Safety Listing: c(UL)us Listed


  • Item Includes:

    • 1x RV6MJKUEW-B24 RevConnect CAT6plus Jack - UTP T568 A/B Bulk Pack- Electric White - 24 Piece


  • GTIN:

    0611589204460
