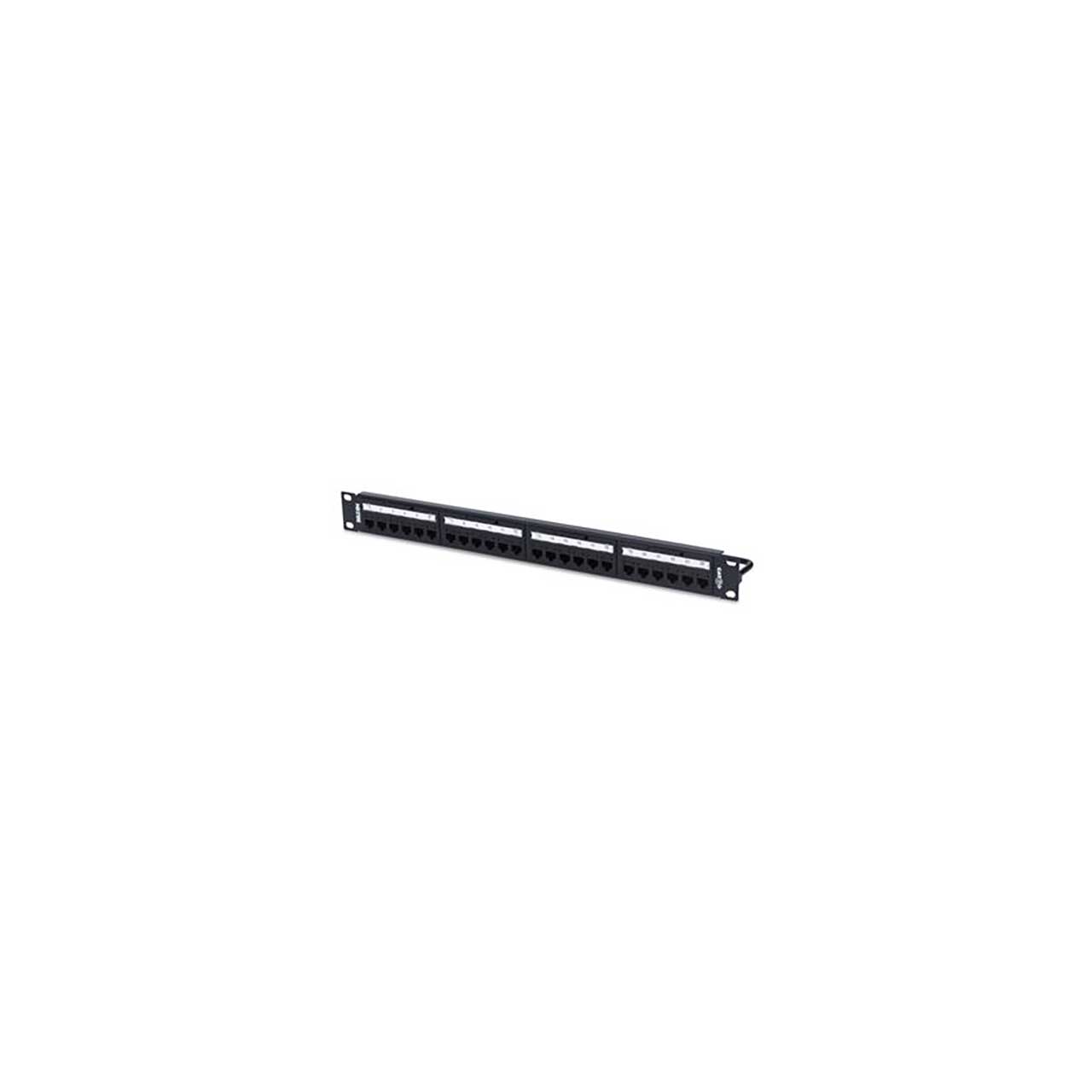

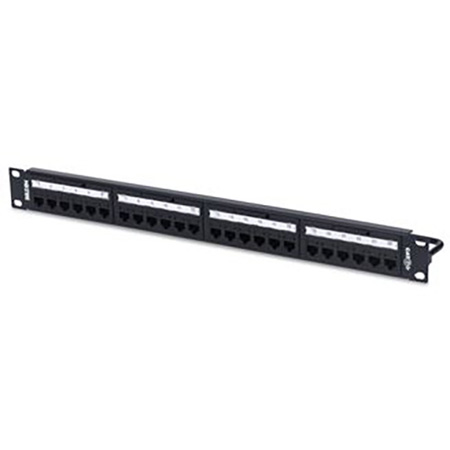

Belden RV6PPF2U48BK CAT6plus REVConnect 2U 48-Port Patch Panel - Black

RV6PPF2U48BK - Overview

• Specifications:

  • Height: 1.73 in
  • Width: 19.000 in
  • Depth: 2.000 in
  • Port Count: 24 Port
  • Front Connection: Flush
  • Packaging: Individually packaged in a cardboard box.
  • Weight: 1.846 lbs
  • Max Capacity: 24 connectors (preloaded)
  • Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute (Signals to Ground)
  • Current Rating: 1.300 A
  • Insulation Resistance: 500 M-Ohm Minimum
  • Termination Resistance: 2.5 mOhm
  • Installation Temp Range: -10°C To +60°C
  • Storage Temp Range: -40°C To +70°C
  • Operating Temp Range: -10°C To +60°C
  • Footprint/Type: REVConnect
  • Tool Compatibility: REVConnect Termination Tool (RVUTT01)
  • Plug /Jack Compatibility: RJ45
  • Cable/Connector Retention: 15 lbs
  • Connector/Hardware Retention: 20 lbs
  • Plug/Connector Retention: 11.250 lbs
  • UL Rating: UL94V-0
  • IEC Compliance: IEC 60603-7
  • Data Category: Category 6+
  • TIA/EIA Compliance: Category 6 - TIA 568.2-D, ISO/IEC 11801-1, TIA TSB-5021
  • IEEE Compliance: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBase TTM (up to 100W)
  • Other Compliance: UL 1863, ANSI/TIA 1096-A (formely FCC Part 68-F)
  • Environmental Space: Indoor
  • EU Directive 2011/65/EU (ROHS II): Yes
  • MII Order #39 (China RoHS): EUP 50
  • Safety Listing: c(UL)us Listed


• Item Includes:

  • 1x Belden RV6PPF1U24BK CAT6plus REVConnect 2U 48-Port Patch Panel - Black
