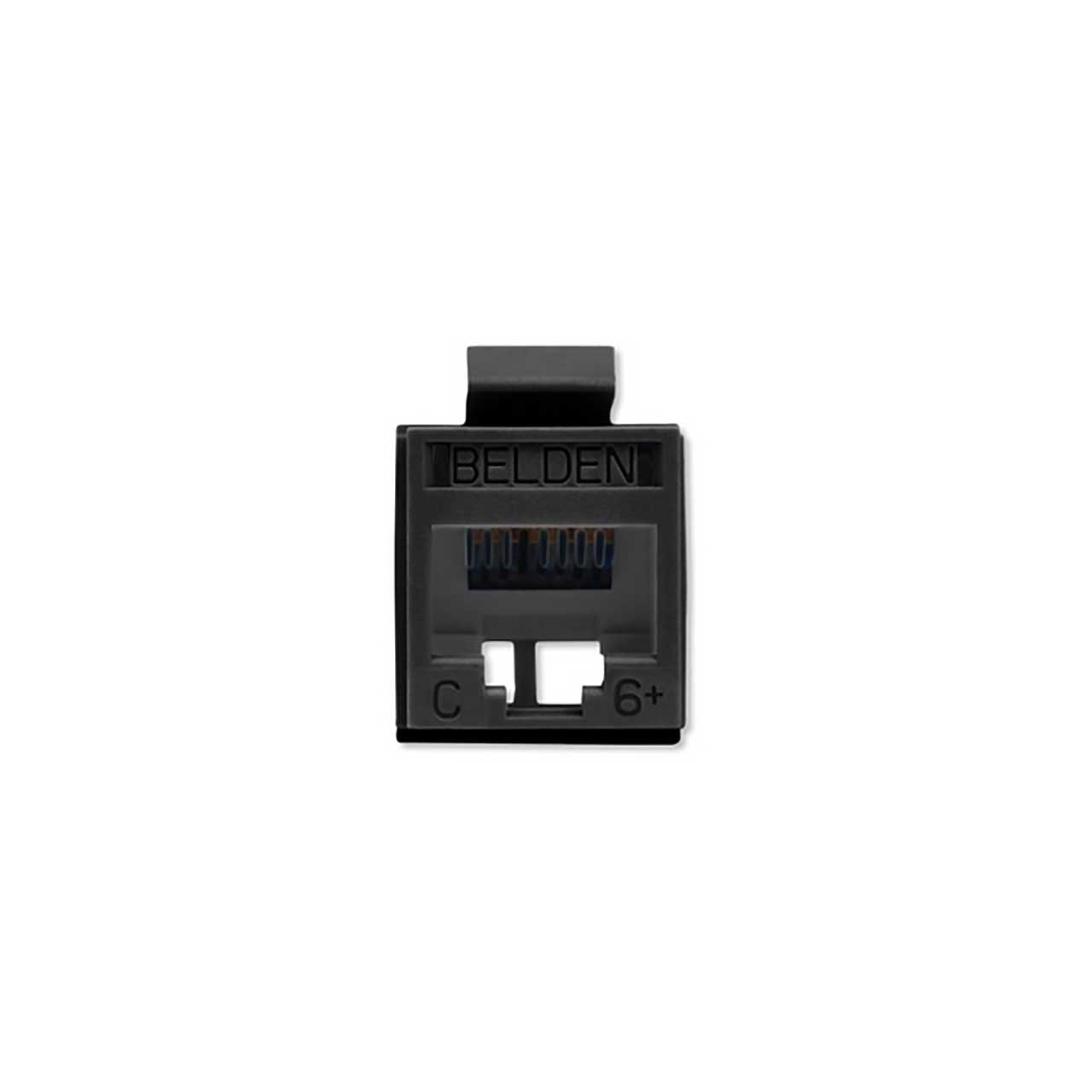

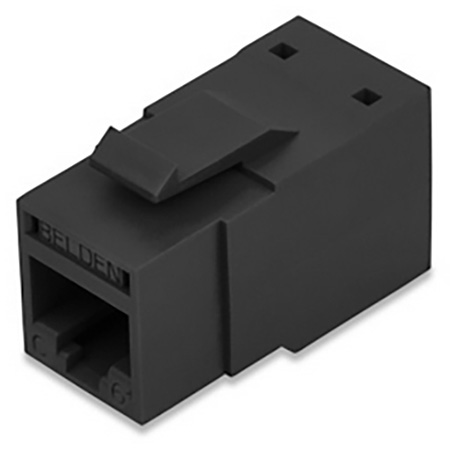

Belden RV6MJKUBKB24 REVConnect CAT6+ UTP Modular Jack - T568 A/B - Bulk 24 Pack - Black

RV6MJKUBK-B24 - Overview

• Features:

  • Suitable Applications: 2400, 3600, 4800 Systems, TIA Category 6, ISO Class E, 1GBASE-T
  • Related Parts: Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels


• Specifications:

  • Physical Characteristics
  • Dimensions (HxWxD): 0.94 x 0.64 x 1.337"
  • Wiring Scheme: T568A/B
  • Packaging: Individually packaged in a plastic bag
  • Weight: 0.016 lbs

    Connectors
  • Front Connection Type/Material: RJ45 / Copper Clad Flexible PCB, 50uin Gold plated contacts over Nickel
  • Rear Connection Type/Material: REVConnect / Copper alloy, Gold plated contacts over Nickel
  • Connector Body: PBT glass reinforced UL94V-0

    Electrical Characteristics
  • Dielectric Strength: 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground)
  • Current Rating: 1.300 A
  • Insulation Resistance: 500 M-Ohm Minimum
  • Max Contact Resistance: 20 mOhm
  • Termination Resistance: 2.5 mOhm

    Temperature Range
  • Installation Temperature Range: -10°C To +60°C
  • Storage Temperature Range: -40°C To +70°C
  • Operating Temperature Range: -10°C To +60°C

    Mechanical Characteristics
  • Footprint/Type: REVConnect
  • Tool Compatibility: REVConnect Termination Tool (p/n RVUTT01)
  • Plug /Jack Compatibility: RJ45, RJ11
  • Termination Front Connection: Mated Connection
  • Termination Front Connection
  • Durability: 750 cycles
  • Termination Rear Connection: Mated Connection
  • Termination Rear Connection
  • Durability: 20 cycles
  • Cable/Connector Retention: 15 lbs.
  • Connector/Hardware Retention: 20 lbs
  • Plug/Connector Retention: 11.250 lbs

    Standards
  • UL Rating: UL94V-0
  • Data Category: Category 6A
  • TIA/EIA Compliance: Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
  • IEEE Compliance: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM
  • (up to 100W)
  • Other Specification: UL 1863, IEC 60603-7, FCC part 68-F

    Applicable Environmental and Other Programs
  • Environmental Space: Indoor
  • EU Directive 2002/95/EC (RoHS): Yes
  • MII Order #39 (China RoHS): EUP 50

    Flammability, LS0H, Toxicity Testing
  • UL Flammability: UL2043 Air Handling Spaces
  • Safety Listing: c(UL)us Listed


• Item Includes:

  • 1x RV6MJKUBK-B24 RevConnect CAT6plus Jack - UTP T568 A/B Bulk Pack- Black - 24 Piece


• GTIN:

  0611589204477
