Atlona AT-RON-448 Ultra High Data Rate 1x8 HDMI Distribution Amplifier

ITEM #: ATNO-AT-RON-448 MFG #: AT-RON-448

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$700.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AT-RON-448 - Overview

The Atlona Rondo™ 448 (AT-RON-448) is a 1x8 HDMI distribution amplifier for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The Rondo 448 is ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content.

This Rondo Series HDMI distribution amplifier includes EDID management features, front panel LED indicators for power and signal status, audio de-embedding to analog and coaxial S/PDIF audio outputs, and the capability to cascade several units without compromising performance. The Rondo 448 is designed to deliver dependable, pristine-quality image presentations in commercial and residential applications. It includes Atlona's award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.

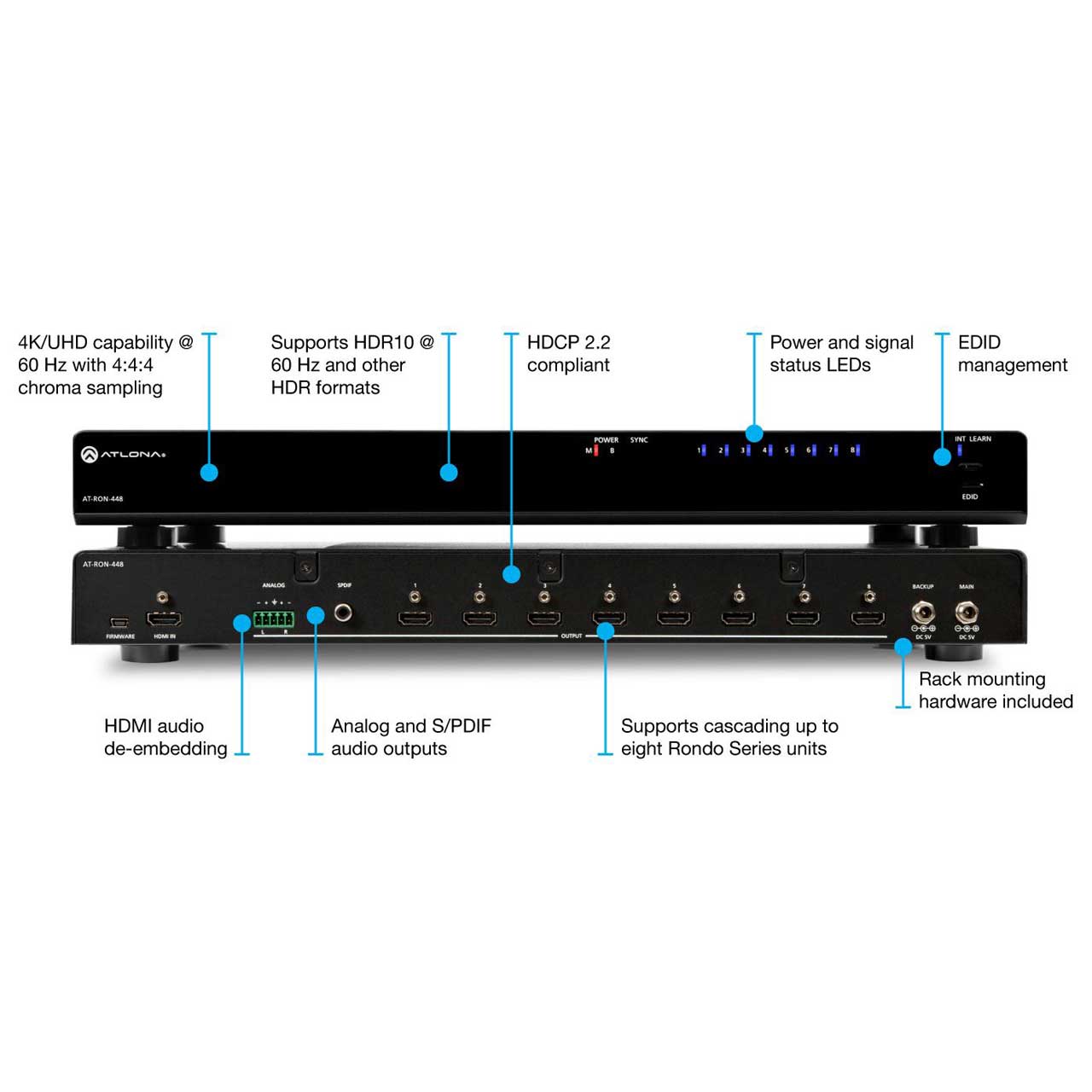

  • Features:

    • 1x8 HDMI distribution amplifier
    • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
    • HDCP 2.2 compliant
    • EDID management
    • Supports cascading up to eight units
    • HDMI audio de-embedding
    • Multi-channel audio compliant
    • Field-updatable firmware
    • Front panel power and signal status LEDs
    • Rack-mountable 1U, full rack width enclosure
    • Award-winning 10 year limited product warranty

  • Specifications:

    • Video
    • HDMI Specification: HDMI 2.0, HDCP 2.2
    • TMDS Clock: 600 MHz
    • UHD/HD: 4096x2160(DCI)@60/30/24 Hz, 3840x2160(UHD)@60/50/24/25/30 Hz, [email protected]/24/25/29.97/30/50/59.94/60 Hz, 1080i@25/29.97/30 Hz, 720p@30/50/59.94/60 Hz
    • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900,1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600,640x480
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit
    • HDR: HDR10, Hybrid Log-Gamma (HLG), and Dolby Vision™ @ 60Hz

      Audio
    • Pass-through: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital®, DTS® 5.1, Dolby Digital Plus™, Dolby® TrueHD, DTS-HD Master Audio™, Dolby Atmos™, DTS:X™
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit

      Connectors
    • HDMI IN: 1 - Type A, 19-pin female
    • HDMI OUT: 8 - Type A, 19-pin female
    • ANALOG OUT: 1 - captive screw, 5-pin
    • S/PDIF OUT: 1 - RCA-type, female
    • FW: 1 - Mini-USB, Type-A
    • MAIN: 1 - locking connector, female
    • BACKUP: 1 - locking connector, female

      Indicators and Controls
    • Power LED Indicators: 2 - LED, red (M, B)
    • Output LED Indicators: 8 - LED, blue ( 1 - 8)
    • EDID LED Indicators: 2 - LED, blue (INT, LEARN)
    • EDID: 1 - momentary, tact-type

      Physical
    • HDMI In/Out @ 4K: up to 5 meters (15 feet)
    • HDMI In/Out @ 1080p: up to 10 meters (30 feet)
    • Power Input: AC100-240V ~ 50/60Hz
    • Power Output: DC 5V
    • Power Consumption: 6.75 W
    • Safety: CE, FCC, cULus
    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
    • Operating Humidity (RH): 20 to 90% non-condensing
    • Dimension (H x W x D): 44 x 433.8 x 255 mm (1.73" x 17.07" x 10.03")
    • Weight: 2.78 kg (6.13 lbs)
    • Safety: CE, RoHS, FCC

  • Item Includes:

    • Installation guide
    • Rack mounting brackets
    • External universal power supply

  • Warranty:

    • 10 Year

  • GTIN:

    0846352006327
