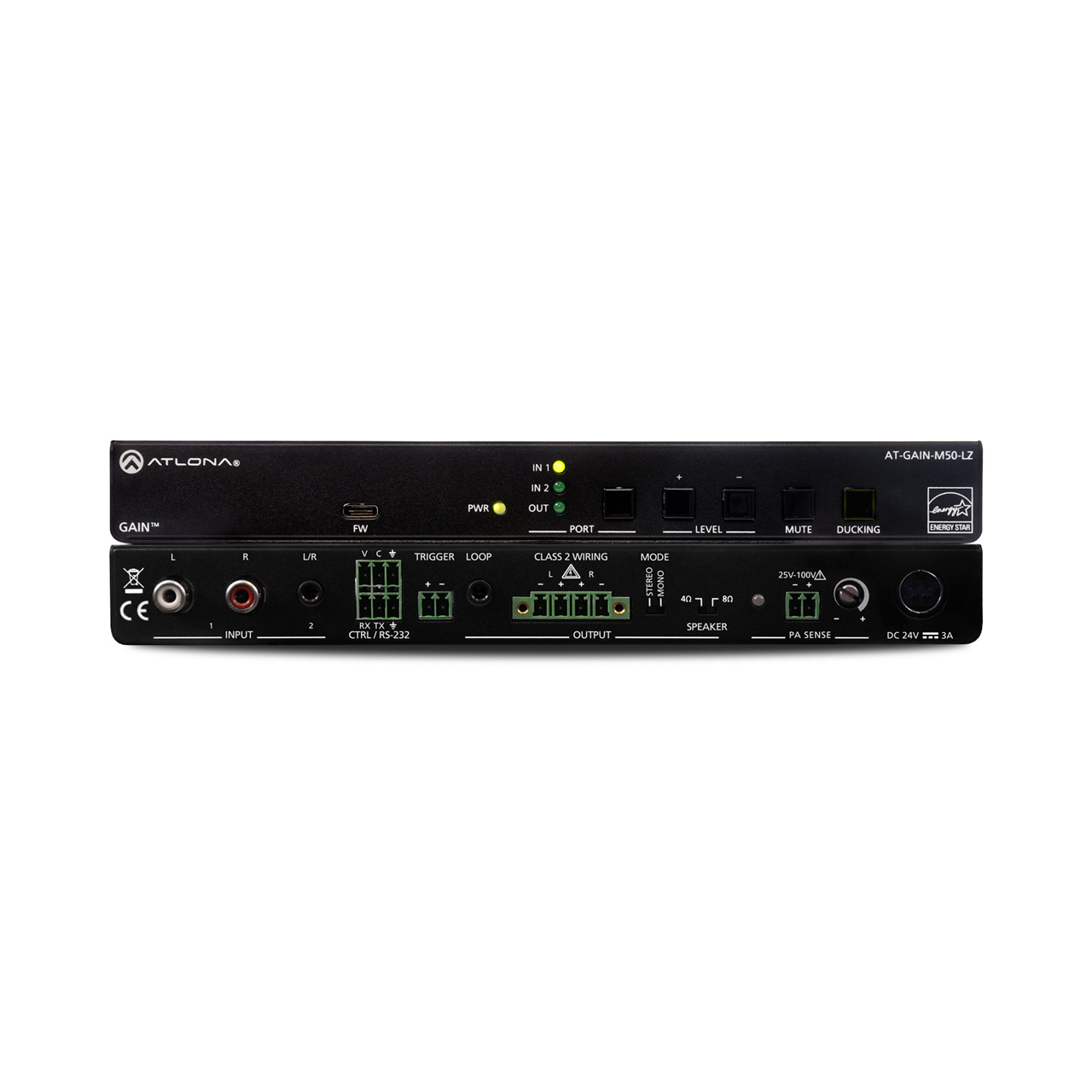

Atlona AT-GAIN-M50-LZ Two-Input 50 Watt Low Impedance Mixer Amplifier

ITEM #: ATNO-GAIN-M50-LZ MFG #: AT-GAIN-M50-LZ

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$450.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AT-GAIN-M50-LZ - Overview

The Atlona AT-GAIN-M50-LZ is a two-input mixer amplifier designed for low impedance education and commercial applications. The amplifier delivers either two channels of 25 watts each into 4 or 8 ohms, or a single channel of 50 watts. The GAIN-M50-LZ features two unbalanced stereo audio inputs on RCA and 3.5 mm connections with independent level control for each. An unbalanced 3.5 mm output allows the mixed signal to be passed to an assistive listening system or separate amplifier.

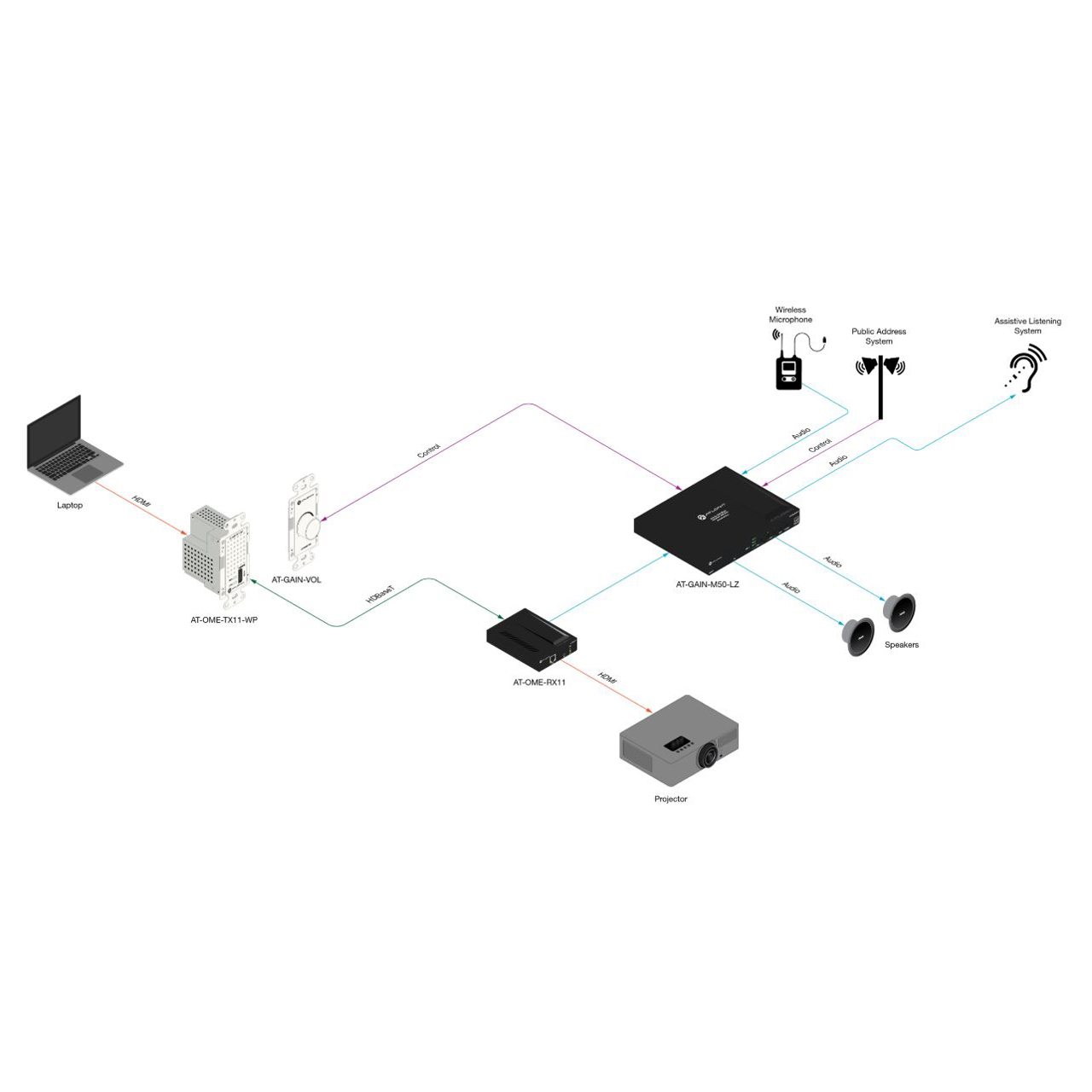

Applications Include:
- Classrooms - Distribute lesson audio to speakers in the room, lower program audio when teacher speaks in microphone, mute audio for PA announcements.
- PA Mute - The audio output of the switcher can be muted when an announcement is detected on the school public address system or via contact closure from a third-party system.
- Line Output - In addition to the amplifier, all switcher audio is also routed to the loop output which can be connected to an assistive listening system

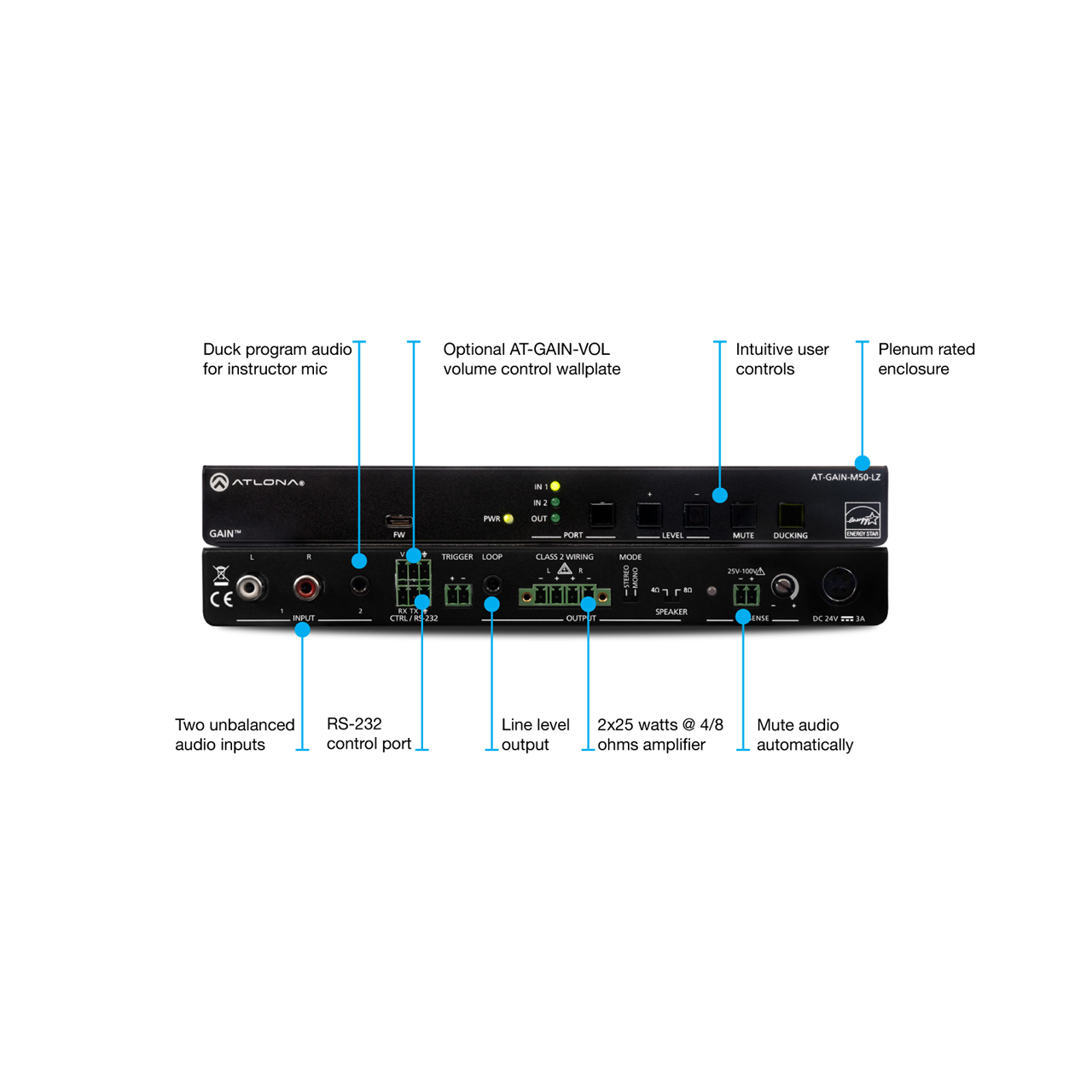

  • Features:

    • Two-Input mixer amplifier
    • Unbalanced stereo line level inputs available on RCA or 3.5 mm connectors
    • 2 x 25 watts @ 4/8 ohms amplifier (stereo) or 1 x 50 watts @ 4/8 ohms (bridged)
    • Unbalanced line level output allows the mixed signal to be passed to an assistive listening system or separate amplifier
    • Ducking lowers the level of input one when audio is present on input two
    • Supports audio mute with trigger contact or PA sense so announcements can be heard clearly
    • UL 2043 plenum rated for installation in air-handling spaces
    • Energy Star qualified
    • Two standby modes available for reducing power consumption and energy costs when not in use
    • Compact enclosure for mounting under a desk or table, on the wall behind a display, or in the ceiling
    • RS-232 for configuration and control from Velocity or third-party automation systems
    • User controls for level, mute, ducking, and PA sense
    • Status LEDs for power, port, and PA sense
    • Includes captive screw connectors, screws, mounting brackets, rubber feet, and external universal power supply

  • Specifications:

      Input Signal
    • RCA:3.162Vrms unbalanced, < 0.1% THD
    • 3.5mm Stereo Jack: 1Vrms unbalanced, < 0.1% THD

      Output Signal
    • Nominal: 0.316Vrms balanced, 20Hz - 20kHz, < 150Ω
    • Maximum: 3.162Vrms balanced, 20Hz - 20kHz, < 150Ω

      Amplifier
    • Type: Class D
    • Frequency Response: 20Hz - 20kHz, ±2dB
    • THD+N: < 0.1% @ 1kHz and < 0.3% @ 10
    • IMD (ITU-R): < 1%, 100Hz - 15kHz

      RS-232
    • Port: 2x 3-pin captive screw
    • Use: Unit and external device control and configuration
    • Baud Rates: 9600, 19200, 38400, 57600, 115200
    • Data Flow: Bidirectional

      Connectors
    • Input:
      - 2x RCA-type, female, unbalanced: 20kΩ
      - 1x 3.5mm mini-stereo
    • Output: 1x 4-pin, 5.08mm lock-down screw connector
    • CTRL / RS-232: 2x 3-pin captive screw
    • TRIGGER: 1x 2-pin captive screw
    • LOOP: 1x 3.5mm mini stereo
    • PA SENSE 25V - 100V: 1x 2-pin captive screw
    • HUB: 1x USB type C, female
    • DC 24V/3A: 1x 4-pin DIN

      Power
    • Standby Mode: Powers down after 5 - 25 minutes (adjustable) of no signal; complies with ErP power consumption limits of < 0.5W in standby mode
    • Idle Consumption: 3.6W
    • Maximum Power: 64.3W
    • BTU/h:
      - 12.3 (idle)
      - 67.9 (maximum power)
    • Supply:
      - 100V - 240V AC, 50/60Hz
      - Output: 24V/3A DC

      Dimensions and Weight
    • Unit Dimensions: 1.02" x 8.62" x 5.98" (26mm x 219mm x 152mm)
    • Power Supply (AT-PS-243-D4): 1.42" x 1.81" x 4.41" (36mm x 46mm x 112mm)
    • Unit Weight: 1.93lbs (0.88kg)

      Certification
    • Device: CE, RoHS, FCC
    • Power Supply: CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC

  • Item Includes:

    • 1x AT-GAIN-M50-LZ
    • 2x 2-pin captive screw connectors
    • 2x 3-pin captive screw connectors
    • 1x 4-pin captive screw connector
    • 4x Machine screws
    • 4x Rubber feet
    • 2x Mounting brackets
    • 1x 24 V / 3 A power supply
    • 1x AC power cord
    • 1x Insert w/ QR code

  • Warranty:

    • 3 Year Limited Warranty
