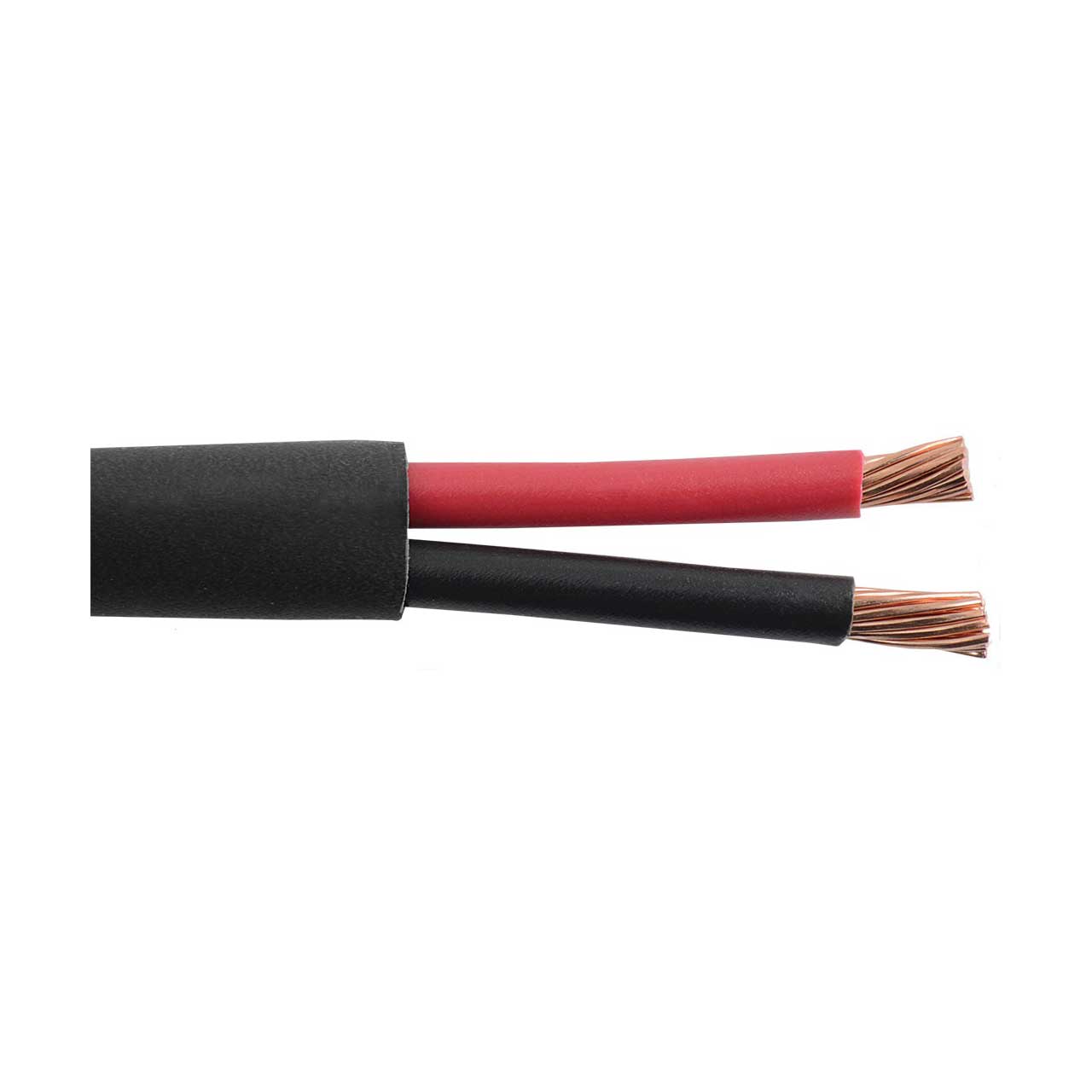

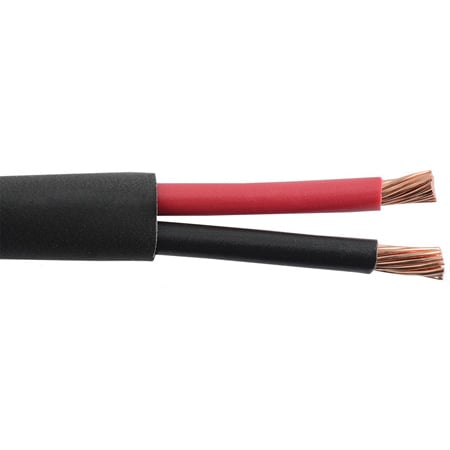

Liberty 16-2C-P-BLK Commercial-Grade General Purpose 16 AWG 2 Conductor Plenum Cable - 1000 Feet (Black)

16-2C-P-BLK - Overview

• Features:

  • Stranded Annealed Bare Copper Conductors
  • Plenum rated PVC Alloy insulation
  • Twisted, unshielded
  • Plenum rated PVC Jacket
  • NEC CMP, CEC CMP FT6, RoHS Compliant


• Specifications:

  • Conductor
  • 16 AWG

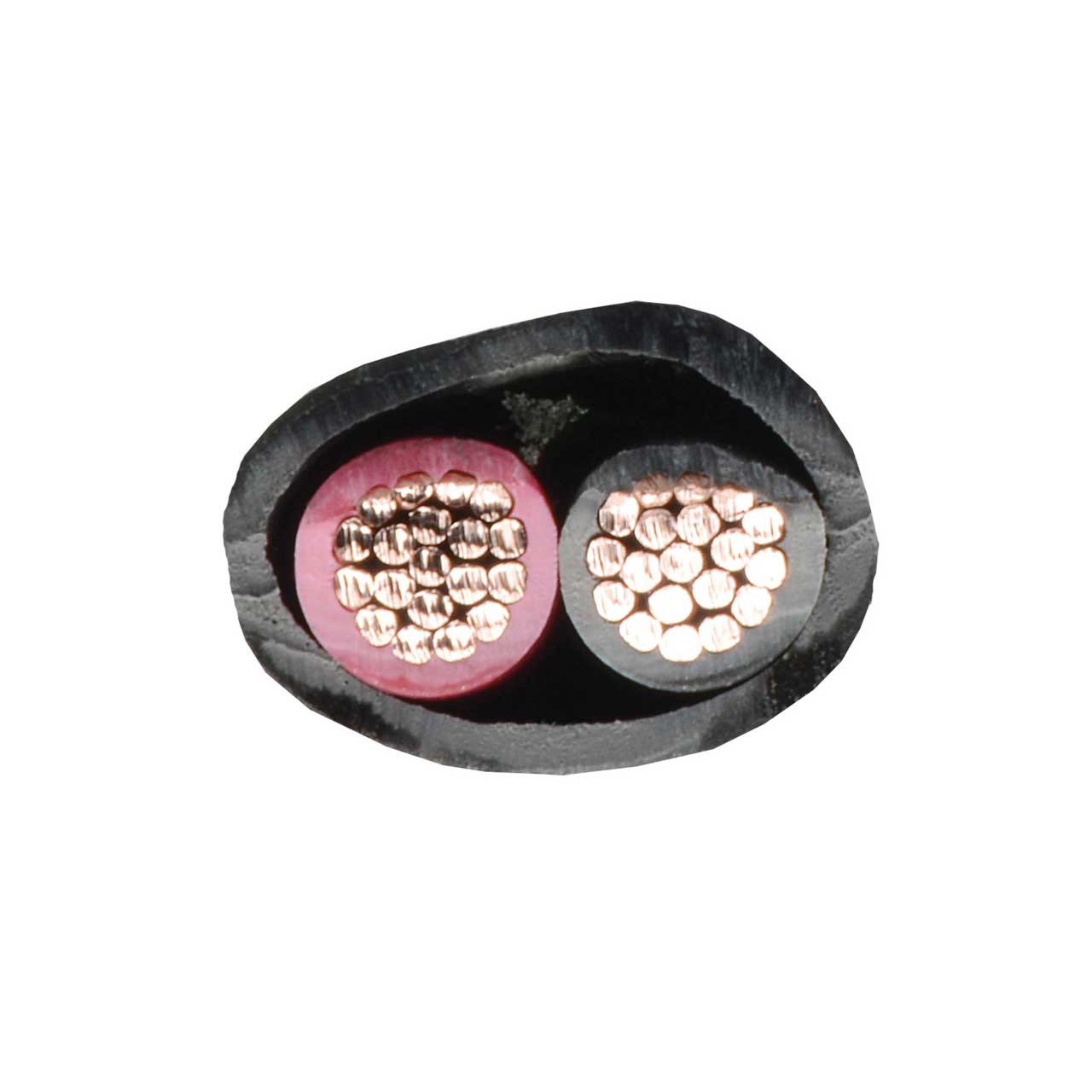

  • 19-strand annealed bare copper conductor
  • 0.056" | 1.42mm (diameter)


  • Electrical
  • DC resistance: 4.38 Ω / 1000' | 14.36 Ω/KM
  • Mutual capacitance: 36.4 pF/FT | 119.29 pF/M
  • Impedance: 57 Ω
  • Inductance: 0.15μH/FT | 0.49μH/M
  • Velocity of Propagation: 55%
  • Voltage rating: 300V
  • Maximum current: 6.25A@25°C


  • Insulation
  • Plenum rated polyvinyl chloride
  • Wall thickness: 0.010" | 0.26mm
  • Diameter: 0.076" | 1.93mm


  • Regulatory
  • NEC: CMP 75°C
  • CEC: CMP FT6 CMG 60°C
  • EU RoHS-2 2011/65/EU Compliant


  • Assembly
  • 2 conductors twisted
  • Lay length: 3.0" | 80mm
  • 4.0 twists per foot | 12.5 twists per meter


  • Installation
  • Pull Tension: 42 Lbs | 187 N
  • Bend radius: 1.82" | 47mm unloaded
  • Bend radius: 3.64" | 94mm loaded
  • Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0°C ambient temperature


  • Applications
  • Plenum commercial speaker audio
  • Plenum 70V speaker
  • Plenum class 2 power


  • Performance:
  • Speaker level audio to 50 feet
  • Jacket: Plenum rated polyvinyl chloride


  • Shield: N/A
  • Construct: Ripcord under jacket
  • Color Code: Black, Red
  • Reel: 1000' | 305M
  • Weight: 28 Lbs/1000' | 42 Kg/KM
  • Color: Black (also available in Natural White)
  • Wall thickness: 0.015" | 0.38mm
  • Final Outside Diameter (inches): 0.182
