Atlona AT-HDVS-150-TX-WP Two-Input Wall Plate Switcher for HDMI and VGA/Audio to HDBaseT

ITEM #: ATNO-HDVS150TXWP MFG #: HDVS-150-TX-WP

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$430.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


HDVS-150-TX-WP - Overview

The Atlona AT-HDVS-150-TX-WP features an HDMI input plus VGA input with 3.5mm audio connector and a two-gang, US two-gang wall plate. An optional face plate without buttons is also available (AT-HDVS-TX-WP-NB). Designed as a remote input device for the AT-UHD-CLSO-824 matrix switcher, the AT-HDVS-150-TX-WP combines the benefits of a switcher with built-in auto-switching and the advantages of long-distance HDBaseT signal extension over a single cable. HDMI signals up to 4K/UHD @ 60Hz with embedded audio, VGA input signals up to 1920x1200 video, and control signals can be extended up to 230 feet (70 meters). The switcher enables auto display on/off, auto-switching, along with other features. The switcher receives power from the AT-UHD-CLSO-824 using Power over Ethernet. The AT-HDVS-150-TX fits inside any 40 mm deep two-gang electrical box or mud ring and is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.

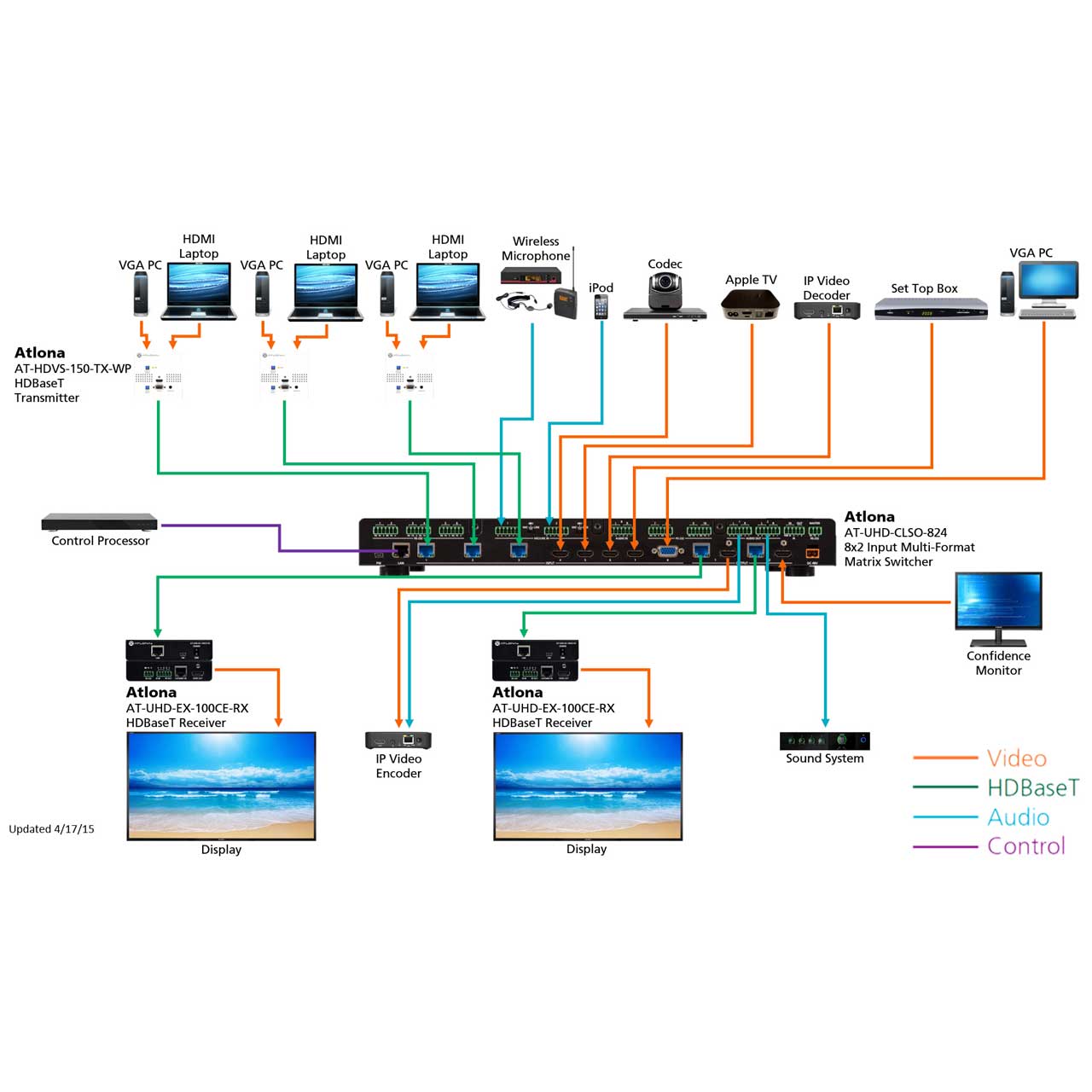

Remote Input Extension
The Atlona AT-HDVS-150-TX-WP switcher expands the input capabilities of the AT-UHD-CLSO-824. Each remote switcher provides input access for up to two devices with controls for input selection and can control the power state of a display or projector when used with a third party control system. The HDVS series is designed to smooth the transition from analog to digital displays, allowing advanced HDMI display devices to be used with legacy VGA sources. The series also adds the simplicity and performance of HDBaseT technology to eliminate multiple cable runs and signal degradation that can occur with long transmission lines. Cost-effective and easy-to-terminate category cable provides additional integrator benefits.

Automatic Display Control
The AT-HDVS-150-TX-WP allows display control using RS-232 signals. When a switcher is integrated with a display, the AT-HDVS-150-TX-WP forces the display to power on automatically when a laptop is connected. At the end of the presentation, when the presenter disconnects the laptop, the AT-HDVS-150-TX-WP forces the display to power off. Ease of presenter interaction with the system and the savings incurred by auto-display shutdown provide a significant return on investment.

RS-232
Many displays including projectors, commercial flat panel displays, and some consumer displays can be controlled using the RS-232 signal directly from the switcher. The switcher is able to send commands using RS-232 for automatic display control to compatible displays.

Reliable Auto-Switching
Automatic input selection on the AT-HDVS-150-TX-WP detects an active video signal, rather than looking for the 5-volt, hot plug signal. This means that devices such as DVRs, DisplayPort adaptors and other devices that keep the 5-volt hot, no longer trigger the automatic input selection. This gives far more reliable performance with these products.

  • Features:

    • US, 2-Gang Wall Plate

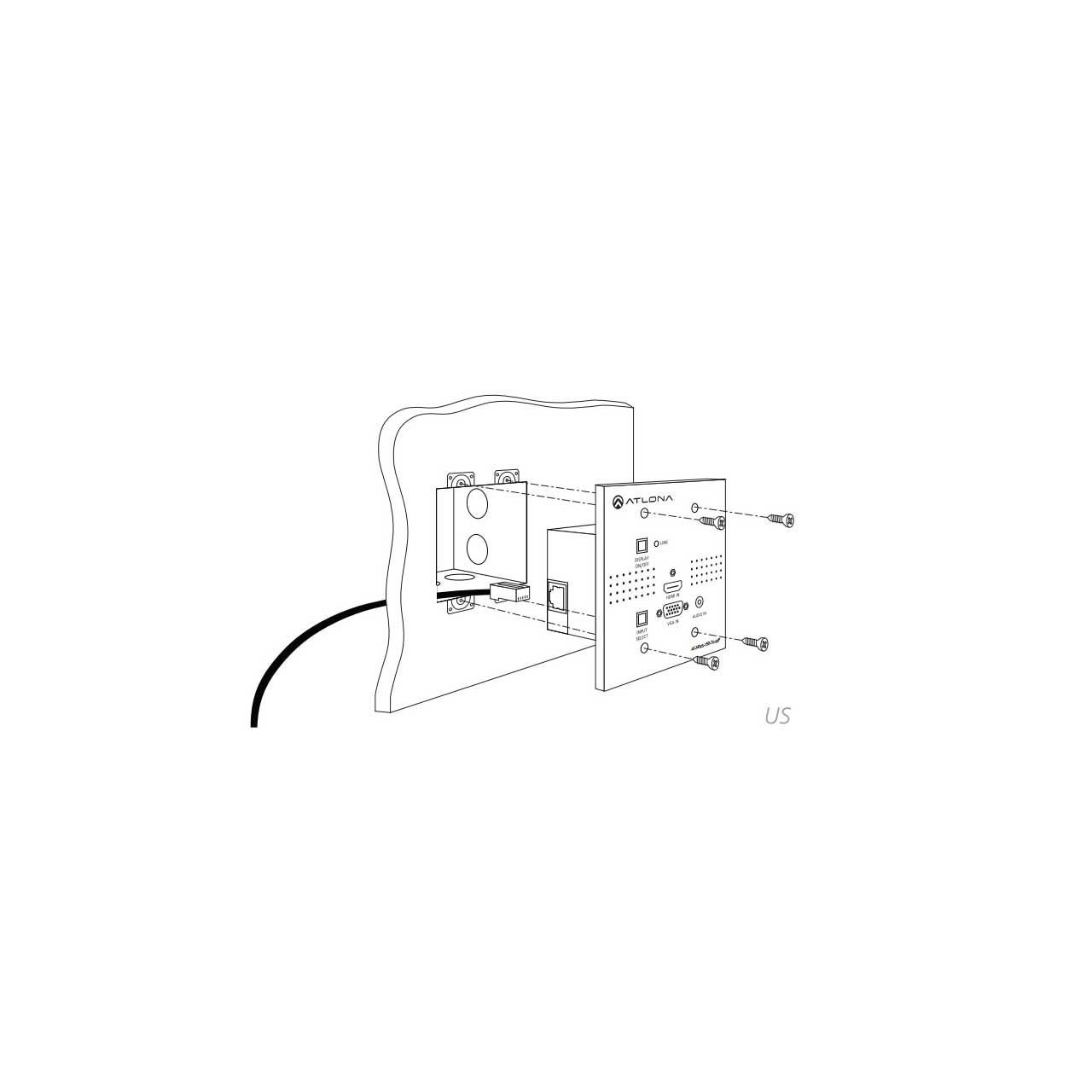

    • Shallow, 1.5 in (40 mm) deep wall plate simplifies integration with recessed RJ-45 connector
    • Attractive alternative to table-top boxes for placement near presenter's station

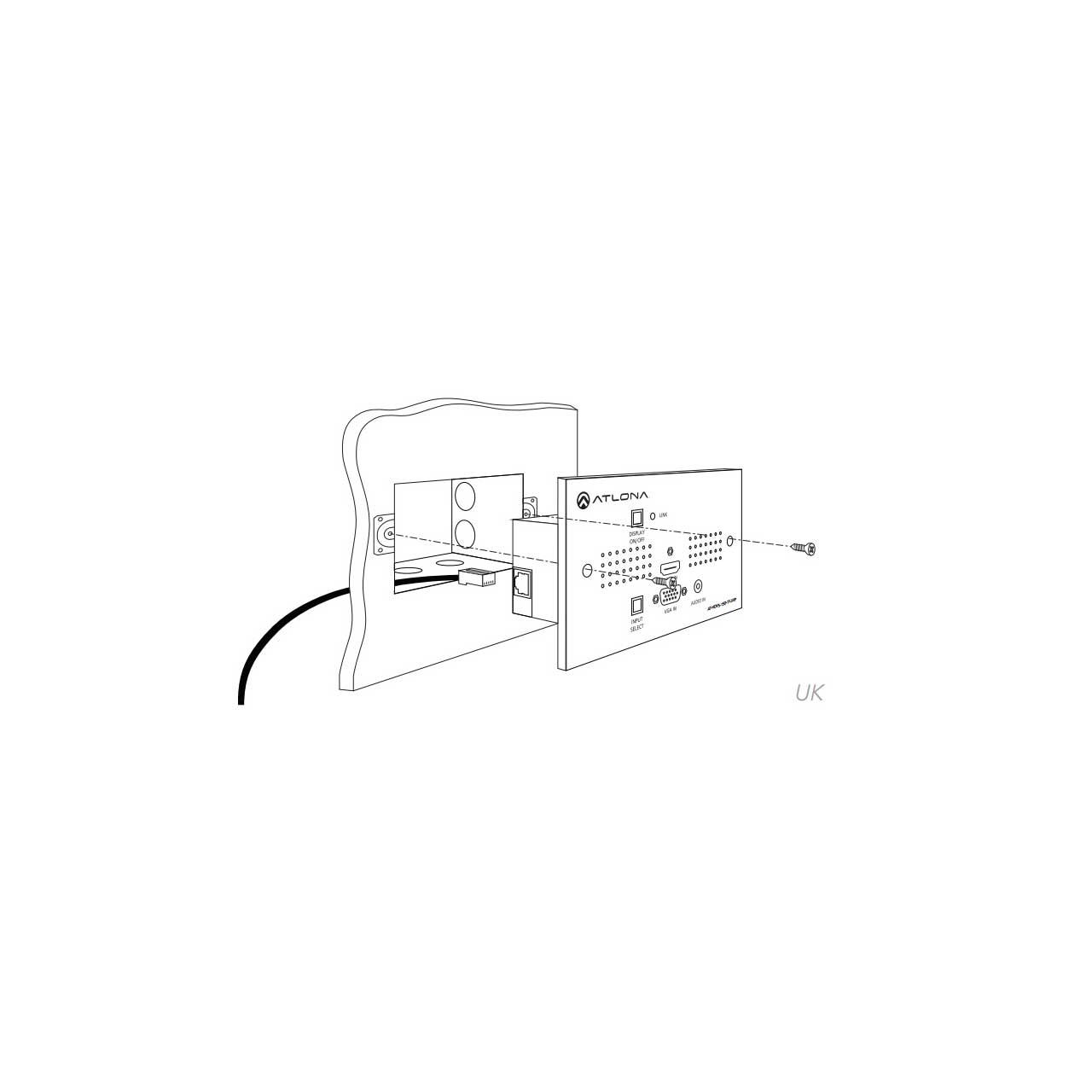

    • Optional UK version available: AT-HDVS-150-TX-WP-UK

      2x1 HDBaseT Switcher

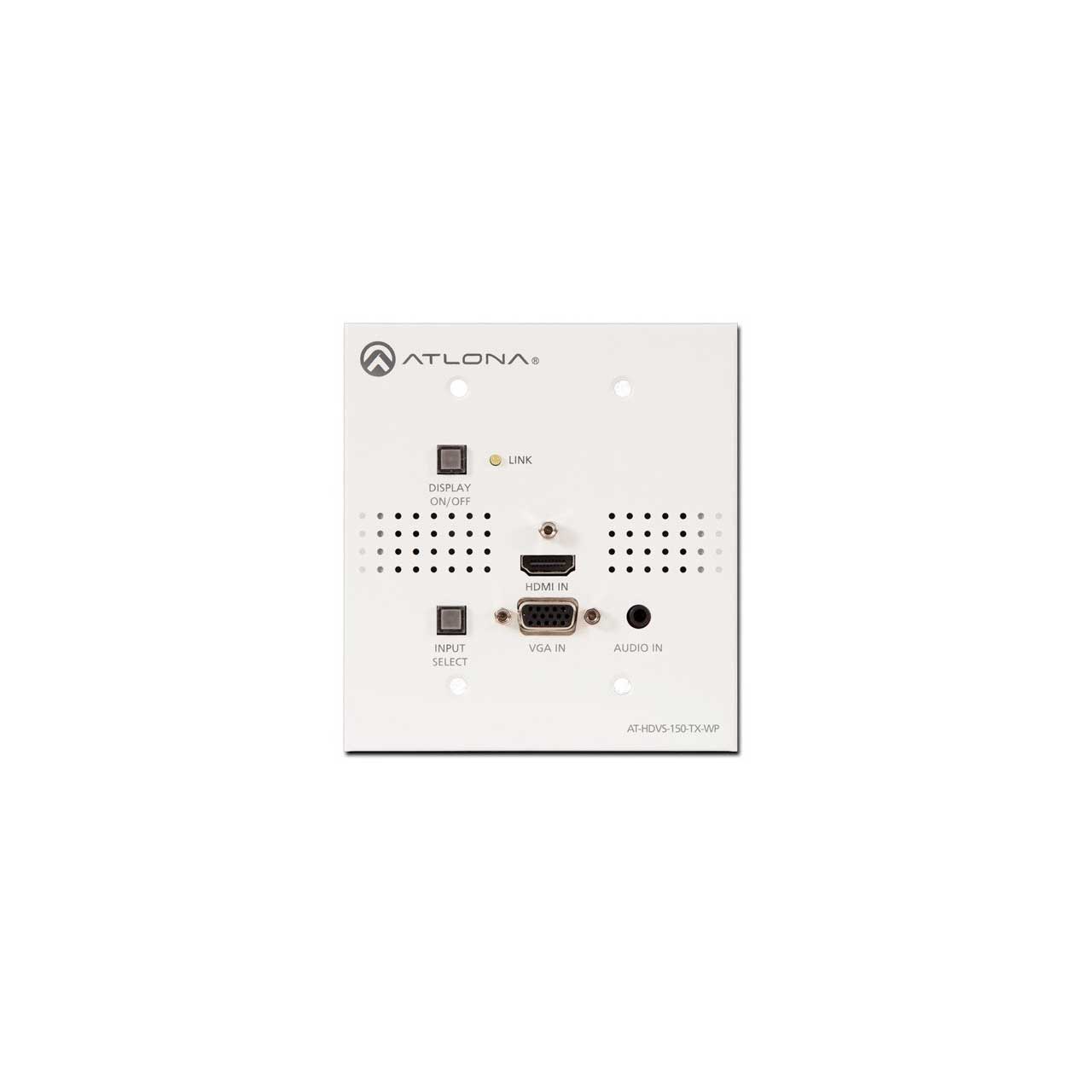

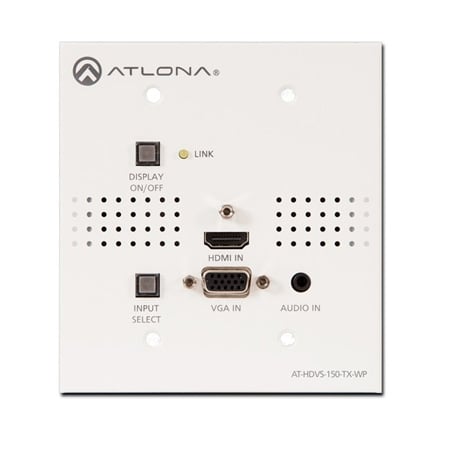

    • Features an HDMI input plus VGA input with 3.5mm audio connector
    • Allows advanced HDMI display devices to be used with legacy VGA sources

      Long Distance HDMI Extension
    • Transmits AV signals up to 230 ft (70m) @ 1080P and 130 ft. (40m) @ 4K/UHD using CAT6a/7 cable
    • Uses easy-to-integrate category cable for low-cost, reliable system installation

      Automatic Display Control
    • Automatically changes projector power state based on active or standby mode of switcher. Control signals transmitted via RS-232
    • Eliminates need for complex control system in AV systems

      Automatic Input Selection Using Video Detection Technology
    • Selects active input when sources are connected or if there is a change in source power status
    • Eliminates need for complex control system in small AV systems

      Front panel display on/off control
    • Remotely controls display power state; provides alternate `Display Mute' mode
    • Eliminates need for manual operation of display or use of IR remote control

      Front panel input select button
    • Overrides auto-switching when two active sources are present
    • Simple manual control allows presenter to maintain control of AV system

      Optional "No Button" US faceplate
    • AT-HDVS-TX-WP-NB Accessory Blank Face Plate
    • Allows input control only from 3rd party switcher
    • Allows the presenter to control the meeting

  • Specifications:

    • Resolution
    • Video: 4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz*, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0*
    • Color Depth: 8-bit, 10-bit, 12-bit

      Audio
    • Analog IN: PCM 2Ch
    • HDMI IN & HDBaseT OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit

      Distance
    • CAT5e/6 @ 4K: up to 115 feet
    • CAT6a/7 @ 4K: up to 130 feet
    • CAT5e/6 @ 1080p: up to 197 feet
    • CAT6a/7 @ 1080p: up to 230 feet
    • HDMI IN/OUT @ 4K: up to 15 feet
    • HDMI IN/OUT @ 1080p: up to 30 feet

      Signal
    • Bandwidth: 10.2 Gbps
    • CEC: Yes
    • HDCP: 1.4

      Temperature
    • Operating: 32°F to 122°F
    • Storage: -4°F to 140°F
    • Humidity: 20 to 90% non-condensing

      General
    • Power Consumption: 18.7W (when paired)
    • Wall: 2 Gang, 40mm (1.5 inch) deep
    • Weight: 0.37kg, 0.82lbs
    • Certification: CE, FCC

  • Item Includes:

    • 1 x AT-HDVS-150-TX-WP
    • 1 x Wall plate covers (US)
    • 4 x US wall plate screws
    • 2 x UK wall plate screws
    • 1 x User manual

  • Warranty:

    • 10 Years

  • GTIN:

    0846352004781
