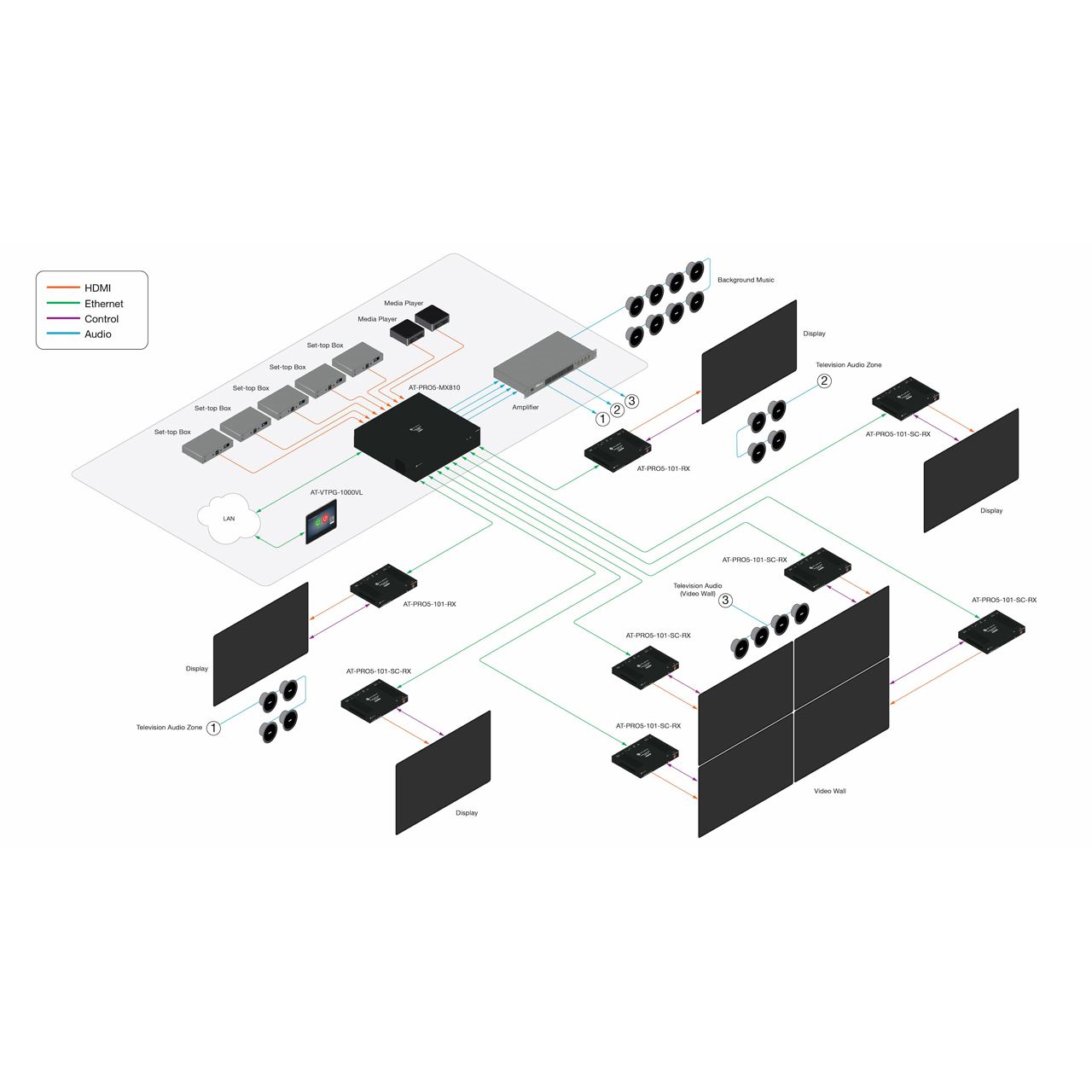

Atlona AT-PRO5-101-SC-RX 4K SDVoE Receiver with Scaler for use with AT-PRO5-MX810 8x10 AV Matrix Switcher

AT-PRO5-101-SC-RX - Overview

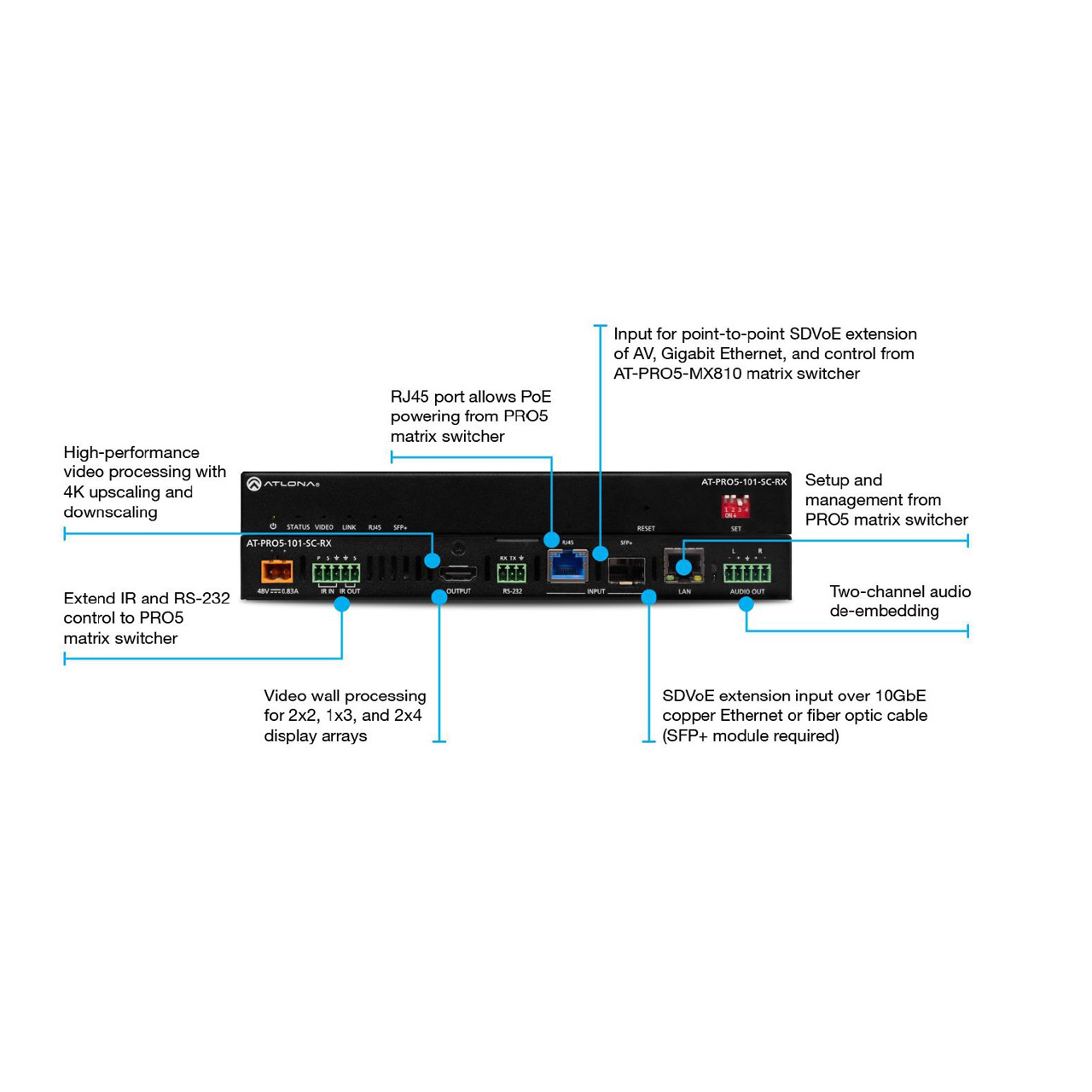

• Features:

  • Video and Embedded Audio
  • Gigabit Ethernet
  • Bidirectional IR and RS-232 control signals
  • Two Channel Audio De-embedding
  • Analog Audio Output with Volume Control
  • HDCP 2.3 Compliant
  • Video Wall Processing for 2x2, 1x3, and 2x4 display arrays


• Specifications:

  • Video
  • Signal:
    - Input: SDVoE (RJ45, SFP+)
    - Output: HDMI
  • Copy Protection: HDCP 1.4 / 2.2 / 2.3
  • Pixel Clock: 600 MHz
  • UHD/HD/SD:
    - 4096x2160 @ 60/50/30/25/24 Hz
    - 3840x2160 @ 60/50/30/25/24 Hz
    - 1920x1080p @ 60/59.9/50/30/29.97/25/ 24/23.98 Hz
    - 1920x1080i @ 30/29.97/25 Hz
    - 1280x720p @ 60/59.94/50 Hz
    - 720x576p @ 50 Hz
    - 720x576i @ 25 Hz
    - 640x480p @ 60/59.96 Hz
    - 640x480i @ 30 Hz
  • VESA
    - 2560x1600
    - 2048x1536
    - 1920x1200
    - 1680x1050
    - 1600x1200
    - 1440x900
    - 1400x1050
    - 1366x768
    - 1360x768
    - 1280x1024
    - 1280x800
    - 1152x864
    - 1024x768
    - 800x600
    - 640x480
  • Scaler (HDMI Output) IN: 4K@24 Hz, 4K@30 Hz, 4K@60 Hz
  • Scaler (HDMI Output) OUT: 1080p@24 Hz, 1080p@30 Hz, 1080p@60 Hz
  • Scaler Pass-Through (HDMI Output) IN/OUT: 4K @ 60 Hz
  • Color Space: YUV, RGB
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit
  • HDR: HDR10, Hybrid-Log Gamma (HLG), and Dolby Vision @ up to 60 Hz

    Audio
  • HDMI Pass-Through Formats: LPCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X
  • Bit Depth: Up to 24 bits
  • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

    Analog Audio
  • Format: Stereo 2-Channel
  • Type: Balanced Audio

    Ethernet
  • Port: 1x RJ45
  • Speeds: 10/100/1000 Mbps
  • Addressing: DHCP, Static, APIPA

    RS-232
  • Port: 1x 3-pin captive screw, TX, RX, GND
  • Use: Pass-through from AT-PRO5-MX810
  • Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
  • Data Flow: Bidirectional

    CEC
  • Ports: 1x HDMI OUT, Type A, 19-pin female
  • Triggering: IP, RS-232, and built-in web server

    Resolution/Distance
  • HDMI IN/OUT (4K/UHD): 15Ft (5m)
  • HDMI IN/OUT (1080p): 30Ft (10m)
  • CAT6a/7 (4K/UHD): 330Ft (100m)
  • CAT6a/7 (1080p): 330Ft (100m)
  • SFP+ (4K/UHD): 6.2 Miles (10km)
  • SFP+ (1080p): 6.2 Miles (10km)

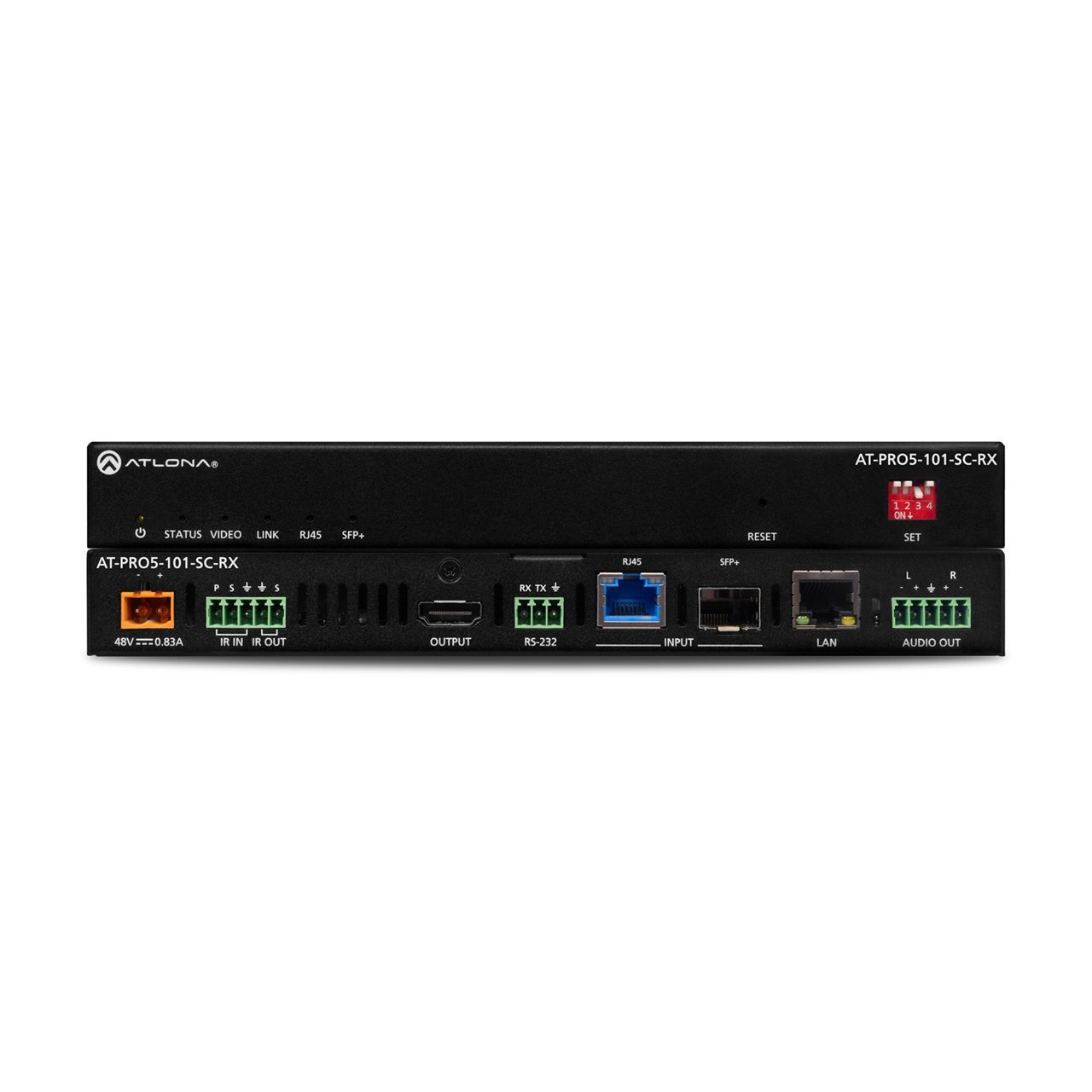

    Connectors
  • Output: 1x HDMI, Type A, 19-pin female
  • Input:
    - 1x RJ45
    - 1x SFP+ cage, female
  • RS-232: 1x 3-pin captive screw
  • LAN: 1x RJ45, 1000Base-T
  • Audio Out: 1x 5-pin captive screw, balanced / unbalanced, 2-channel
  • IR IN / IR OUT: 1x 5-pin captive screw
  • 48V / 0.83A: 1x 2-pin captive screw

    Environment
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating Humidity (RH): 20% to 90%, non-condensing
  • Maximum Operating Altitude: 2000 meters

    Power
  • Consumption (idle): 8.2W
  • Consumption (maximum): 10.14 W
  • Consumption (operating): 10.14 W
  • BTU/h (idle): 27.96
  • BTU/h (maximum): 34.58
  • BTU/h (operating): 34.58
  • External Power Supply (optional): AT-PS-48083-C

    Physical
  • Dimensions: 0.98" x 8.46" x 5.51" (25mm x 215mm x 140mm)
  • Power Supply: 1.38" x 4.45" x 1.93" (35mm x 113mm x 49mm)
  • Weight: 2.76 lbs (1.kg)

    Certification and Compliance
  • Device: CE, FCC, RoHS
  • Power Supply: CE, FCC, RoHS, CCC, CB
  • NDAA-889: Yes
  • TAA: No


• Item Includes:

  • 1x Atlona AT-PRO5-101-SC-RX 4K SDVoE Receiver and Scaler
  • 1x 3-pin captive screw connector
  • 2x 5-pin captive screw connectors
  • 1x Insert w/ QR code


• Warranty:

  • 3-Year Limited Warranty
