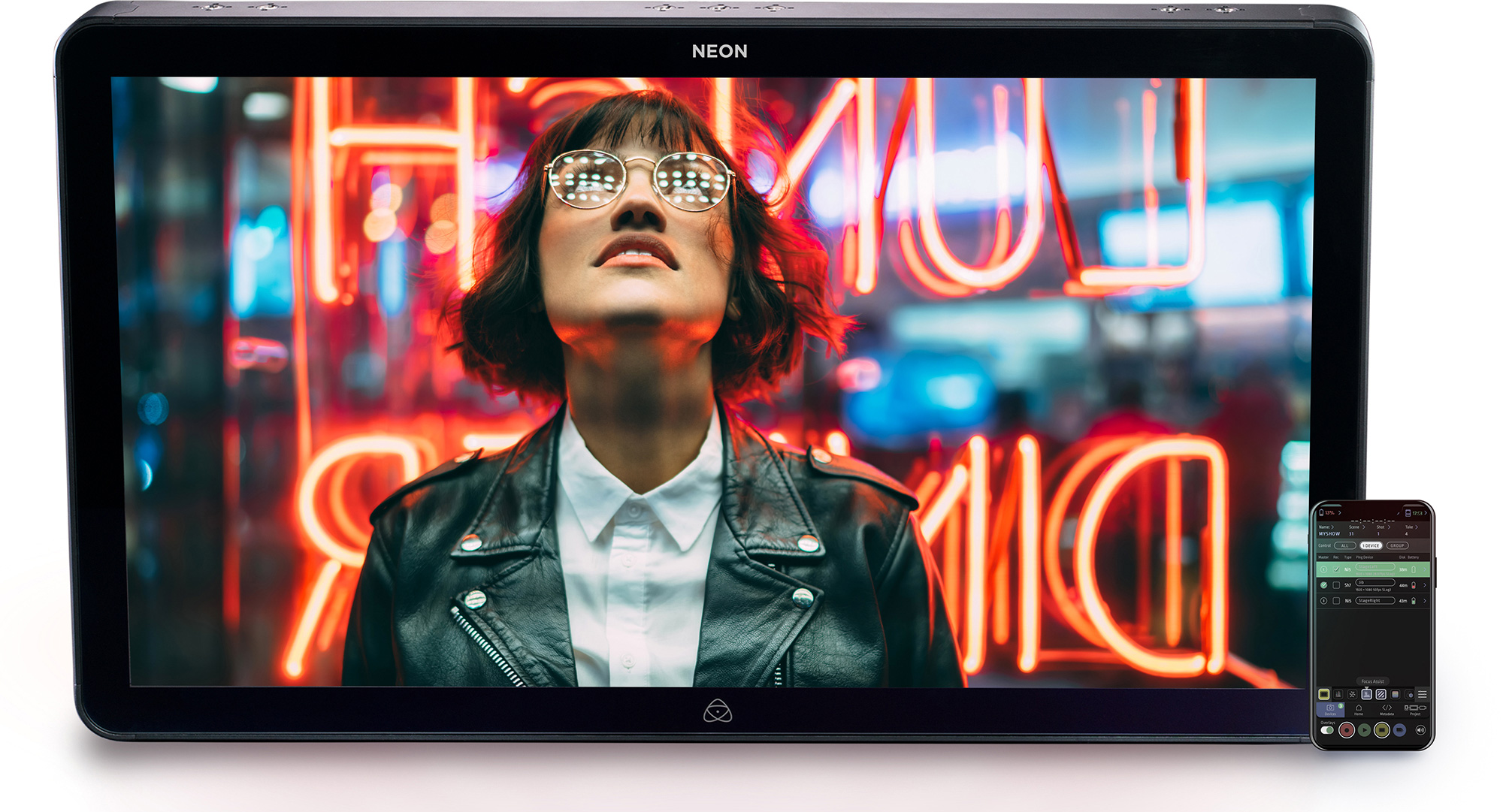

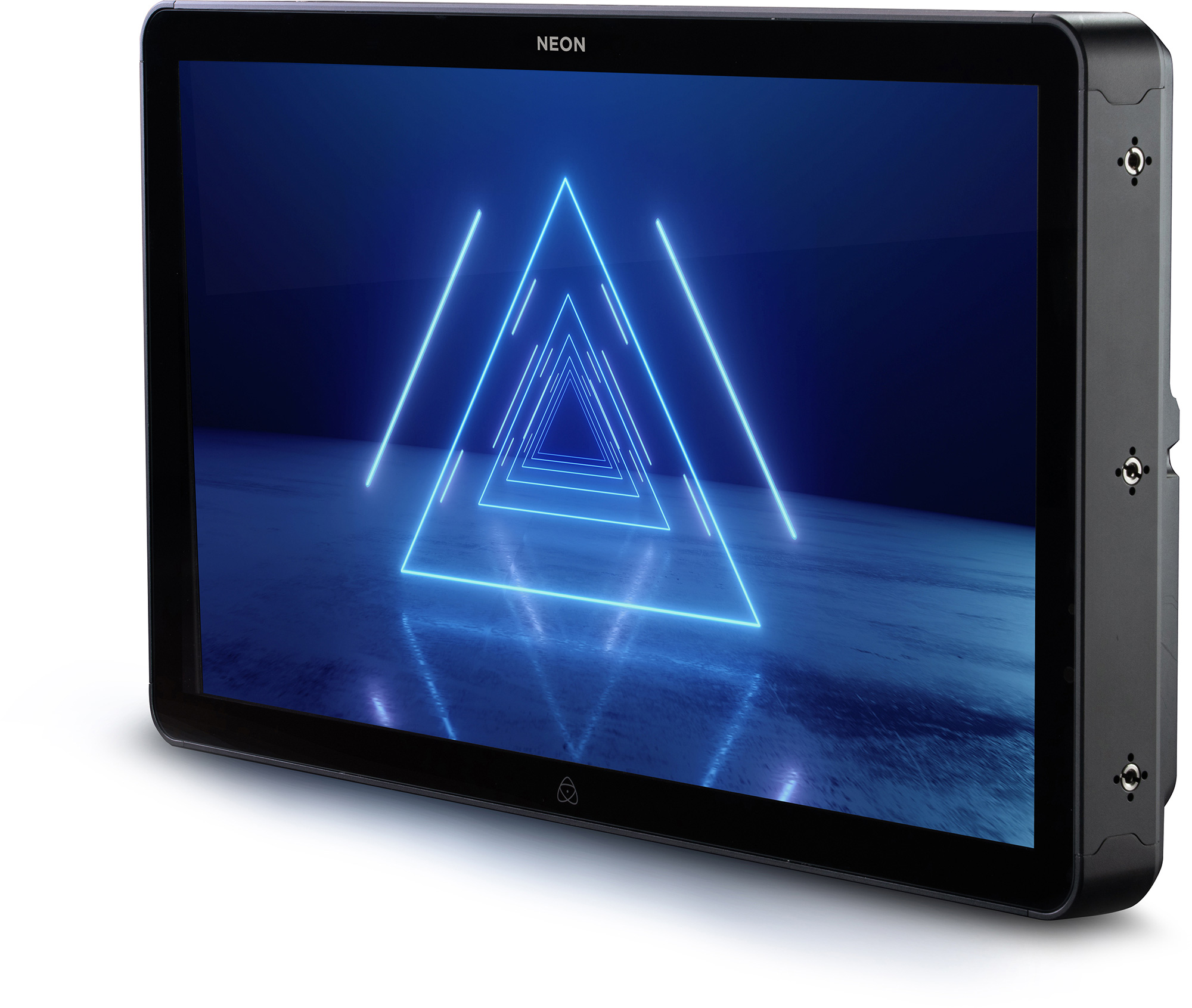

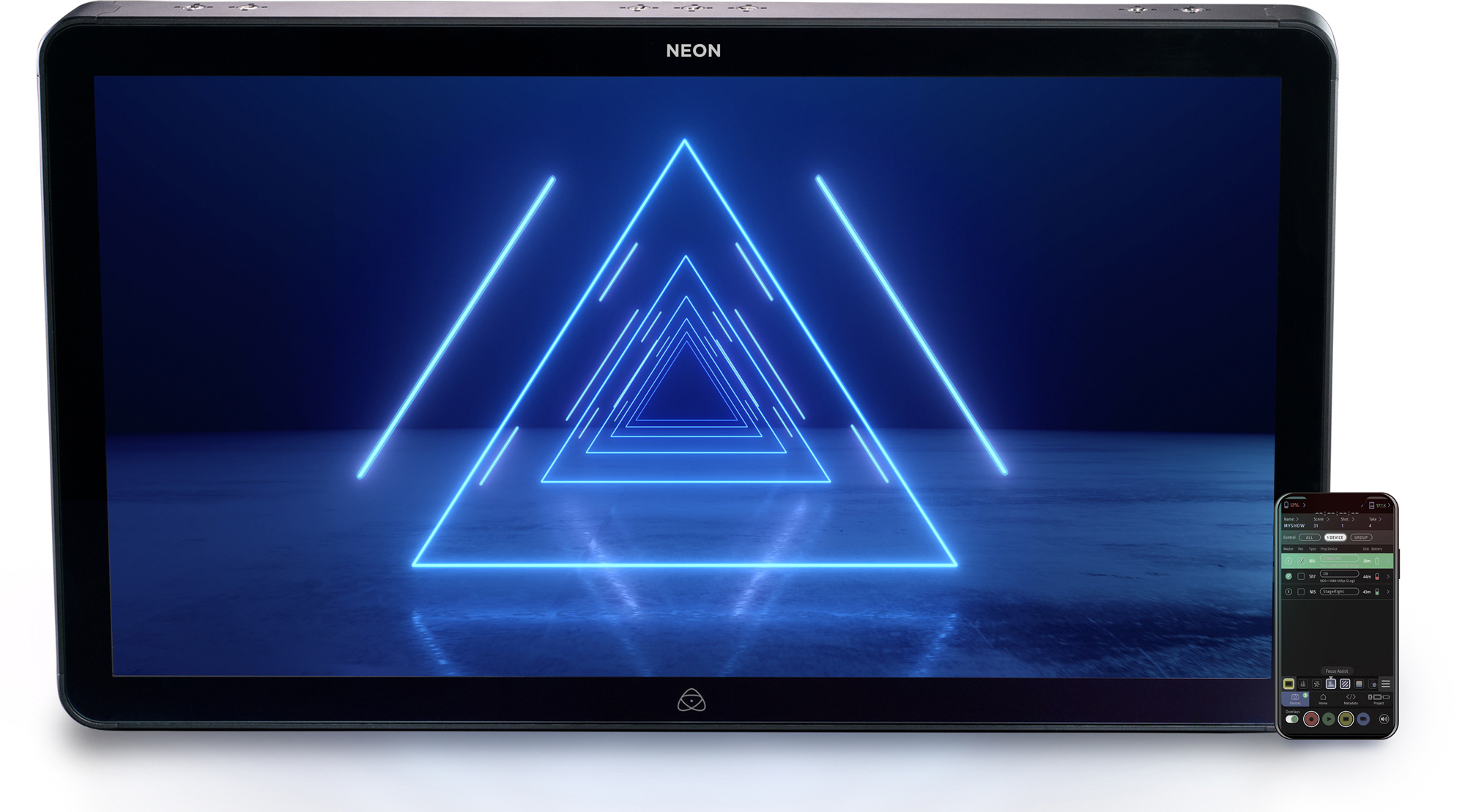

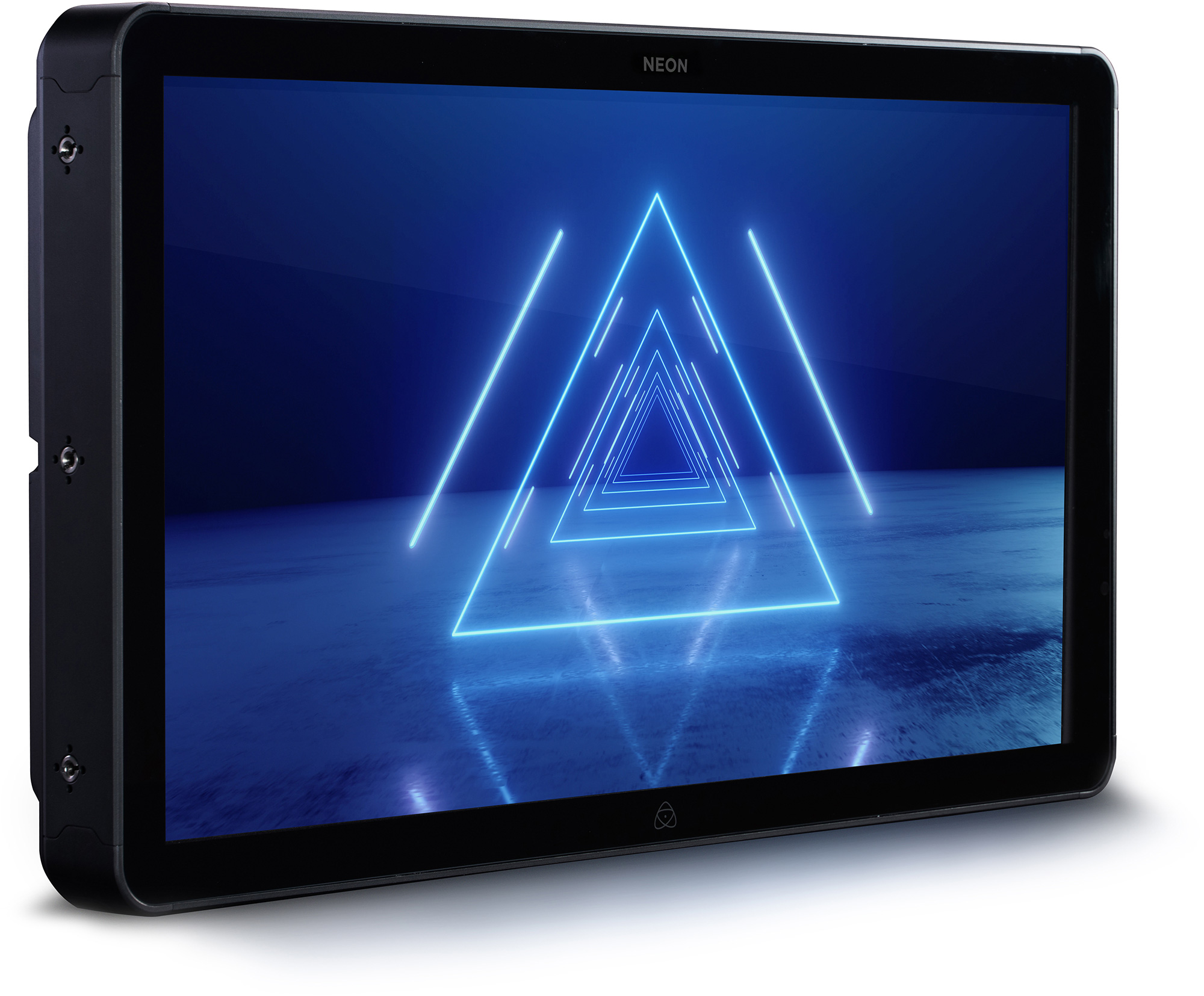

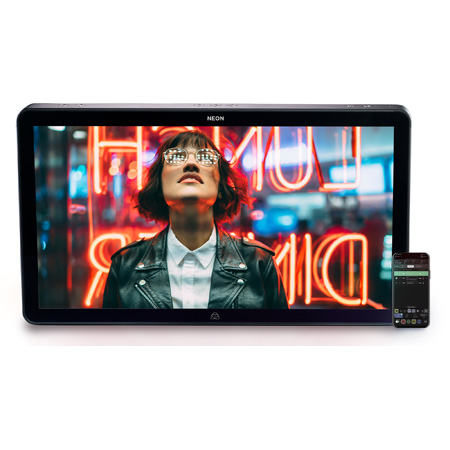

Atomos ATOMNEO241-US Neon 24-Inch Monitor - 4096x2160 Resolution

ITEM #: ATO-ATOMNEO241US MFG #: ATOMNEO241US

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ATO-ATOMNEO241US

ATOMNEO241US - Overview

The Atomos Neon series (ATOMNEO241US) is the beginning of a new journey for filmmakers by bringing together traditional filmmaking roles and pairing it with Atomos innovation and technology. We do this by combining RAW recording with cinema display technology for monitoring, on-screen production checking and review of creative intent, story flow and matching continuity between scenes. Neon streamlines the creative workflow from lens to viewing. We have adopted industry standard formats like ProRes RAW from major camera makers enabling the performance of ProRes and the flexibility of RAW into cinema productions and built for computer finishing. Neon performs real-time Dolby Vision processing to enable down-stream viewing on any Dolby Vision capable TV or monitor. The upshot is an on-set computer replacement merged with an ecosystem of field monitors that saves the creator time by allowing them to make more decisions in the moment of recording, playback, monitoring and editing.

  • Features:

    • Digital filmmaking re-imagined for today's creator
    • Certainty of image for the entire crew
    • Four sizes for flexibility in any production
    • Cinema and Episodic TV Production
    • Atomos App or remote control for simple operation
    • Record 12-Bit RAW, view & deliver accurate Dolby Vision HDR
    • Sync all your Neons together
    • Precision HDR field monitor for the on-set digital darkroom
    • Capture 4K or 8K now, future-proofed for later
    • Expand Neon with AtomX Expansion Modules
    • ProRes RAW - the best of RAW and ProRes combined
    • Built for the toughest production
    • Mount anywhere

  • Specifications:

    • General
    • Neon 24 Weight: 18.95Lbs
    • Master Control Weight: 0.66Lbs
    • Dimensions (WxHxD): 23.38x13.37x2.85"
    • Master Control Unit: 5.94x3.60x1.22"
    • Construction: Aluminum alloy chassis w/ABS Polycarbonate back plate
    • Mounting Points: Full ARRI compatible, 3 Left, 3 Right, 7 Top, 7 Bottom VESA Mount
    • Operating Power: 10-22W TBC
    • Power Adapter: TBC
    • Size: 24"
    • Resolution/PPI: 2048x1080/142ppi
    • Aspect Ratio: 17:9
    • Color Gamut: DCI-P3 100% Coverage, D65 or D93 White Point, Calibrated
    • Look Up Table (LUT) Support: 1D/3D LUTs (.cube format)
    • Anamorphic De-Squeeze: 2x, 1.5x, 1.33x, Panasonic 4:3
    • Calibration: Calibration to DCI-P3 with optional calibration unit
    • User Interface: iOS App via Bluetooth, IR Remote control of focus peaking, exposure, calibration, zoom, waveform monitor, RGB monitor, vector scope

      Dynamic AtomHDR Technology
    • Backlight: Direct LED
    • Zones: 512 direct backlight individual LEDs
    • LEDs: Wide Color Calibrated D65 or D95
    • Bit Depth: True 10bit
    • Color: DCI-P3 100% coverage
    • Brightness: 1000nit (±10%)
    • Control: Dynamic backlight control
    • HDR Conversion: Log/RAW to HLG or PQ

      HDR Monitoring Technology
    • HDR Monitoring: Log/RAW to HLG or PQ
    • SDR Monitoring: Native Rec.709, Log/RAW to Rec.709
    • Supported input Log/Gamma: Sony: SLog/SLog2/SLog3, Canon: CLog/CLog2/Clog3, ARRI: Log CEI160/LogCEI200/LogCEI250/LogCEI320/LogCEI400/LogCEI500/LogCEI640/LogCEI800/LogCEI1000/LogCEI1280/LogCEI1600, Panasonic: Vlog, JVC: JLog1, RED Log3G10/RED LogFilm, FujiFilm: F-log, PQ1000 up to PQ10,000, HLG
    • Supported Input Log/Gamut: Sony: SGamut/SGamut3/SGamut3.cine, Canon: Cinema/DCI P3/DCI P3+, Nikon: NLog, Panasonic: V Gamut, Arri: Alexa Wide Gamut, Rec709/BT.2020, JVC, RED WideGamut/RED DragonColor/DragonColor2/RED Color2/RED Color3/RED Color4
    • Supported Input RAW/Gamma: Sony: SLog/SLog2/SLog3, Canon: CLog/CLog2/Clog3, Panasonic: Vlog, Sony: SGamut/SGamut3/SGamut3.cine, Canon: Cinema/DCI P3/DCI P3+, Nikon: NLog, Panasonic: V Gamut, Video Output: Rec.709, HLG, PQ, LUT
    • Video In/Output Loop Out: HDMI: 1x HDMI 2.0b, SDI: SDI Expansion Module required 2x config. BNC, Signal: Up to uncompressed true 10bit

      Video Signal Conversion
    • HDMI-HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120, 4kUHD/4kDCI 24/25/30/50/60
    • SDI-SDI Expansion Module required: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120, 4kUHD/4kDCI 24/25/30/50/60
    • HDMI-SDI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120, 4kUHD/4kDCI 24/25/30/50/60
    • Note: No simultaneous HDMI out possible
    • Dolby Vision Tunneling: Selectable on HDMI

      Supported Codecs & Frame Rates (Record & Playback)
    • Video to ProRes/DNxHR: Apple ProRes RAW, ProRes HQ, 422, LT AVID DNx, HQX, HQ, SQ, LB, Cinema DNG RAW
    • Resolution/Frame Rate: 4K DCI/UHD 24/25/30/50/60p 2K 24/25/30/50/60/100/120p 1080p 24/25/30/50/60/100/120/200/240p 1080i 50/60i, 720p 50/60p

      Onboard Processing
    • Pull-Down Removal: 24/25/30pSF > 24/25/30p (2:2 pull-down) 60i > 24p (3:2 pull-down)
    • 4K DCI > UHD: Yes: Loop-out & playback
    • 4K UHD Downscaling: Yes: Loop-out & playback
    • HDMI: 2 or 8ch 24bit, camera dependent
    • SDI Expansion Module Required: 12ch 48kHz 24bit
    • Audio: Line/mic in
    • Headphone Out: 3.5mm Headphone out 2ch 48kHz 24bit
    • Built-In Speakers: No

      Remote Start/Stop
    • HDMI: Auto HDMI Trigger, Supported Protocols - Canon, Sony, Atomos Open Standard - Panasonic, Nikon, Olympus, Fuji, Leica; SDI: SDI trigger camera selectable; Genlock/LTC: Yes: Bluetooth/iOS App; Serial Control: LANC control - Slave RS232; Playback: Playback Features: Jog control, slow motion, scheduled, tag-based scheduling

  • Item Includes:

    • 1x 24" Neon Series Unit
    • 1x Master Control Unit
    • 1x IR Remote
    • 1x Master Caddy II
    • 1x 12V-3A AC power supply
    • 1x AtomX SDI Expansion Module
    • 1x Feet
    • 1x Quick Start Guide
    • 1x Road Case

  • GTIN:

    0814164022132
