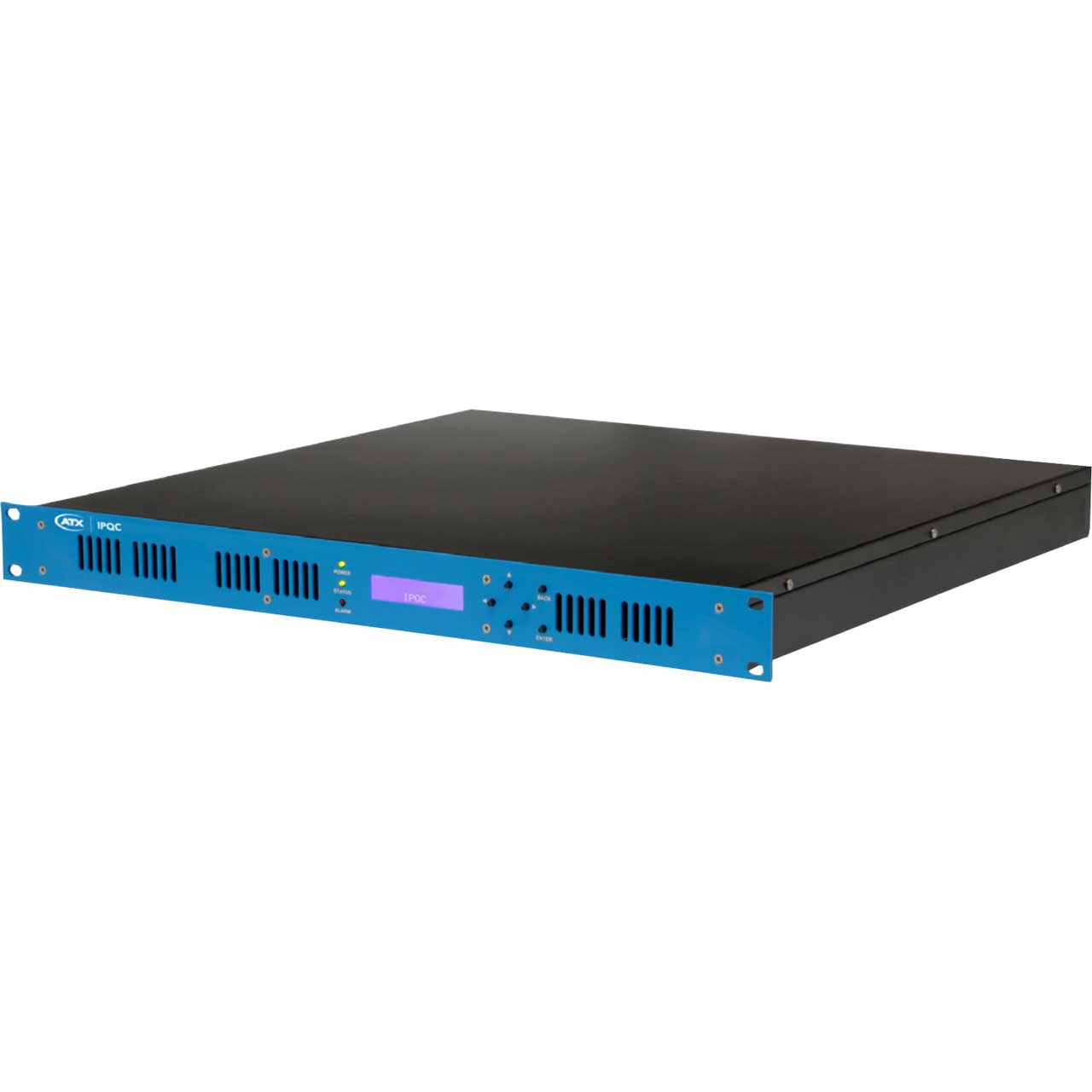

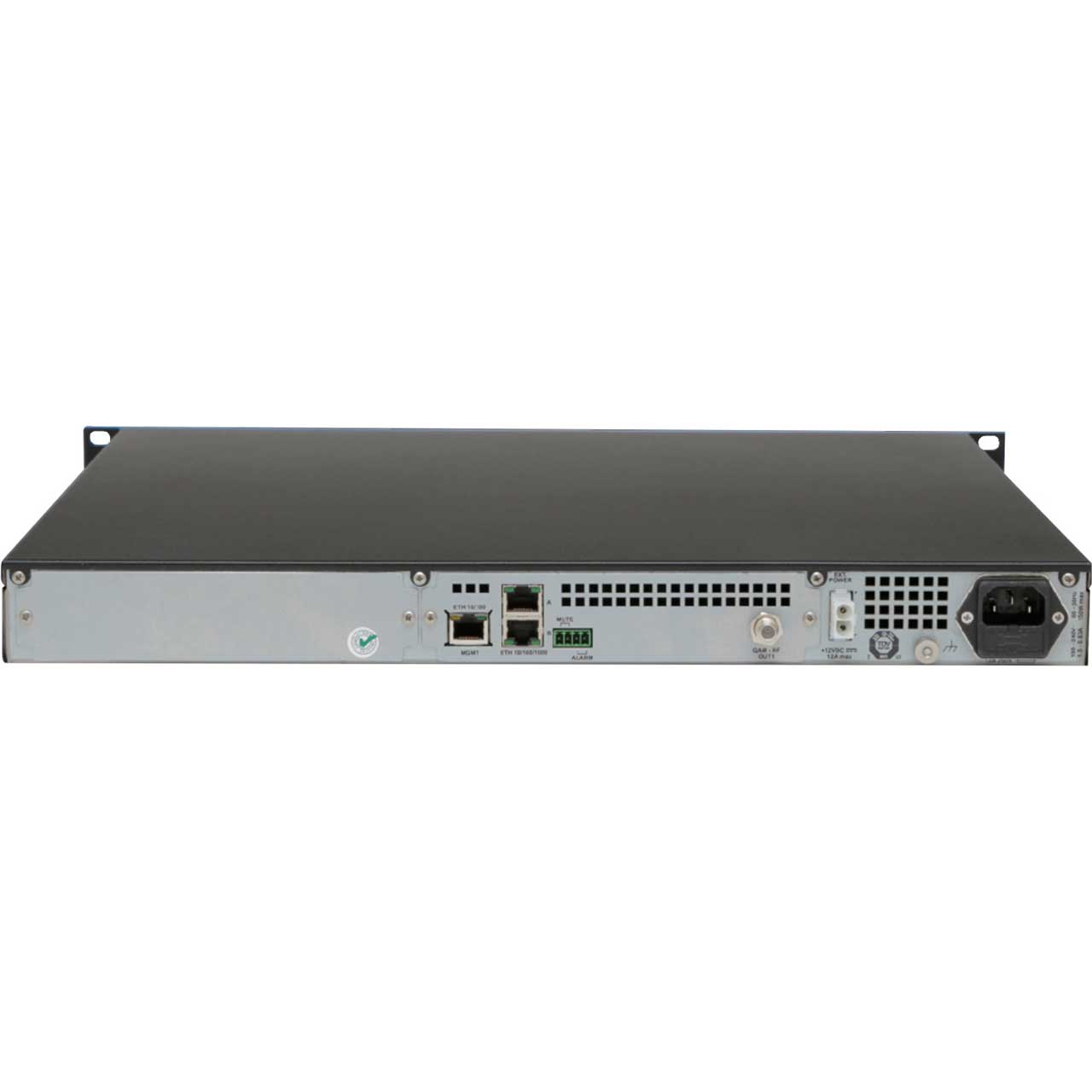

ATX IPQC GbE IP-Input Mux Scrambler EdgeQAM

IPQC - Overview

• Features:

  • Input
  • Two Gigabit Ethernet ports and one 10/100 management interface
  • Up to 48 managed programs from either single-program MPEG-TS streams (SPTS) or multiple-program MPEG-TS streams (MPTS)
  • Support for both multicast and unicast IP streams

    Processing
  • Automatic MPEG-PCR regeneration on managed programs
  • Automatic PID remapping for conflict avoidance on managed programs
  • TSID/program number configuration for PAT/PMT generation
  • Passthru mode allows external MUX/scrambler or large service count for radio stations
  • Bypass for external DVB-SI stream inclusion
  • Simple password-protected Web interface for easy configuration and monitoring
  • Front-panel IP configuration and fault reporting for easy configuration and maintenance
  • Supports DHCP for automatic IP address acquisition
  • Supports DVB-SDT (actual) local generation when there is no external DVB-SI streamer (SPTS only)

    Outputs
  • 12 high-quality QAM channels in Annex A/B (ITU-A, ITU-B)
  • Three independently tunable blocks of four contiguous

    QAM channels
  • 50 MHz to 1002 MHz frequency range
  • 6 MHz or 8 MHz channel size


• Specifications:

  • GbE Inputs
  • Input Connector: 2x RJ-45
  • Ethernet: GbE (1000 Base-T)
  • Addressing/Protocols: Unicast, Multicast
  • MPEG Transport: IPv4-encapsulated (ISO/IEC 13818-1) SPTS or MPTS

    MPTS DMUX
  • Max Services Per IP Stream: 11
  • Max PIDs PER IP Stream: 64

    Scrambler
  • Max Number of Services: 48

    Ethernet Communication Management Port
  • Input Connector Type: 1x RJ-45
  • Ethernet: 10/100 Base-T
  • Protocol Web: (HTTP)

    QAM-RF Outputs
  • Output Frequency Range: 50-1002 MHz
  • RF Channels: 12 (6 MHz or 8 MHz)
  • QAM Modulation Modes: 16, 32, 64,128, 256
  • QAM Types: ITU-A (DISH/DVB), ITU-B (USA/DCII)
  • QAM Symbol Rates: 2.24 to 2.98, 4.85 Msps to 7.0 Msps
  • PCR Restamping: Auto
  • Output Level (Combined,12 Channels): > 32 dBmV
  • Output Attenuation: 0-10 dB (0.5 dB step)
  • Output Level Flatness (50-1002 MHz): ± 0.75 dB
  • Spurious: > 60 dBc
  • Output Connector: 1x 75Ω, F-Female
  • Output Return Loss: > 15 dB

    Internal AC Power Supply
  • Line Voltage: 93 VAC to 254 VAC, 47 Hz to 63 Hz
  • Power Consumption: 40W

    External DC Power Backup
  • Voltage: 12 VDC, ±5% VAC
  • Current: < 6A

    General
  • Dimensions (HxWxD): 1.75 x 19 x 17.5" (4.45 x 48.26 x 44.5cm)
