DXE-CAT-TX1-4K - Overview

The DXE-CAT-TX1 is part of Aurora's expanding Digital Xtreme Series, and one of the new HDBaseT CAT extenders. The DXE-CAT-TX1's powerful design provides usability and features not found anywhere else. Single-sided connections for HDMI, Control and Power provide a cleaner wiring and rack mounting solution. The Patents Pending design allows the system to be powered via an AC adapter from either side! With a single CAT 5e/6/7 cable, the DXE-CAT-S1 can go up to 230ft 1080p 60Hz 48bit color depth with bi-directional RS-232, & IR.

  • Features:

    • Transmit HDMI up to 1080p 60Hz 48bit 230ft over one CAT 5e/6/7 cable
    • HDCP Compliant
    • All connectors on one side for easier installation
    • Bi-directional RS-232 & IR
    • Power both units from TX or RX side with wall power supply (HDBaseT POE)
    • Status LED for all connections on front
    • Various mounting options


  • Specifications:

    • Video
    • HDMI Compliance HDMI 3D
    • HDCP Compliant Yes
    • Distance 230ft [70m]
    • Max Resolution 1080p
    • Color Depth 48bit

    • Connectors

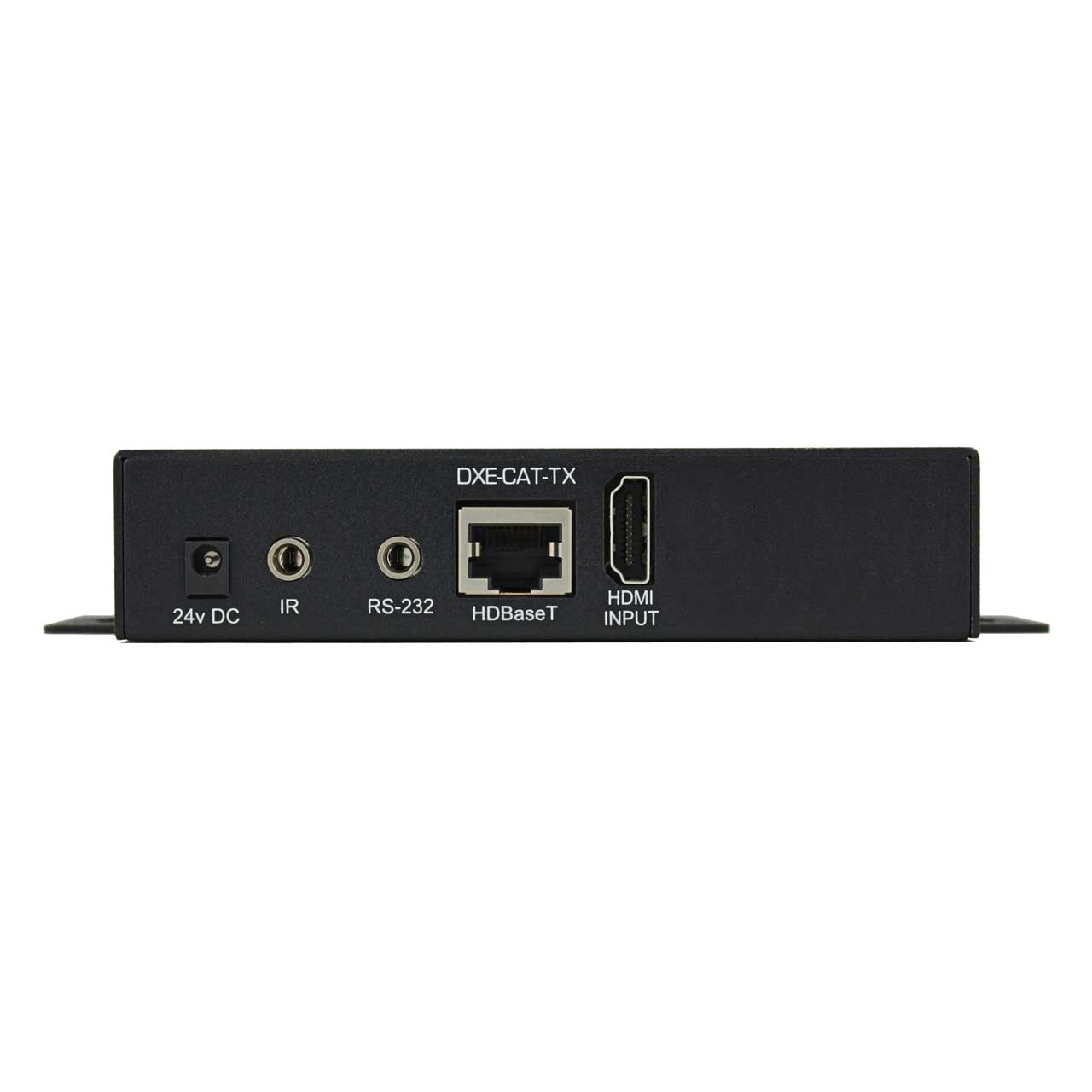

    • TX Connectors (1) HDMI in, (1) HDBaseT, (1) RS-232 3.5mm TRS, (1) IR 3.5mm TRS
    • RX Connectors (1) HDMI in, (1) HDBaseT, (1) RS-232 3.5mm TRS, (1) IR 3.5mm TRS

    • Mechanical
    • Dimensions 4.7" x 3.03" x 1.1" [120 x 77 x 28mm]
    • Weight 0.87lbs [395g]
    • Mounting Wall mounting tabs (included)
    • Rack mount bracket (included)

    • Power
    • Power Supply 24V 0.65A DC 5Watts

    • Environmental
    • Operation Temperature 32~104°F [0~40°C]
    • Storage Temperature -4~140°F [-20~60°C]
    • Relative Humidity 20~90% RH [no condensation]
