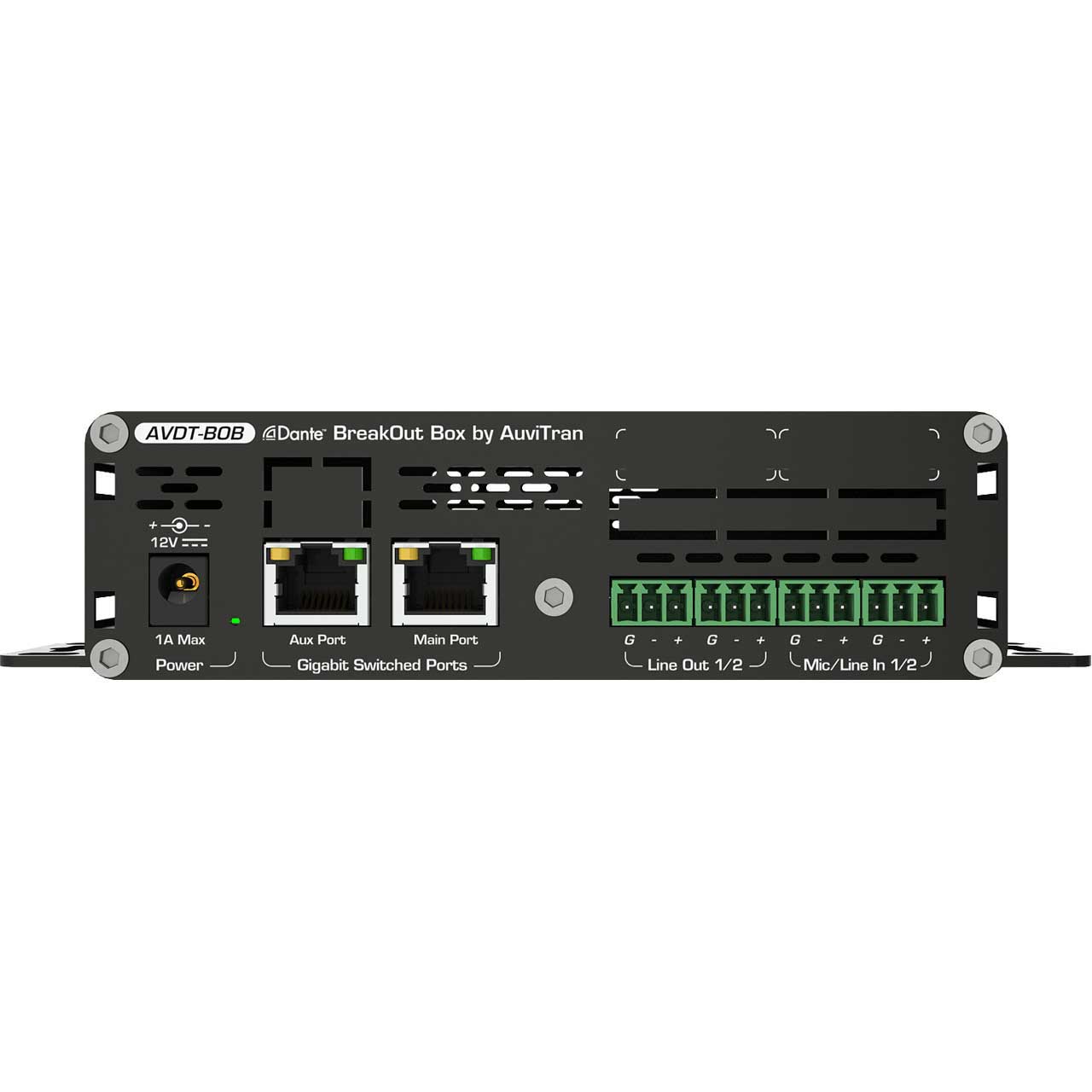

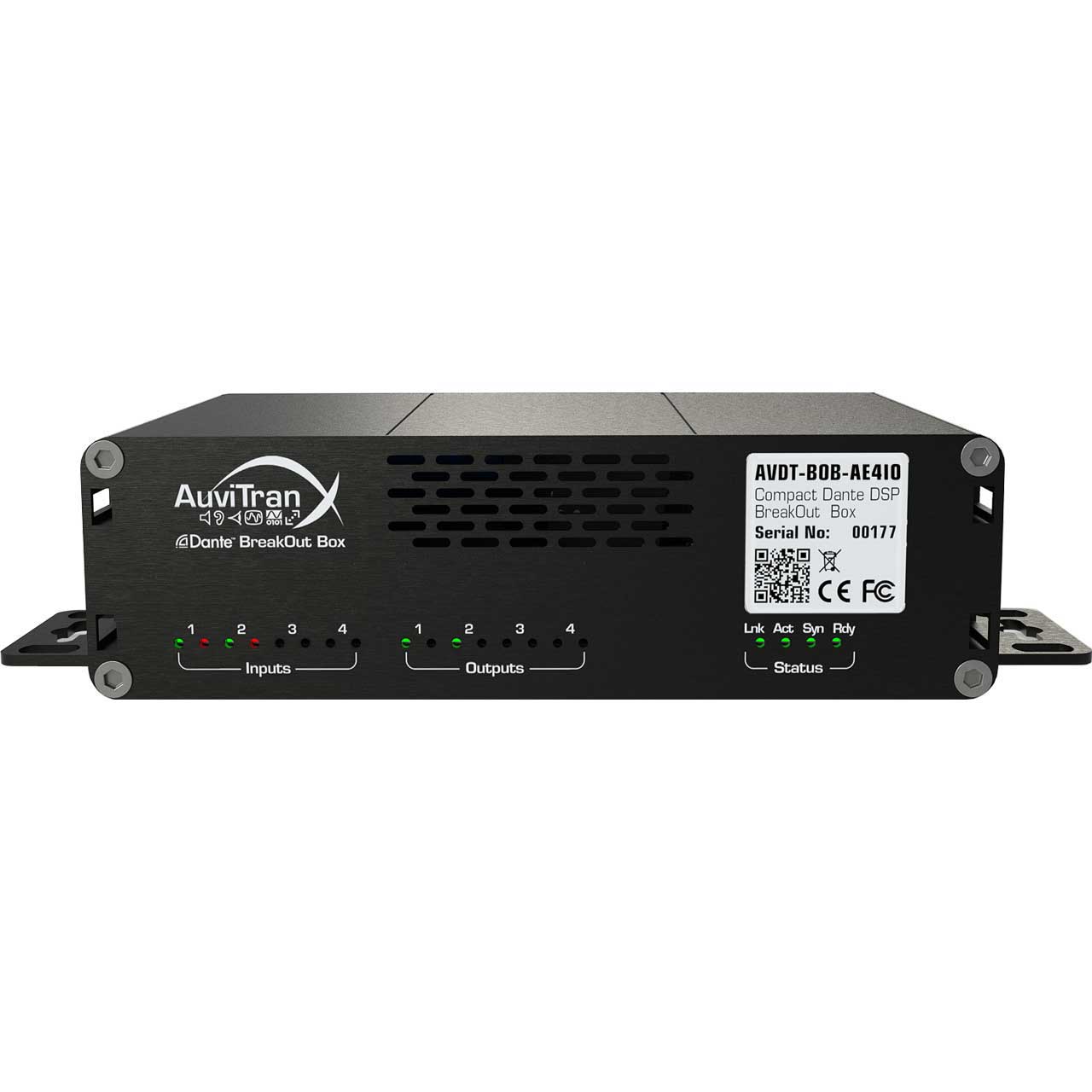

The Auvitran AVDT-BOB-AE4IO is a compact multipurpose Dante break out box. It has two mic in and two line out on Euroblocks. Embedded Ultimo Dante processor allows it to receive from / send to up to four channels on a Dante Network. Its network connectivity allows it to remotely control/monitor any Dante parameters and be compatible with any Dante software and tools.
State-of-the-art analog microphone preamplifiers gives the AVDT-BOB a very high audio dynamic and quality at a very contained price. Theses preamplifiers are coupled to high quality analog ladder-step gain controllers that allows to achieve a 60dB gain range, 3dB step, with an Equivalent Input Noise (EIN) as low as - 125dBu.
The AVDT-BOB has a DSP to process and mix audio signal at the source and at the output. A powerful embedded Digital Signal Processor gives the user the power of high pass filters, parametric equalizations, dynamic compressions and fine-pitch digital gain adjustments. It also contains a digital mixing matrix that allows you to mix analog and Dante channels and route them to any output.
The AVDT-BOB features a dual core ARM processor associated with a large amount of flash memory for a universal and multi-platform remote control over IP (iOS, Android, Windows, Mac OS, Linux). This RISC processor ARM Cortex M4 M0 runs in the AVDT-BOB a Web 2.0 server for a remote control and monitoring in an efficient, customizable and user friendly way. The interface uses open standards HTML5 and JavaScript for multi OS compatibility. This universal interface drives mic/line preamps, digital processing (DSP) and storages / reload of scenes.
The AVDT-BOB integrates an internal 5 port Gigabit switch to ease the cabling, to increase the throughputs and to reduce the latencies. This gigabit switch links the external Gigabit ports (i.e. two RJ45 or two SFP modules and an EtherCon depending of part number) with the Dante Ultimo chip and the embedded double core ARM Cortex M4+M0 microcontroller. This switch guaranties a very low latency between the Dante chip and other Dante devices and allows one to Daisy Chain the AVDT-BOB together with other Dante devices without necessarily requesting any external switch devices.
