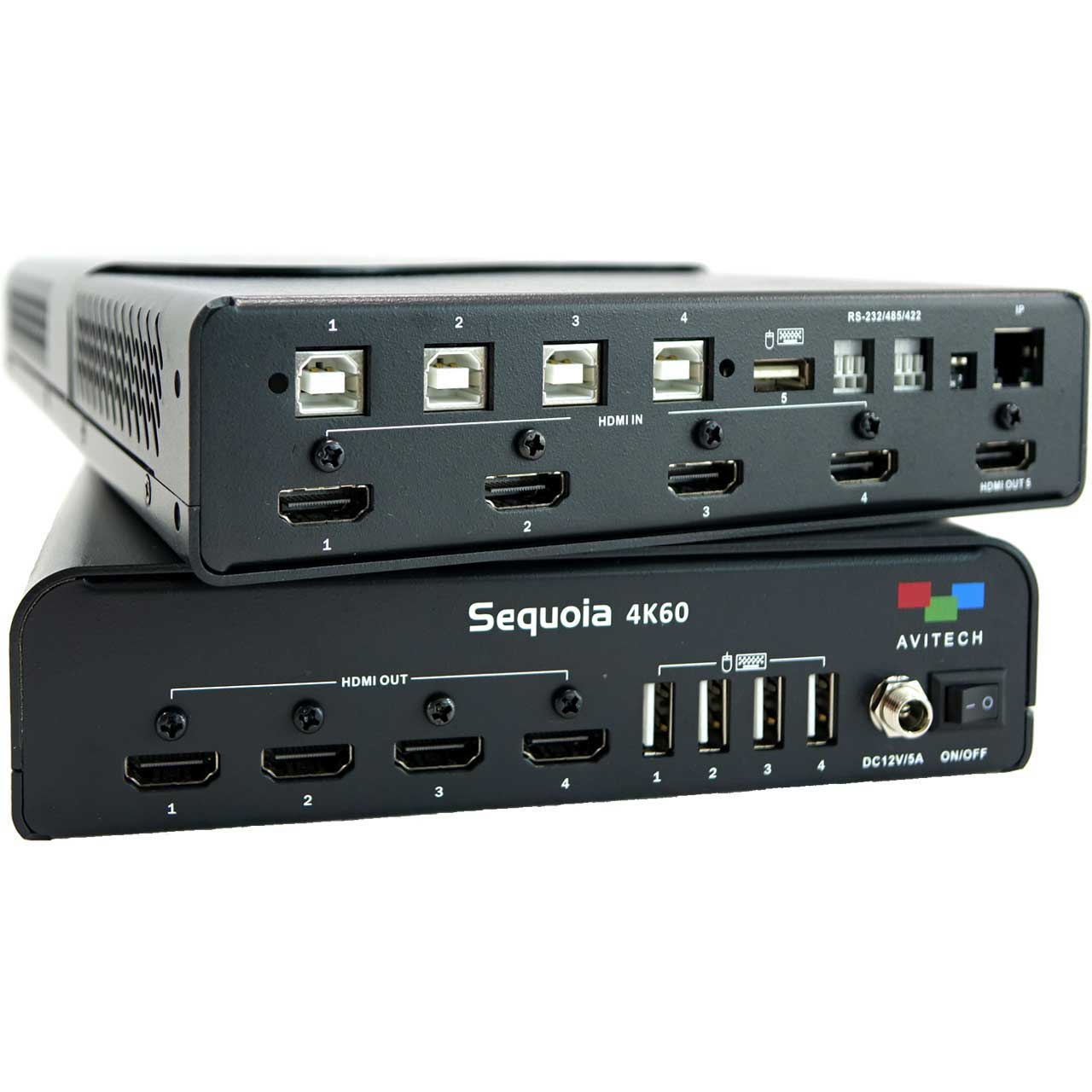

One of Avitech's newest 4K60 solutions, the Sequoia 4K60 is a 4-in-5-out 4K60 4:4:4 multi-functional video processor with video wall control, multiview, seamless matrix switch, KVM, and multi-touch touchscreen support. The half-width 1RU chassis has four HDMI 2.0 input ports and five HDMI 2.0 ports for 4K60 UHD output, allowing up to four sources to be freely positioned on up to four 4K displays.
The Sequoia 4K60 video wall mode is easy to set up and use, with a user friendly in-system web GUI, and automatic scaling and signal detection. Image overlay/PiP, bezel adjustment, flexible positioning, upscaling, downscaling, cropping, and presets are all available, to enable powerful video wall control.
UHD Video Wall Processing

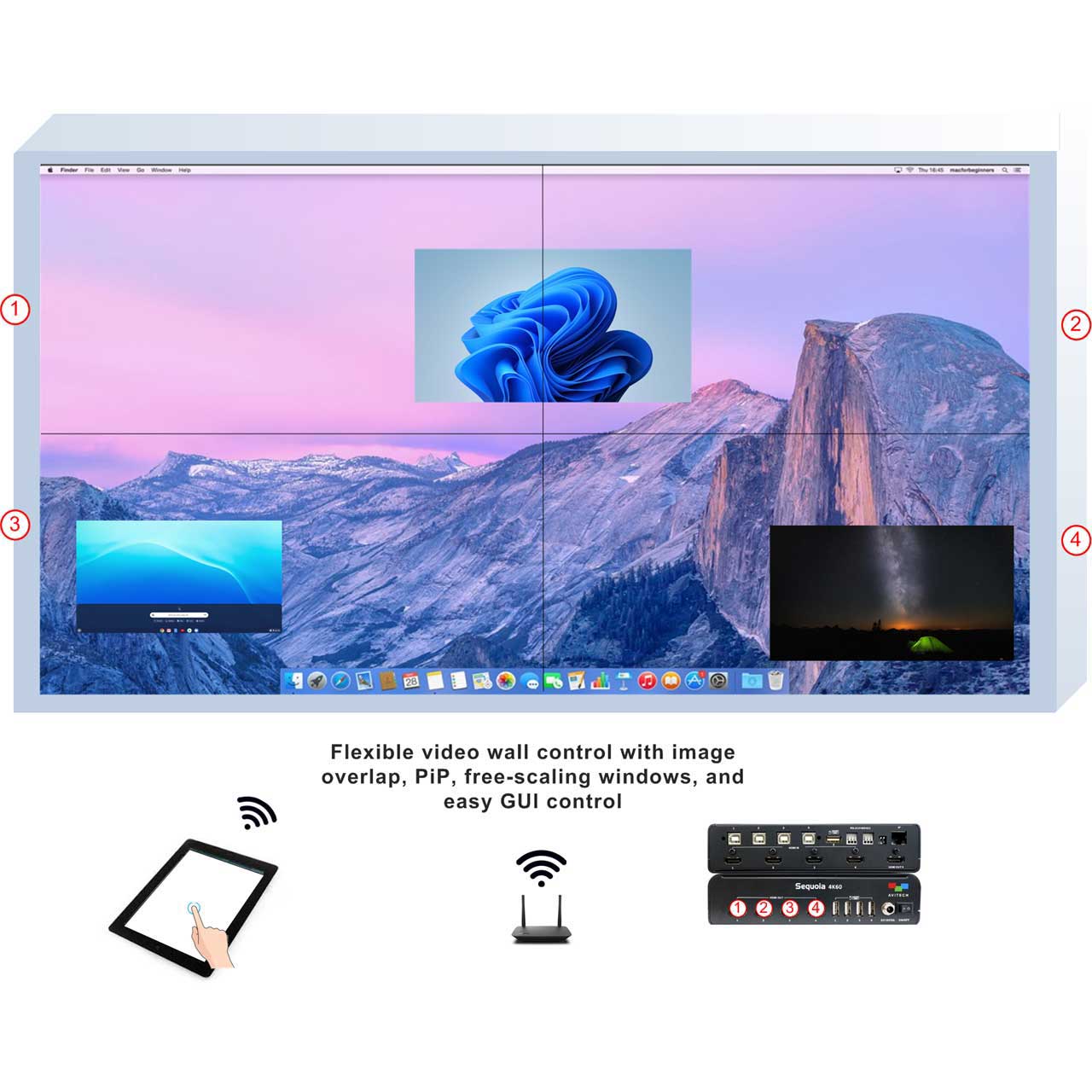

Up to four HDMI 2.0 sources can be dynamically displayed with PiP on 4K UHD panels to create a 2 (row) x2 (column) or 1x4 video wall, or two sets of 1x2 video walls. A web based GUI allows quick video wall layout control and bezel adjustment. With a 2x2 video wall of four 4K UHD panels, one Sequoia 4K60 can create the equivalent of an 8K image with PiP, or essentially a 4x4 video wall of sixteen 1080 FHD panels.
