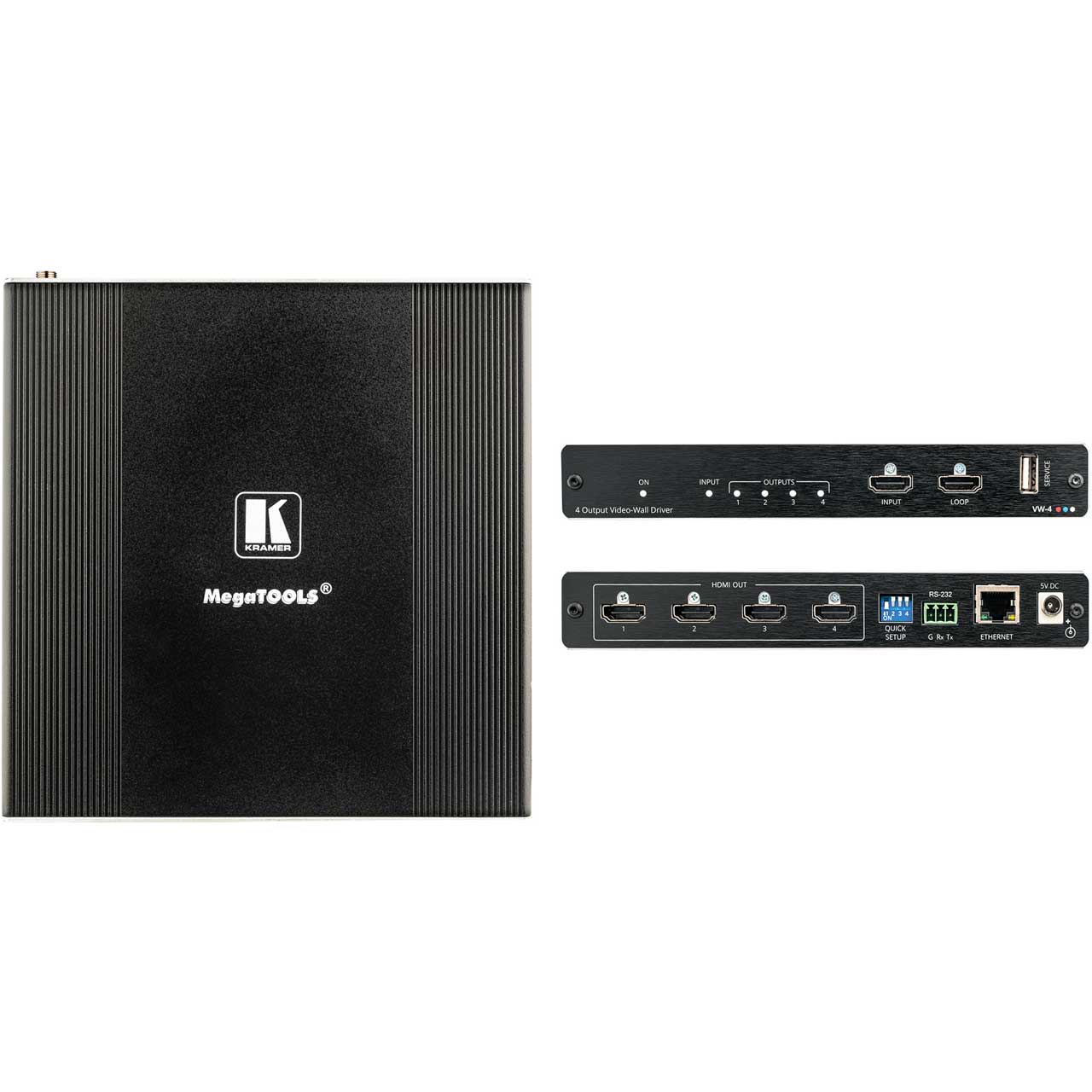

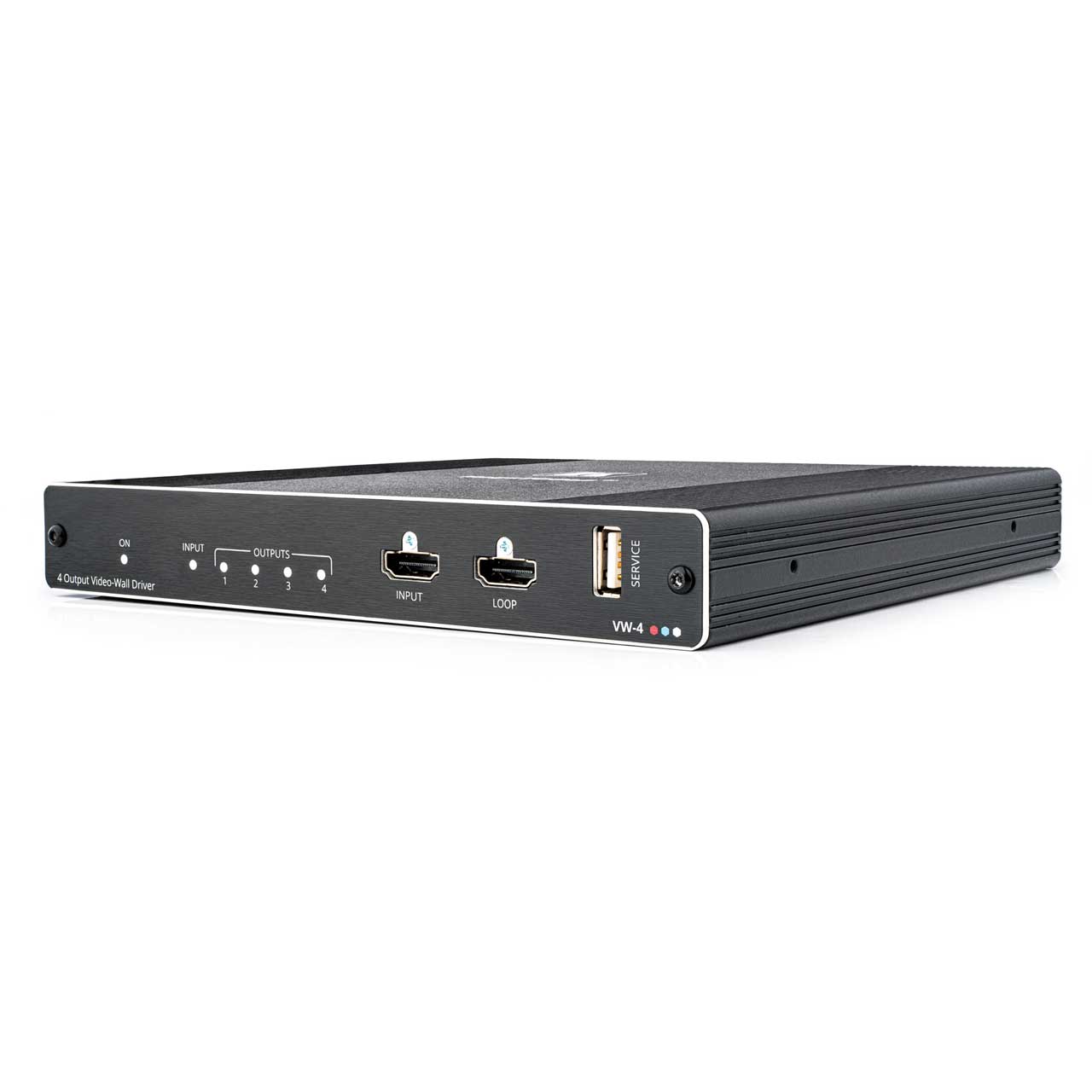

Kramer VW-4 4K/60Hz (4:4:4) 1080p 4 Output Scalable HDMI Video Wall Driver

VW-4 - Overview

Create and manage a video wall of up to 4 displays!

• Features:

  • Scalable Video Walls - Create and manage a video wall of up to 4 displays or, by adding devices, create video walls of up to 64 displays.
  • Quick, Basic, Local Setup - Use front panel DIP-switches for basic setup of video walls up to 16 displays.
  • Full Feature Configuration - Use the VW-4 app via Ethernet or RS-232 to set up video walls of up to 8x8 displays. Also use the app for the following: bezel corrections, HDCP status, factory reset, upgrading firmware, viewing network settings and copying EDID.
  • Content Protection - Supports HDCP 2.2 on the input and loop output and HDCP 1.4 on the main outputs. HDCP can be disabled on the input.
  • EDID Support - Upload EDID files, copy any output EDID to the input, and select from several built-in EDID files.
  • Reliable Video - Features constant output sync and auto-sync off option that stops or delays the 5V shutoff when no input is detected.
  • Auto Display Powering - CEC capabilities turn ON or OFF the connected displays according to the status of the input video.
  • Easy Installation - Compact MegaTOOLS® fan-less enclosure for surface mounting or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUTS
  • 1 HDMI: On a female HDMI connector


  • OUTPUTS
  • 4 HDMI: On female HDMI connectors
  • 1 HDMI Loop: On a female HDMI connector


  • PORTS
  • 1 Ethernet: On an R-J45 connector
  • 1 RS-232: On a 3-pin terminal block connector
  • USB: On a USB type-A connector


  • VIDEO
  • Max Input Resolution: 4K@60Hz (4:4:4)
  • Max Input Data Rate: 18Gps
  • Output Resolution: 1080p
  • Content Protection on Input and Loop Output: HDCP 2.2
  • Content Protection on Main Outputs: HDCP 1.4


  • USER INTERFACE
  • Indicators: I/O detection and power LEDs
  • Controls: DIP-switches for basic setup, computer app for comprehensive setup via Ethernet or RS-232, firmware upgrade via USB

    POWER
  • Source: 5V DC
  • Consumption: 2.9A

    ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
  • Storage Temperature: -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
  • Humidity: 10% to 90%, non-condensing


• Item Includes:

  • VW-4 Video Driver
  • Power adapter and cord (1)
  • Bracket Set (1)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063092498
