Smart-AVI 4K HDMI 1x2 Splitter / Converter and Scaler

V2V-SC4KUHD - Overview

• Features:

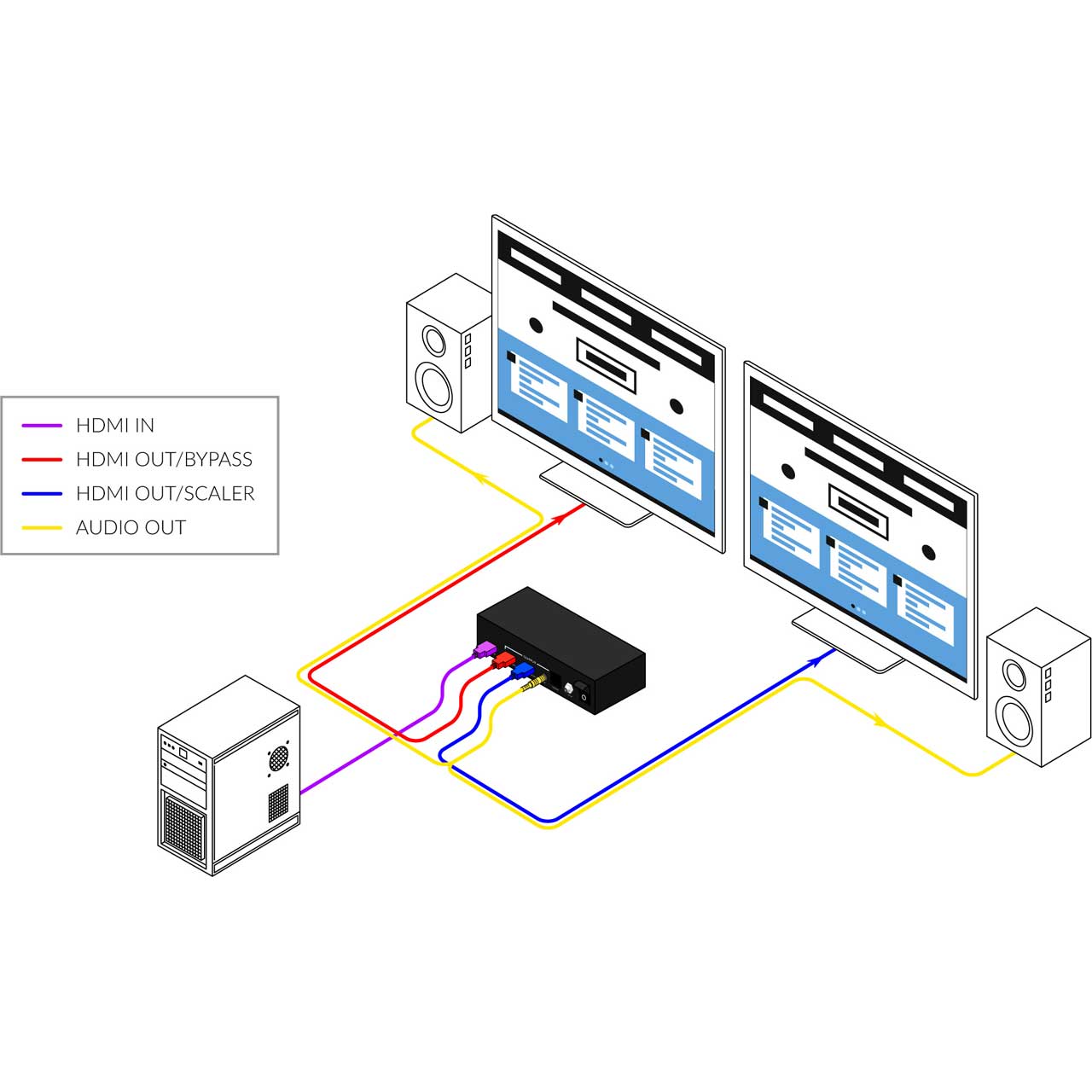

  • Distributes one HDMI sources to 2 displays
  • 4K up/down scaling on HDMI output port 2
  • Full 4K@60Hz 4:4:4 HDMI 2.0 and HDCP 2.2 compliant
  • Supports High-Dynamic-Range (HDR) image
  • Independent switch for EDID selections
  • Independent switch for Resolution selections with HDMI output port 2
  • Support Toslink and 3.5mm jacket audio output


• Specifications:

  • Video

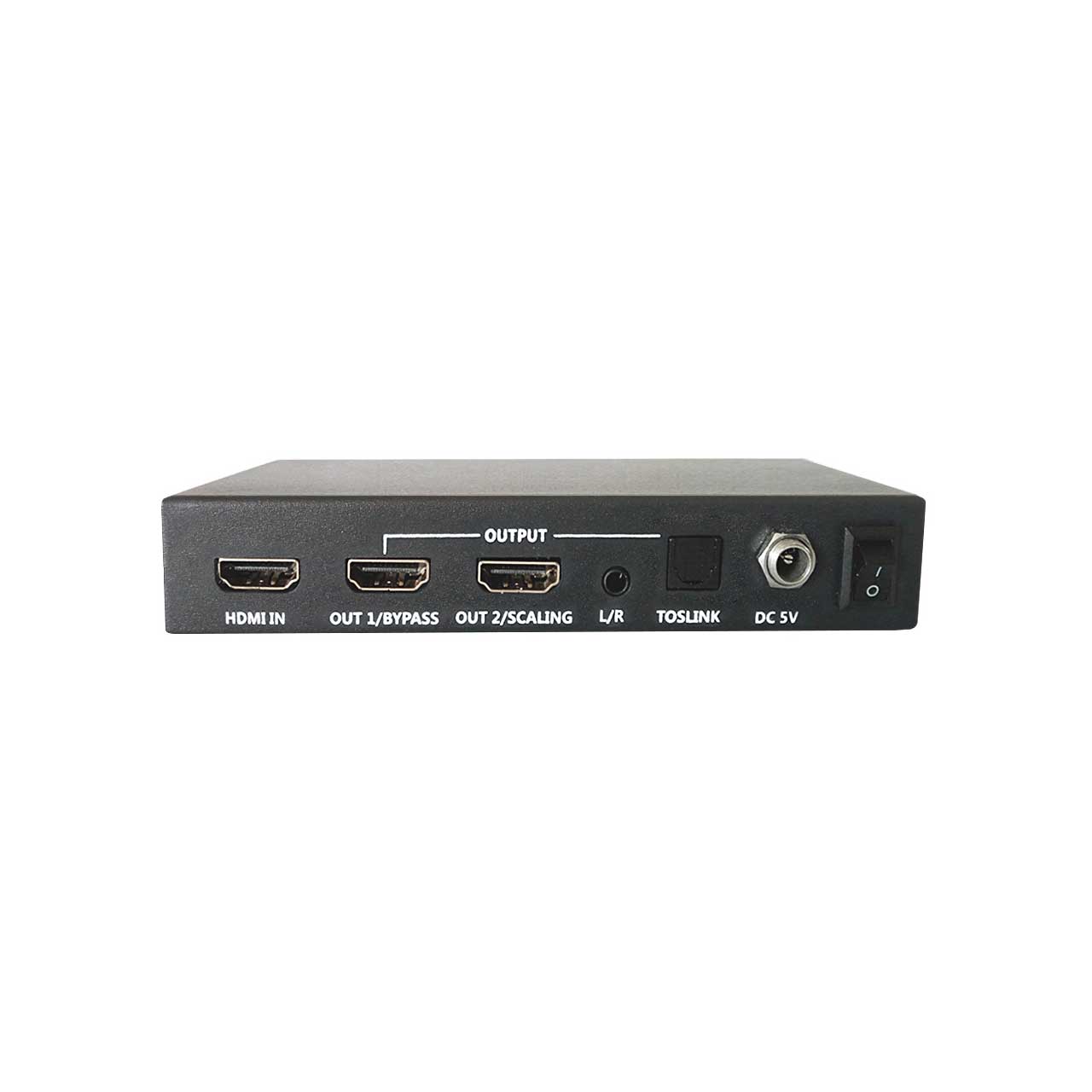

  • Input: (1) HDMI (Type A female connector)
  • Output: (2) HDMI (Type A female connector);(1) TOSLINK, Spdif audio output;(1) 3.5mm jacket, L/R audio output HDMI HDMI 2.0/HDCP 2.2
  • Input Resolution Support
    640x480@60Hz
    800x600@60Hz
    1024x768@60Hz
    1280x768@60Hz
    1280x800@60Hz
    1280x960@60Hz
    1280x1024@60Hz
    1360x768@60Hz
    1366x768@60Hz
    1400x1050@60Hz
    1440x900@60Hz
    1600x900@60Hz
  • Output Resolution Support (Bypass)
    640x480@60Hz
    800x600@60Hz
    1024x768@60Hz
    1280x768@60Hz
    1280x800@60Hz
    1280x960@60Hz
    1280x1024@60Hz
    1360x768@60Hz
    1366x768@60Hz
    1400x1050@60Hz
    1440x900@60Hz
    1600x900@60Hz
  • Output Resolution Support (Scaling)
    1920x1080@60Hz
    3840x2160@30Hz
    3840x2160@60Hz
    1280x720@60Hz
    1024x768@60Hz
    1366x768@60Hz
    1280x1024@60Hz
    1920x1200@60Hz
    1280x1024@60Hz/DVI
    1920x1080@60Hz/DVI
  • Input Video Level: 0.5~1.2 Vp-p
  • Input DDC Signal: 5 Vp-p
  • Maximum Data Rate: 18 Gbps
  • Max Pixel Clock: 600 MHz

    Other
  • Power Supply: 100-240 VAC/ 5VDC @ 3A/15W
  • Dimensions: 5.63" W x 3.27" H x 1.02" D
  • Weight: 0.8 lbs
  • Approvals: CE, FCC, RoHS Compliant
  • Operating Temperature: +32 to +104°F (0 to +40°C)
  • Storage Temperature: -4 to 140°F (-20 to +60°C)
  • Humidity: Up to 80% (No Condensation)
  • Support Warranty: 1-year


• Item Includes:

  • 1x V2V-SC4KUHD
  • 1x PS5VD3A
