AVMATRIX SD2080 2x8 3G-SDI/HDMI Splitter & Converter

SD2080 - Overview

• Features:

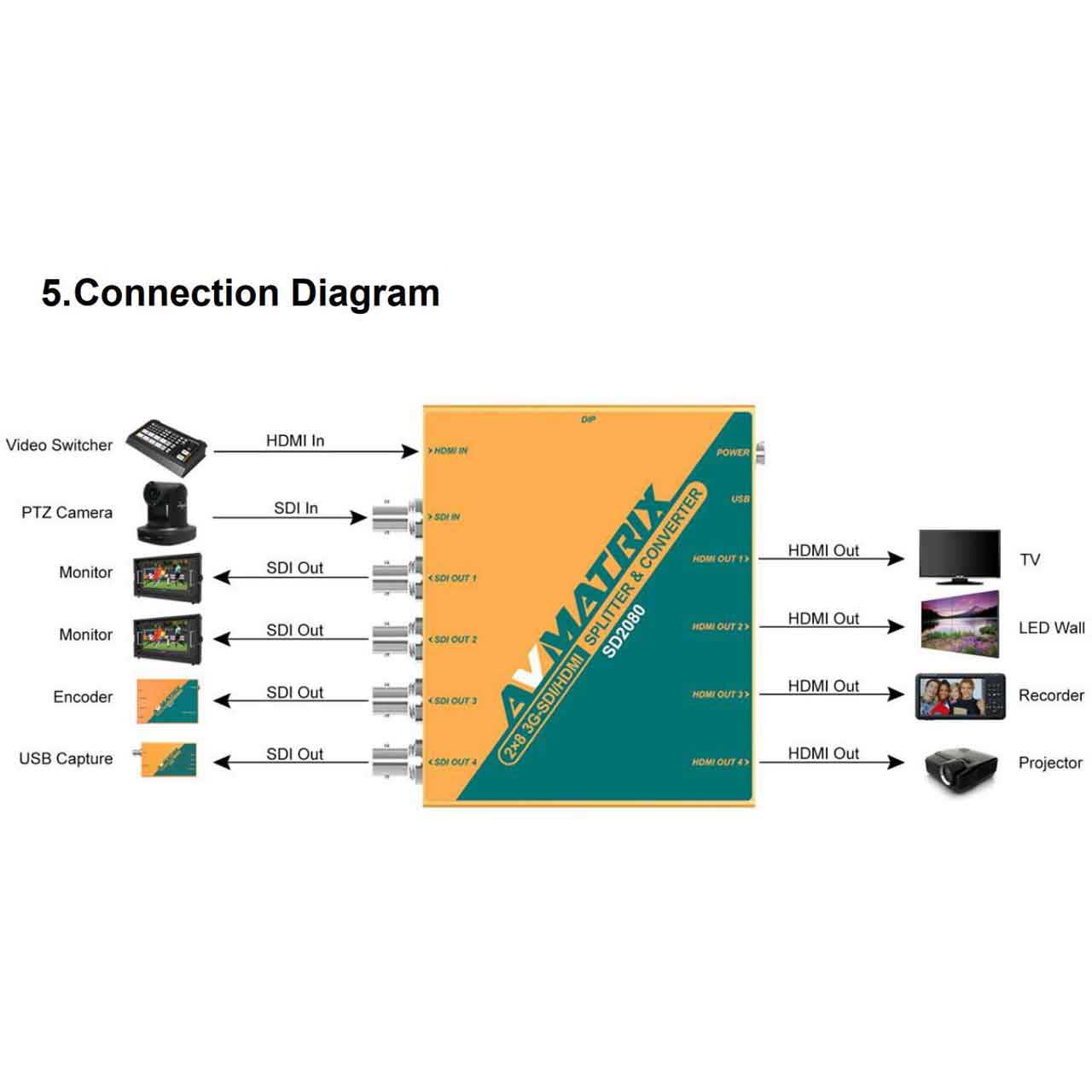

  • Distribute and convert between SDI & HDMI
  • SDI with equalization and re-clock
  • Input and output support up to 1080p60

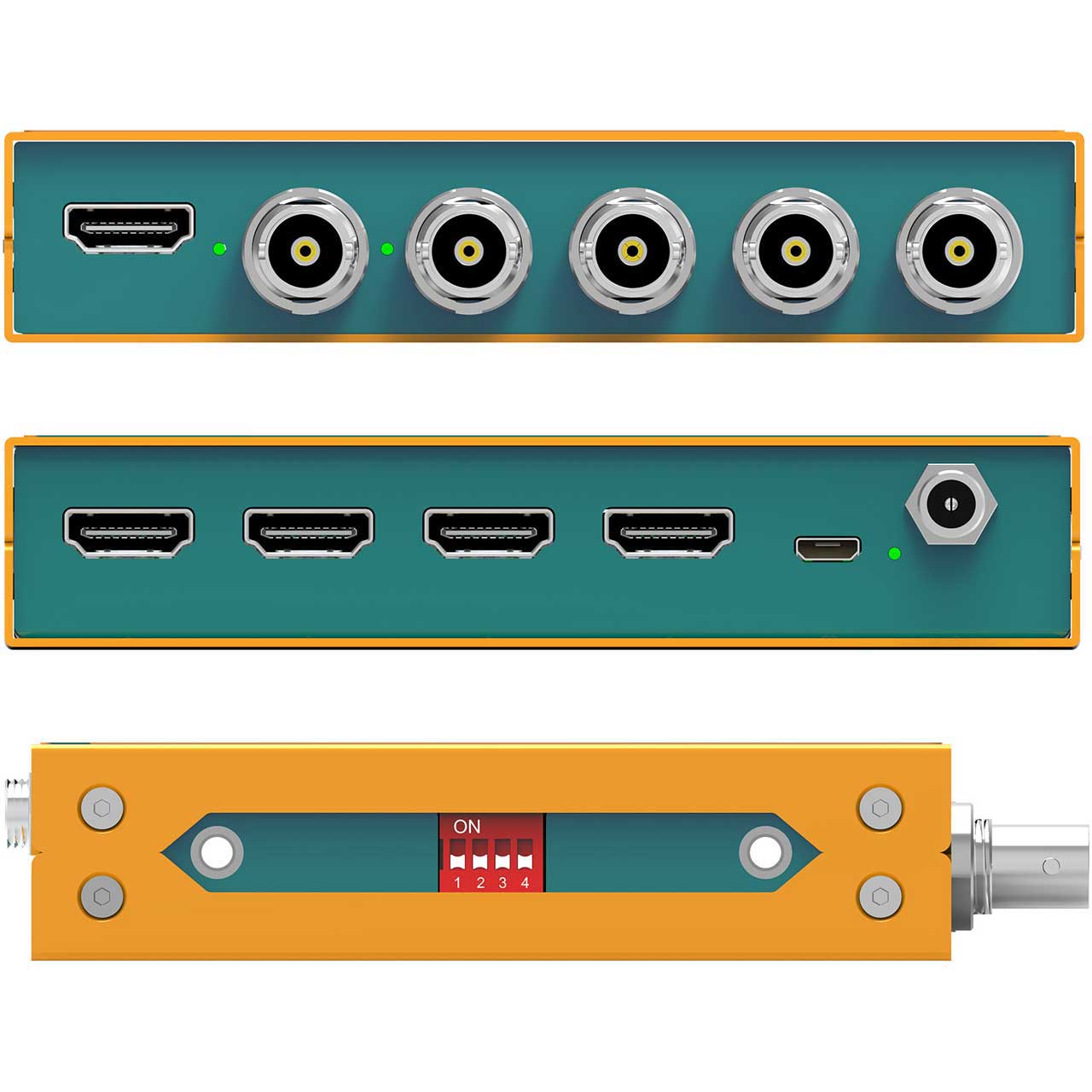

  • Switching input signal easily via DIP switches
  • USB and threaded locking DC power supply

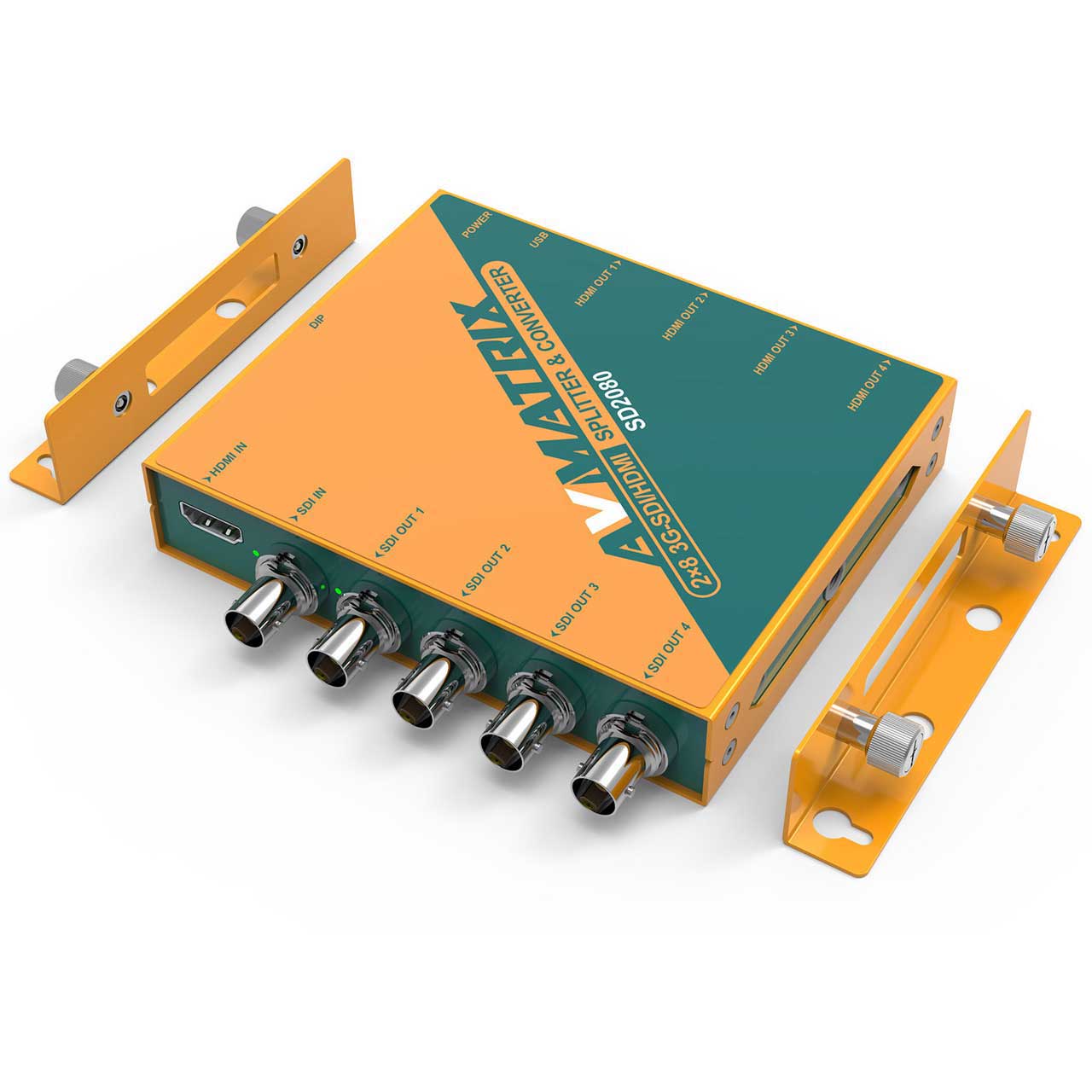

  • Detachable bracket design for wall mounting


• Specifications:

  • Inputs
  • HDMI Video Input: 1x HDMI Type A
  • SDI Video Input: 1x SD/HD/3G-SDI

    Outputs
  • HDMI Video Output: 4xHDMI Type A
  • SDI Video Output: 4xSD/HD/3G-SDI

    Formats
  • SDI Input Format Support:
    - 1080p 60/59.94/50
    - 1080p 30/29.97/25/24/23.98
    - 1080psf 30/29.97/25/24/23.98
    - 1080i 60/59.94/50
    - 720p 60/59.94/50/30/29.97/25
    - 625i 50, 525i 59.94
  • SDI Video Rate: SD/HD/3G-SDI
  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE424MSDI Color Space and Precision YUV 4:2:2
  • SDI Output Format Support:
    - 1080p 60/59.94/50
    - 1080p 30/29.97/25/24/23.98/23.976
    - 1080i 60/59.94/50
    - 720p 60/59.94/50
    - 625i 50
    - 525i 59.94
  • HDMI Input Format Support:
    - 1080p 60/59.94/50
    - 1080p 30/29.97/25/24/23.98
    - 1080i 60/59.94/50
    - 720p 60/59.94/50/30/29.97/25
    - 576i 50, 480i 59.94
  • HDMI Output Format Support:
    - 1080p 60/59.94/50
    - 1080p 30/29.97/25/24/23.98
    - 1080i 60/59.94/50
    - 720p 60/59.94/50/30/29.97/25
    - 576i 50, 480i 59.94

    Physical
  • Dimension (LxWxD): 5" x 4.09" x 0.06"
  • Weight: 1.06lbs

    Power (USB)
  • Power Connector: DC 12V
  • Current: 550mA
  • Voltage Range: 6V - 28V
  • Power Consumption: 6.6W

    Environment
  • Operating Temperature: -4°F - 140°F (-20°C - 60°C)
  • Storage Temperature: -22°F - 158°F (-30°C - 70°C)
  • Relative Humidity: 0% - 90% non-condensing


• Item Includes:

  • 1x Power supply (12V 2A)
  • 2x Brackets
