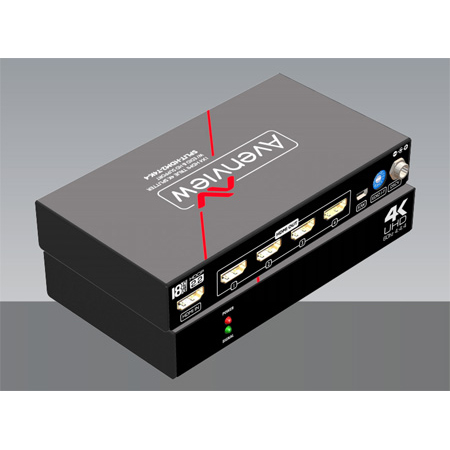

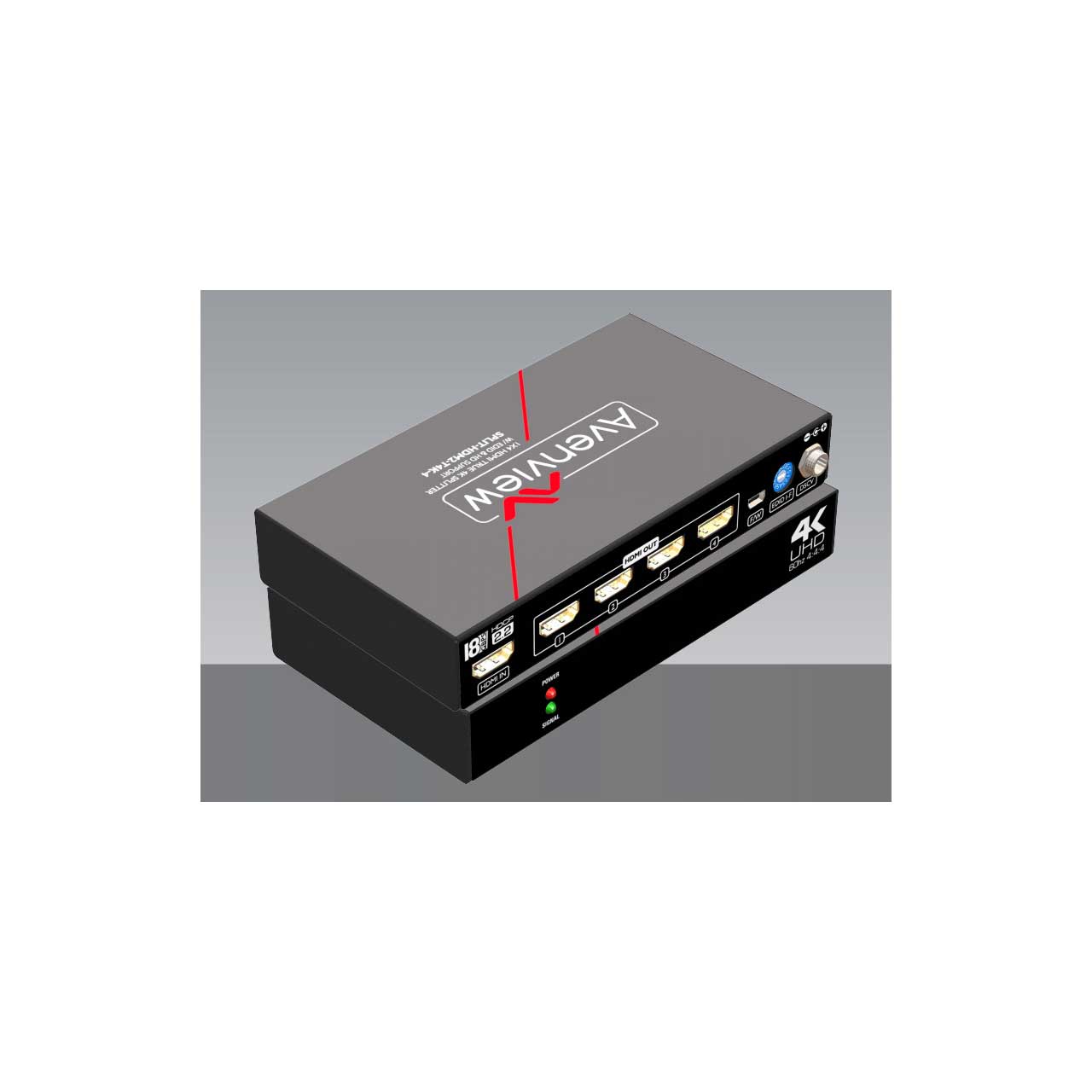

Avenview SPLIT-HDM2-T4K-4 1x4 HDMI True 4-60Hz Splitter (444) Auto EDID and Management

ITEM #: AVW-SPLTHDM2T4K4 MFG #: SPLIT-HDM2-T4K-4

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AVW-SPLTHDM2T4K4

SPLIT-HDM2-T4K-4 - Overview

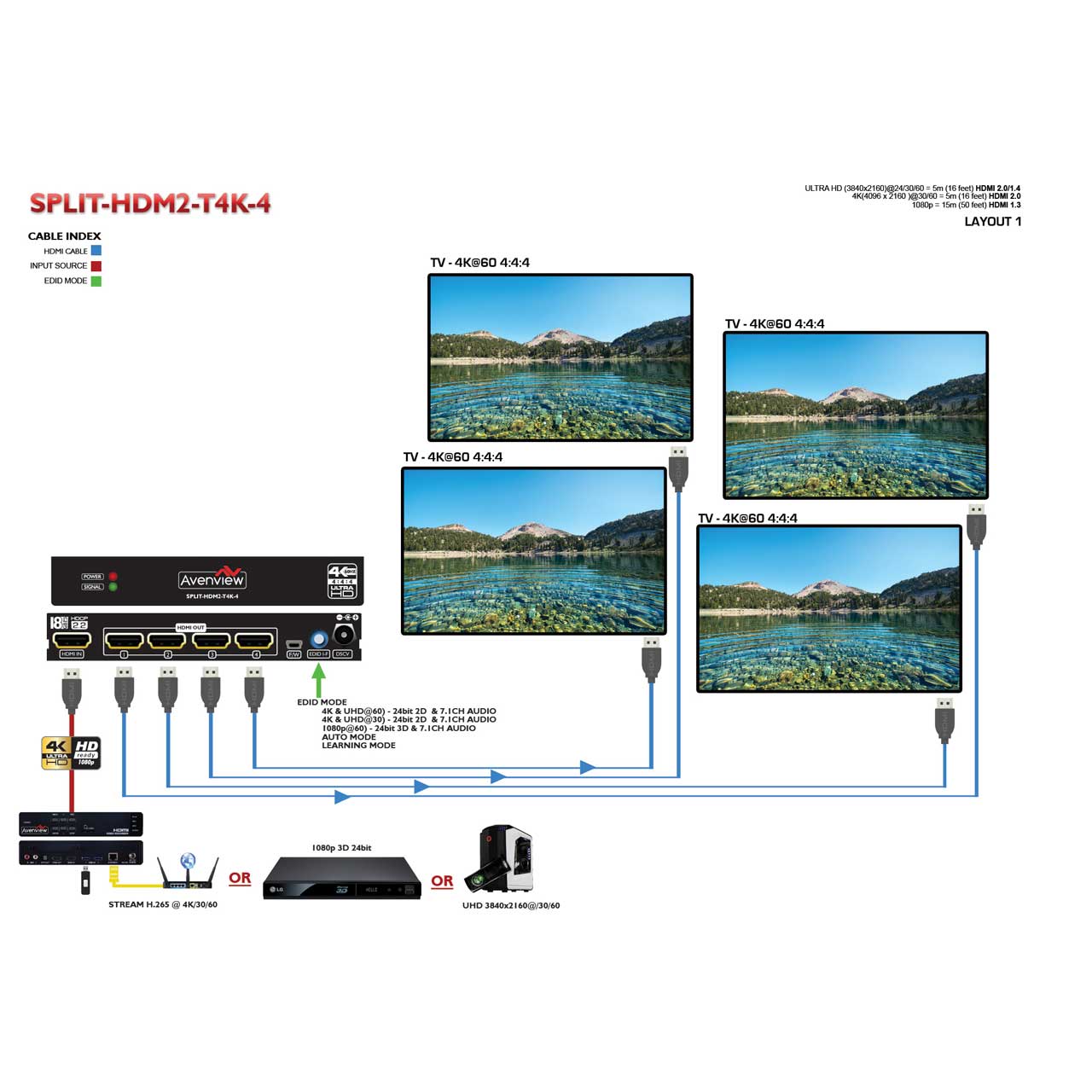

The Avenview SPLIT-HDM2-T4K-2/4/8 (2, 4 or 8 Ports) HDMI Splitter can support the new industry of video signals 4K@60 and UHD. This device allows the input (source as 4K GPU graphic card or UHD Digital Player) to be duplicated onto 4 4K@60 or UHD displays. The SPLIT-HDM2-T4K-2/4/8 supports both video and audio signals simultaneously, reproducing the same quality via HDMI cable with EDID management.

Video Signals: 4K@60 HDR(4:2:0 10bits) / (4:4:4 8bits), 4K@30, UHD, 3D, Deep Color, and 1080p 24-bit color depth.
Audio Signals: DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM

The SPLIT-HDM2-T4K includes one unit: 2, 4 or 8 ports SPLITTER with one (1) HDMI Input that can extend up to 5m (16ft) and four (4) output ports (available in 2 and 8 outputs) which allows the user to extend over HDMI cable video and audio up to 5m (16ft).

  • Features:

    • INPUT: HDMI 2.0 /DVI 1.0 support
    • INPUT 4K@60 HDR(4:2:0 10bits) / (4:4:4 8bits), 4K@30, UHD, 3D, Deep Color, and 1080p 24-bit color depth;
    • HDCP 2.2 Compliance;
    • COLOR SPACE: xvYCC, x.v.Color & Deep Color

    • VIDEO RESOLUTIONS: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz/3D, 1080i@50/60Hz,1080p @ 24Hz /50/60Hz/3D, ULTRA HD (3840x2160)@24/30/60Hz 4K (4096x2160)@24/30/60Hz

    • PC RESOLUTIONS: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz,1280x768@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz,1400x1050@60Hz, 1600x900@60Hz,1680x1050@60Hz, 1920x1080@60Hz 1920x1200@60Hz ULTRA HD (3840x2160)@24/30/60Hz 4K (4096x2160)@24/30/60Hz

    • FREQUENCY RANGE: 25MHz~600MHz
    • LINK TRANSMISSION: up to 18Gbps (600MHz)
    • DISTANCE: up to 5 meters (16ft) w 24AWG High Speed Ethernet HDMI Cable
    • EDID: Multi mode selection & EDID learning from Display
    • FIRMWARE: Update by mini USB connector
    • PLUG & PLAY

    • Product Application and Market Sectors
    • Corporate
    • Military
    • Education
    • Medical
    • House of Worship
    • Residential
    • Industrial
    • Aviation


  • Specifications:

    • HDCP COMPLIANCE: HDCP 2.2
    • VIDEO BANDWIDTH: Single-Link 600MHz (18 Hbps)
    • HDMI SUPPORTED RESOLUTION: HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)

    • SUPPORTED RESOLUTION
    • 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz/3D, 1080i@50/60Hz,1080p @ 24Hz /50/60Hz/3D, ULTRA HD (3840x2160)@24/30/60Hz 4K (4096x2160 @24/30/60Hz

    • HDMI CABLE: 15 meters (50 feet)
    • DIGITAL AUDIO SUPPORT: LPCM, Dolby Digital/Plus/EX, Dolby True HD,DTS,DTS-HD Master
    • ROTARY CONTROL SWITCH: EDID Mode Selection
    • ESD PROTECTION: Human body model - ±8kV (air-gap discharge) & ±4kV (contact discharge)

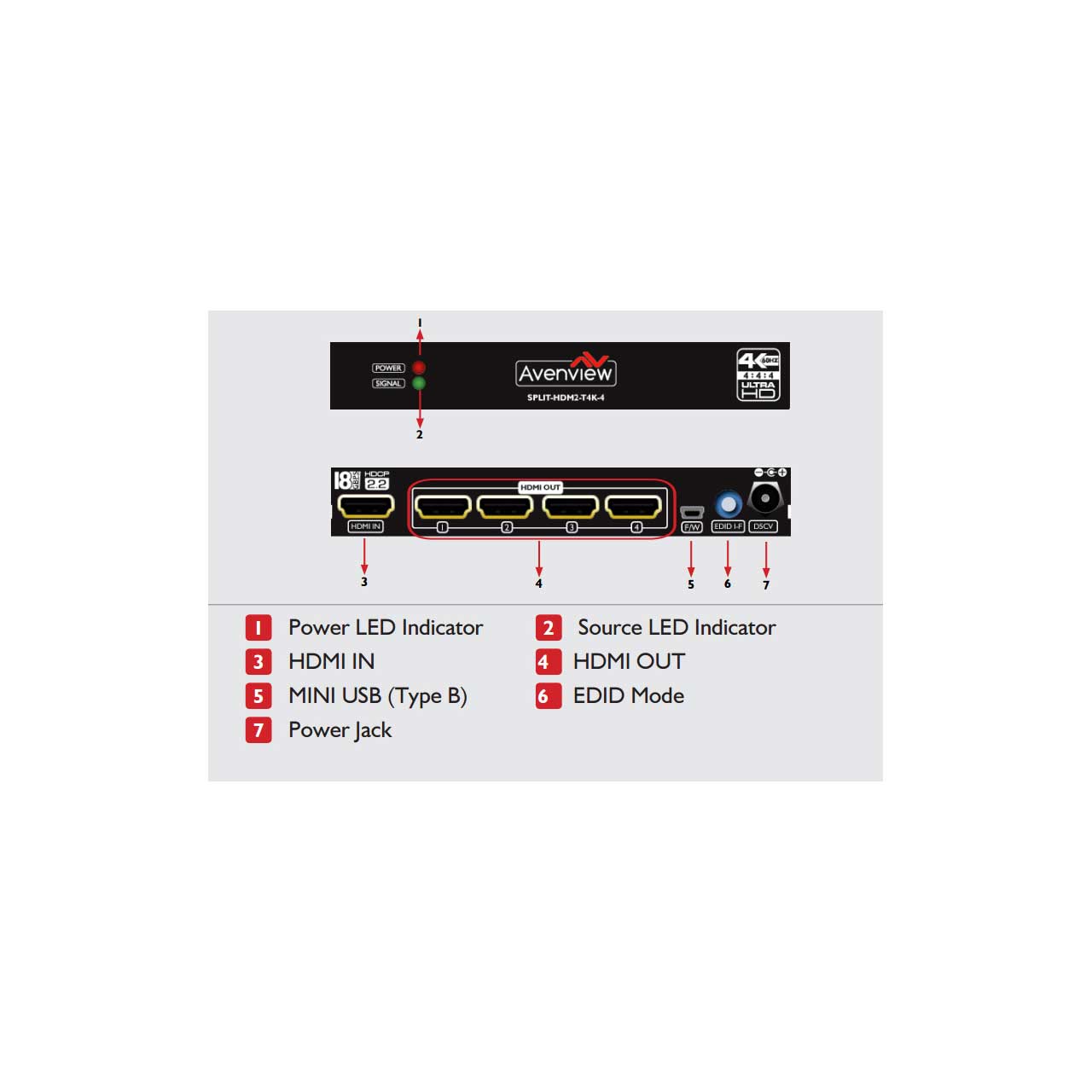

    • INPUT: 1 x HDMI Type A (19 pin female)
    • OUTPUT: 4 x HDMI Type A (19 pin female)
    • DIMENSIONS (L X W X H): 5.46" x 3.67" x 1"
    • POWER SUPPLY: 5V 2A DC
    • POWER CONSUMPTION: 1.6 W
    • LED: Front Panel Indicator
    • WEIGHT: 0.88 lbs 0.40 kg
    • OPERATING TEMPERATURE: 32° ~ 104°F (0° to 40°C)
    • STORAGE TEMPERATURE: -4° ~ 140°F (-20° ~ 60°C)
    • RELATIVE HUMIDITY: 20~90% RH (no condensation)


  • Warranty:

    • 3 Years


  • GTIN:

    0606825936106
