Azden FMX-42A 4-Channel Portable Microphone Field Mixer with 10-Pin Camera Return

Name: Azden FMX-42A 4-Channel Portable Microphone Field Mixer with 10-Pin Camera Return
Brand: Azden Corporation
SKU: AZ-FMX42A

ITEM #: AZ-FMX42A MFG #: FMX-42A

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AZ-FMX42A

ZOOM F6 Multi-Track Field Recorder with 32-Bit Float RecordingOur Price: $749.99
Rolls MX42 4 Channel Stereo Passive MixerOur Price: $69.00
ZOOM F8n Pro MultiTrack Field Recorder with 32-bit Float Recording and Full Metadata EntryOur Price: $1,099.99
Rolls MX153 MixMate 1/2RU 2 Mic & 3 Stereo Source Mixer w/PS27Our Price: $179.00

Required Accessories

Recommended Accessories

FMX-42A - Overview

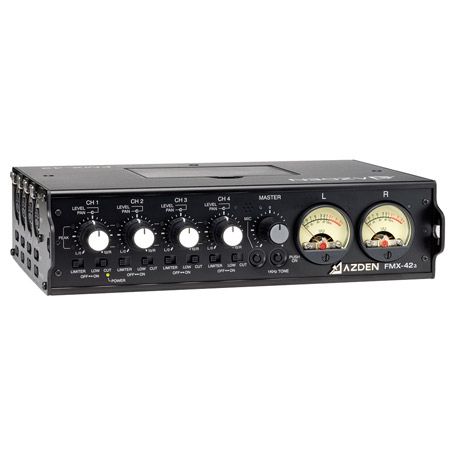

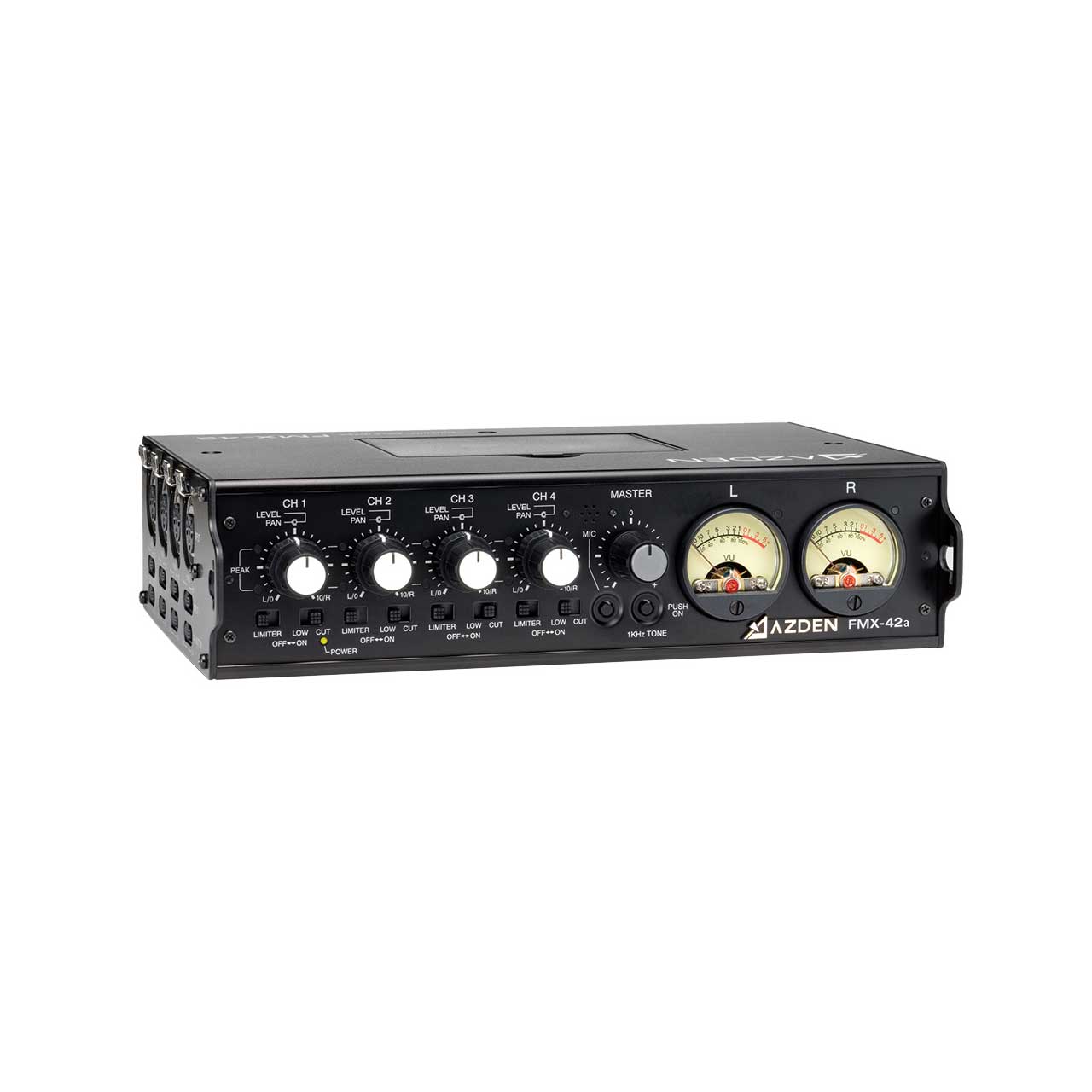

Having 4 balanced XLR line/mic inputs with individual level and pan controls, the FMX-42a provides switchable (per channel) 48V phantom power and limiting, professional quality VU meters for accurate level setting, master level control, 1k tone generator, 2 balanced XLR outputs (line/mic switchable), stereo mini-jack output for DV cameras, 10-pin Camera Return, mini-jack Camera Return and a headphone monitor with level control.

The 10-pin camera return may also be used as a secondary stereo output, independent from the mixer's main XLR outputs, using an appropriate adapter cable (10-pin to dual XLR).

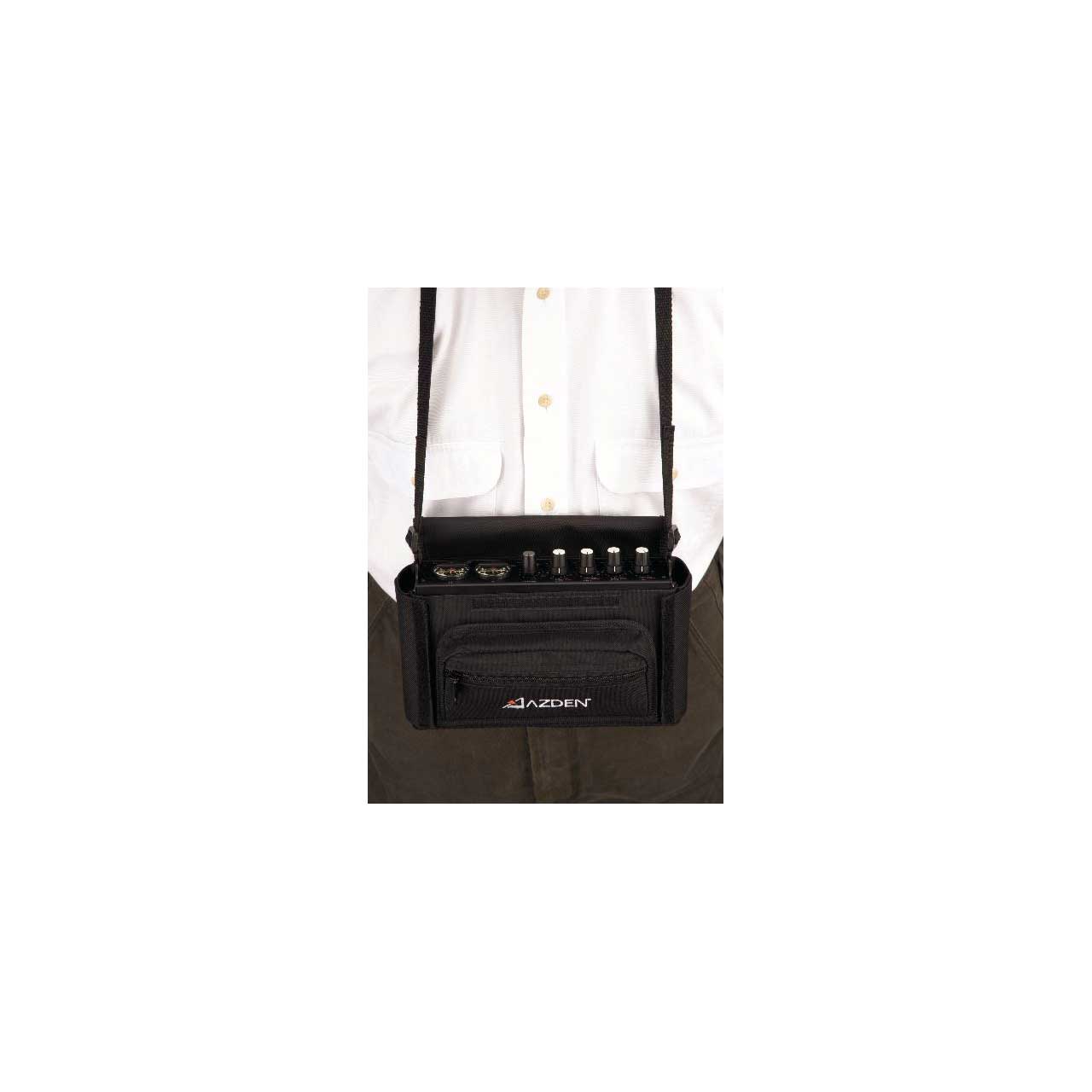

The FMX-42a can be powered by either 6 internal "AA" batteries or an optional 12V DC external supply (Locking 4-Pin Hirose connector). A ballistic nylon carrying case is included.

Features:
- 4 balanced XLR line/mic inputs and pan controls
- Switchable 48V phantom power and limiting
- Professional quality VU meters
- 2 balanced XLR outputs (line/mic switchable)
- Stereo mini-jack output for DV cameras
- 10-pin & mini-jack Camera Return & headphone out with level control
- 6x AA battery powered
- Optional A/C adapter
Specifications:
- FREQUENCY RESPONSE
- Balanced or Unbalanced Output: 20 Hz - 30 kHz (+0/-1.5 dB)
- Monitor Output: 30 Hz - 30 kHz (+0/-2 dB)
- GENERAL
- Signal-to-Noise Balanced Output: -120 dBu (A weighted, input equivalent level)
- T.H.D. Balanced Output: less than 0.005% @ 1 kHz (at LINE position +19 dBu output)
- Phantom Power Voltage: 48V (±4V)
- Sample Tone Frequency: 1 kHz
- Battery Requirement: 6 Alkaline "AA"
- Battery Runtime: Approx.10 hours (Meter Illum & Phantom Power OFF)
- External Power: 12V DC @ 200mA
- Dimensions: 220mmW x 160mmD x 56mmH (without protrusions)
- 9"W x 6 1/2" D x 2 1/4"H (without protrusions)
- Weight: 1,350 grams/3 lbs (without batteries)
- CURRENT DRAIN
- 164mA (Meter Illum & Phantom OFF @ 9V)
- 192mA (Meter Illum OFF, Phantom ON w/1 MIC @ 9V)
- 125mA (Meter Illum & Phantom OFF @ 15V)
- INPUT

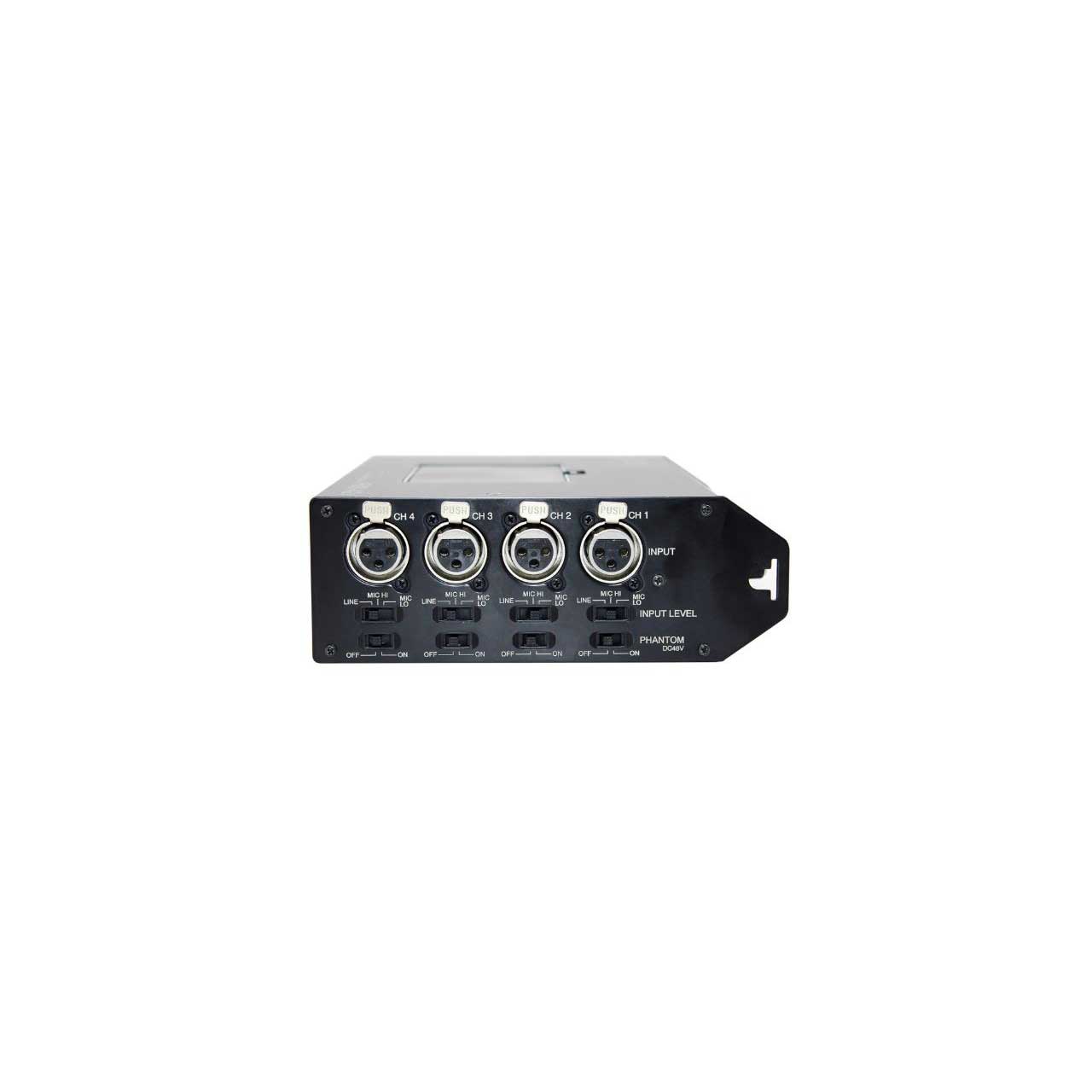

- Balanced Input: XLR 3-pin Female x 4 (CH1, 2, 3 & 4)
- Level +4 dBu (LINE) Standard: +4 dBu (electronically balanced)
- Maximum: greater than +26 dBu
- Impedance: 20kO
- -30 dBu (MIC 1) Standard: -38 dBu (electronically balanced)
- Maximum: +4 dBu
- Impedance: 2kO
- -55 dBu (MIC 2) Standard: -58 dBu (electronically balanced)
- Maximum: -15 dBu
- Impedance: 2kO
- High Pass Filter (HPF) 100Hz - 6dB/oct
- RETURN INPUTS
- Hirose 10-pin Female for Hirose Plug Part #RM15TD-10P
- 3.5mm (1/8") Stereo Mini-Jack
- Input Level: -20 dBu - +19 dBu (unbalanced)
- Impedance: 11kO

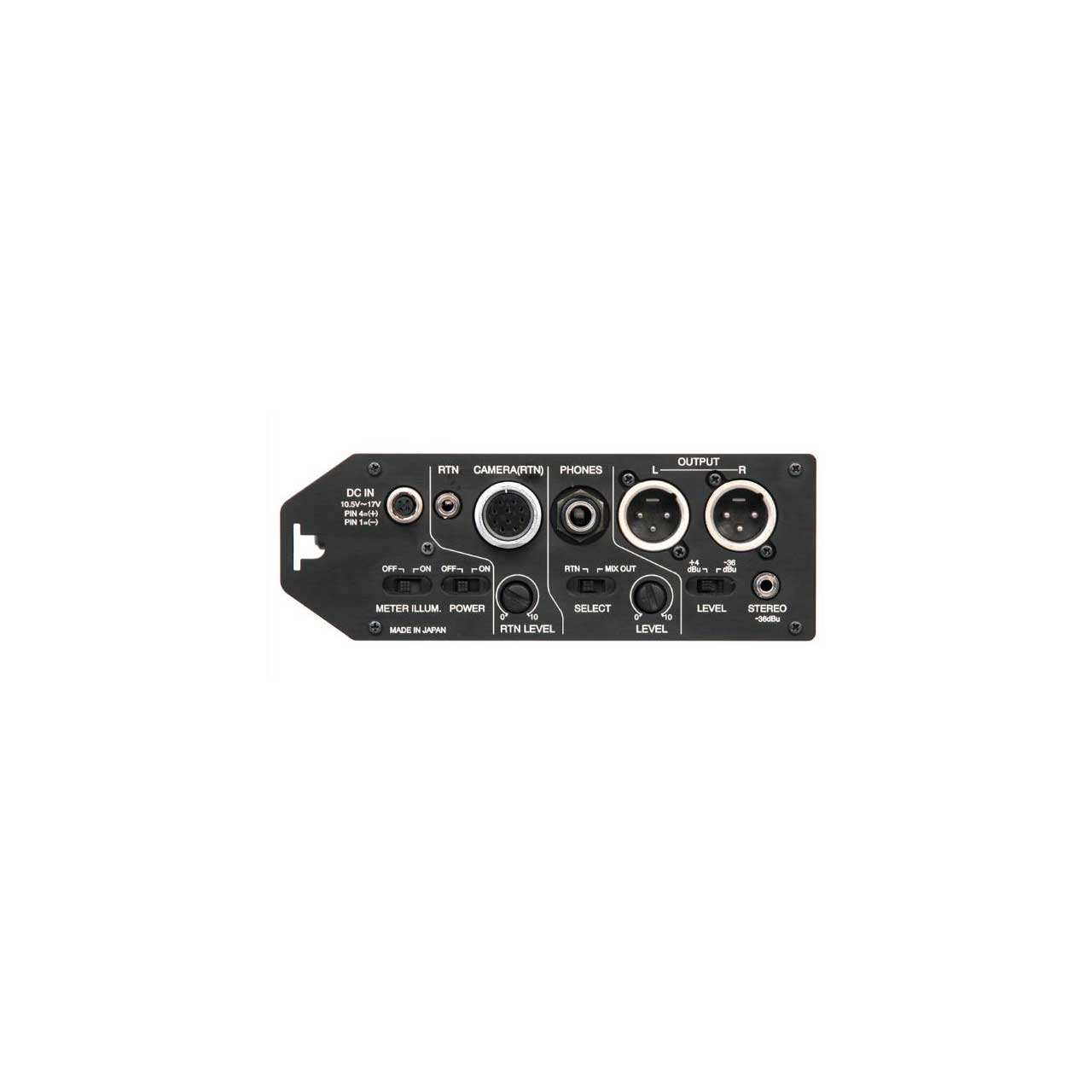

- OUTPUT
- Balanced Outputs: XLR 3-pin Male x 2 (Output L & R)
- Hirose 10-pin Female for Hirose Plug Part #RM15TD-10P
- Unbalanced Output: 3.5mm (1/8") Stereo Mini-Jack
- Monitor Output: 6.3mm (1/4") Stereo Jack
- BALANCED OUTPUT LEVEL
- +4 dBu Standard: +4 dBu (electronically balanced, greater than10kO load)
- Maximum: +20 dBu (electronically balanced, greater than 10kO load)
- Impedance: 600O
- -36 dBu Standard: -36 dBu (electronically balanced, greater than 10kO load)
- Maximum: -20 dBu (electronically balanced, greater than 10kO load)
- Impedance: 600O
- UNBALANCED OUTPUT LEVEL
- Standard: -36 dBu (electronically balanced, greater than 10kO load)
- Maximum: -20 dBu (electronically balanced, greater than 10kO load)
- Impedance: 120O
- MONITOR OUTPUT
- Maximum: +1 dBu (32O load at 9V)
- 16-100O load recommended
- Meters - Standard Output Level: 0 VU (+4 dBu)
Item Includes:
- FMX-42a mixer
- Nylon carrying case
- Manual
GTIN:
0095528070062
