Belden 7700A 75 Ohm Ultra-mini RG-59 30AWG Plenum S-Video Cable - Per Foot

Name: Belden 7700A 75 Ohm Ultra-mini RG-59 30AWG Plenum S-Video Cable - Per Foot
Brand: Belden
SKU: B-7700A/P
Price: 1.85 USD
Availability: SoldOut

ITEM #: B-7700A/P MFG #: B-7700A/P

Belden

Lengths:

Lengths

Availability: Sold Out

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

B-7700A/P - Overview

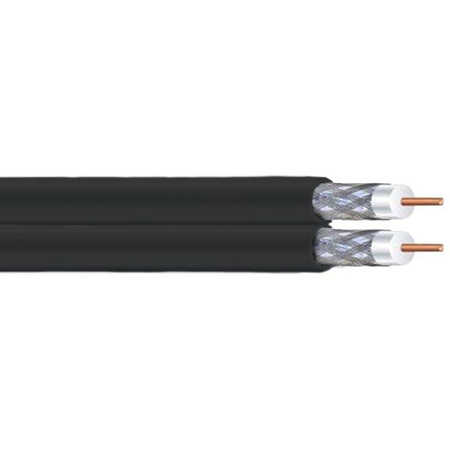

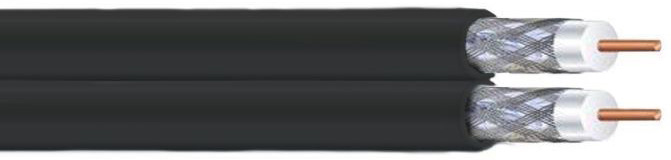

Belden 7700A 75 Ohm Analog Video Coax, Dual Ultra-miniature RG-59, 30 AWG (7x38) Tinned Copper Conductors , FEP Insulation, 95% Tinned Copper French Braid Inner Shields, Flamarrest® Jacket, CMP, Flexible. Suitable for S-Video, Standard analog video applications.

Specifications:
- RG Type: Ultra-miniature 59
- AWG: 30
- Stranding: 7x38
- Nom. Diameter: 0.012in
- Material: TC - Tinned Copper
- Nom. Conductor DCR: 92.6 Ohm/1000ft
- Nom. Inner Shield DCR: 7.5 Ohm/1000ft
- Nom. Capacitance Cond-to-Shield: 17.3 pF/ft
- Nom. Impedence: 75 Ohm
- Nom. Velocity: 78%
- UL Voltage Rating: 300 V (CMP)
- Non-UL Voltage Rating: 300 V
- UL Rating Temp: 60°C
- Operating Temp: -10°C to +60°C
- Bulk Cable Weight: 20 lbs/1000ft
- Max. Pull Tension: 12 lbs
GTIN:
0612825188223

B-7700A/P - Recommended Accessories

Weller WE1010NA Digital Soldering Station with 70W Iron
WEL-WE1010NA
Our Price: $149.04
Kester 60/40 44 Rosin 031 Diameter 21AWG Solder Wire One Pound Roll
KS4460-21
Our Price: $55.50
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
S-Video 4-Pin Female to Female Feed-Thru Silver Chassis Mount on Neutrik DBA Plate
SV4-BLCM/ND
Our Price: $10.95
Edsyn ED-DS017 - Deluxe SOLDAPULLT Full Size Solder Sucker
ED-DS017
Our Price: $44.64
Tenma 21-7960 Solder Fume Extractor With Carbon Filter 110VAC
TEN-SFE
Our Price: $69.95
Dual Helping Hand
12-051
Our Price: $8.35
Seco 90520 Gopher Pole 22 Foot Telescoping Wire Installation Tool
GO-POLE
Our Price: $199.00
Cable Joe Clamp-On Roller Glide Cable Install Helper
CBL-JOE
Our Price: $138.95

B-7700A/P - Reviews

B-7700A/P - Attachments

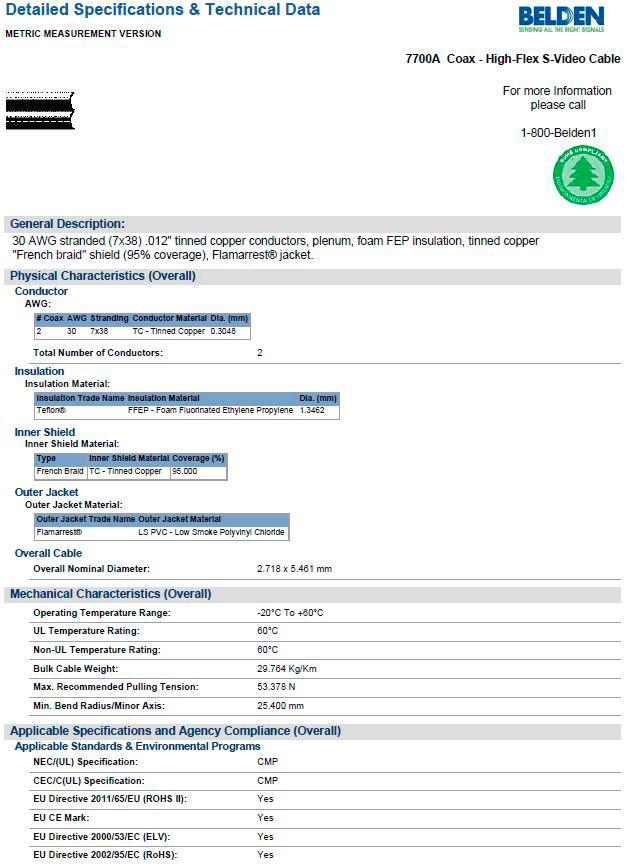

See Belden 7700A B59500 Specifications (PDF)

Overview

B-7700A/P - Overview

Specifications:
- RG Type: Ultra-miniature 59
- AWG: 30
- Stranding: 7x38
- Nom. Diameter: 0.012in
- Material: TC - Tinned Copper
- Nom. Conductor DCR: 92.6 Ohm/1000ft
- Nom. Inner Shield DCR: 7.5 Ohm/1000ft
- Nom. Capacitance Cond-to-Shield: 17.3 pF/ft
- Nom. Impedence: 75 Ohm
- Nom. Velocity: 78%
- UL Voltage Rating: 300 V (CMP)
- Non-UL Voltage Rating: 300 V
- UL Rating Temp: 60°C
- Operating Temp: -10°C to +60°C
- Bulk Cable Weight: 20 lbs/1000ft
- Max. Pull Tension: 12 lbs
GTIN:
0612825188223
