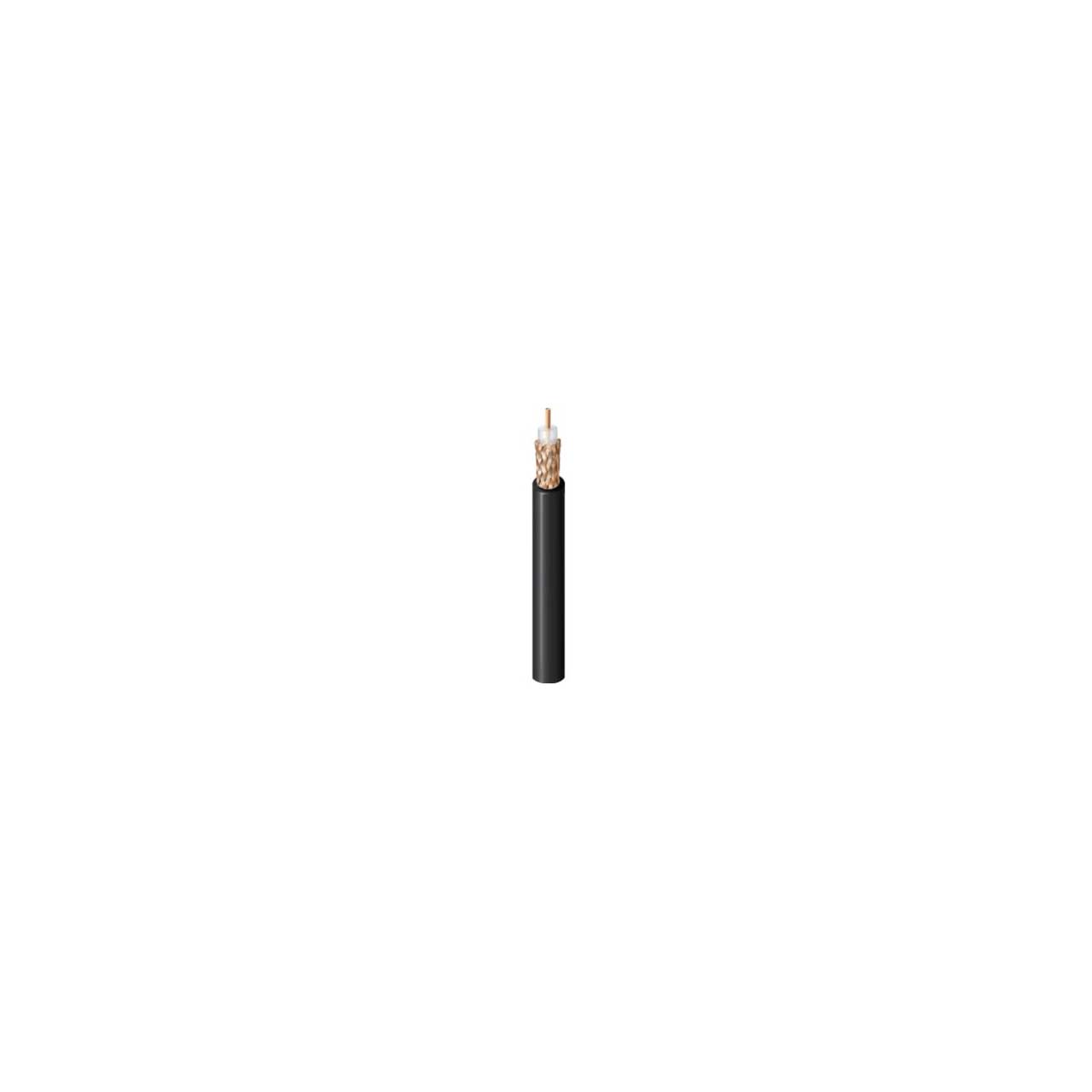

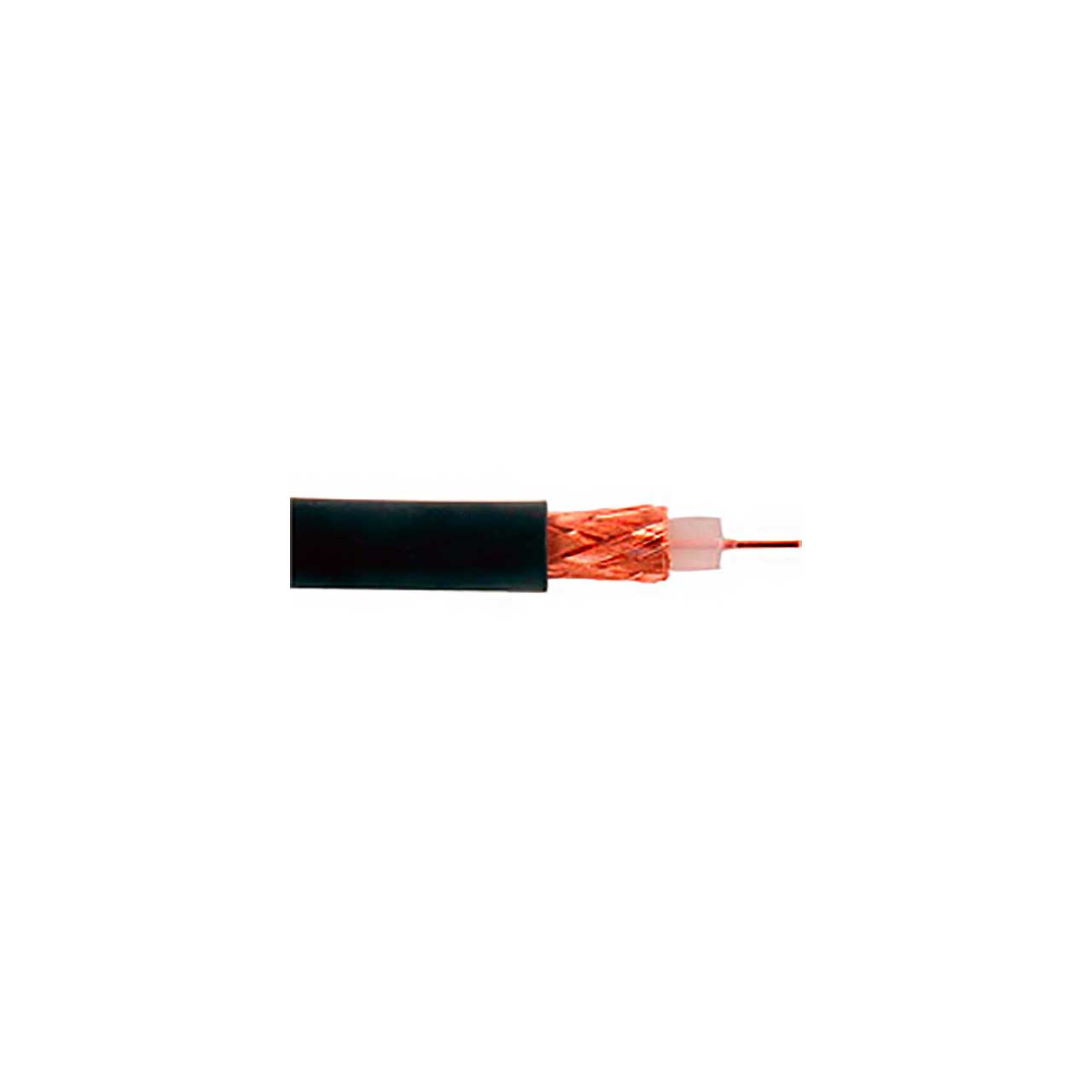

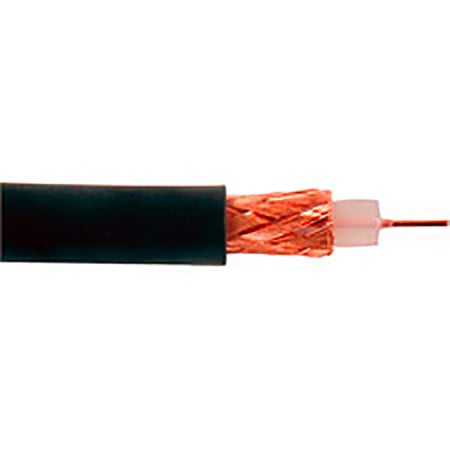

Belden 8241 CM Indoor/Outdoor RG59 Analog 75 Ohm Coaxial Video Cable Solid BCCS Shielded 23 AWG - Black - Per Foot

Name: Belden 8241 CM Indoor/Outdoor RG59 Analog 75 Ohm Coaxial Video Cable Solid BCCS Shielded 23 AWG - Black - Per Foot
Brand: Belden
SKU: B8241
Price: 0.81 USD
Availability: PreSale

ITEM #: B8241 MFG #: 8241

Belden

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$0.83

Our Price:

$0.81

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

8241 - Overview

Belden 8241 is a 75 Ohm Analog Video Coax. It's RG-59, 23 AWG with a Solid Bare Copper Covered Steel Conductor, PE Insulation, 95% Bare Copper Braid Shield in a CM rated PVC Jacket.

Reliable cable performance and absolute signal integrity are crucial in the broadcast industry. Choose from a full line of Belden broadcast cables designed to deliver against real-time requirements across a wide variety of audiences.

Applications
Standard analog video
TV stations
Outside broadcast vans
Production companies
Recording studios
Post production
Theater

Features:
- High Performance: Low Return Loss SDI Video Coax provides significant headroom to account for potential losses elsewhere in the transmission line
- Reliable Transmission: Maintains impedance and return loss characteristics even through rough handling during installation
- Robust Design: Incorporates specially formulated foam polyethylene increasing crush-resistance
Specifications:
- Number of Coax: 1
- RG Type: 59
- Conductor AWG: 23
- Conductor Nom. Diameter: 0.023 in
- Conductor Stranding: Solid
- Conductor Material: BCCS - Bare Copper Covered Steel
- Insulation Material: PE - Polyethylene
- Insulation Nom. Insulation Diameter: 0.146 in (3.71 mm)
- Outer Shield Type: Braided
- Outer Shield Material: BC - Bare Copper
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Overall Cable Diameter (Nominal): 0.240 in (6.10 mm)
- UL Voltage Rating: 300 V (CM), 30 V (UL AWM 1354)
- Voltage Rating: 1700 V
- UL Temperature: 75°C
- Operating Temperature: -30°C to +75°C
- Plenum Number: BL-88241 and BL-82241
- Nom. Characteristic Impedance: 75 Ohms
- Environmental Suitability: Indoor/Outdoor, Indoor, Aerial - Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL1685 UL Loading
- NEC / UL Compliance: CM
- AWM Compliance: AWM 1354
- CEC / C(UL) Compliance: CM
Item Includes:
- 8241 RG59 Analog 75 Ohm Coaxial Video Cable 23 AWG - Black - Per Foot
Warranty:
- Limited 10 Year Warranty
