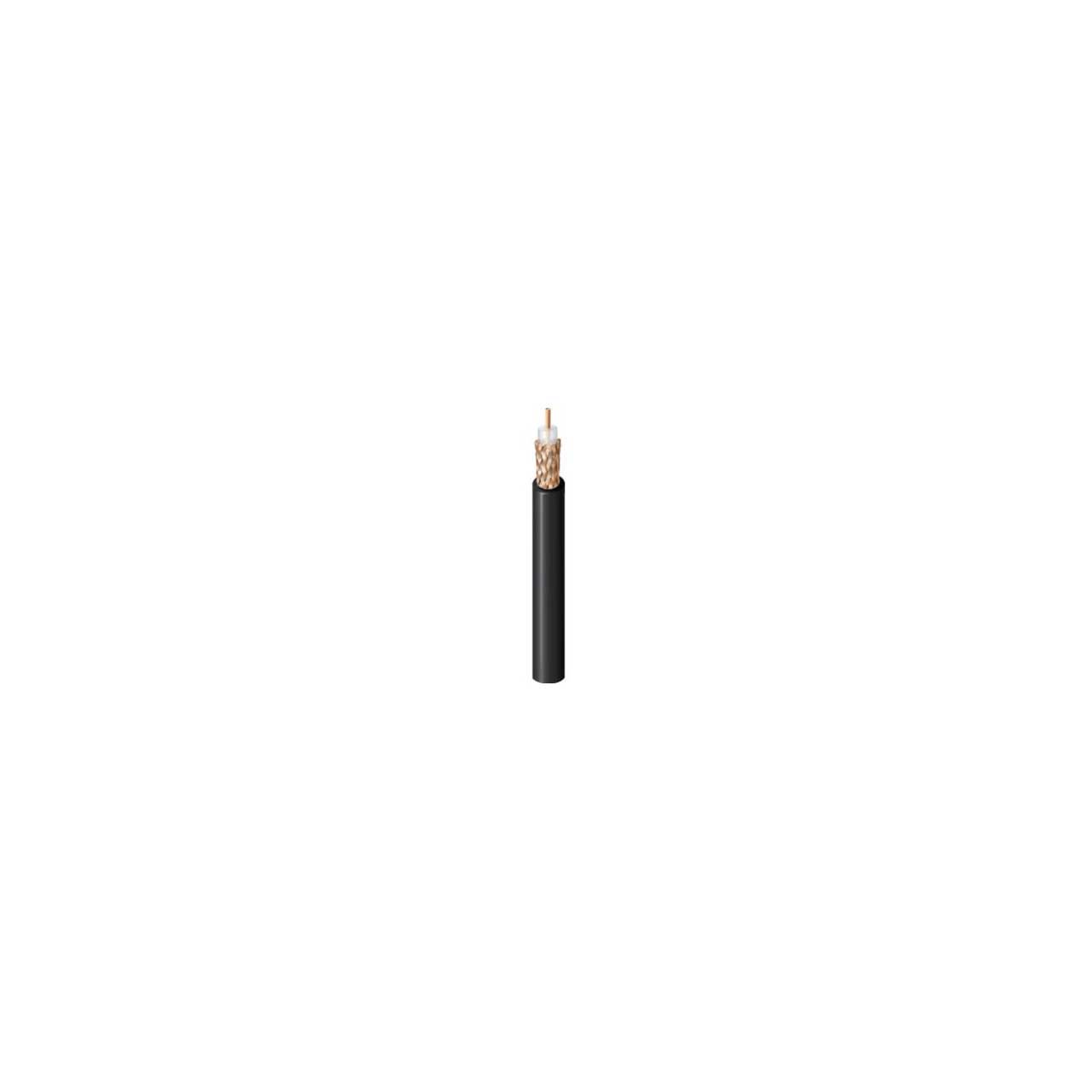

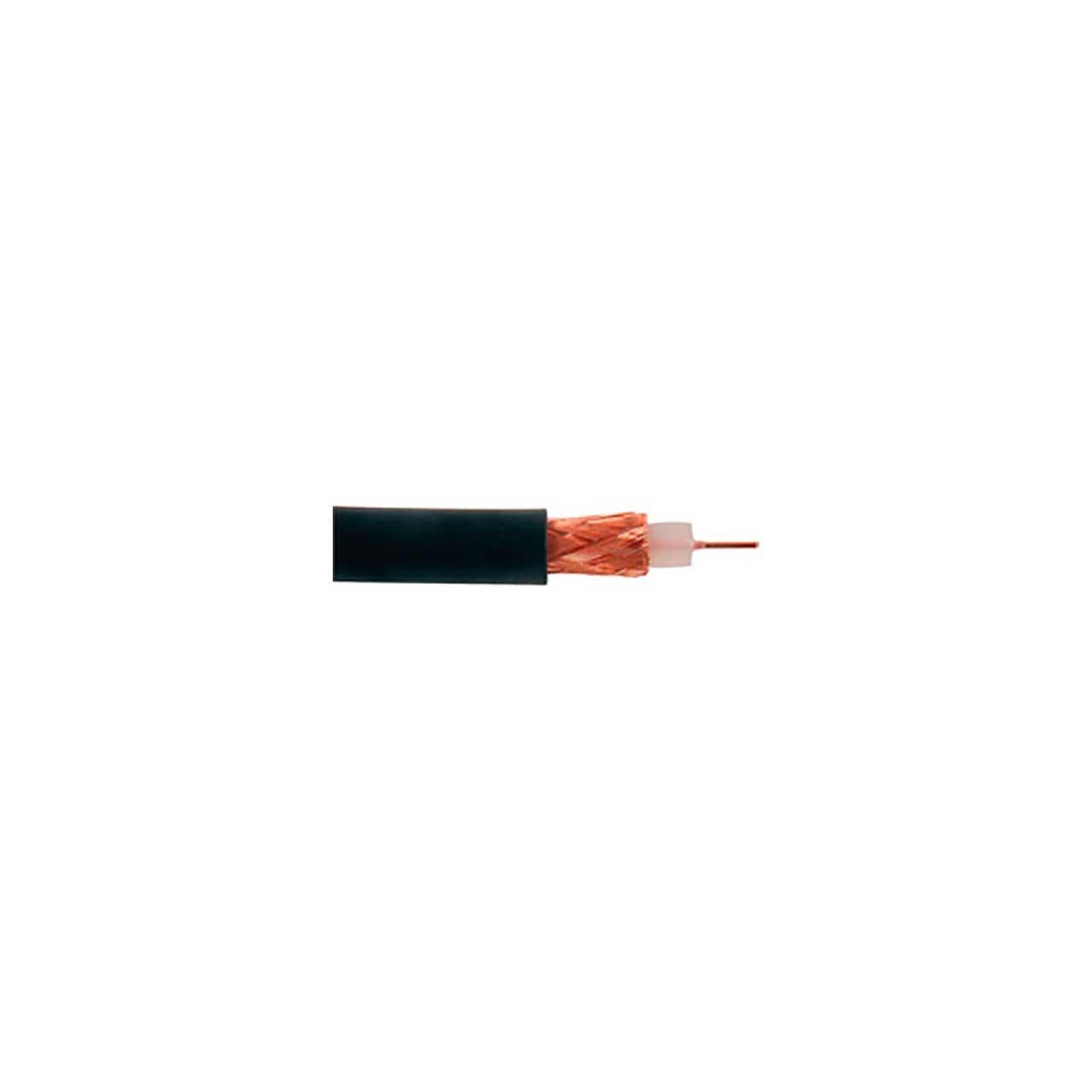

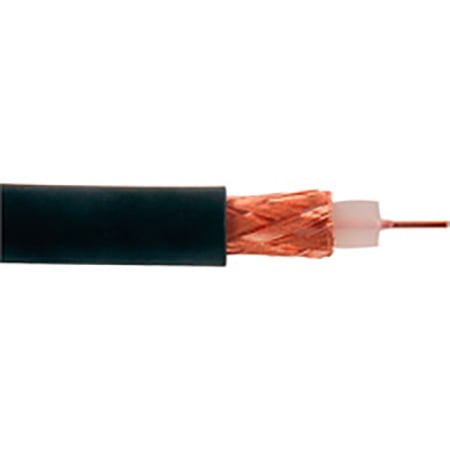

Belden 8241 CM Indoor/Outdoor RG59 Analog 75 Ohm Coaxial Video Cable Solid BCCS Shielded 23 AWG - 500 Foot

8241 010500 - Overview

• Features:

  • High Performance: Low Return Loss SDI Video Coax provides significant headroom to account for potential losses elsewhere in the transmission line
  • Reliable Transmission: Maintains impedance and return loss characteristics even through rough handling during installation
  • Robust Design: Incorporates specially formulated foam polyethylene increasing crush-resistance


• Specifications:

  • Number of Coax: 1
  • RG Type: 59
  • Conductor AWG: 23
  • Conductor Nom. Diameter: 0.023 in
  • Conductor Stranding: Solid
  • Conductor Material: BCCS - Bare Copper Covered Steel
  • Insulation Material: PE - Polyethylene
  • Insulation Nom. Insulation Diameter: 0.146 in (3.71 mm)
  • Outer Shield Type: Braided
  • Outer Shield Material: BC - Bare Copper
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Overall Cable Diameter (Nominal): 0.240 in (6.10 mm)
  • UL Voltage Rating: 300 V (CM), 30 V (UL AWM 1354)
  • Voltage Rating: 1700 V
  • UL Temperature: 75°C
  • Operating Temperature: -30°C to +75°C
  • Plenum Number: BL-88241 and BL-82241
  • Nom. Characteristic Impedance: 75 Ohms
  • Environmental Suitability: Indoor/Outdoor, Indoor, Aerial - Black only, When supported by messenger wire
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: UL1685 UL Loading
  • NEC / UL Compliance: CM
  • AWM Compliance: AWM 1354
  • CEC / C(UL) Compliance: CM


• Item Includes:

  • 8241 CM Analog 75 Ohm Coaxial Video Cable 23 AWG - Black - 500 Ft


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825358701
