Bittree B96DC-HNIIS/E3 M2OU7B 2x48 1RU E3 Half Norm Iso Ground TT Patchbay 7-Inch

ITEM #: B96DC-HNIISE3-M2 MFG #: 968421A

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Bittree
Free Shipping with $49 Minimum Order

Our Price:

$1,661.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

968421A - Overview

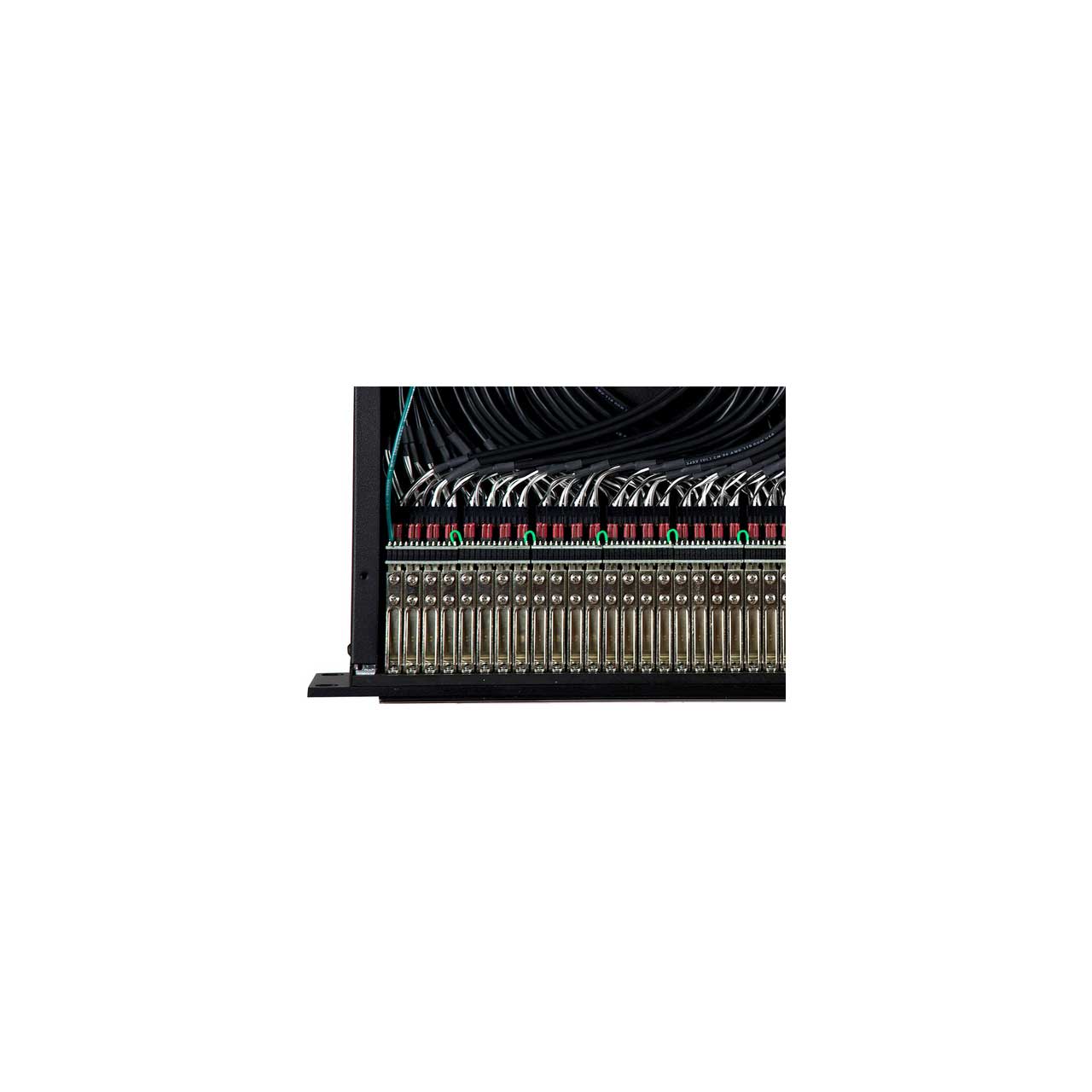

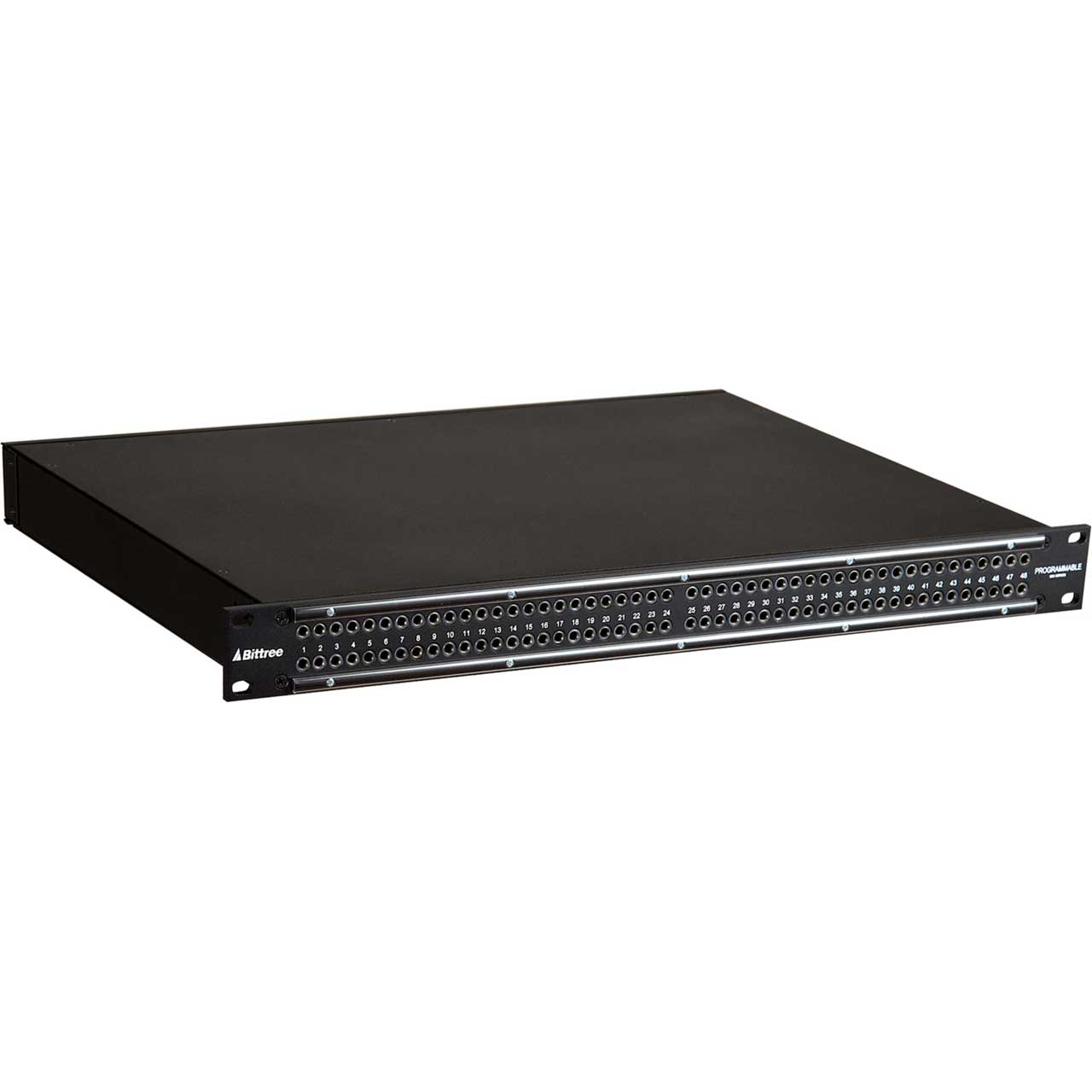

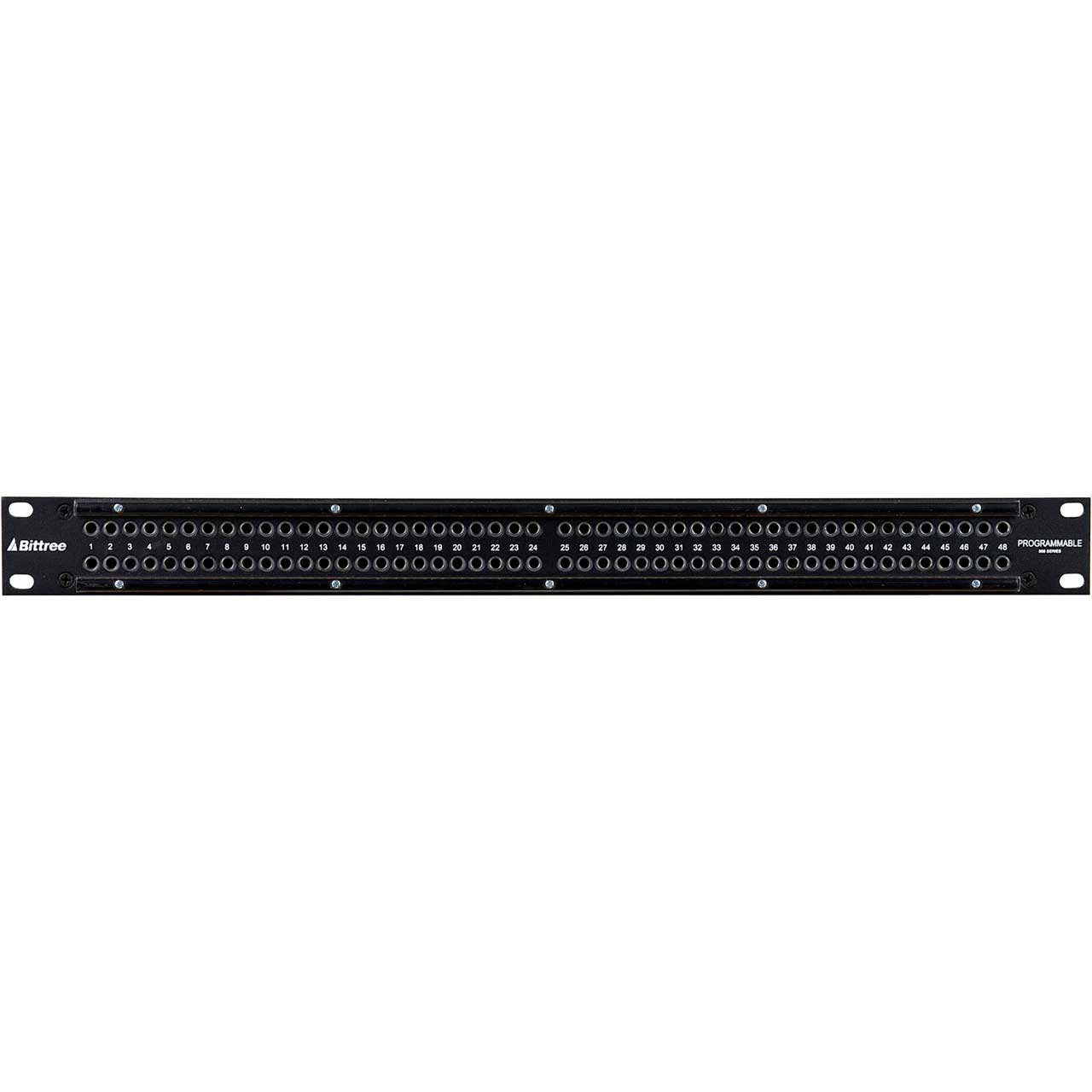

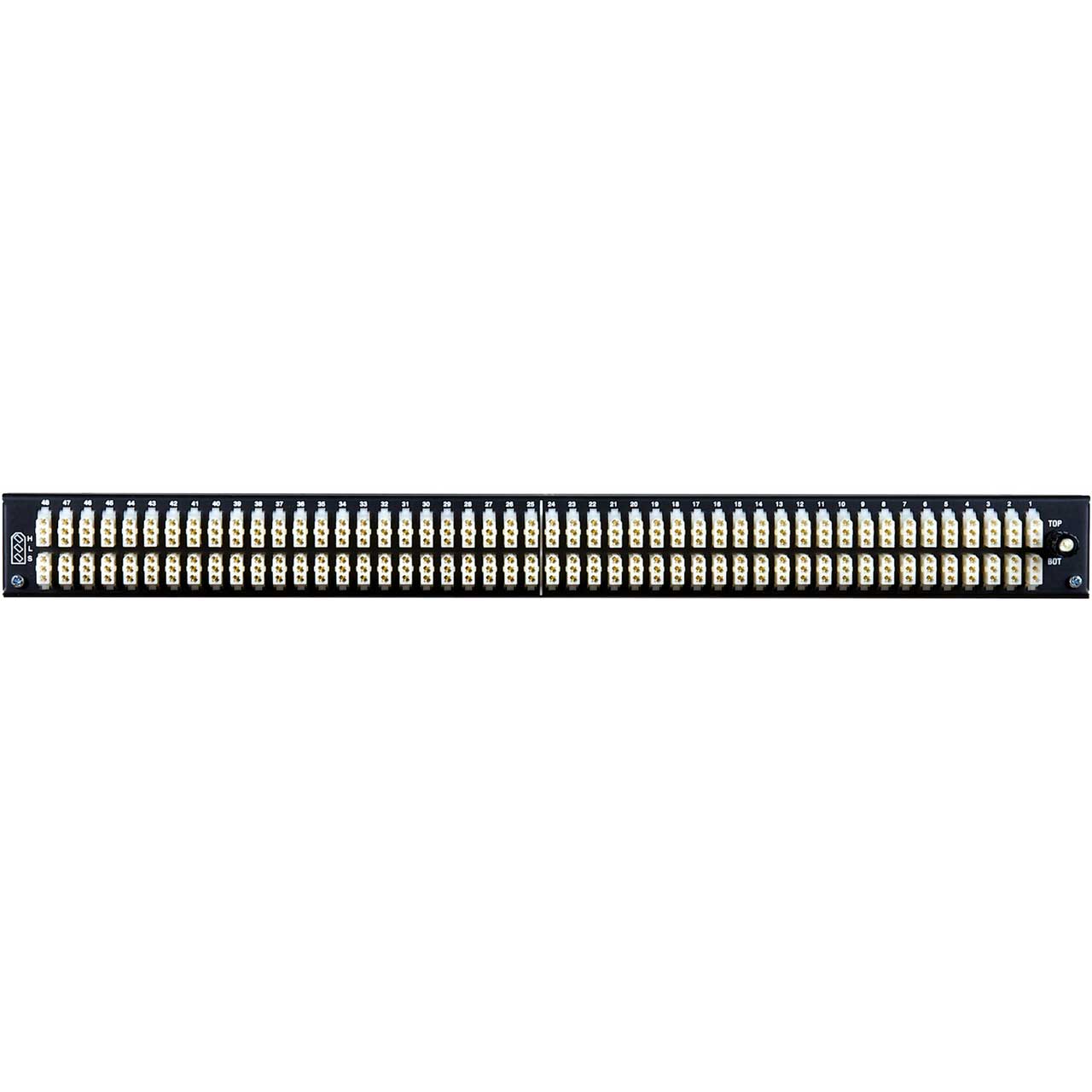

The Bittree B96DC-HNIIS/E3 M2OU7B is a 1 RU Black 2x48 mono spaced bantam patchbay with a 7 inch deep chassis.

  • Features:

    • High-density 2x48 jack configuration with mono (even) jack spacing
    • Selectable normalling and grounding: Circuits can be easily changed via shunts under both top and bottom dust covers
    • Digital AES wire used for internal wiring
    • 1-48 left-to-right numbering on front panel for easy circuit identification
    • 2 x DS250-10-ASSY designation strip assemblies, "Over/Under" orientation
    • Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces
    • 6" (15.24 cm) deep rear lacing bar included with E3 and ID (Punchdown) rear interfaces: Alternative 3" (7.62 cm) deep lacing bar available
