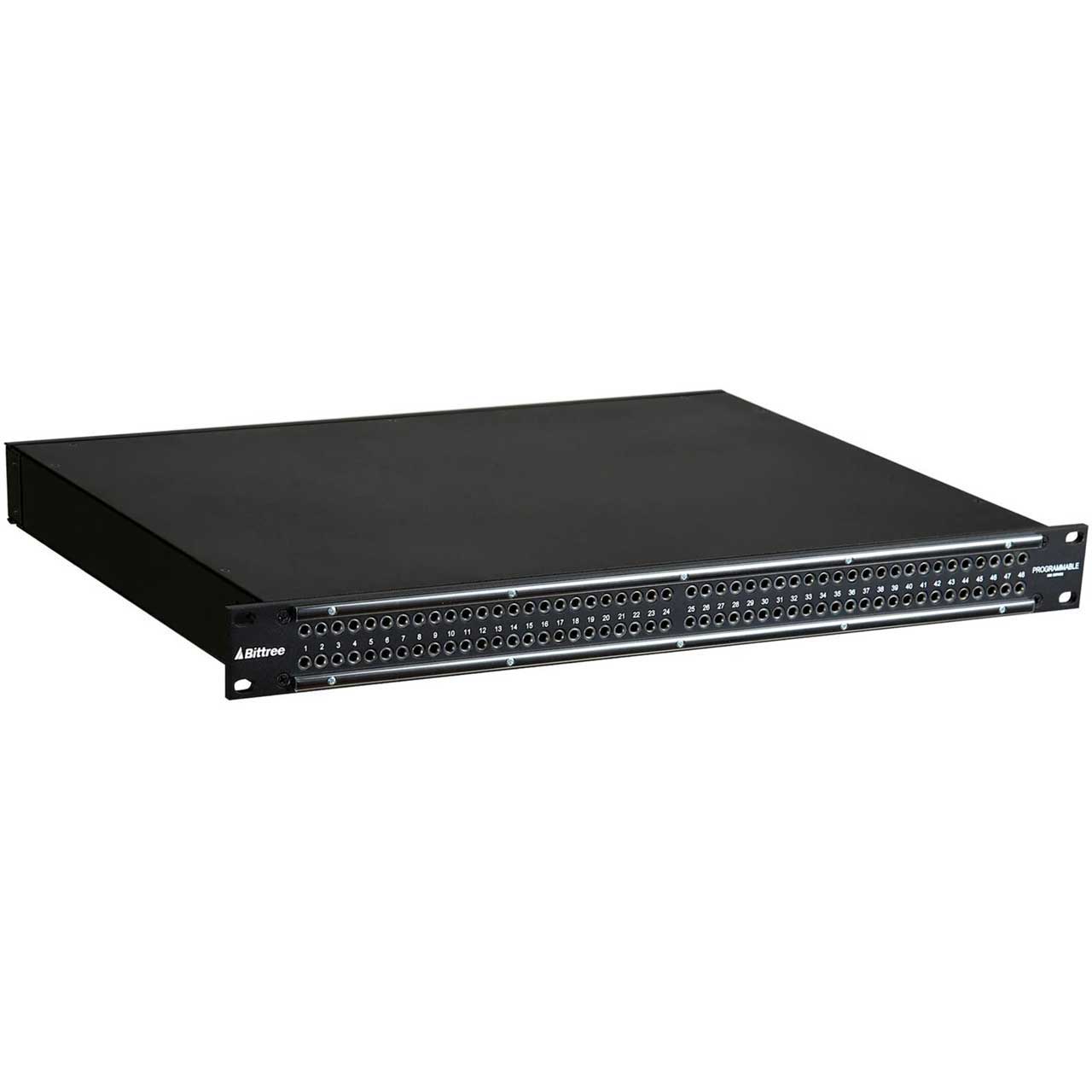

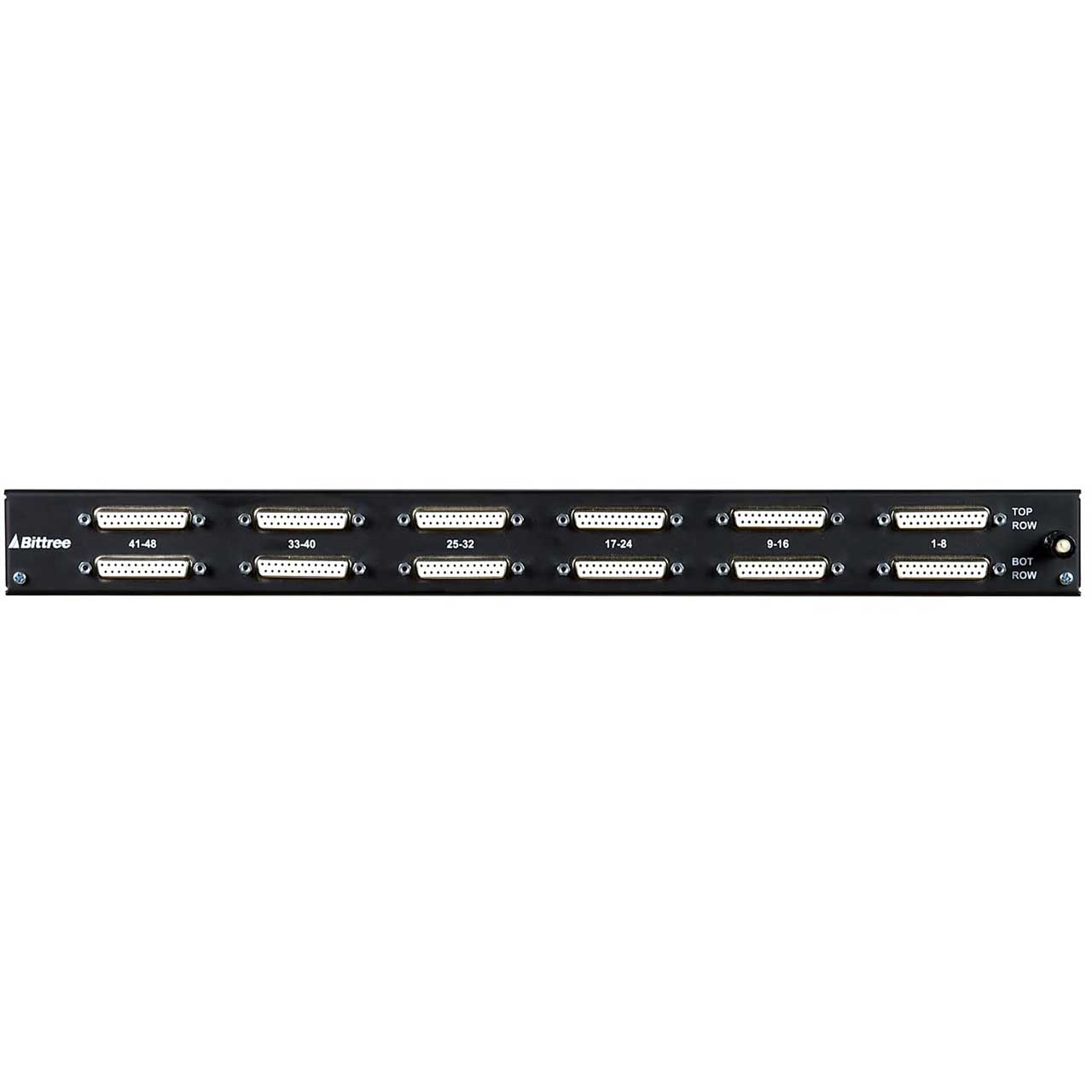

968S - 2X48 1RU TT PATCHBAY, INTERNALLY SELECTABLE TRS AUDIO, DB25 REAR INTERFACE, HALF NORMAL, SWITCHED GROUNDS, 12" CHASSIS DEPTH.

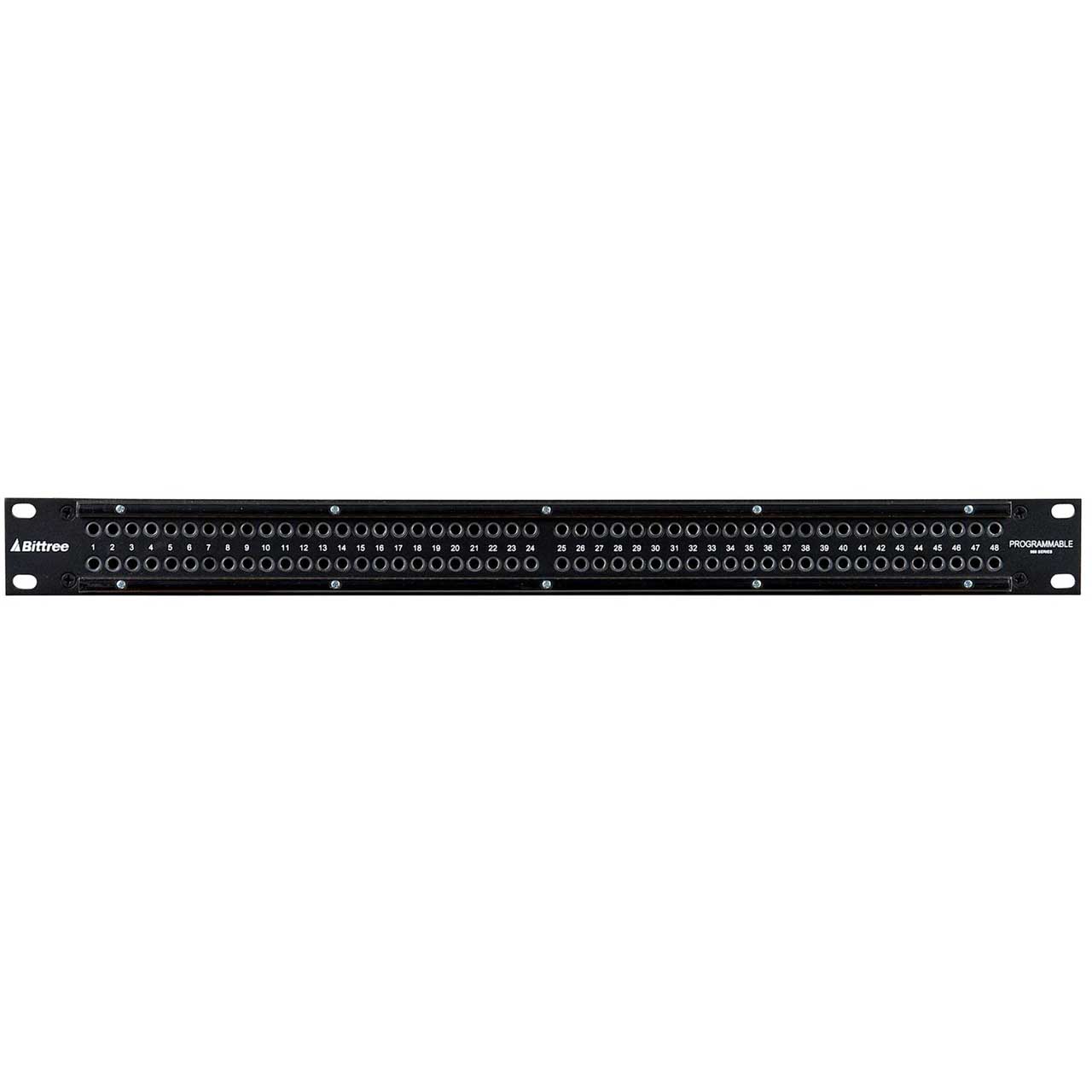

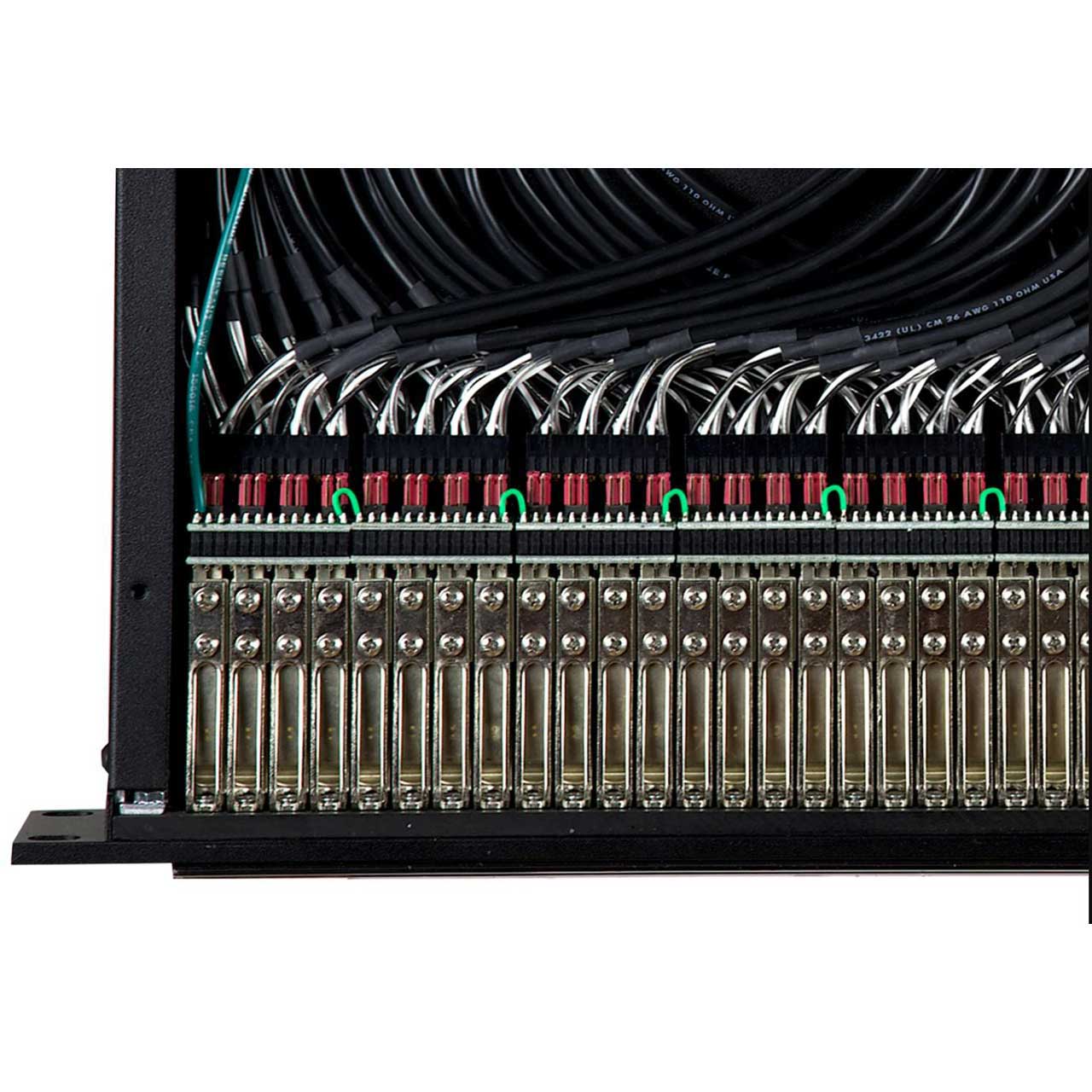

Bittree Internally Selectable TT (Bantam) 968s Series Audio Patchbay in 1RU. High-density 2x48 jack configuration with mono (even) jack spacing. Selectable normalling and grounding: - Circuits can be easily changed via shunts under both top and bottom dust covers. Digital AES wire used for internal wiring. 1-48 left-to-right numbering on front panel for easy circuit identification. 2 x DS250-10-ASSY designation strip assemblies, "Over/Under" orientation: - Designation strips can be reconfigured to "Over/Over" orientation - Front panel will accommodate an optional third designation strip. Mating hardware included with E3 and E90 rear interfaces. 6" (15.24 cm) deep rear lacing bar included with E3 rear interface: - Alternative 3" (7.62 cm) deep lacing bar available.
