BZBGEAR BG-CHA USB 3.1 1080P60Hz FHD HDMI Video Capture Card with Scaler and Audio

ITEM #: BG-CHA MFG #: BG-CHA

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$199.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BG-CHA - Overview

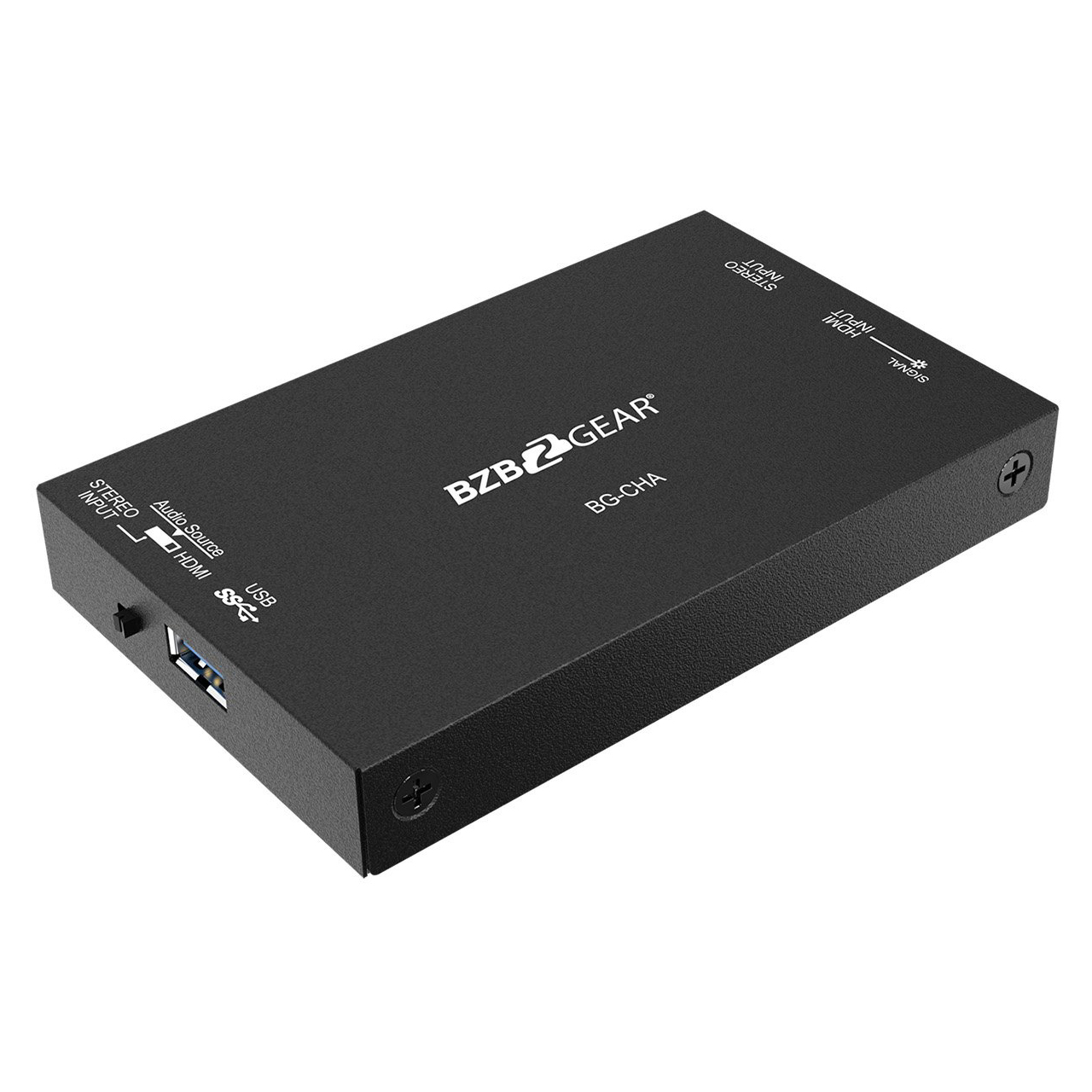

The BZBGEAR BG-CHA is an HDMI video capture device. When you need to record or stream any HDMI source (like video camera, gaming console or other computer) on your PC - this device will do the job. It supports any resolutions up to 1080P at 60fps on USB 3.0/3.1 ports. Built-in scaler gives you more flexibility for the capturing video format. Large volume image buffer ensures smooth uninterrupted video capture. Using 3.5mm stereo audio input you can switch to the external mic or other audio signal and embed it into the video stream. All aluminum housing and power from USB port (no additional power adapter required) adds durability and portability to our setup. BG-CHA is HDCP compliant and will not allow to record protected content.

  • Features:

    • 1080p/60 Support Crystal clear image with resolutions up to up to 1080p@60Hz
    • Compact Ideal for recording presentations on the go
    • USB 3.1 Data Transfer The USB 3.1 port supplies power for the unit and transfers data to the connected device
    • Audio Input Embeds audio from a microphone or other device
    • Easy to Use Logical layout allows anyone to take control
    • Compatibility Supports Mac OS, Windows, and a wide array of third-party applications

  • Specifications:

    • Technical
    • Max. Data Rate: 350 Mbps
    • UHD Video Standards:
      - 1080p at 60/50/30/25/24 Hz
    • HD Video Standards:
      - 720p at 60/50/30/25/24 Hz
      - 1080p at 23.98/24/25/29.97/30 Hz
    • VESA Standards:
      - 1280x1024p at 60/50/30/25/24 Hz
      - 1280x720p at 60/50/30/25/24 Hz
      - 1024x768p at 60/50/30/25/24 Hz
      - 600p at 60/50/30/25/24 Hz
      - 480p at 60/50/30/25/24 Hz
    • UAC Audio Output Format: Stereo/16-bit/48000Hz
    • Recording Video Format: YUY2 (USB3.1 Gen 1), MJPG (USB2.0/3.1 Gen 1)
    • Audio Input: HDMI Embedded Audio 3.5mm Analog Stereo Audio
    • Operating System Compatibility: Windows 7, 8, 10, Mac OS X 10.9 or above, Linux
    • 3rd-Party Software Compatibility: OBS Studio (Windows, Linux)/ AMCap (Windows) Potplayer (Windows)/ Skype (Windows, OS X) Hangout (Windows)/ TeamViewer (Windows)
    • Hardware Requirements Desktop: Intel Core i5-3400+NVIDIA GTX660 or higher Notebook: Intel Core i7-4810MQ+NVIDIA GTX870M+4GB RAM or higher
    • ESD Protection 8 KV - Contact Discharge 15KV - Air Discharge

      Mechanical
    • Housing Design: Aluminum
    • Casing Style: Portable
    • Power Connection: Micro-USB Port
    • Power Supply: 5V DC, 1A
    • Power Consumption: 4 watts (Max)
    • Operating Humidity: 20% - 90% RH (no condensation)
    • Operation Temperature: 32°F - 104°F (0°C - 40°C)
    • Product Weight: 0.3lbs (135g)
    • Package Weight: 0.6lbs (270g)
    • Certifications: CE, FCC, RoHS

  • Item Includes:

    • 1x BZBGEAR BG-CHA USB 3.1 Gen 1 Full HD Video Capture Device
    • 1x USB 3.1 Gen 1 A to A Cable (host to device)
    • 1x User Manual

  • Warranty:

    • 3 Year Limited Warranty

  • GTIN:

    0850023208248
