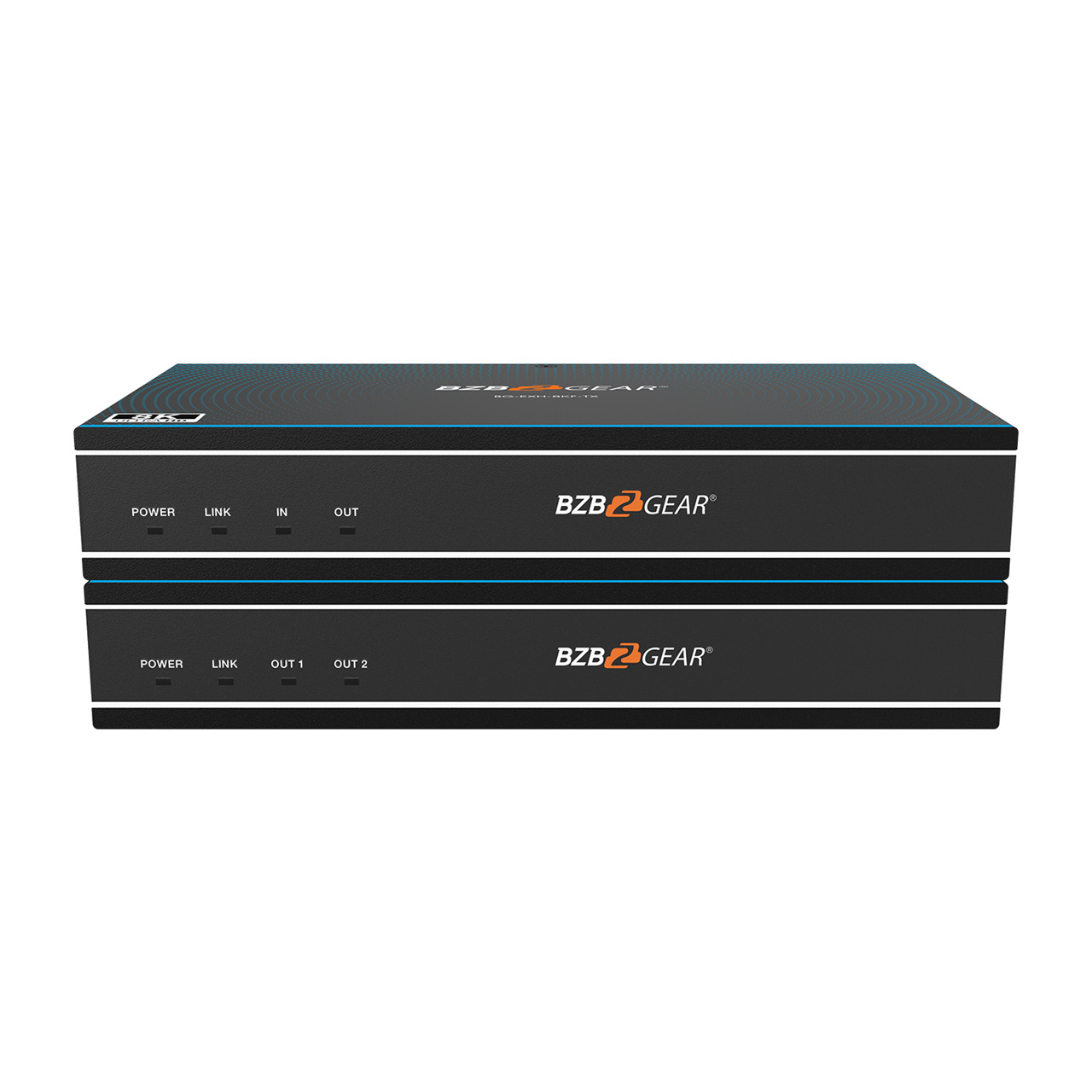

BZBGear BG-EXH-8KF 8K60fps HDMI 2.1 LC Simplex Fiber Extender with IR / RS232 / EDID Manager

BG-EXH-8KF - Overview

• Features:

  • HDMI 2.1, HDCP 2.3 compliant
  • Supports 8K@60 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
  • Supports HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby
  • VRR, ALLM, QMS, QFT, and SBTM are supported
  • Bi-directional IR & RS-232 pass-through, EDID management
  • Extend your 8K or 4K@120Hz signal up to 300M
  • Up to 48Gbps FRL and 18Gbps TMDS support
  • HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
  • Multimode fiber grade OM2/3/4 compatible
  • 8K to 4K or 8K/4K to 1080P auto downscaling on TX loop out and RX OUT2
  • Supports LINE IN audio embedded on TX and analog audio break out on RX


• Specifications:

  • Technical
  • HDMI Compliance: HDMI 2.1
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
  • Video Resolution: Up to 8K@60 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit
  • Color Space: RGB 4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
  • Color Depth: 8/10/12-bit

    Audio Formats
  • HDMI IN/OUT:
    - PCM 2.0, LPCM 5.1, LPCM 7.1, (32K/44.1K/48K/88.2K/96K/176.4K/192K) (16/20/24)
    - Dolby Digital, Dolby Digital plus, Dolby TrueHD
    - Dolby Atmos; DTS Surround, 96/24, ES, DTS Express, DTS-HD
    - HRA, DTS HD Master, DTS:X; AUDIO BREAKOUT
    - L/R OUT: PCM 2.0CH
  • Optical Fiber Transmission - Distance
    - OM2: 40m/131ft
    - OM3: 200m/656ft
    - OM4: 300m/985ft (over 850nm OM2/3/4 multi-mode fiber optic cable)
  • IR Level
    - IR IN: 12V; Level: 3.2.04.00219
    - IR OUT: 5V; Level: 3.2.04.00093
  • IR Frequency: Wideband 20K-60KHz
  • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

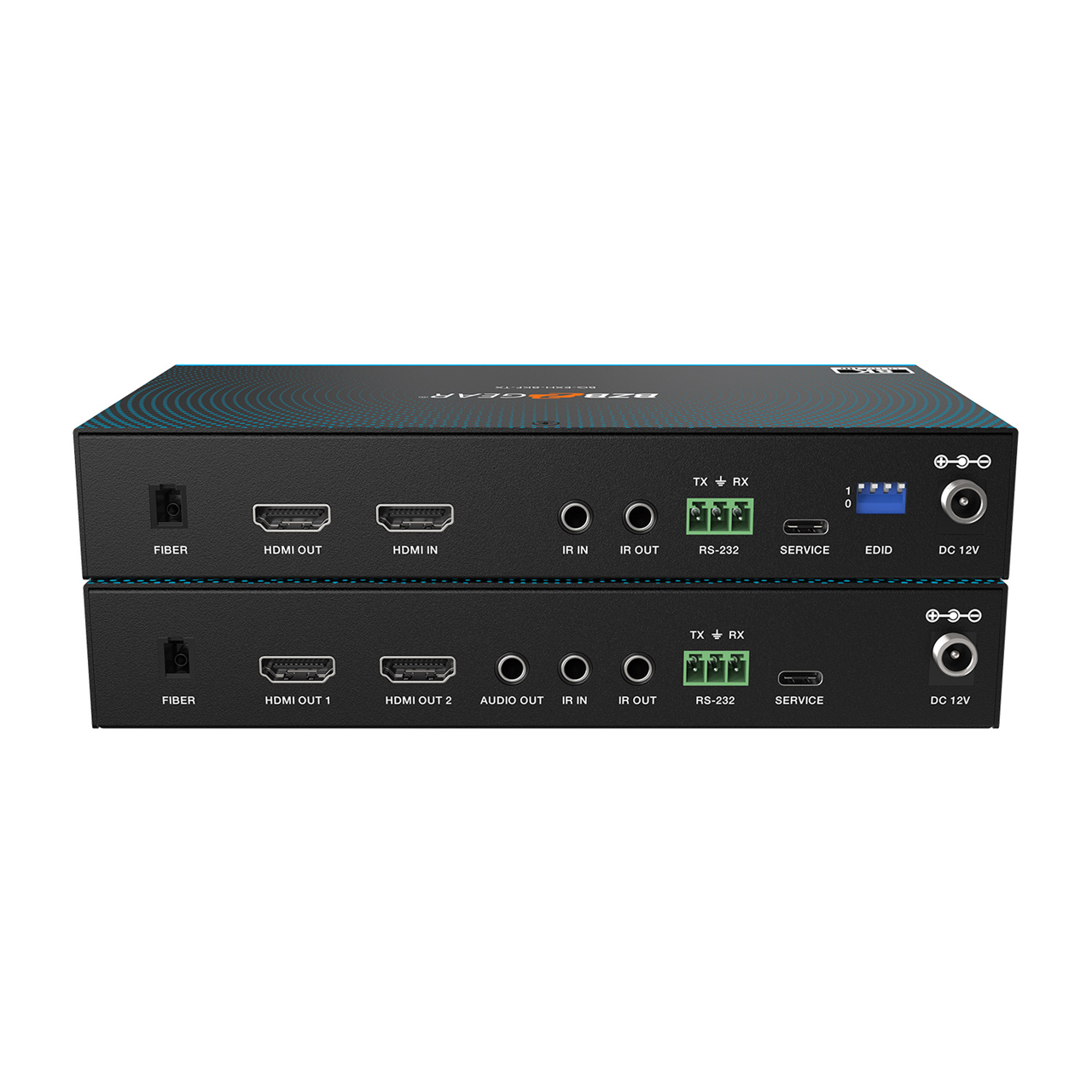

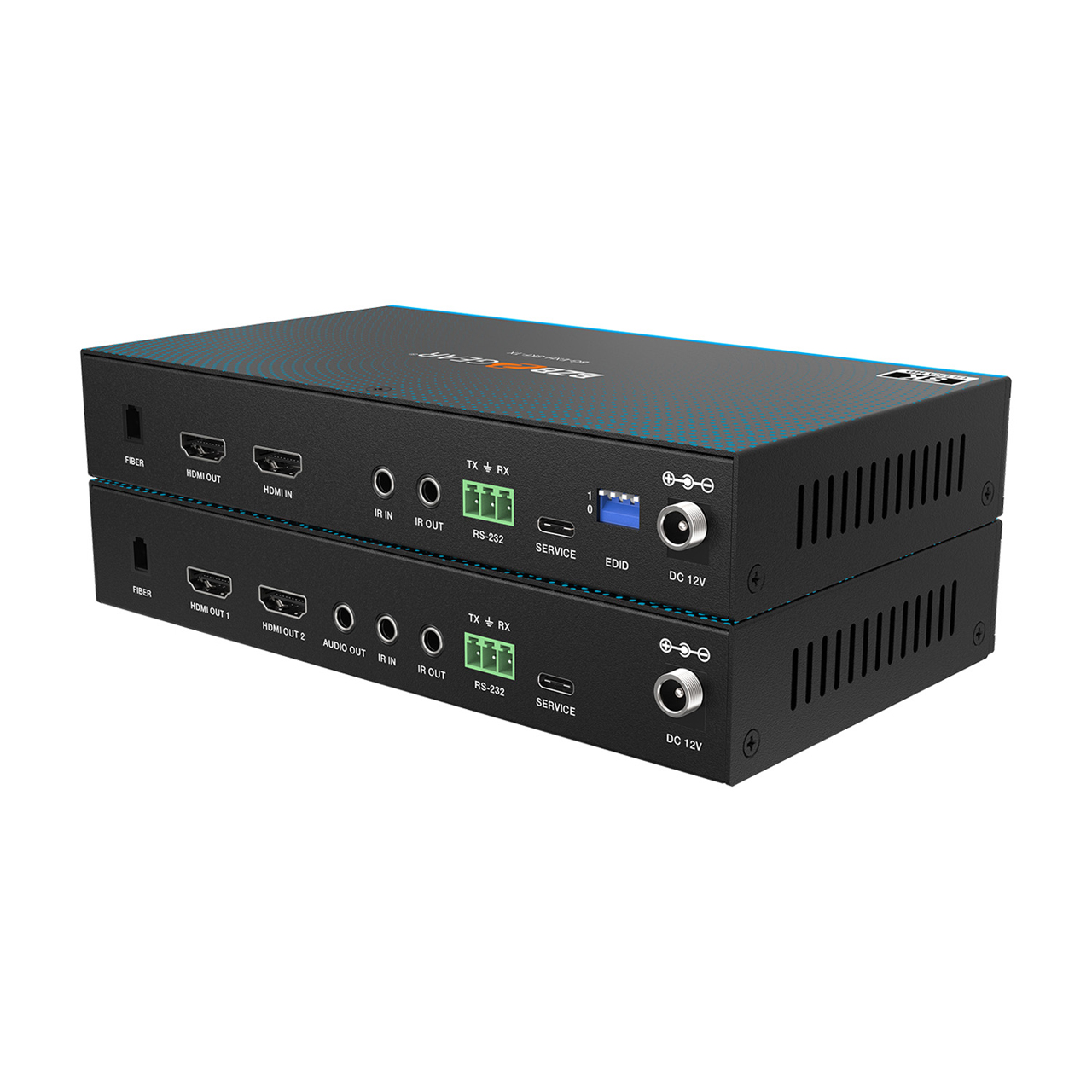

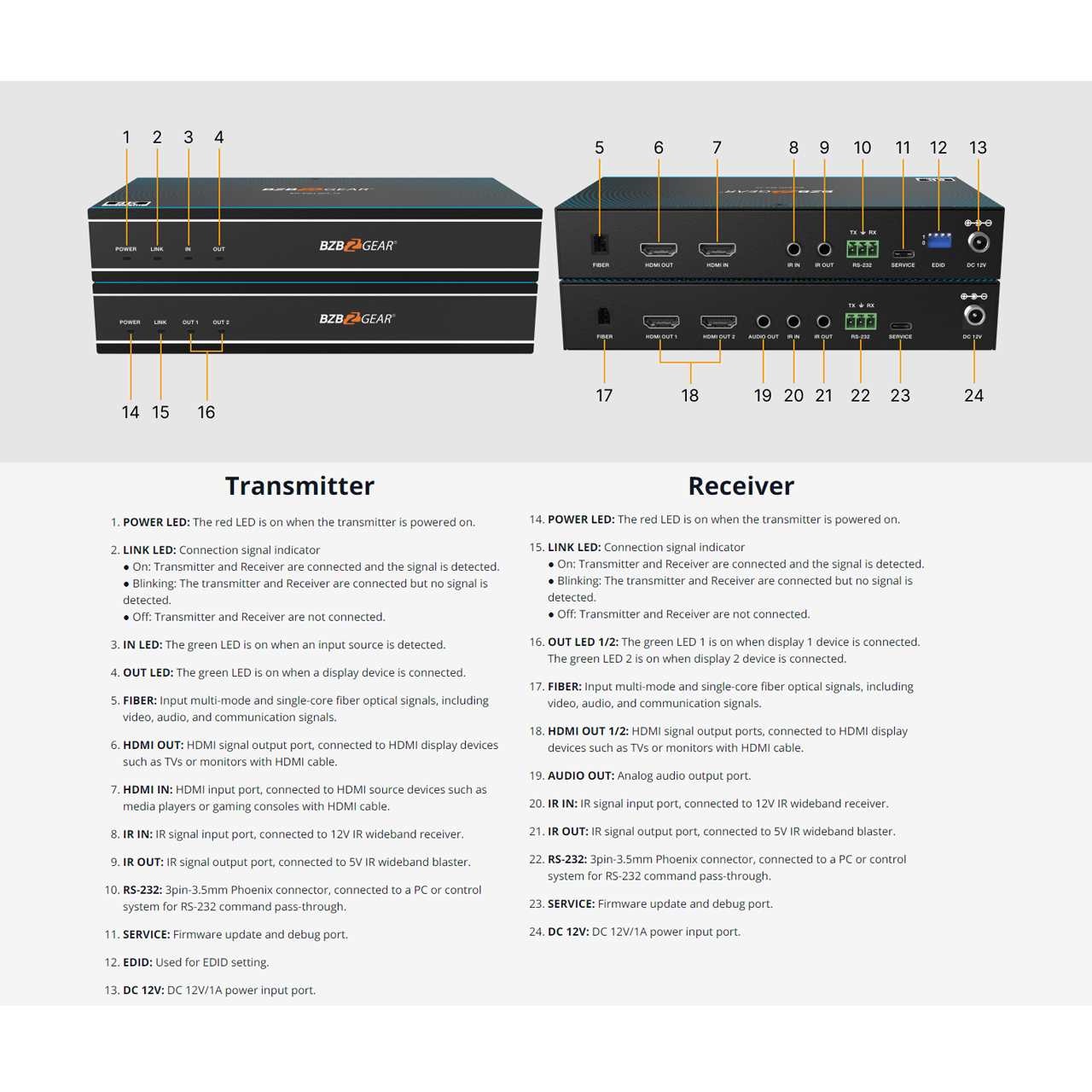

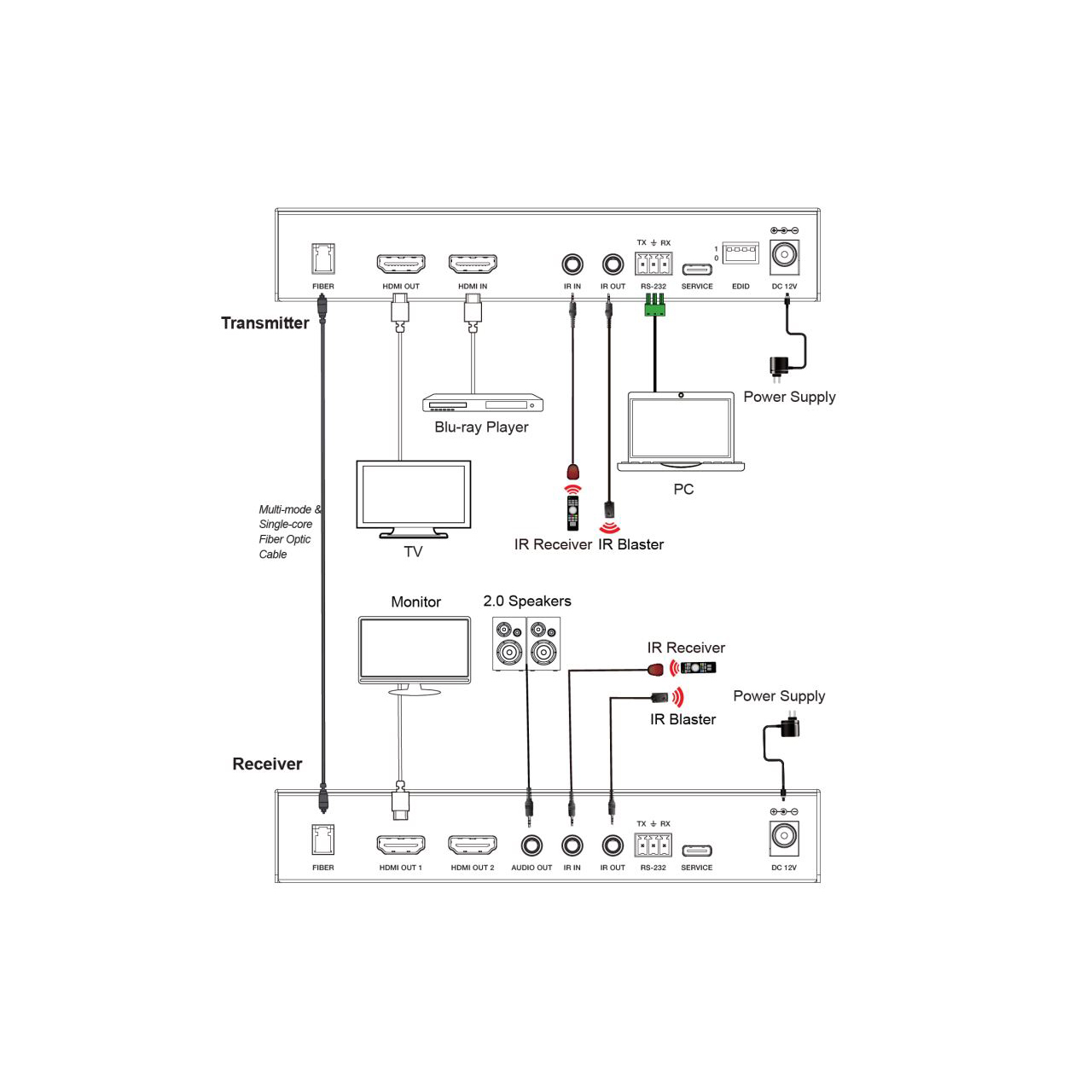

    Connection
  • Transmitter
    - Input: 1x HDMI IN (Type A, 19-pin female), 1x IR IN (3.5mm audio jack)
    - Output: 1x HDMI OUT (Type A, 19-pin female), 1x IR OUT (3.5mm audio jack), 1x FIBER (LC)
    - Control: 1x RS-232 (3pin-3.5mm phoenix connector), 1x SERVICE (USB-C, update port)
  • Receiver
    - Input: 1x FIBER (LC), 1x IR IN (3.5mm audio jack)
    - Output: 2x HDMI OUT (Type A, 19-pin female), 1x IR OUT (3.5mm audio jack), 1x AUDIO OUT (3.5mm audio jack)
    - Control: 1x RS-232 (3pin-3.5mm phoenix connector), 1x SERVICE (USB-C, update port)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions (WxDxH): Transmitter/Receiver: 6.9" x 3.9" x 1.2" (175mm x 100mm x 30mm)
  • Weight:
    - Transmitter: 1.09lbs (496g)
    - Receiver: 1.08lbs (492g)
  • Power Supply: Input: AC 100~240V 50/60Hz; Output: DC 12V/1A
  • Power Consumption: Transmitter: 6.7W (Max); Receiver: 4.5W (Max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (non-condensing)

    Recommended HDMI Cable & Length
  • 8K - 3m/10ft (Ultra HDMI 2.1)
  • 4K60 - 8m/26ft
  • 4K24 - 12m/39ft
  • 1080P - 15m/49ft
    *The use of "Premium High-Speed HDMI" cables is highly recommended.


• Item Includes:

  • 1x 48Gbps HDMI over FIBER Extender (TX)
  • 1x 48Gbps HDMI over FIBER Extender (RX)
  • 1x IR Wideband Blaster Cable (1.5m)
  • 1x IR Wideband Receiver Cable (1.5m)
  • 2x 12V/1A Multinational Power Supply
  • 2x Power Adapter
  • 4x Mounting Ear
  • 8x Machine Screw (KM3*4)
  • 2x 3pin-3.5mm Phoenix Connector (male)
  • 1x User Manual
