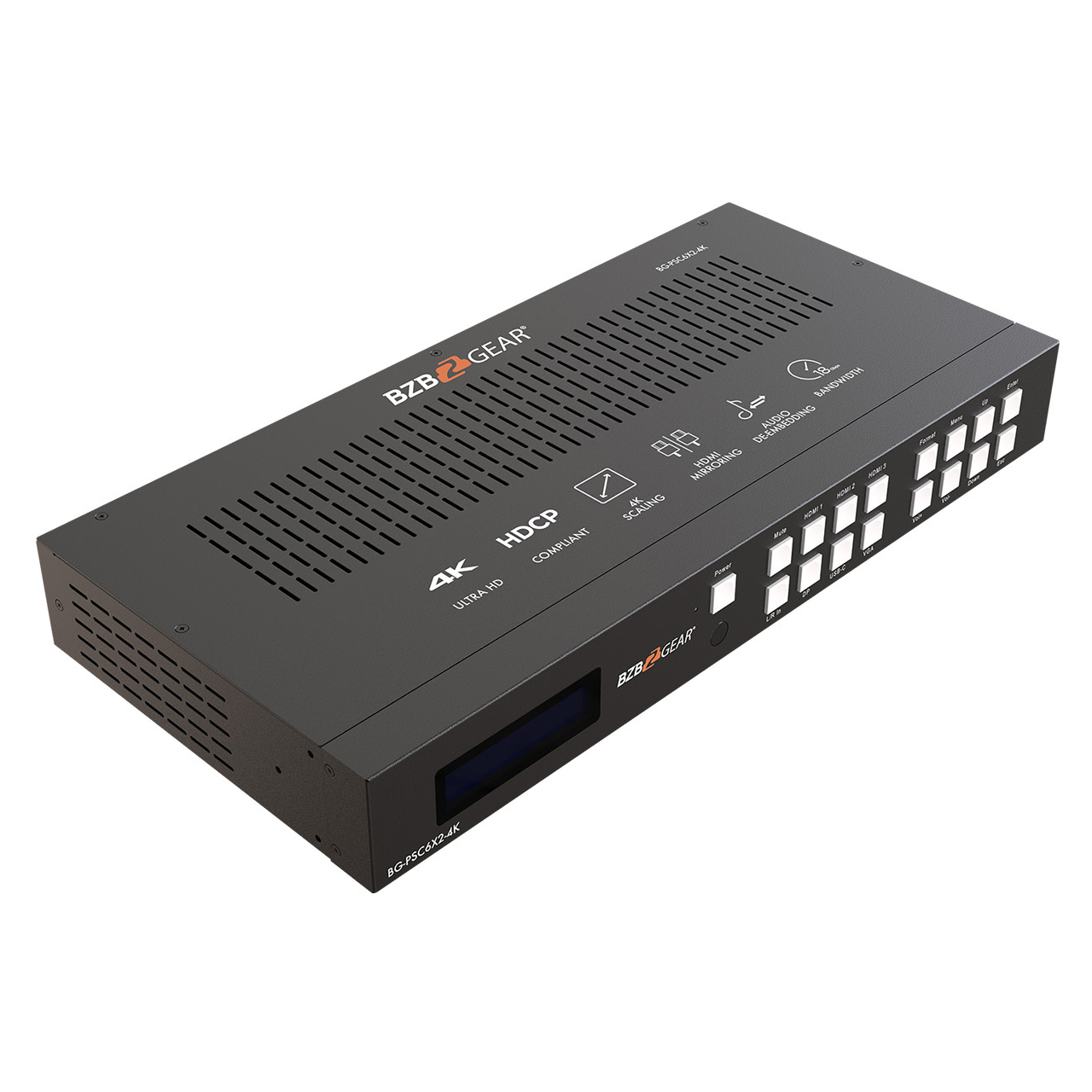

The BZBGEAR BG-PSC6X2-4K multi-function 4K@60Hz presentation switcher provides users with a variety of inputs, allowing numerous devices to be displayed on a 4K HDMI display. The powerful integrated scaler allows resolutions as low as 640 x 480 to be displayed in multiple aspect ratios at resolutions up to 4096x2160@60Hz 4:4:4. Featuring audio embedding, de-embedding, and a MIC level input, the BG-PSC6X2-4K is an effective solution for use in auditoriums, classrooms, and conference rooms.
Connectivity

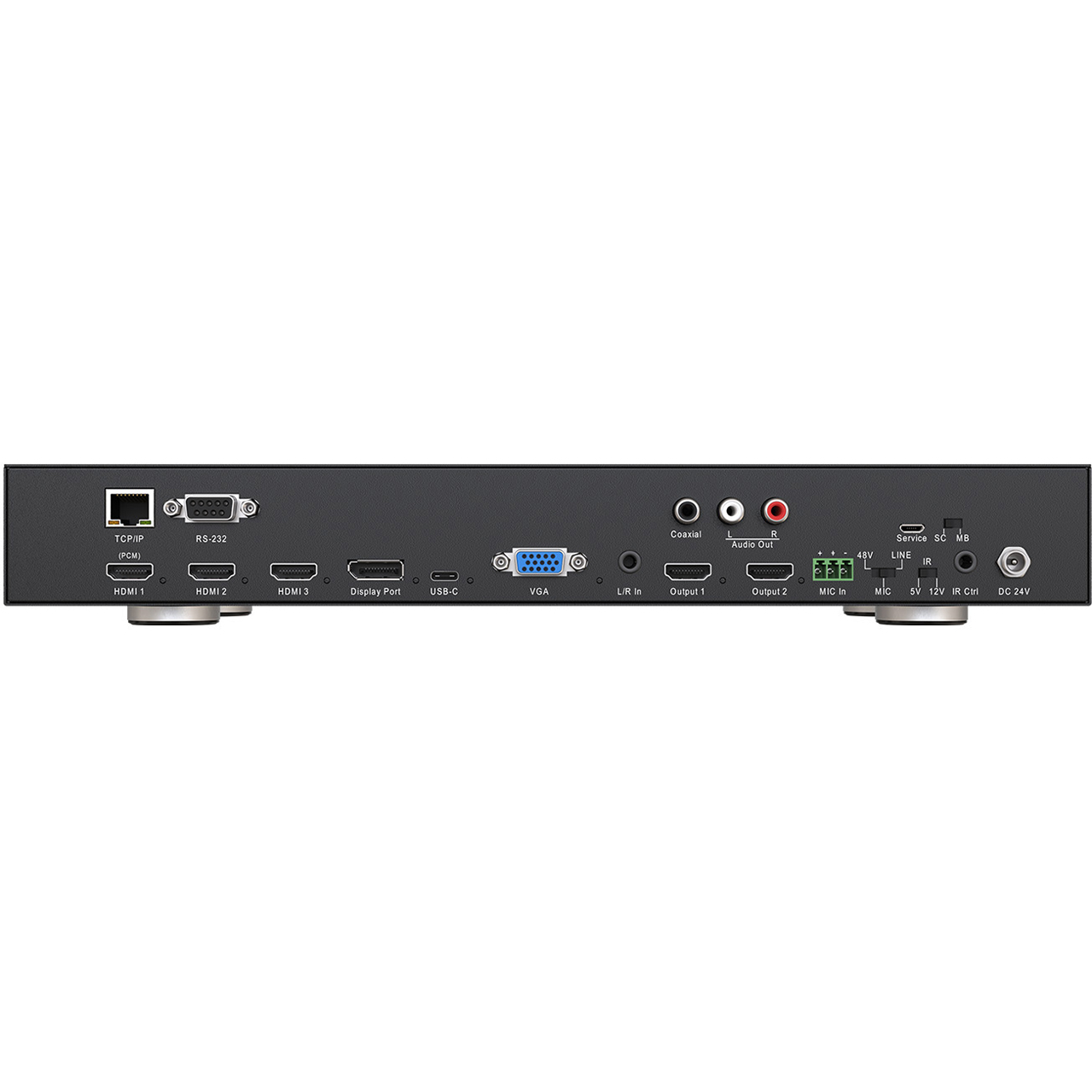

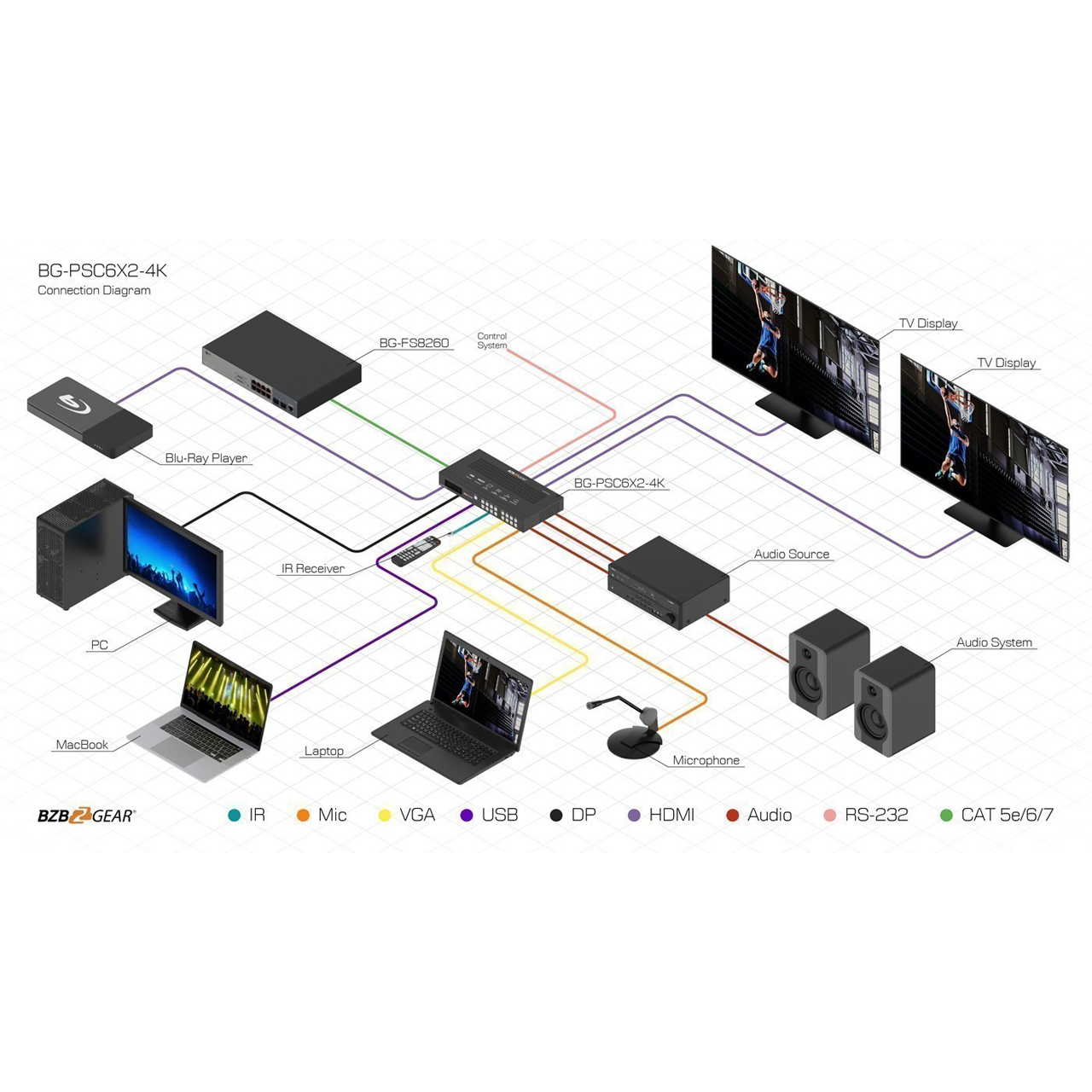

The BG-PSC6X2-4K is equipped with six inputs including three 18 Gbps HDMI 2.0, one DisplayPort, one USB-C, and one VGA. The VGA input is paired with a 3.5mm audio input. A three-way selectable input with phantom power allows users to connect microphones or line input sources for audio embedding. Two mirrored HDMI outputs provide connections for dual displays. Equipped with one digital coax and one RCA line output, the BG-PSC6X2-4K provides audio de-embedding for connection to external audio systems.
Control

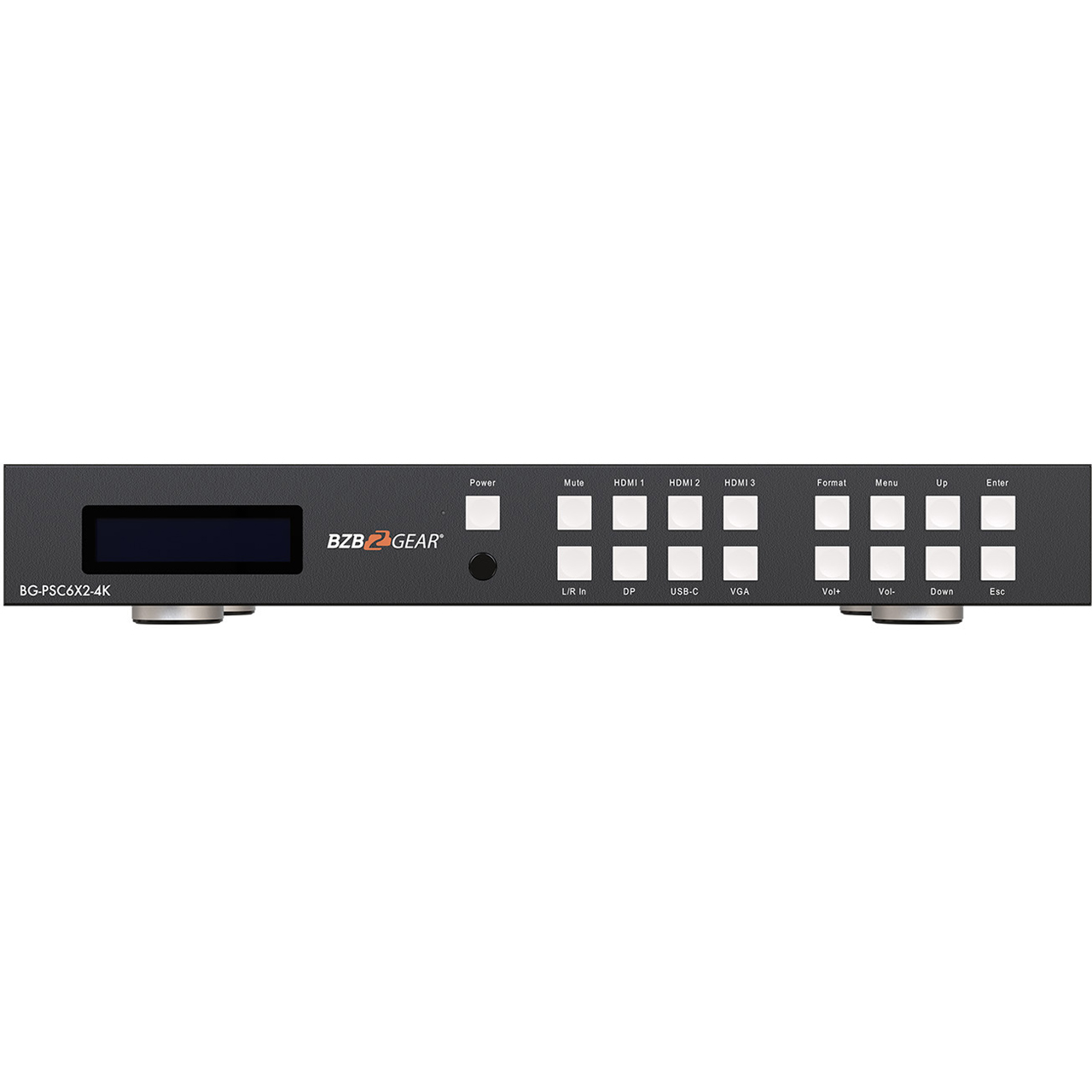

The BG-PSC6X2-4K can be operated via the front panel buttons, included IR remote, RS-232, or IP commands. The LCD menu display provides access to advanced EDID management settings to ensure stable signals and reliable switching. Scaler settings, audio levels, audio formats, and network settings can also be adjusted, providing a high degree of flexibility for installation. An IR input port allows integration with IR distribution and third-party control systems.
