BZBGEAR UDA-E14 1x4 UHD HDMI HDBaseT Splitter/Distribution Amplifier over Category Cable (Kit Includes 4x RX)

BG-UDA-E14 - Overview

• Features:

  • Ultra HD refers to a TV resolution of 3840 x 2160 pixels
  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master
  • Receivers need no power supply
  • Transmit signal up to 120 meters (390 feet)
  • Slim components make a clean installation easy
  • Multiple selectable EDID modes ensure reliable connectivity
  • HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
  • Support 18Gbps video bandwidth
  • Support HDR, HDR10+, HLG and Dolby vision
  • Support digital and analog audio de-embedded output
  • Support 1 HDMI input, 1 HDMI loop output and 4 HDBaseT outputs
  • IR, RS-232 routed to HDBaseT output


• Specifications:

  • Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2/1.x
  • Video Bandwidth: 594MHz/18Gbps
  • Video Resolution: Up to 4K2K@60Hz 4:4:4
  • Color Depth:
    - 8-bit, 10-bit, 12-bit(1080p@60Hz)
    - 8-bit (4K2K@60Hz YUV4:4:4)
    - 8-bit, 10-bit, 12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)
  • Color Space: RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
  • HDR: Support HDR, HDR10+, HLG, Dolby vision
  • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
  • Coaxial Audio Formats: PCM 2.0, Dolby Digital/Plus, DTS 2.0/5.1
  • Analog Audio Formats: PCM 2.0CH
  • ESD Protection: Human body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

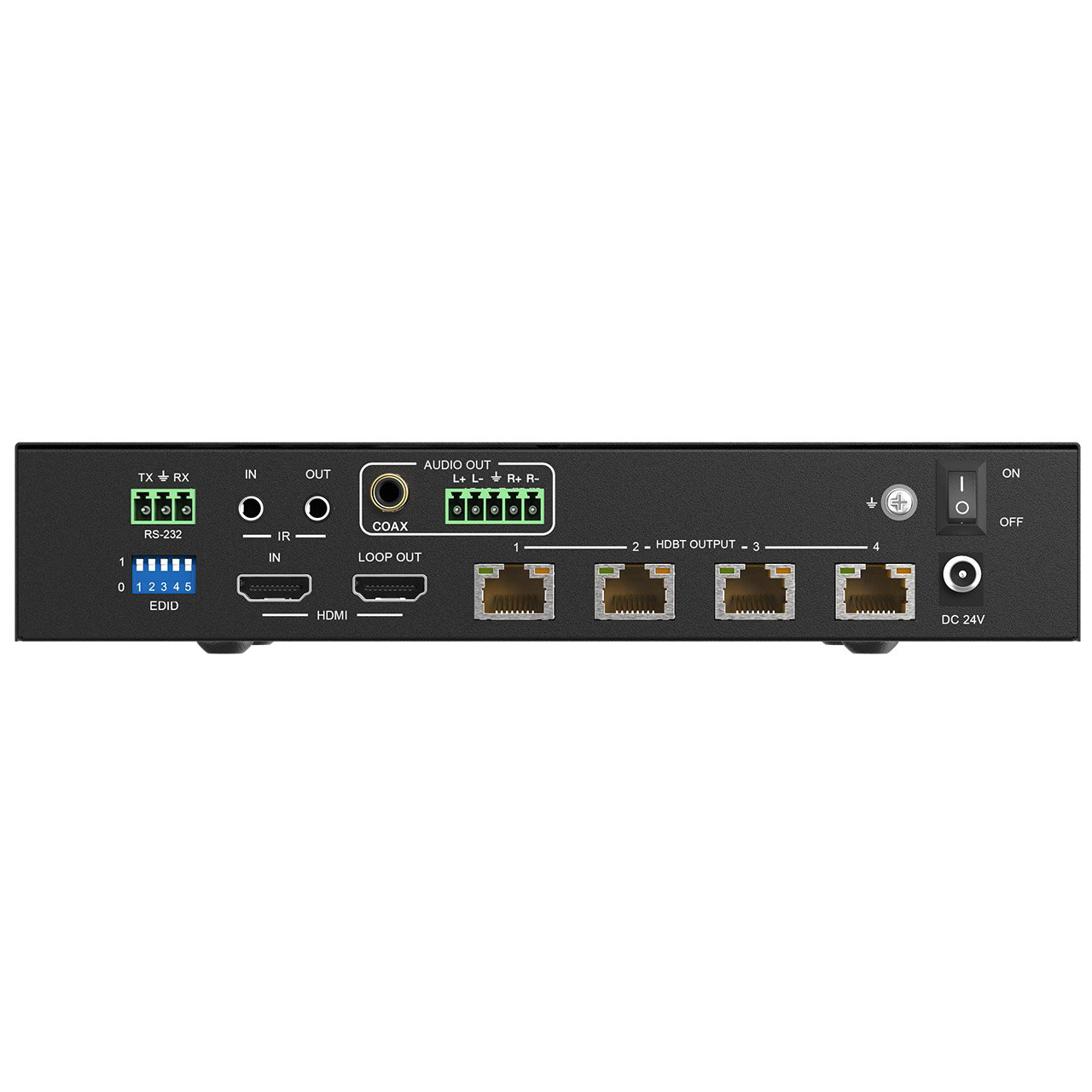

    Connection
  • Input: 1x HDMI Type A (19-pin female)
  • Output:
    - 1x HDMI Type A (19-pin female)
    - 4x HDBaseT OUT [RJ45]
    - 1x Coaxial Audio OUT [RCA]
    - 1x L/R Audio OUT [5-pin phoenix connector]
  • Control:
    - 1x RS-232 (3-pin phoenix connector)
    - 1x EDID DIP switch [5-pin]
    - 1x IR IN [3.5mm Stereo Mini-jack]
    - 1x IR OUT [3.5mm Stereo Mini-jack]

    Mechanical
  • Housing: Metal Enclosure
  • Silkscreen Color: Black
  • Dimensions (HxWxD):
    - Transmitter: 1.6" x 8.7" x 5.1" (40mm x 220mm x 130mm)
    - Receiver: 0.7" x 5.5" x2.6" (18mm x 140mm x 65mm)
  • Weight:
    - Transmitter: 1.9lbs (853g)
    - Receiver: 0.54lbs (246g)
  • Power Supply:
    - Input: AC100 - 240V 50/60Hz
    - Output: DC 24V/2.7A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 35W
  • Operation Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (non-condensing)

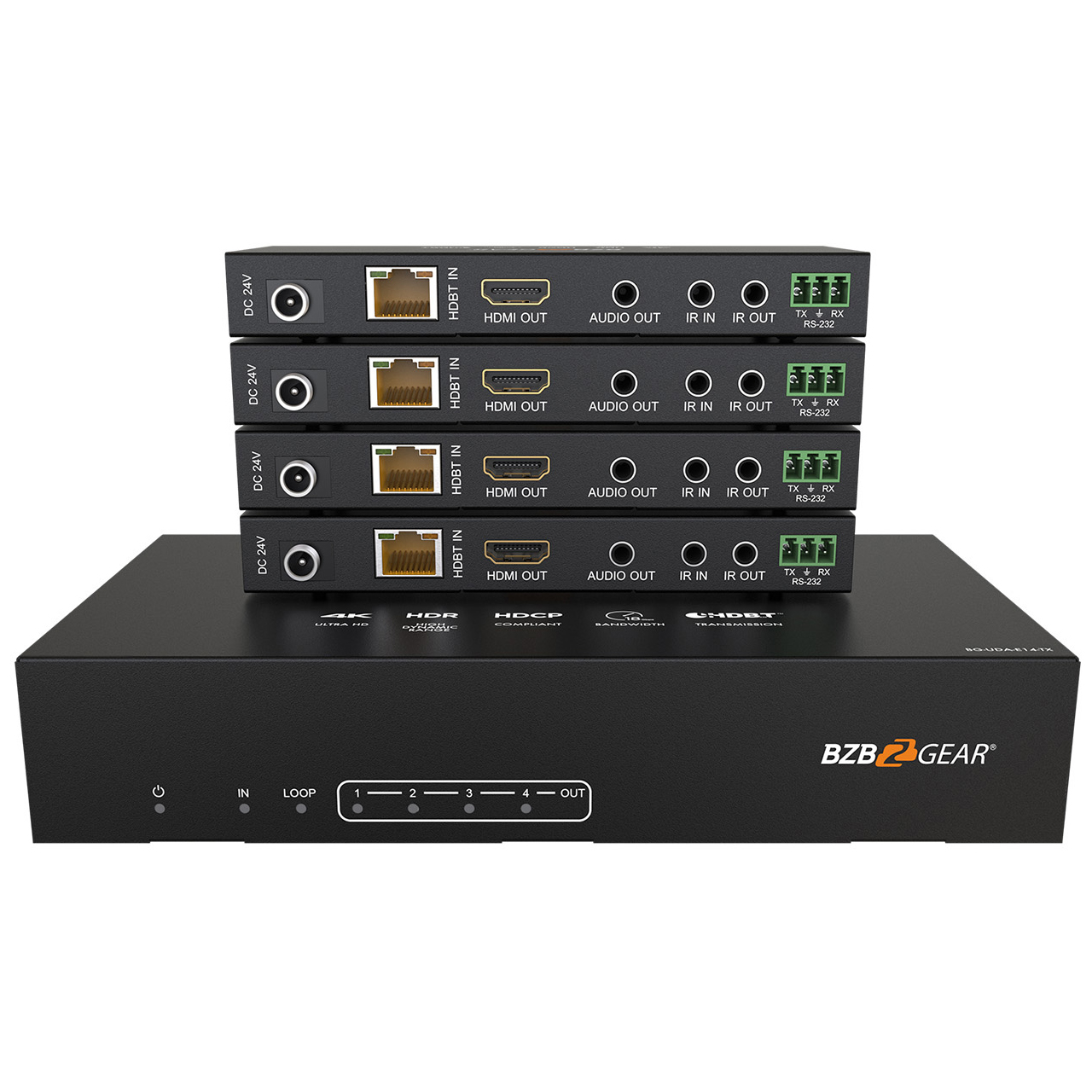

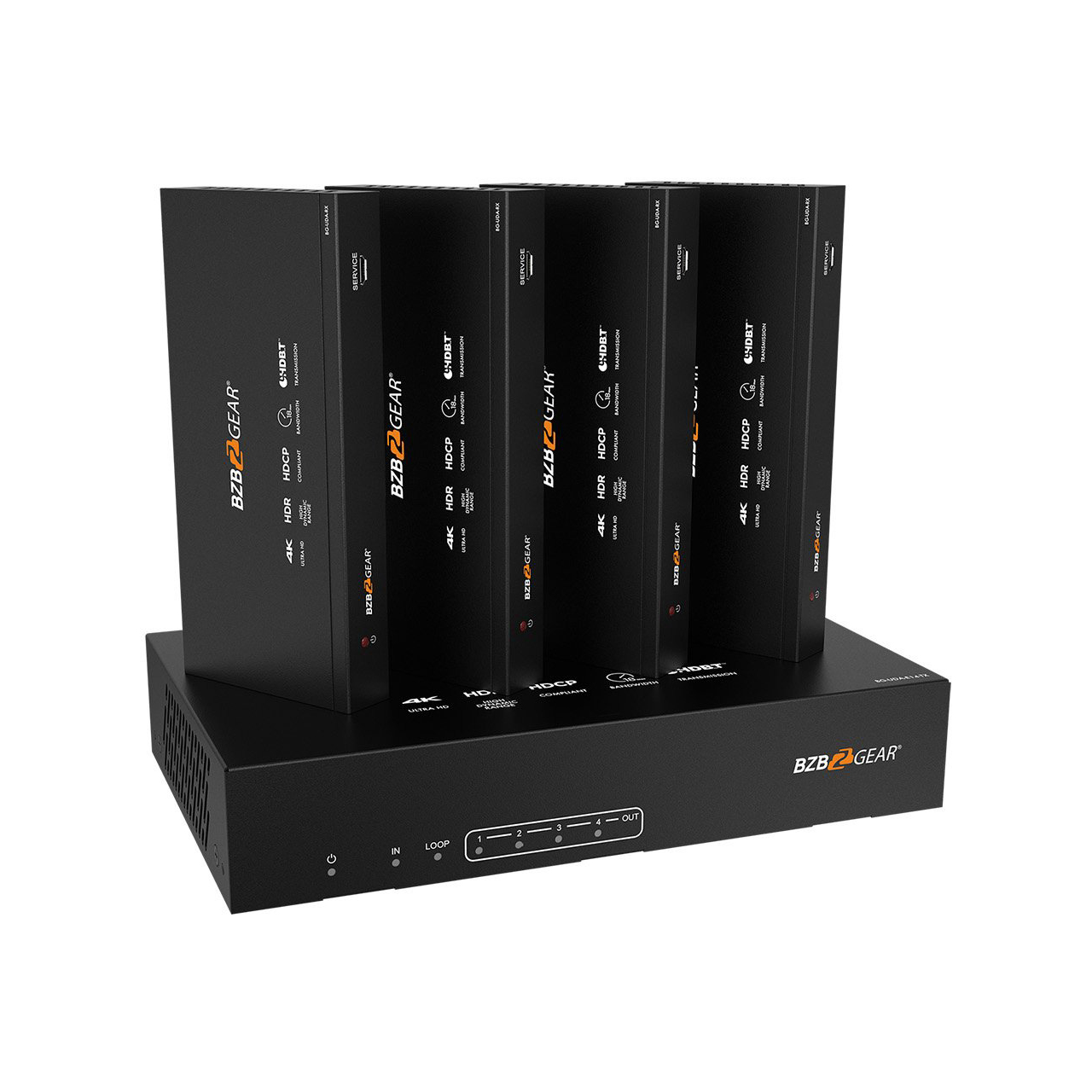

• Item Includes:

  • 1x 18Gbps HDMI 1x4 HDBaseT Splitter
  • 4x HDBaseT Receiver
  • 5x IR Blaster Cable (1.5 meters)
  • 5x 20K~60KHz IR Receiver Cable (1.5 meters)
  • 5x 3-pin Phoenix Connector
  • 1x 5-pin Phoenix Connector
  • 10x Mounting Ear
  • 1x 24V/2.7A DC Locking Power Adapter
  • 1x User Manual
