BZBGEAR BG-USB3-LR100 USB 3.0 over HDBaseT Extender - PoC / RS-232 / GPIO & up to 100M/328Ft over CAT6a Cable

ITEM #: BG-USB3-LR100 MFG #: BG-USB3-LR100

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
BZBGEAR
Free Shipping with $49 Minimum Order

Our Price:

$799.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    BG-USB3-LR100 - Overview

    The BZBGEAR BG-USB3-LR100 USB 3.0 Extender is an essential tool for extending USB connections over long distances, capable of transmitting signals up to 100 meters (328 feet) using a single CAT6a cable. Designed for reliability and performance, this extender ensures high-speed data transfer with rates up to 5Gbps, making it ideal for various applications, including industrial settings and large-scale installations.

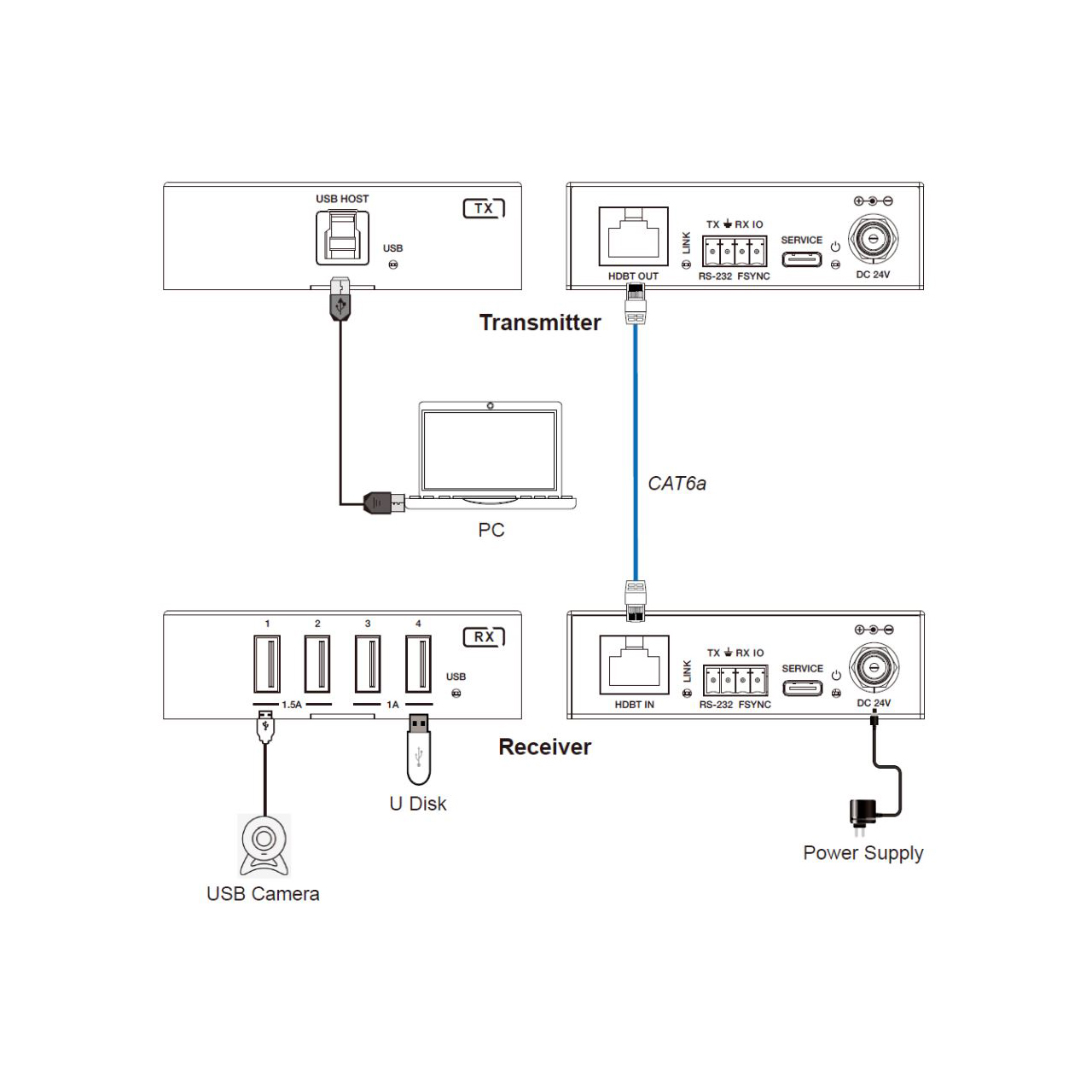

    The transmitter features a USB 3.0 Type B input, FSYNC GPIO input, and RS-232 pass-through, while the receiver offers four USB 3.0 Type A outputs, FSYNC GPIO output, and RS-232 pass-through. This setup supports bi-directional 24V Power over Cable (PoC), simplifying power management and installation.

    • Features:

      • Extends USB 3.0 connections up to 100 meters (328 feet) over CAT6a cable
      • Provides USB 3.0 connectivity with data transfer rates up to 5Gbps
      • Compatible with USB 2.0 and USB 1.1 devices
      • Supports bi-directional 24V Power over Cable (PoC)
      • Easy plug-and-play setup with no driver or settings installation required
      • Includes RS-232 and FSYNC GPIO pass-through for camera applications
      • Hardware acceleration for isochronous and bulk transfer
      • USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver


    • Specifications:

      • Technical
      • USB Protocol: USB 3.0
      • Transmission Rate: Up to 5Gbps
      • Network Bandwidth: 10G
      • Transmission Distance: 100m/328ft over CAT6a (F/FTP) cable
      • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

        Connections

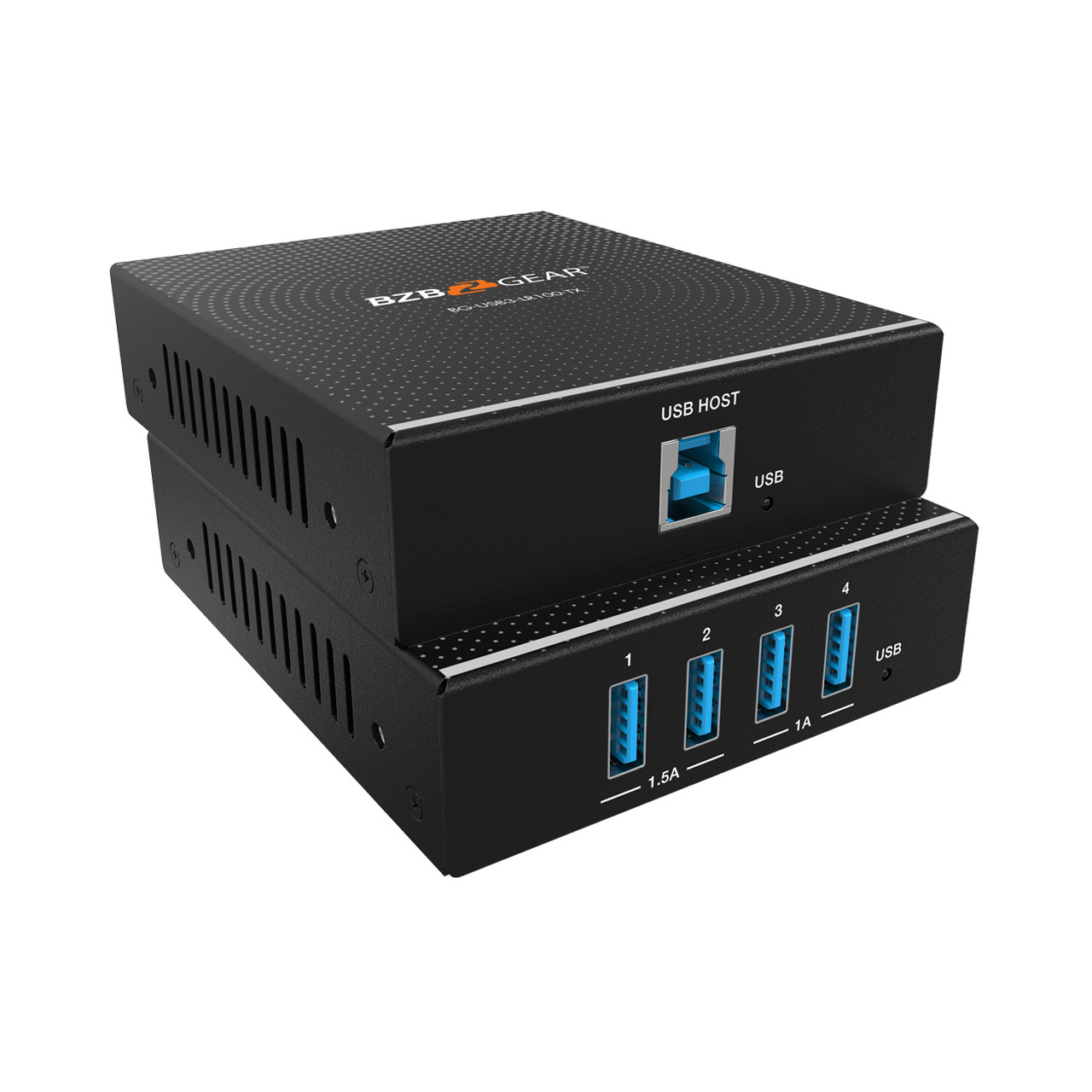

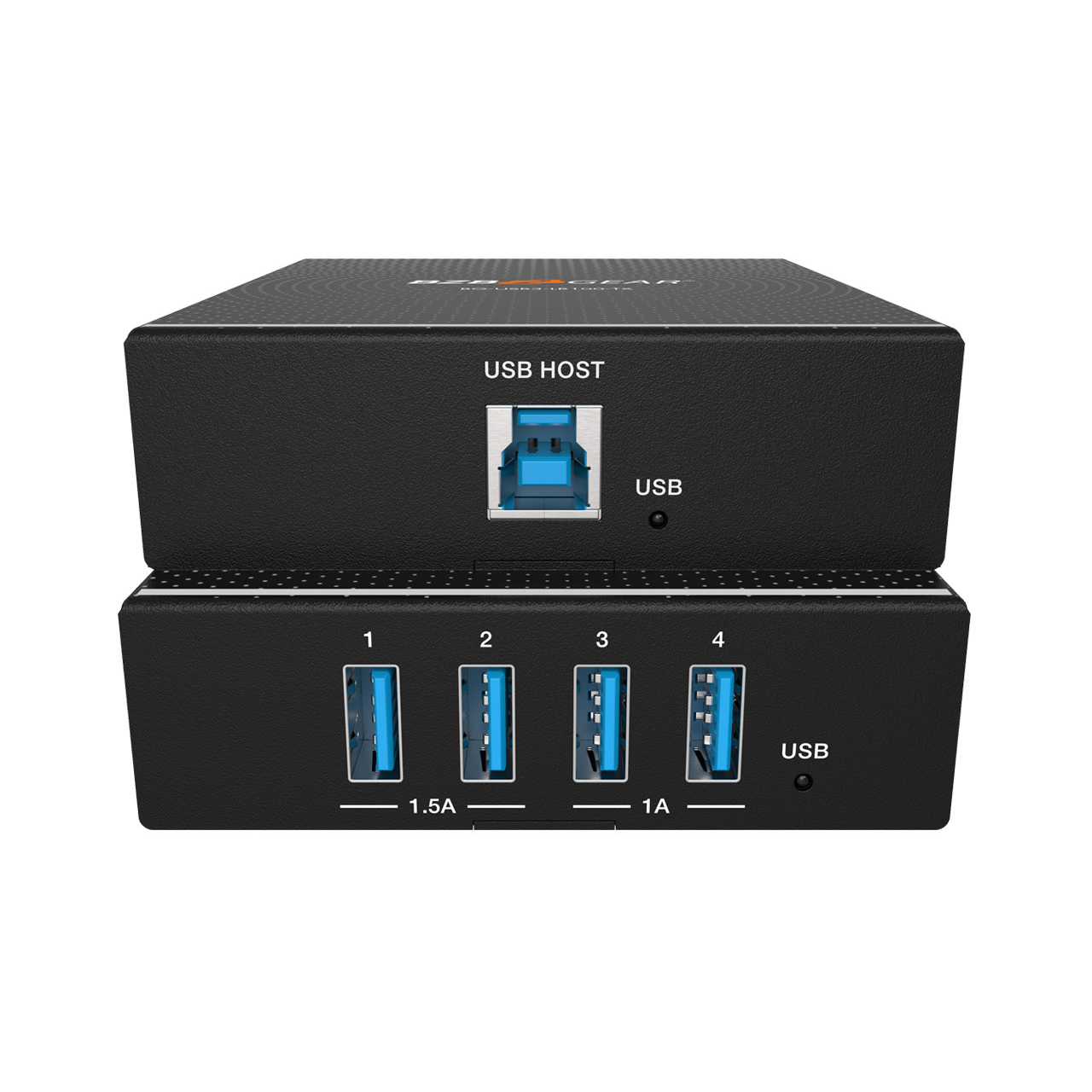

      • Transmitter Input:
        - 1x USB HOST [USB-B, 9pin Female]

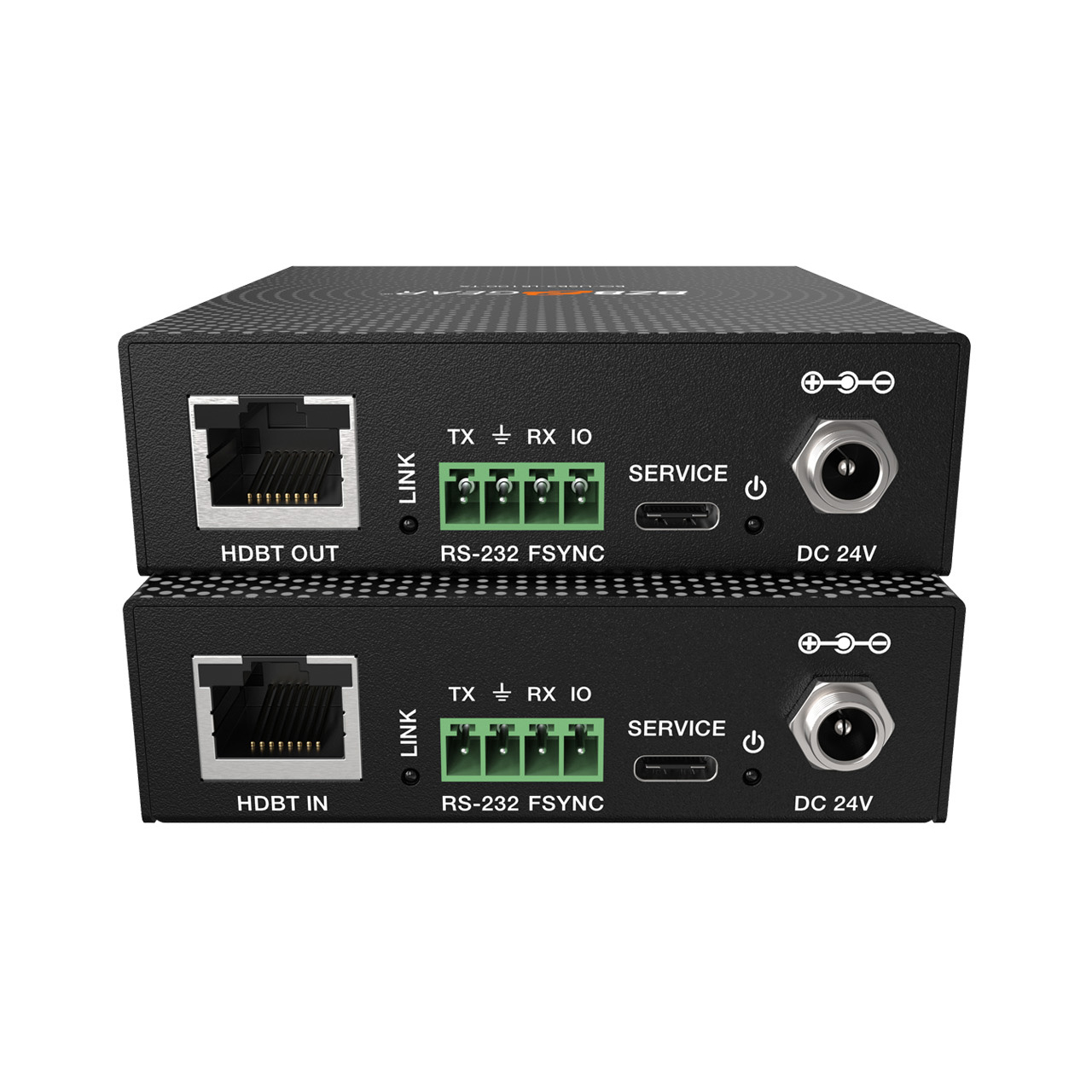

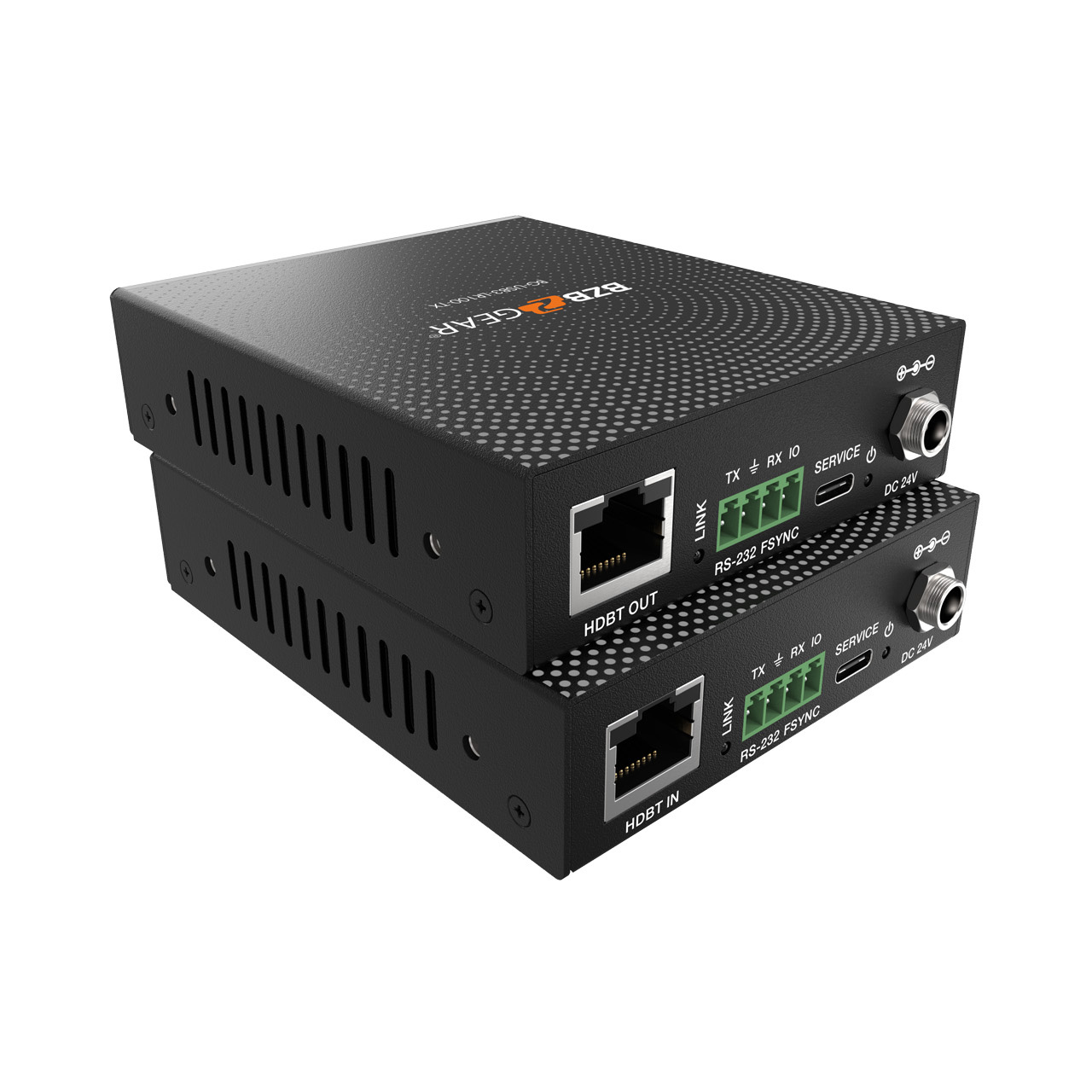

      • Transmitter Output:
        - 1x HDBT OUT [RJ45, Female]
      • Transmitter Control:
        - 1x RS-232 [3pin-3.5mm Phoenix Connector]
        - 1x FSYNC [1pin-3.5mm Phoenix Connector]
        - 1x SERVICE [USB-C, Update Port]
      • Receiver Input:
        - 1x HDBT IN [RJ45, Female]
      • Receiver Output:
        - 4x USB Devices [USB-A, 9pin Female]
      • Receiver Control:
        - 1x RS-232 [3pin-3.5mm Phoenix Connector]
        - 1x FSYNC [1pin-3.5mm Phoenix Connector]
        - 1x SERVICE [USB-C, Update Port]

      • Mechanical
      • Housing: Metal Enclosure
      • Color: Black
      • Dimensions (W x D x H): Transmitter / Receiver: 3.3in x 3.9in x 1in [85mm x 100mm x 25.5mm]
      • Weight: Transmitter: 0.56 lbs [253g], Receiver: 0.57 lbs [260g]
      • Power Supply: Input: AC 100~240V 50/60Hz, Output: DC 24V/2A
      • Power Consumption: PoC Power Supply: 40W (Max)
      • Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
      • Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
      • Relative Humidity: 20~90% RH (non-condensing)


    • Item Includes:

      • 1x USB 3.0 Extender (Transmitter)
      • 1x USB 3.0 Extender (Receiver)
      • 1x 24V/2A Locking Power Supply
      • 2x 4pin-3.5mm Phoenix Connector (Male)
      • 4x Mounting Ear
      • 8x Machine Screw (KM3*4)
      • 1x User Manual
