Bittree B96DC-FNAIT/E3 M2OU12B 2x48 2RU E3 Full Norm Iso Grounds TT Patchbay 12-Inch

ITEM #: BIT-969A018 MFG #: 969A018

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,727.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


969A018 - Overview

Our 969-A Series features our innovative Programmable audio patchbays in a 2 x 48 1.5 or 2 RU size, and includes convenient 1-48 left-to-right numbering on the patchbay front panel for easy circuit identification. Programmable patchbays such as the 969-A Series allow users to quickly and easily change the normals and grounding of individual circuits. Normals can be changed to full-normal, half-normal or non-normal. Grounding can be changed to bussed, isolated or looped (for switched grounds, consider the 969-S Series). Because it's programmable, the 969-A Series can serve as the foundation for virtually any new, reconfigured or legacy installation. The end result is a patchbay that allows integrators and installers to quickly re-configure patching systems, accommodate customer change-orders, and speed service-calls.

  • Features:

    • High-density 2x48 jack configuration with mono (even) jack spacing
    • Ships preconfigured with your preferred Normalling and Grounding configuration
    • Circuits can be easily reprogrammed via shunts under both designation strips
    • Digital AES wire used for internal wiring

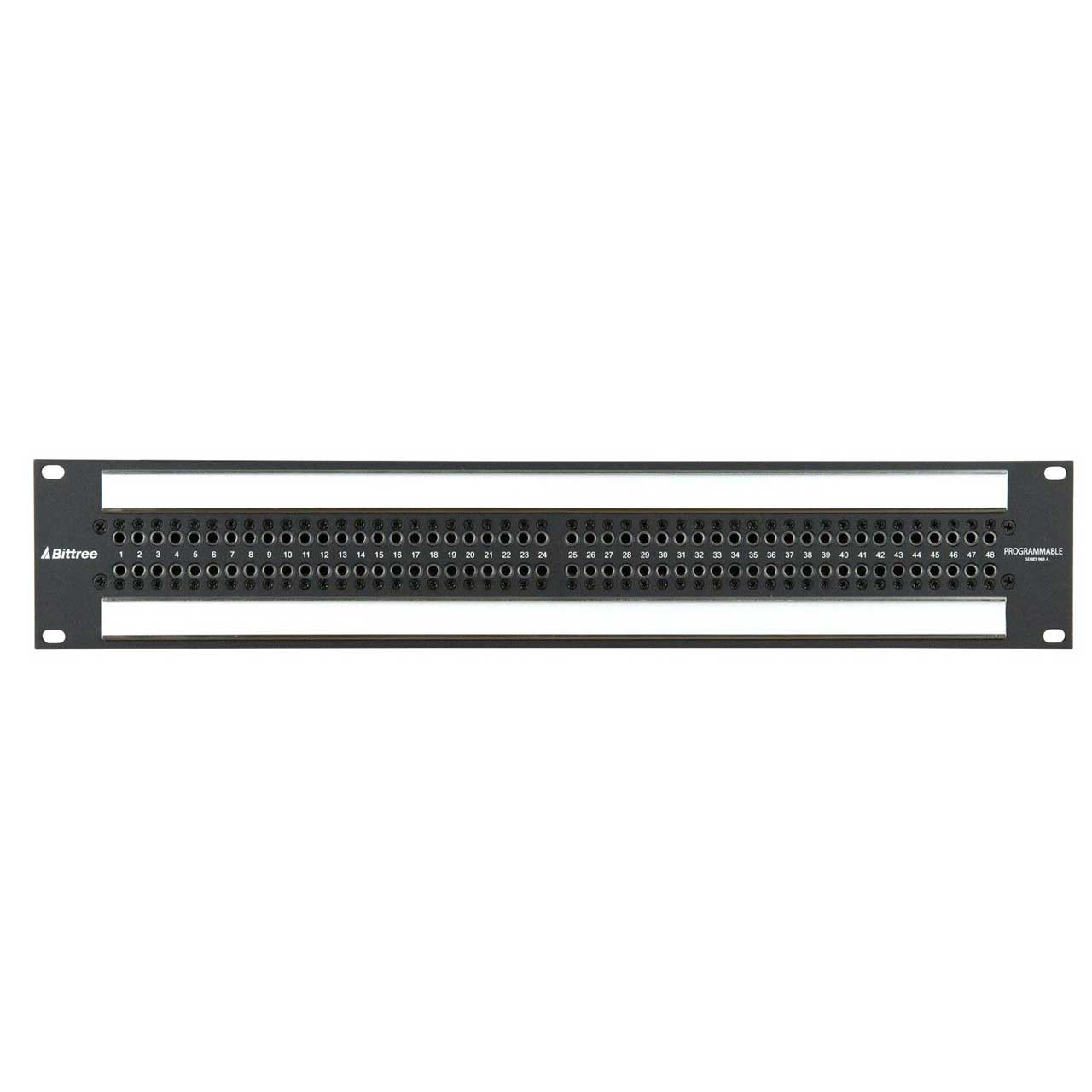

    • 1-48 left-to-right numbering on front panel for easy circuit identification
    • 2 x DS800-10 designation strips, "Over/Under" orientation

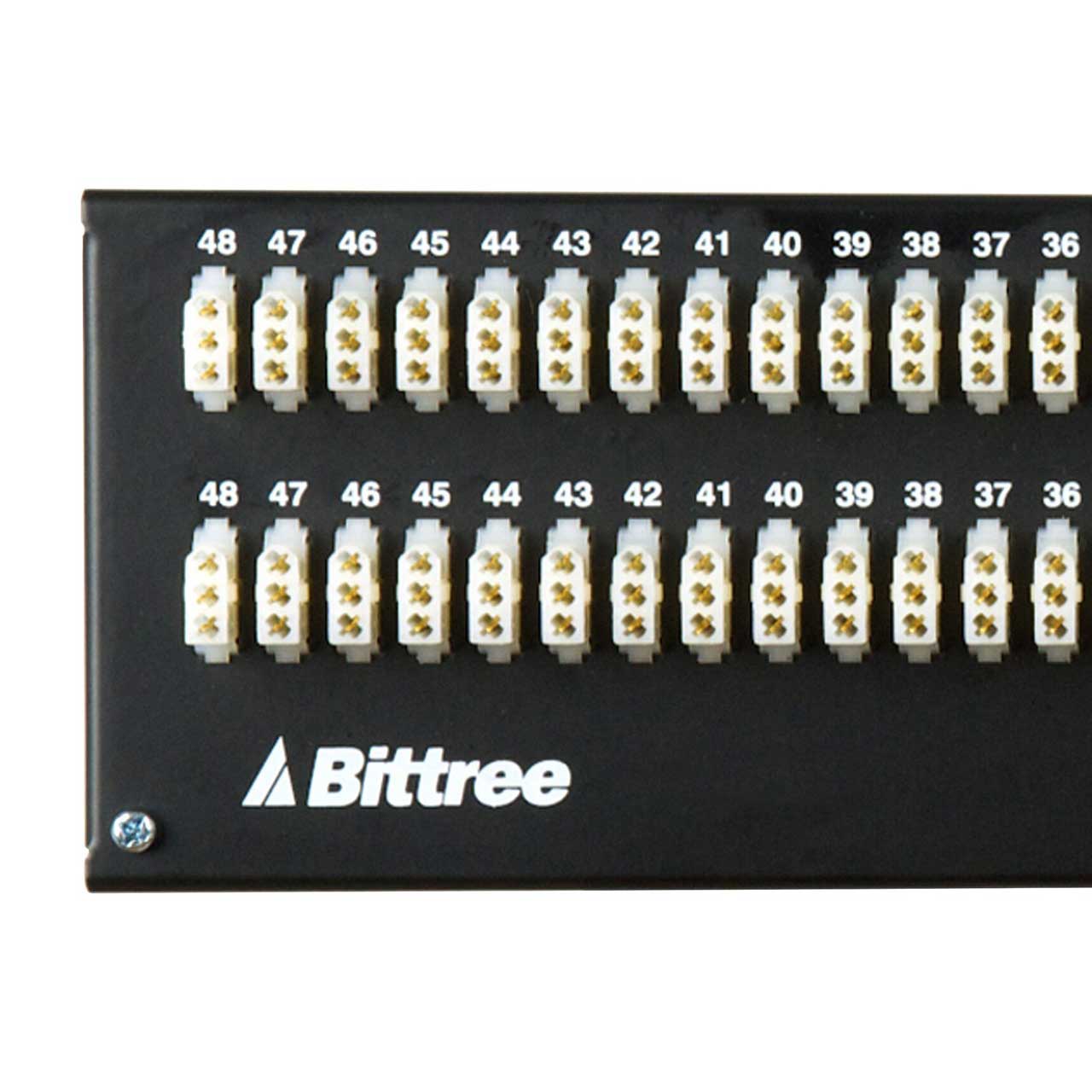

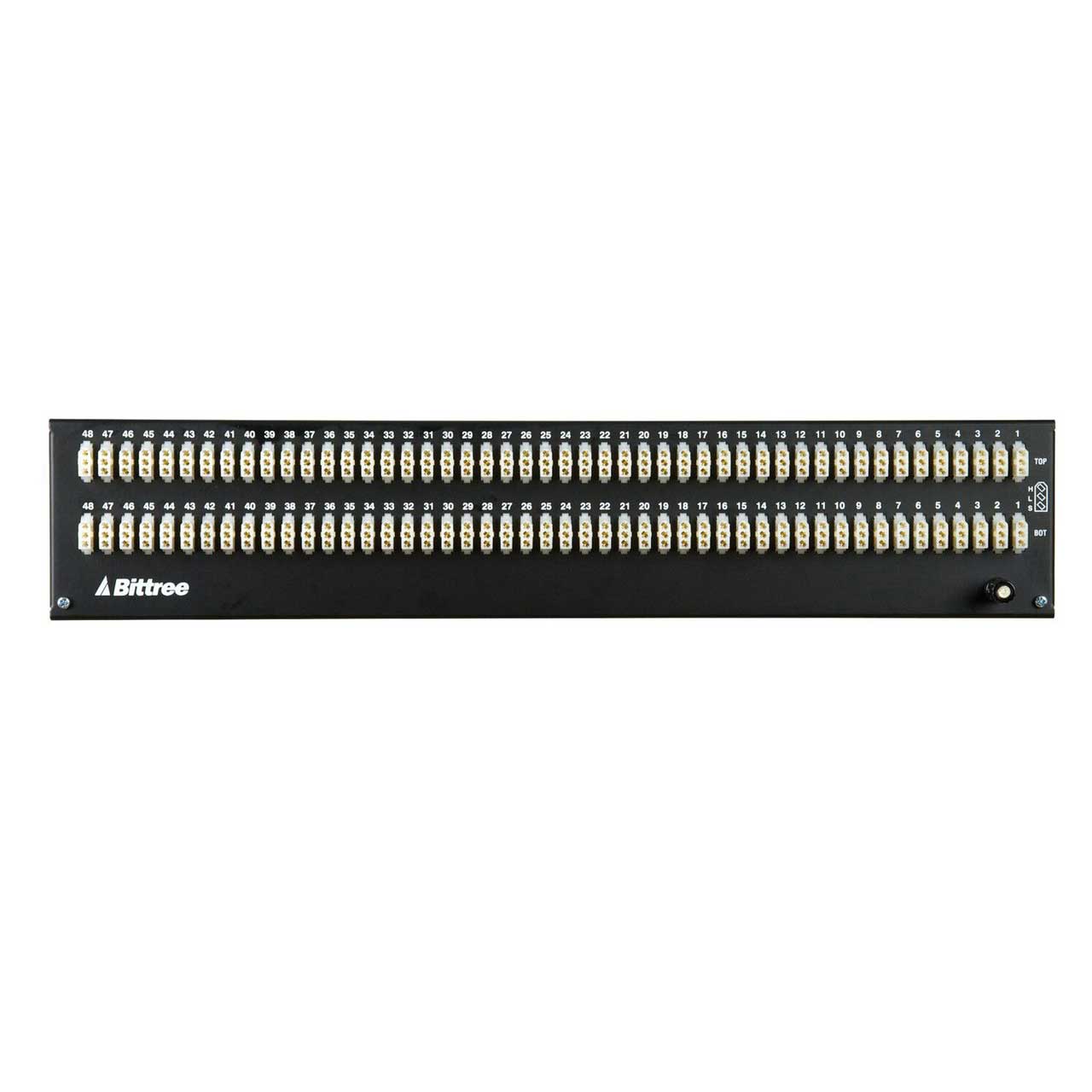

    • E3 rear interface with mating hardware included:
    • 96 x E3M connector housings (3-pin male)
    • 288 x EPIN crimp contacts (gold-plated)
    • 6" (15.24 cm) deep rear lacing bar included:
    • Alternative 3" (7.62 cm) deep lacing bar available;
    • please make a request at checkout if interested

  • Specifications:

    • 2 RU
    • 2x48
    • 12" deep chassis
    • Full normal
    • Isolated grounds
    • E3 rear interface

  • Warranty:

    • 5 Years
