Bittree B48DC-FNPIH/E3 M2OU12L 1.5 RU 2x24 1/4-Inch E3 Full Norm Iso Ground Long Frame Patchbay 12-Inch Bar

Name: Bittree B48DC-FNPIH/E3 M2OU12L 1.5 RU 2x24 1/4-Inch E3 Full Norm Iso Ground Long Frame Patchbay 12-Inch Bar
Brand: Bittree
SKU: BIT-B48DC-FNPIH
Price: 1170.00 USD
Availability: PreSale

ITEM #: BIT-B48DC-FNPIH MFG #: 489235

Bittree

Our Price:

$1,170.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

489235 - Overview

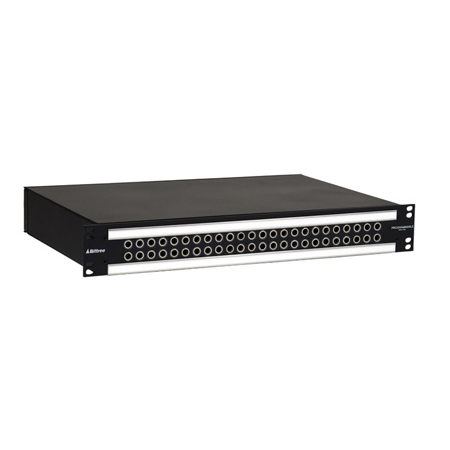

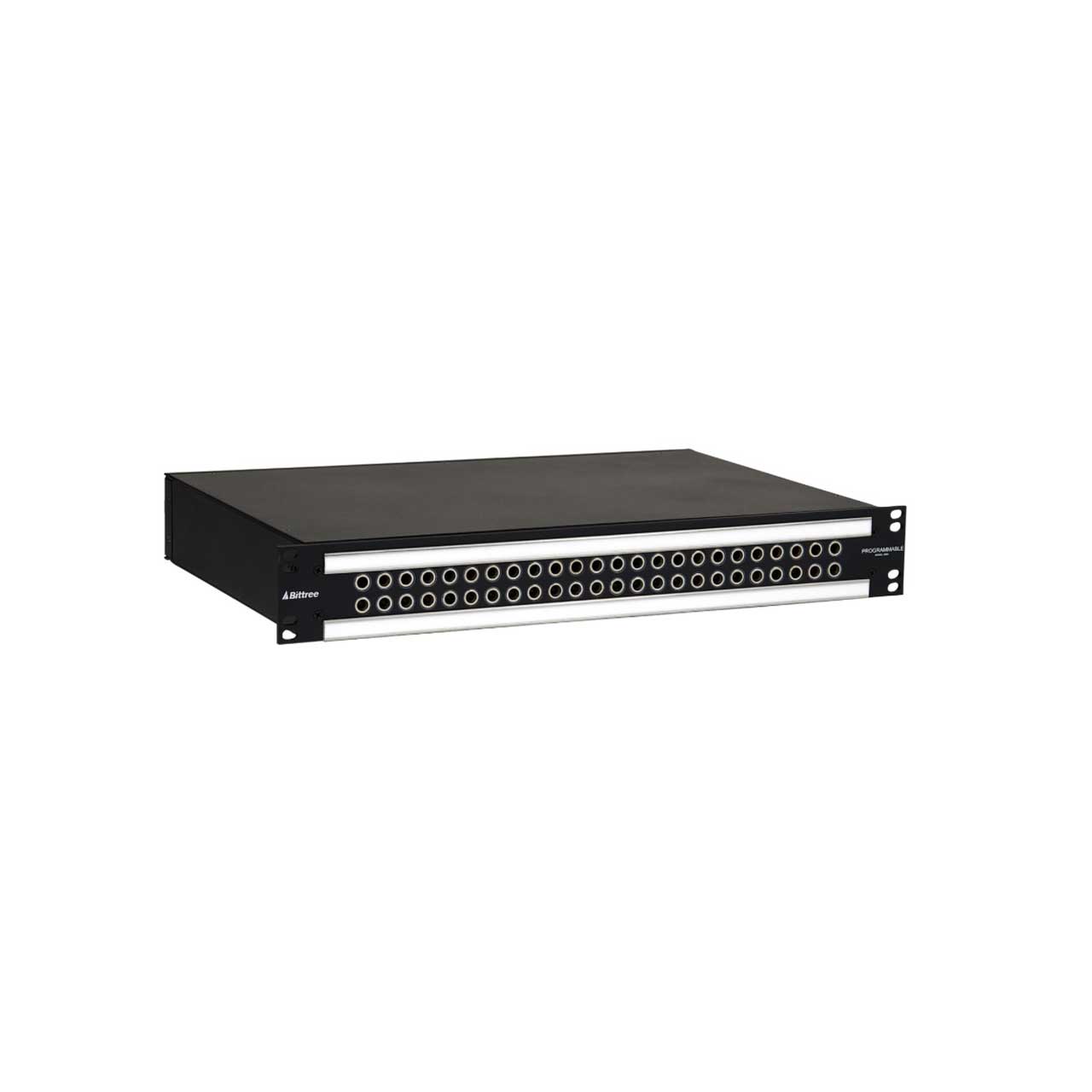

The Bittree 489235 is a Front Programmable 1/4 Inch long frame 489-A Series Audio Patchbay in 1.5RU Height with E3 Rear Interface.Full normalled, isolated grounding with a chassis depth of 12".

Features:
- Spacious 2x24 jack configuration with mono (even) jack spacing
- Ships preconfigured with your preferred Normalling and Grounding configuration
- Circuits can be easily reprogrammed via shunts under the top designation strip
- Digital AES wire used for internal wiring
- 2 x DS800-10 designation strips, "Over/Under" orientation

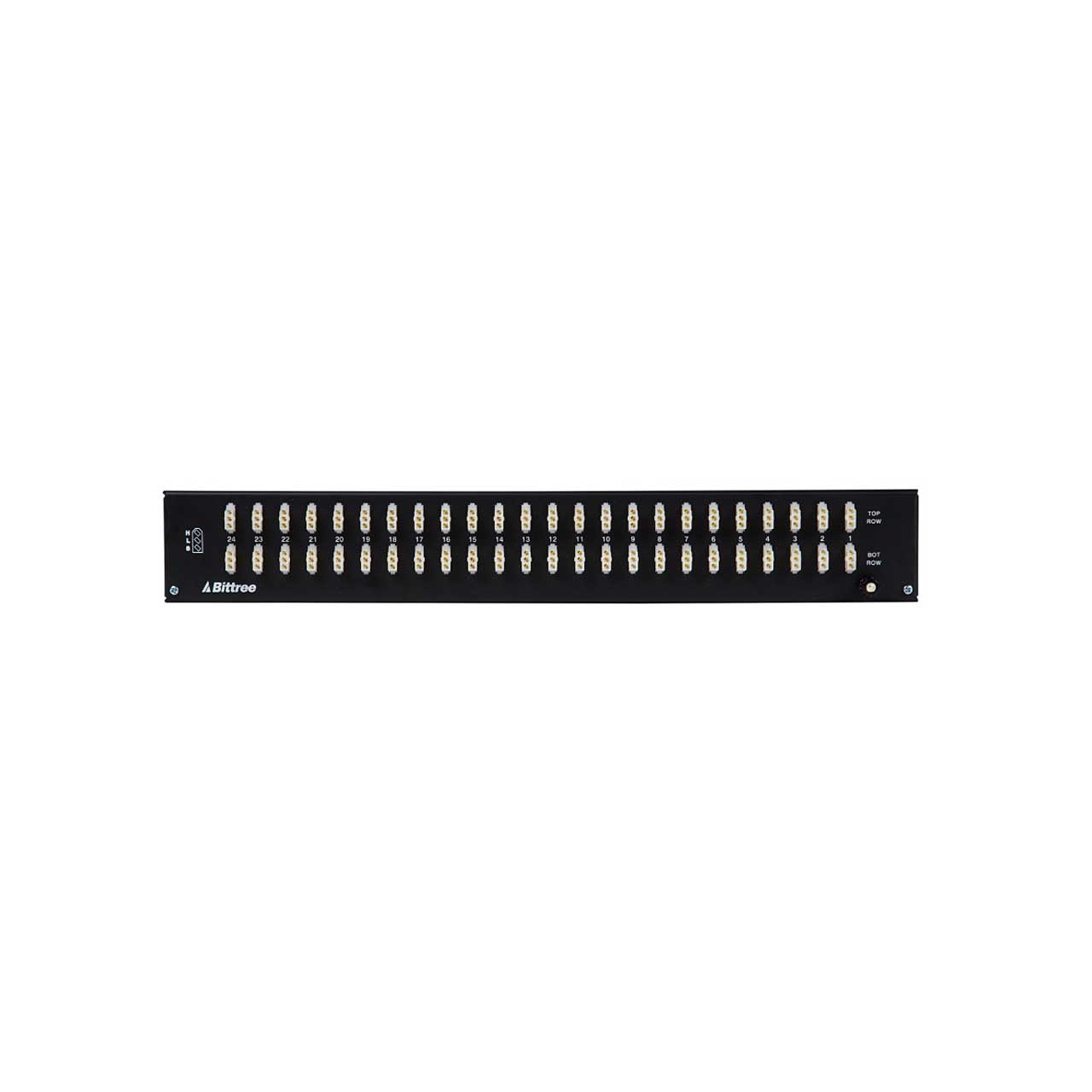

- E3 rear interface with mating hardware included: 48 x E3M connector housings (3-pin male)
- 144 x EPIN crimp contacts (gold-plated)
- 6" (15.24 cm) deep rear lacing bar included: Alternative 3" (7.62 cm) deep lacing bar available
