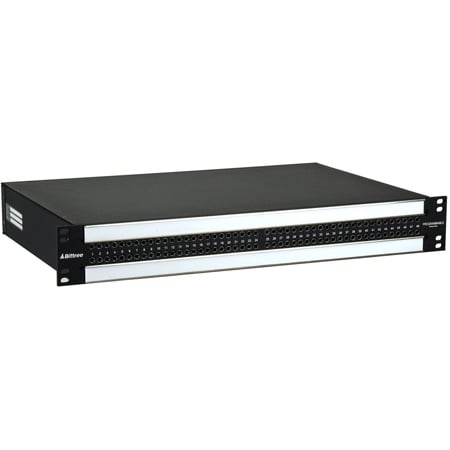

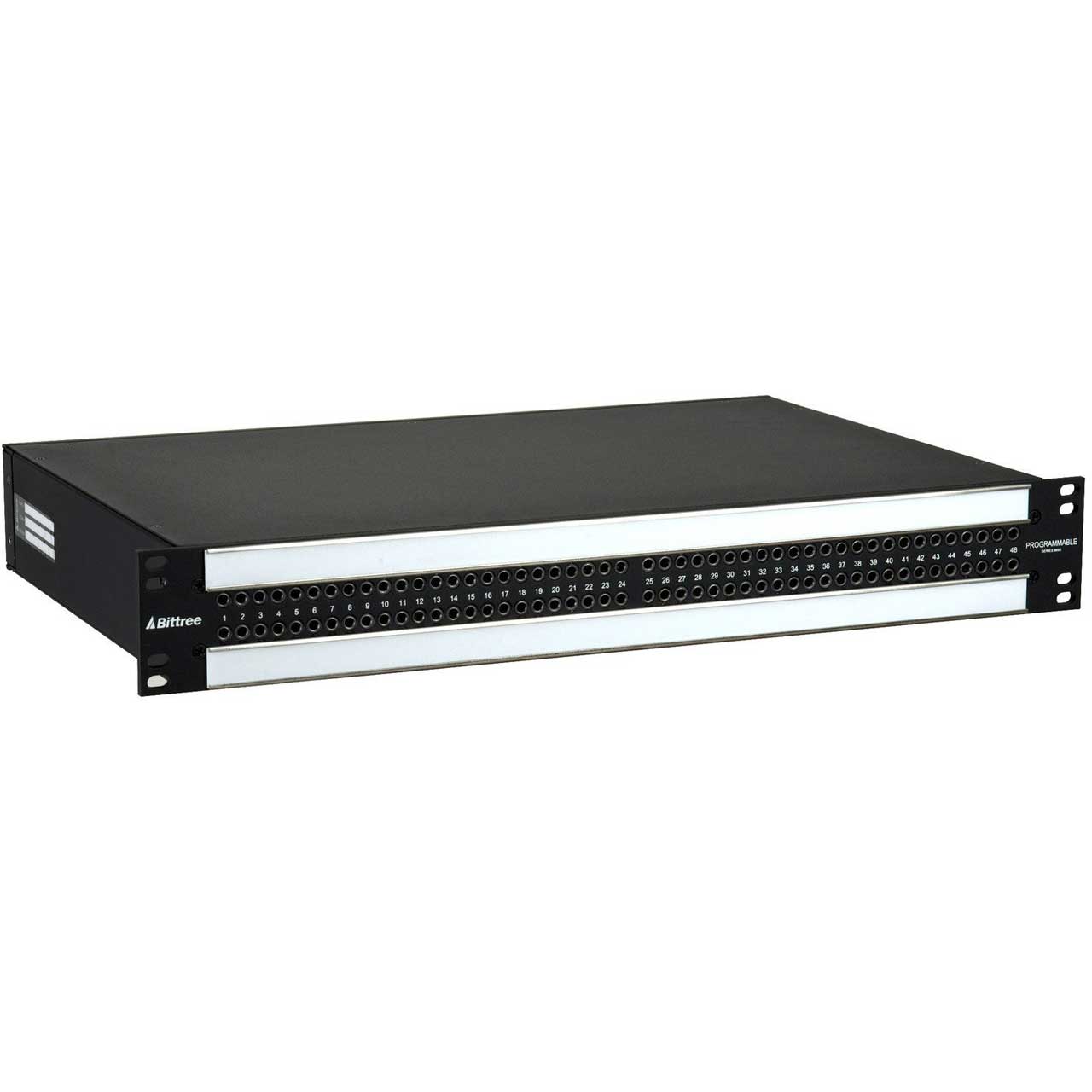

Bittree B96DC-FNSSH/E3 M2OU7B 1.5RU Black 2x48 Mono Spaced E3 Rear Interface 7 Inch Chassis Bantam Patchbay

B96DC-FNSSH/E3 M2OU7B - Overview

• Features:

  • High-density 2x48 jack configuration with mono (even) jack spacing
  • Selectable normalling and grounding:
  • Circuits can be easily changed via shunts under both designation strips
  • Digital AES wire used for internal wiring

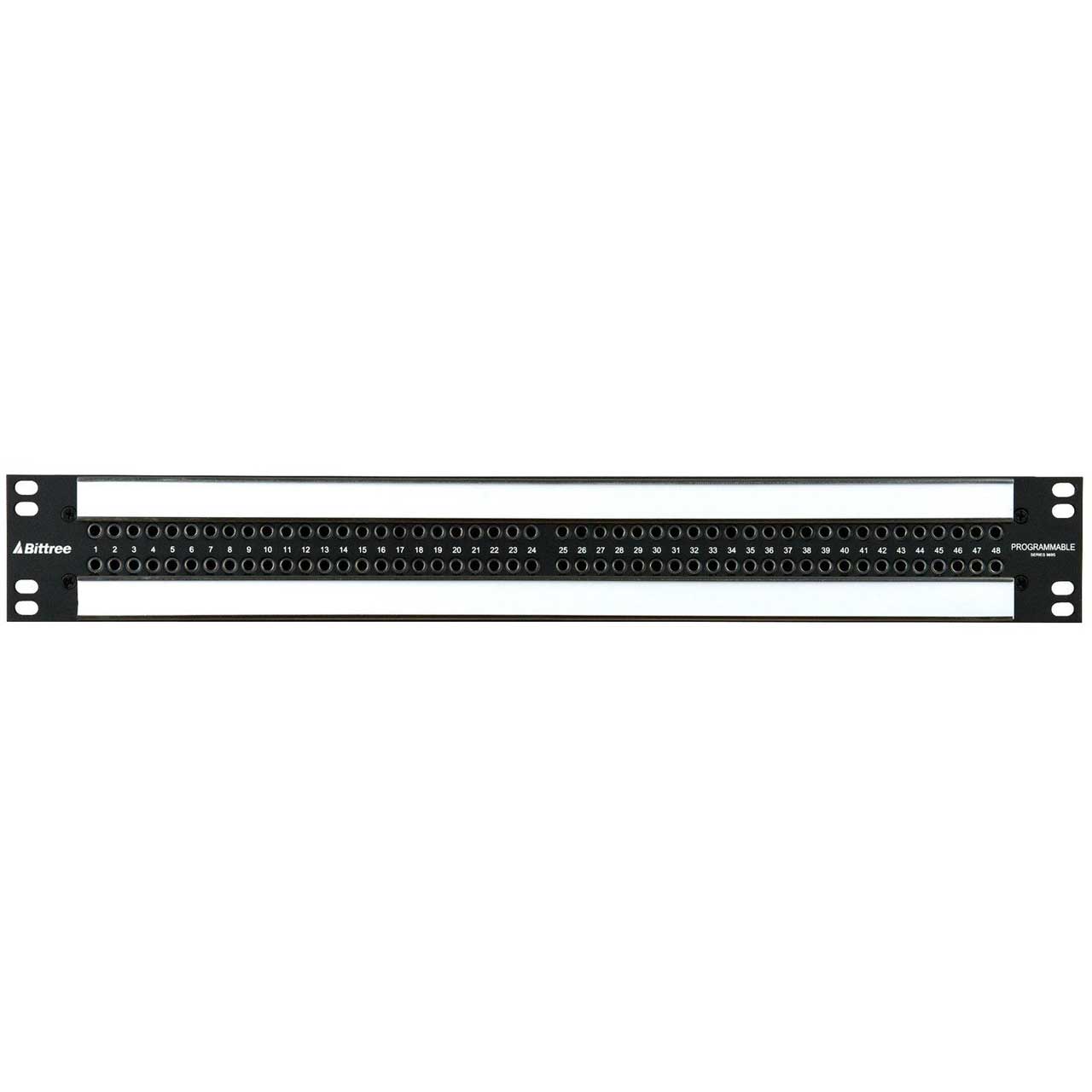

  • 1-48 left-to-right numbering on front panel for easy circuit identification
  • 2 x DS800-10SA-ASSY designation strip assemblies, "Over/Under" orientation
  • Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces
  • 6" (15.24 cm) deep rear lacing bar included with E3 and ID (Punchdown) rear interfaces:
  • Alternative 3" (7.62 cm) deep lacing bar available


• Specifications:

  • Style: C - Chassis
  • Wiring: D - Digital compatible wiring
  • Jack Configuration: 96 - 2x48
  • Front Panel Color: Black
  • Panel Height: H - 1.5 RU; T - 2 RU
  • Grounding: Switched (sleeve normalling)

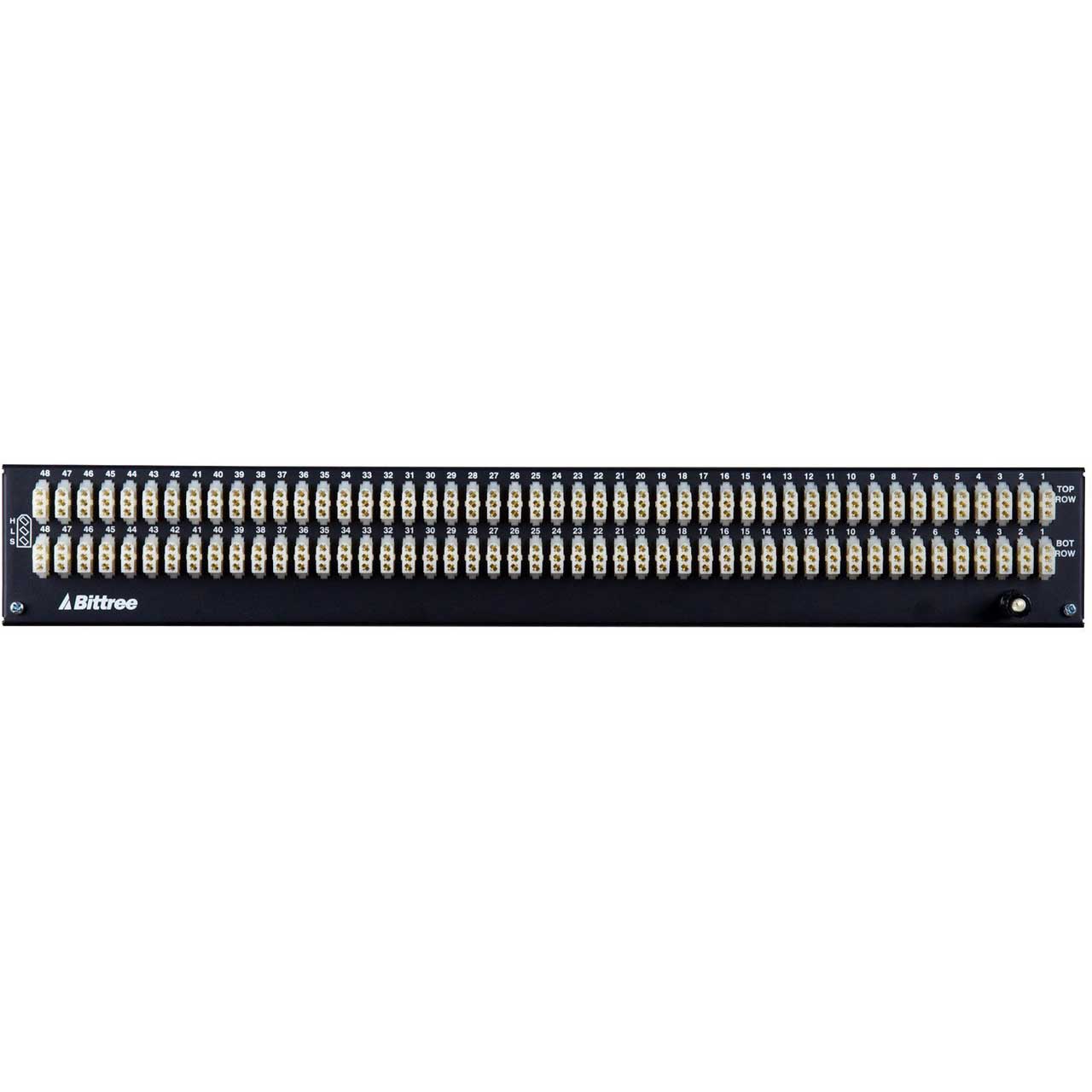

  • Rear Interface: Female 3-Pin; Female 90-Pin; Punchdown; Female 25-Pin
  • Depth: 12 inches (30.48 cm); 7 inches (17.78 cm)
  • Jack Type: Bantam
