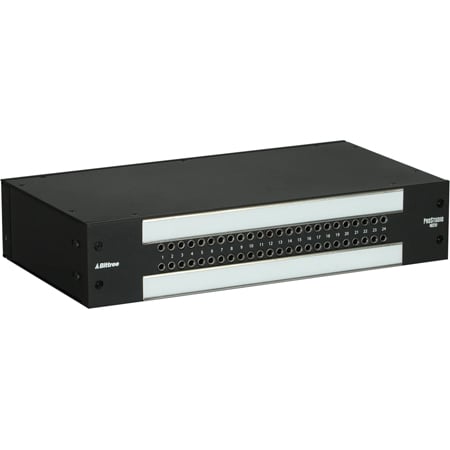

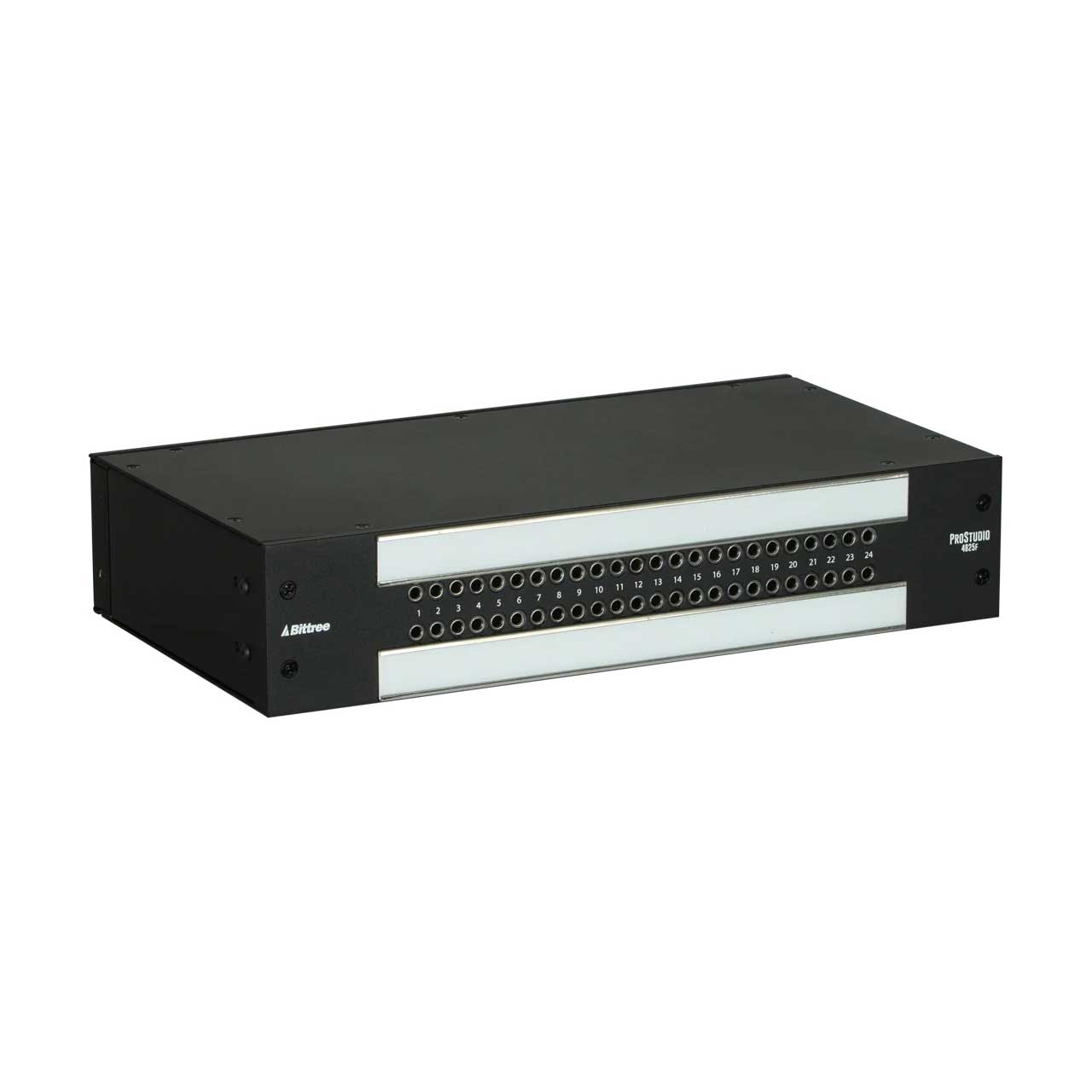

Bittree ProStudio PS48DB25F 2x24 Desktop TT Audio Patchbay 1RU Height - DB25 Rear Interface

PS48DB25F - Overview

• Features:

  • Stand alone desktop patchbay with 4 rubber feet
  • Designed to fit perfectly below the API® 500-6B 6-slot Lunchbox Chassis
  • 2x24 jack configuration with mono (even) jack spacing

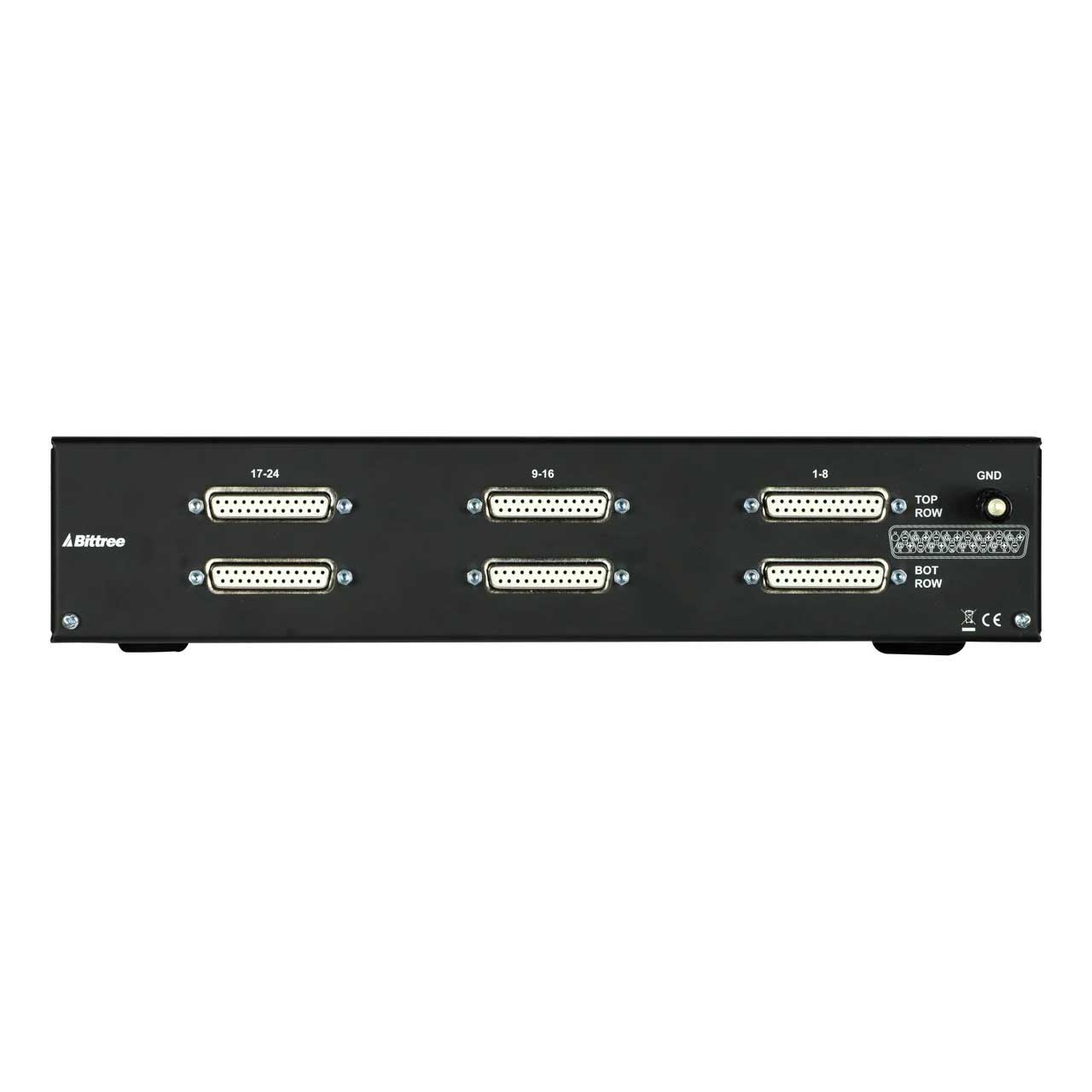

  • DB25 rear interface (6 x 25-pin female DB25 connectors) - Protools®, Tascam® DB25 Pinout
  • Selectable normalling and grounding - Ships full normal with bussed grounds

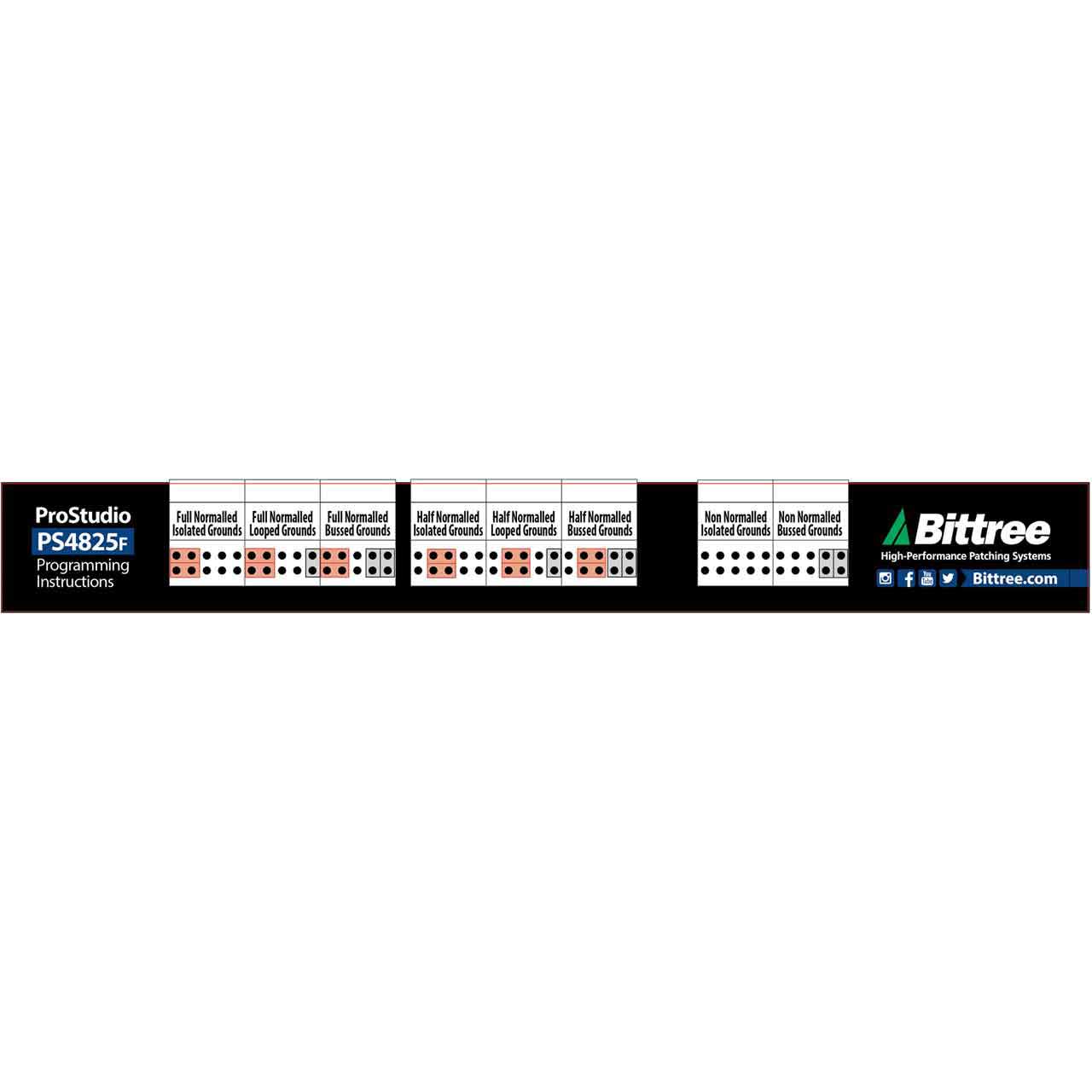

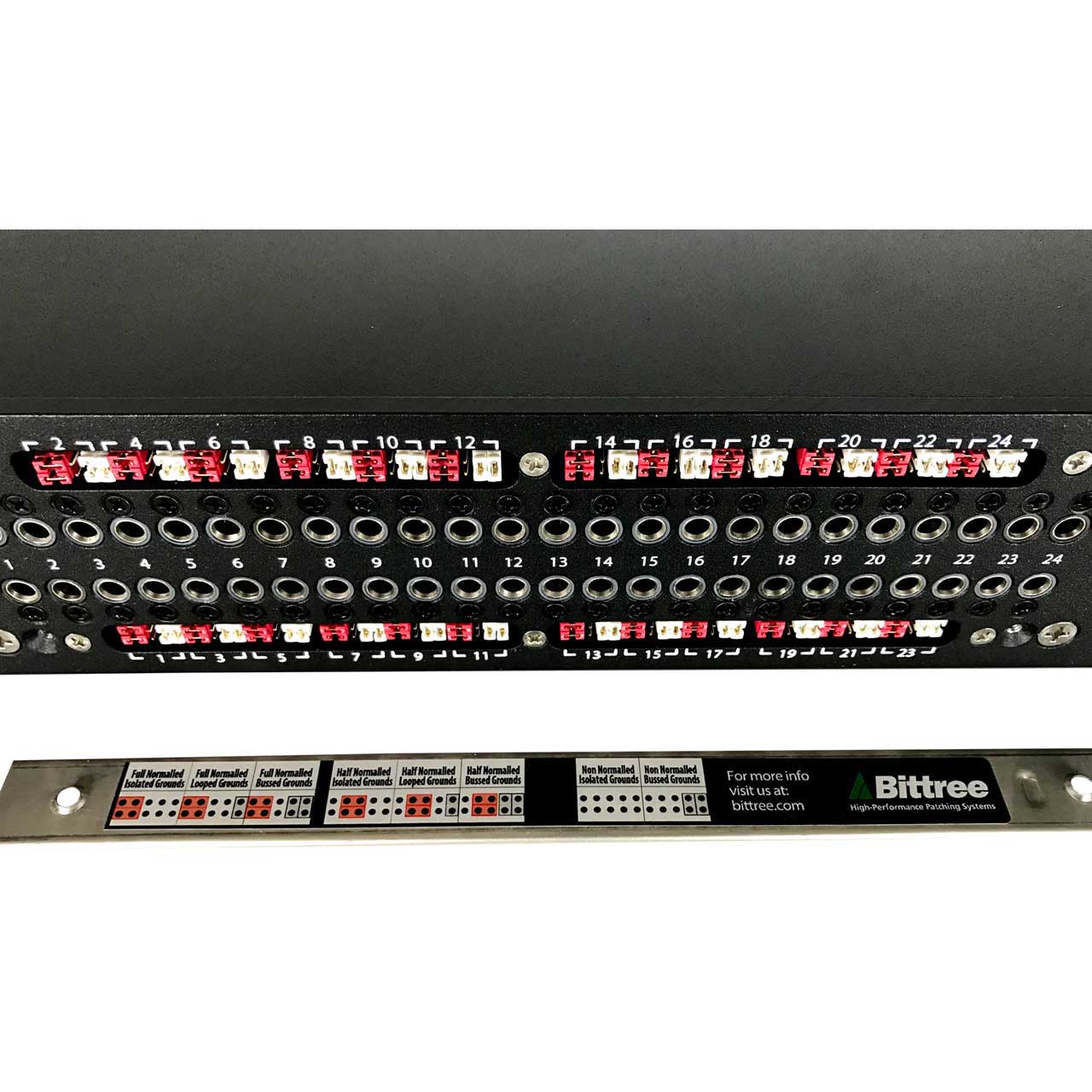

  • Circuits can be easily changed via shunts under both designation strips: Normalling - circuits can be set to full normal, half normal or non-normal, Grounding - can be set to bussed, isolated, or looped, Analog and Digital 110 ohm compatible

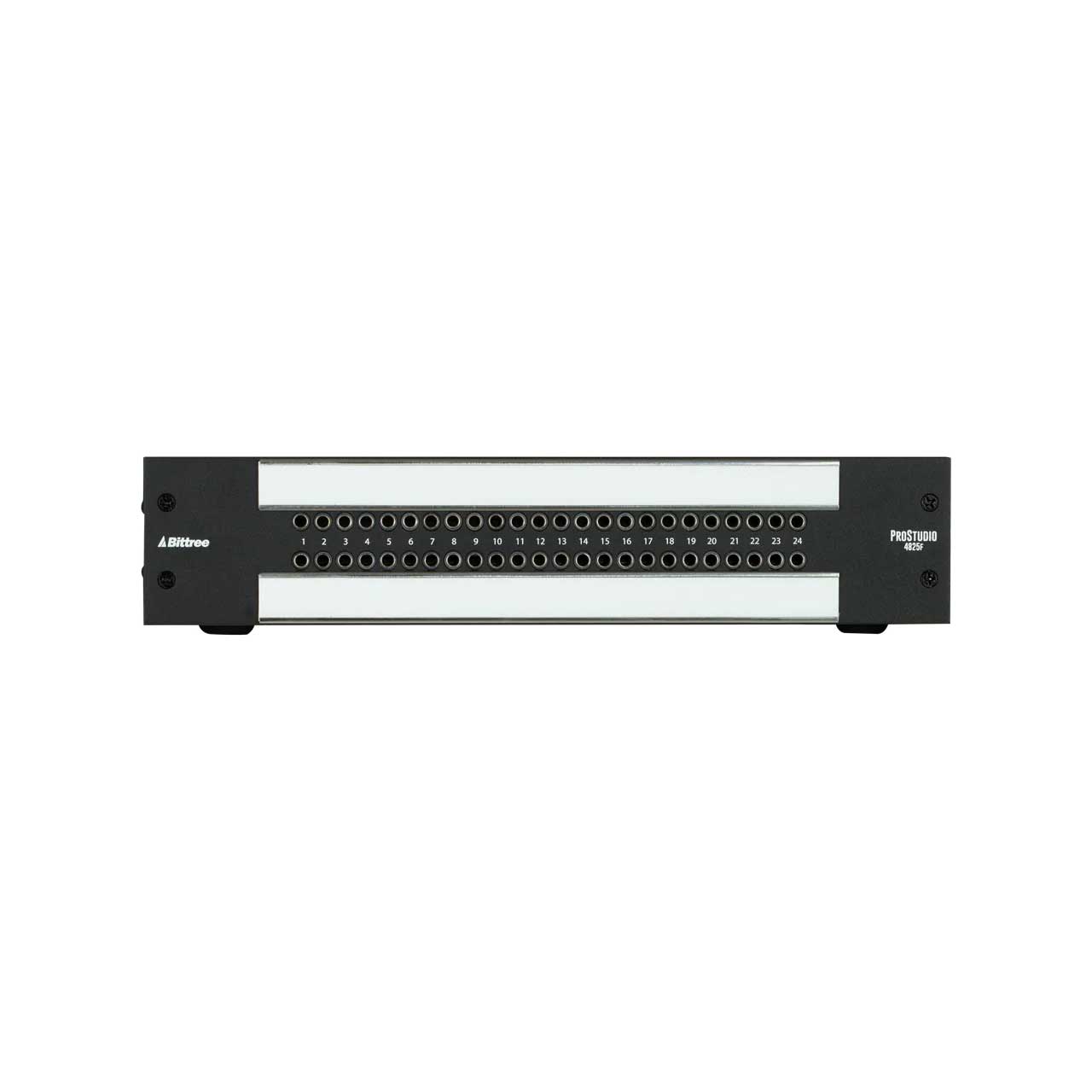

  • 1-24 left-to-right numbering on front panel for easy circuit identification
  • 2x DS-PS4825/S designation strips, "Over/Under" orientation
  • 7" (17.78cm) deep fully enclosed chassis


• Specifications:

  • Withdrawal Force: >28N
  • Min Insertion Cycles: >30,000
  • Contact Resistance: 20mΩ
  • Dielectric Strength: 500VAC of 60Hz
  • Frequency Range: DC to >50MHz
  • Insulation Resistance: >1GΩ
  • Environmental: 32° to 122°F
  • Rack Spaces: 1.5RU


• Item Includes:

  • 1x PS48DB25F Audio Patchbay
