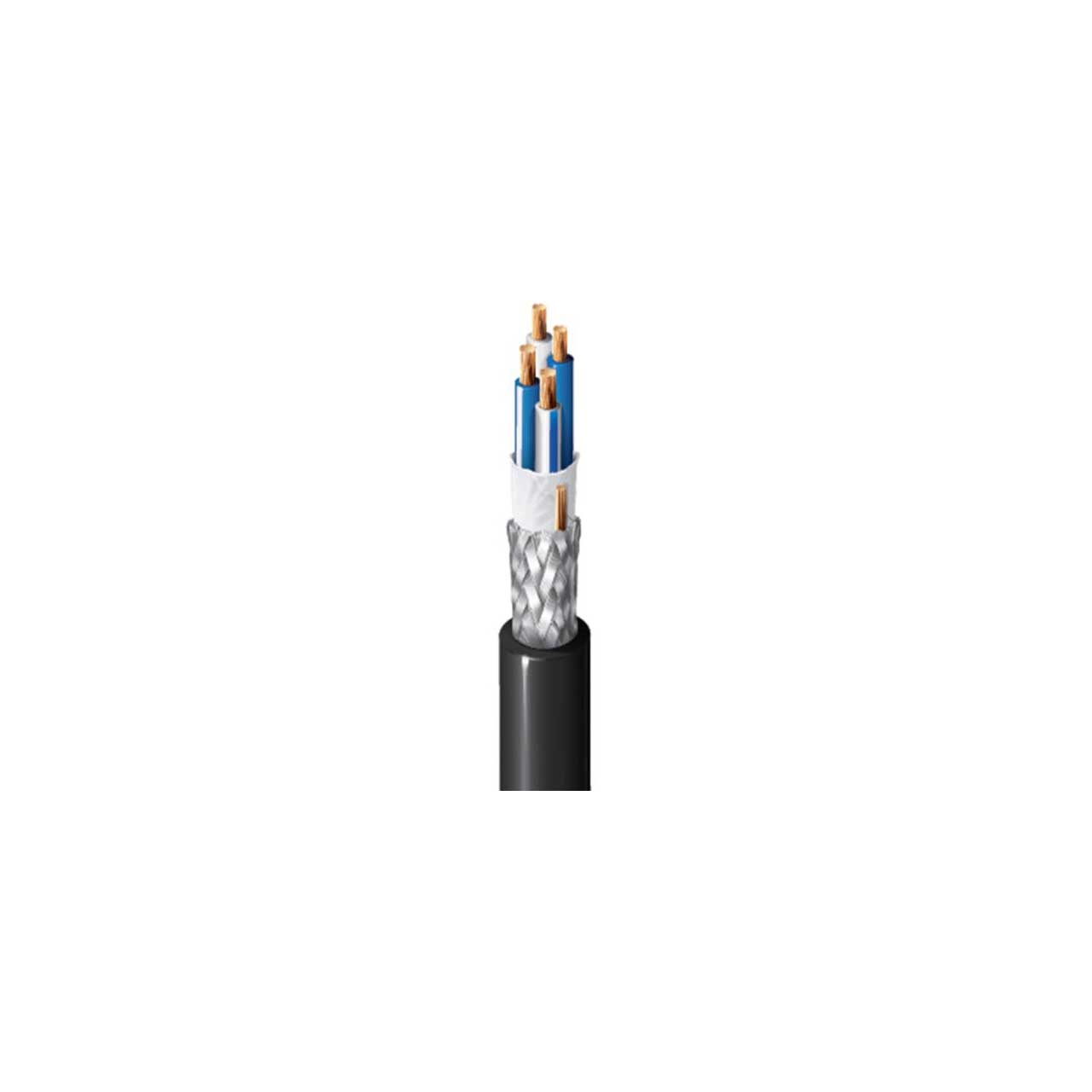

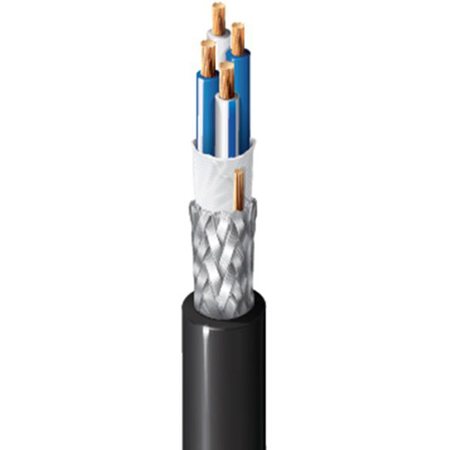

Belden 1172A Low-Noise High-Conductivity Shielded Star-Quad Flexible Microphone Cable 4-Pr 26AWG - Black - 500 Ft

1172A B59500 - Overview

• Features:

  • High Performance: Belden microphone cables are made with high-conductivity copper
  • Withstands Constant Use: Flexible EPDM rubber jackets are built to last
  • Experience Less Distortion: Cables feature low capacitance


• Specifications:

  • Conductor AWG: 26
  • Conductor Stranding: 30x40
  • Conductor Material: BC - Bare Copper
  • Insulation Material: PE - Polyethylene
  • Insulation Nom. Thickness: 0.013 in (0.33 mm)
  • Insulation Nom. Insulation Diameter: 0.045 in (1.1 mm)
  • Insulation Color Code: Blue, White, Blue/White Stripe, White/Blue Stripe
  • Outer Shield Material: TC - Tinned Copper
  • Outer Shield Type: French Braid (95%)
  • Outer Shield Material: Tinned Copper (TC)
  • Outer Shield Drainwire Type: 28 AWG (19x40) BC
  • Outer Shield Notes: Paper tape under braid with drain over tape
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Thickness: 0.031 in (0.79 mm)
  • Outer Jacket Nom. Diameter: 0.190 in (4.83 mm)
  • Overall Nominal Diameter: 0.190 in (4.83 mm)
  • Plenum (Y/N): N
  • Voltage Rating: 100 V
  • Nom. Conductor DCR: 36 Ohm/1000ft
  • Nom. Capacitance Cond-to-Cond: 39.2 pF/ft
  • Nom. Velocity of Prop.: 66%
  • Max. Current: 1.9 Amps per conductor @ 25°C
  • Nom Outer Shield DCR: 6.8 Ohm/1000ft
  • Non-UL Voltage Rating: 100 V
  • Operating Temp: -20°C to +60°C
  • Max. Pull Tension: 37 lbs
  • Bulk Cable Weight: 25 lbs/1000ft
  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor


• Warranty:

  • 10 Year Limited Warranty


• GTIN:

  0612825107774
