Belden 1189A RG6/18 CATV Coaxial 1000 Foot Black

ITEM #: BL-1189A-1000 MFG #: 1189A 0101000

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$358.40

Our Price:

$225.28

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1189A 0101000 - Overview

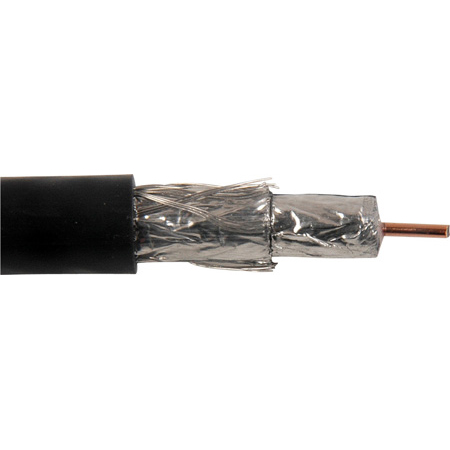

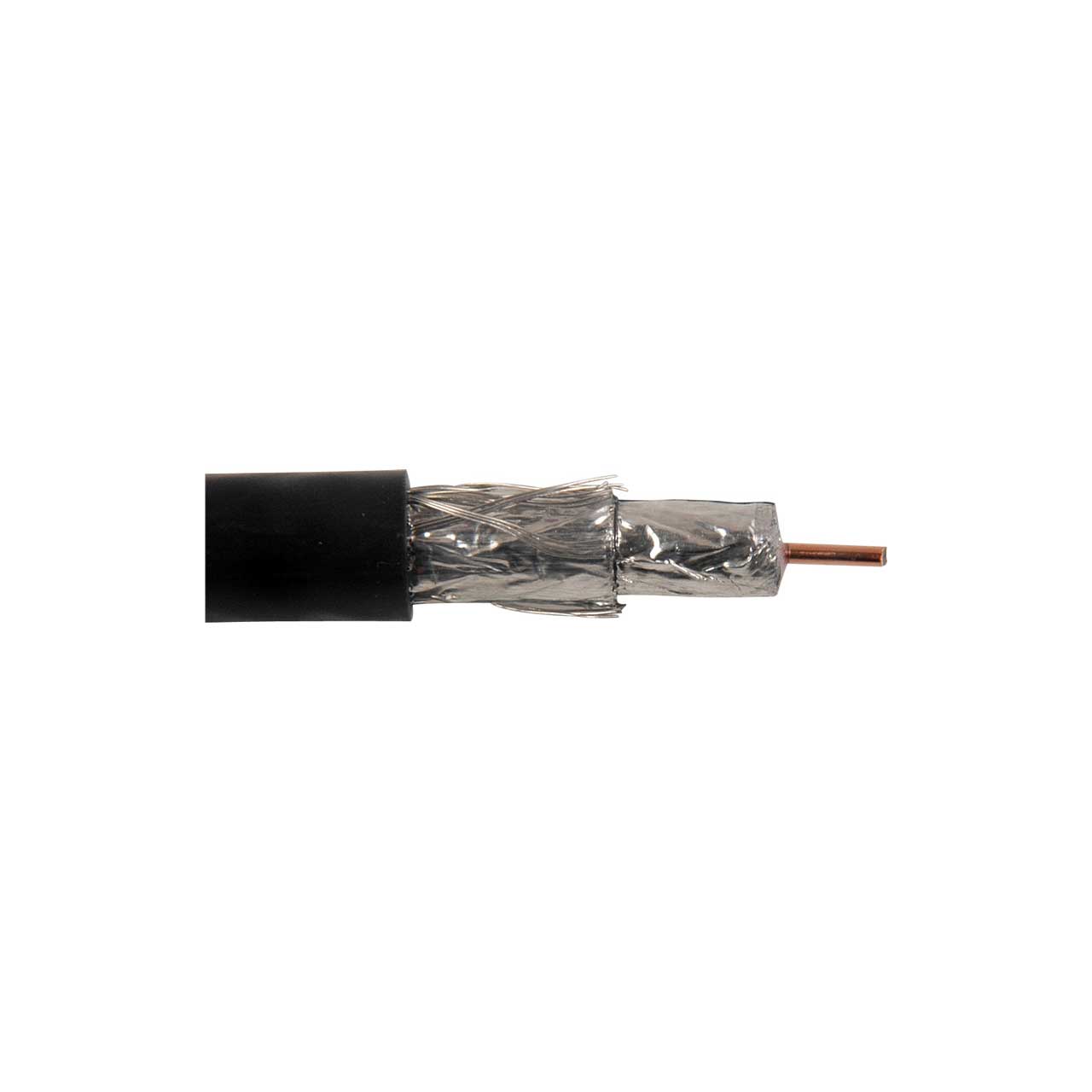

Belden's 1189A Quad Shield coaxial cable features four alternating layers of poly-foil shielding and aluminum braid, the combination of which provides 100% coverage. 1189A is recommended for all CATV/CCTV applications that require an RG-6/U specification cable with a 75 ohm rated impedance. FPE insulation and black PVC jacket.

  • Features:

    • Number of Coax: 1 Series Type: Series 6 AWG: 18 Stranding: Solid Conductor Material: BCCS - Bare Copper Covered Steel Insulation Material: Gas-injected FPE - Foam Polyethylene Outer Shield Material Trade Name: Duobond IV Outer Shield Material: Quad Shield - Bonded Duofoil/AL - Aluminum Braid/Duofoil/AL - Aluminum Braid Outer Jacket Material: PVC - Polyvinyl Chloride Plenum (Y/N): N Plenum Number: BL-1189AP Nom. Characteristic Impedance: 75 Ohms Applications: Coax Cables, Broadband CATV Coaxial Cables, Broadband Coax CATV Cables


  • GTIN:

    0612825309680
