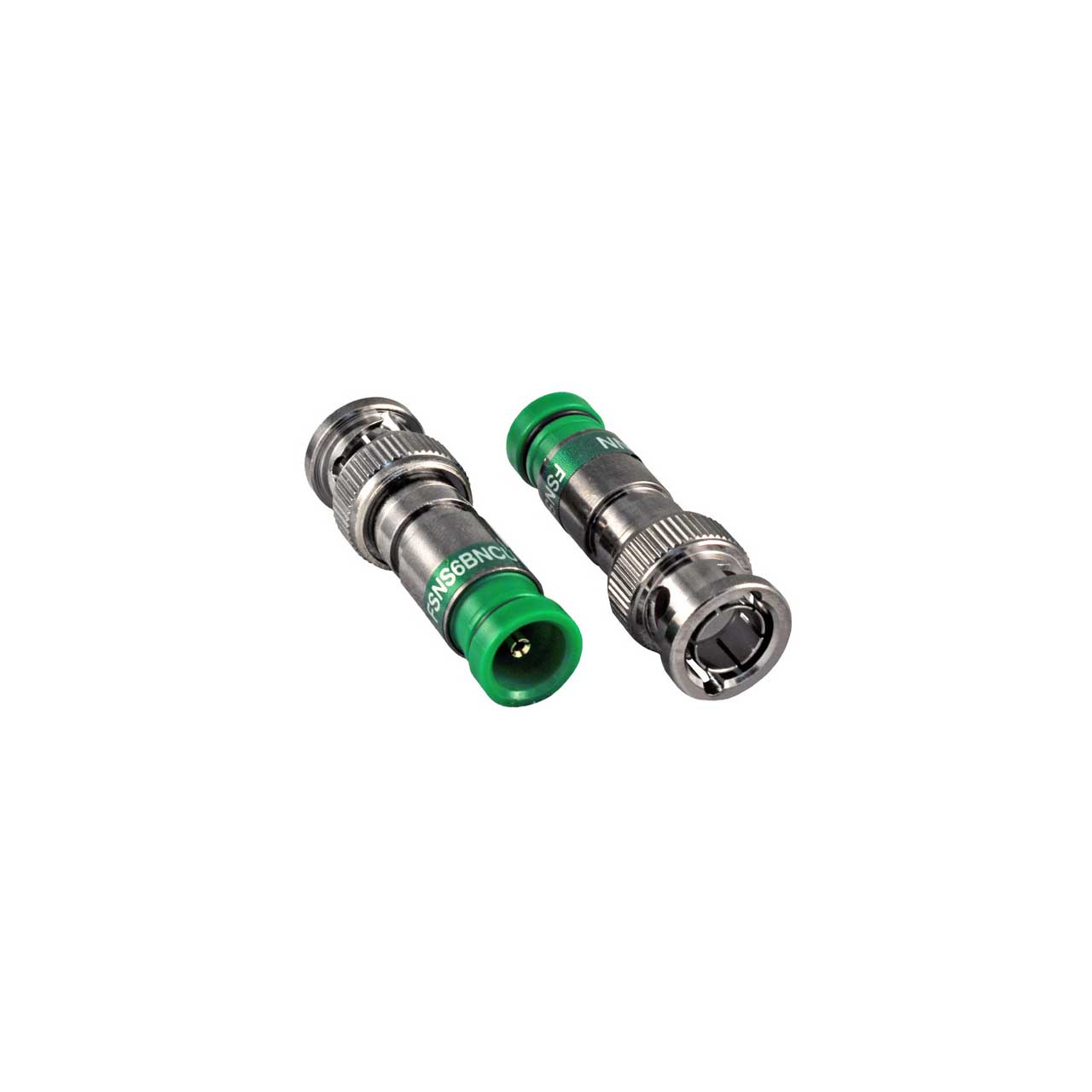

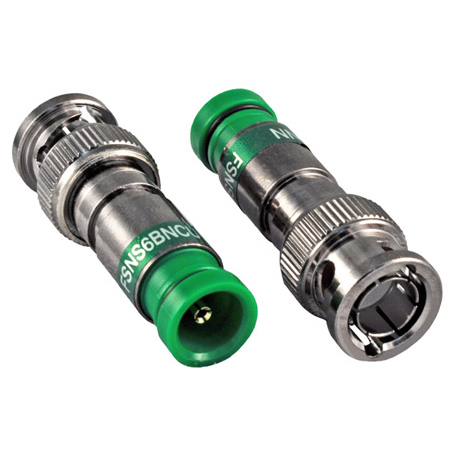

Belden FSNS6BNCU-25 Indoor/Outdoor ProSNS RG6 Quad Universal BNC Compression Connector - Green Band - 25 Pack

FSNS6BNCU - Overview

For standard or quad-shield RG6 cable

• Features:

  • Indoor/Outdoor Universal BNC Connector
  • Works with standard or quad-shield RG6 cable
  • RFI Shielding: -85 dB (60% bonded foil)


• Specifications:

  • Nut: Nickel/Tin Plated Brass
  • O-Ring: Ethylene Propylene
  • Body: Nickel/Tin Plated Brass
  • Contact: Gold Plated
  • Nominal Characteristic Impedance: 75 Ohm
  • Frequency Return Loss [MHz]: =-32 dB up to 1 GHz typical
  • Operating Temp Range: -40°F (-40°C) to 140°F (60°C)
  • Footprint/Type: Coax
  • Connector Interface Type: BNC
  • Gender: Male - plug
  • Connector Series Name: ProSNS
  • Color Band: Green
  • Locking: No
  • Termination Type: Compression
  • Cable Center Conductor Diameter Limits: .0399 - .0418 inch
  • Cable Dielectric Diameter Limits: .180 - .193 inch
  • Cable Outer Jacket Diameter Limits: .265 - .305 inch
  • Cable Insertion Force: 20 lbf
  • Cable Retention Force: 40 lbf
  • RG Type: 6
  • Environmental Space: Indoor/Outdoor
  • EU CE Mark: Yes


• Item Includes:

  • FSNS6BNCU-25 ProSNS RG6 Quad Universal BNC Compression Connector - Green Band - 25 Pack


• Warranty:

  • Limited Lifetime Connector Warranty when partnered with Belden Cable


• GTIN:

  0845671002591
