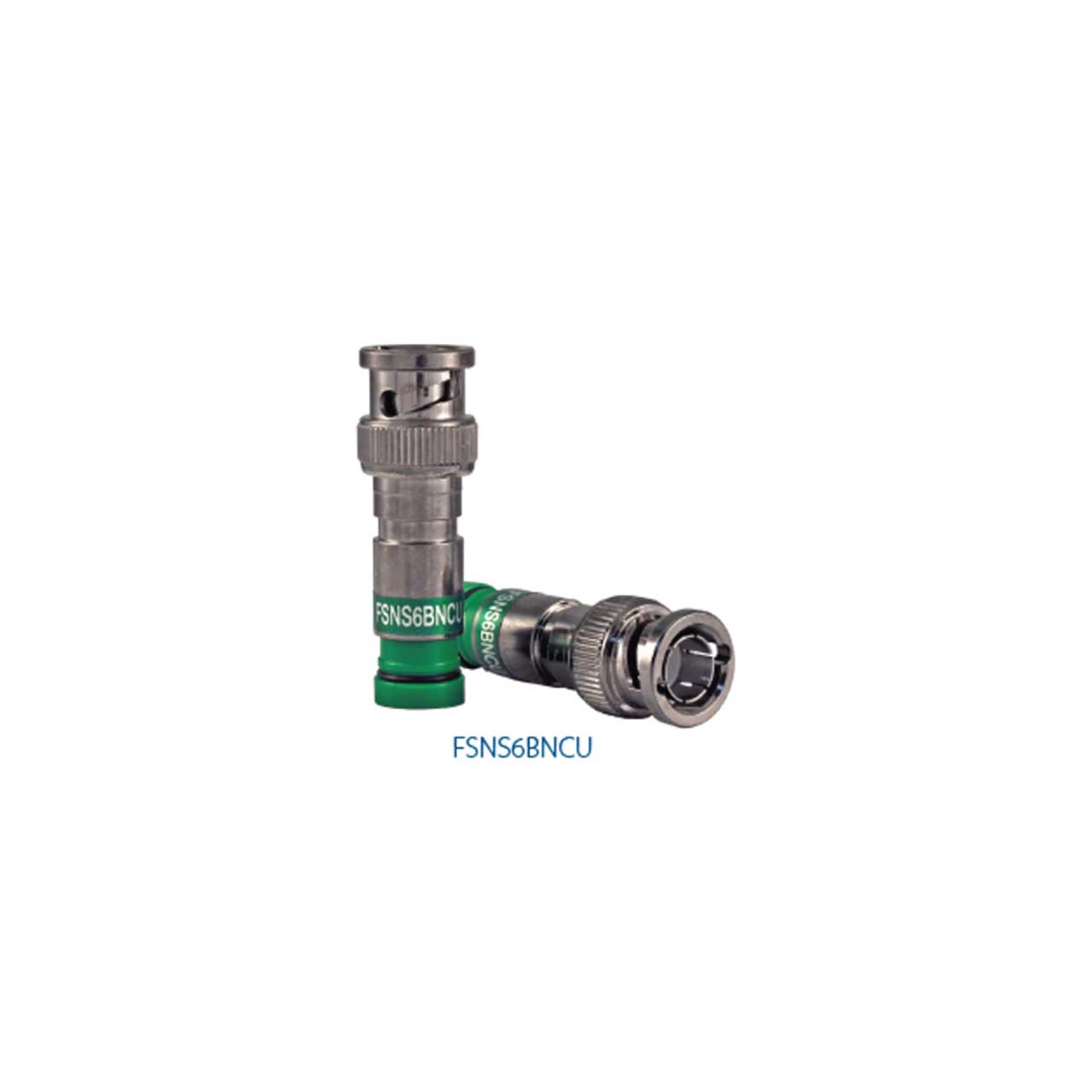

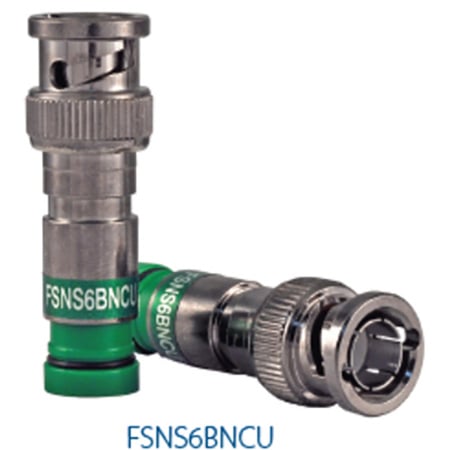

Belden FSNS6BNCU-25 Indoor/Outdoor ProSNS RG6 Quad Universal BNC Compression Connector - Green Band - Each

Name: Belden FSNS6BNCU-25 Indoor/Outdoor ProSNS RG6 Quad Universal BNC Compression Connector - Green Band - Each
Brand: Belden
SKU: BL-FSNS6BNCU-EA
Price: 4.69 USD
Availability: InStock

ITEM #: BL-FSNS6BNCU-EA MFG #: FSNS6BNCU EACH

Belden

Pack Sizes:

Pack Sizes

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$5.42

Our Price:

$4.69

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

FSNS6BNCU EACH - Overview

For standard or quad-shield RG6 cable

The Belden FSNS6BNCU is a ProSNS, RG6, Universal BNC compression connector with a non-blind entry featuring a split ferrule design and a polymer compression sleeve for easy insertion and the lowest possible tool compression force sold individually. This Indoor/Outdoor universal BNC connector is for standard or quad-shield RG6 cable.

Applications
CCTV
Security Cameras
Video

Features:
- Indoor/Outdoor Universal BNC Connector
- Works with standard or quad-shield RG6 cable
- RFI Shielding: -85 dB (60% bonded foil)
Specifications:
- Nut: Nickel/Tin Plated Brass
- O-Ring: Ethylene Propylene
- Body: Nickel/Tin Plated Brass
- Contact: Gold Plated
- Nominal Characteristic Impedance: 75 Ohm
- Frequency Return Loss [MHz]: =-32 dB up to 1 GHz typical
- Operating Temp Range: -40°F (-40°C) to 140°F (60°C)
- Footprint/Type: Coax
- Connector Interface Type: BNC
- Gender: Male - plug
- Connector Series Name: ProSNS
- Color Band: Green
- Locking: No
- Termination Type: Compression
- Cable Center Conductor Diameter Limits: .0399 - .0418 inch
- Cable Dielectric Diameter Limits: .180 - .193 inch
- Cable Outer Jacket Diameter Limits: .265 - .305 inch
- Cable Insertion Force: 20 lbf
- Cable Retention Force: 40 lbf
- RG Type: 6
- Environmental Space: Indoor/Outdoor
- EU CE Mark: Yes
Item Includes:
- FSNS6BNCU-25 ProSNS RG6 Quad Universal BNC Compression Connector - Green Band - Each
Warranty:
- Limited Lifetime Connector Warranty when partnered with Belden Cable
GTIN:
0845671002591
