Belden 1279R CMR/Riser Mini Hi-Res RGB Video Coax Shld/Solid TC 5-25AWG - Per Foot

ITEM #: BL-1279R MFG #: 1279R B59 PER FOOT

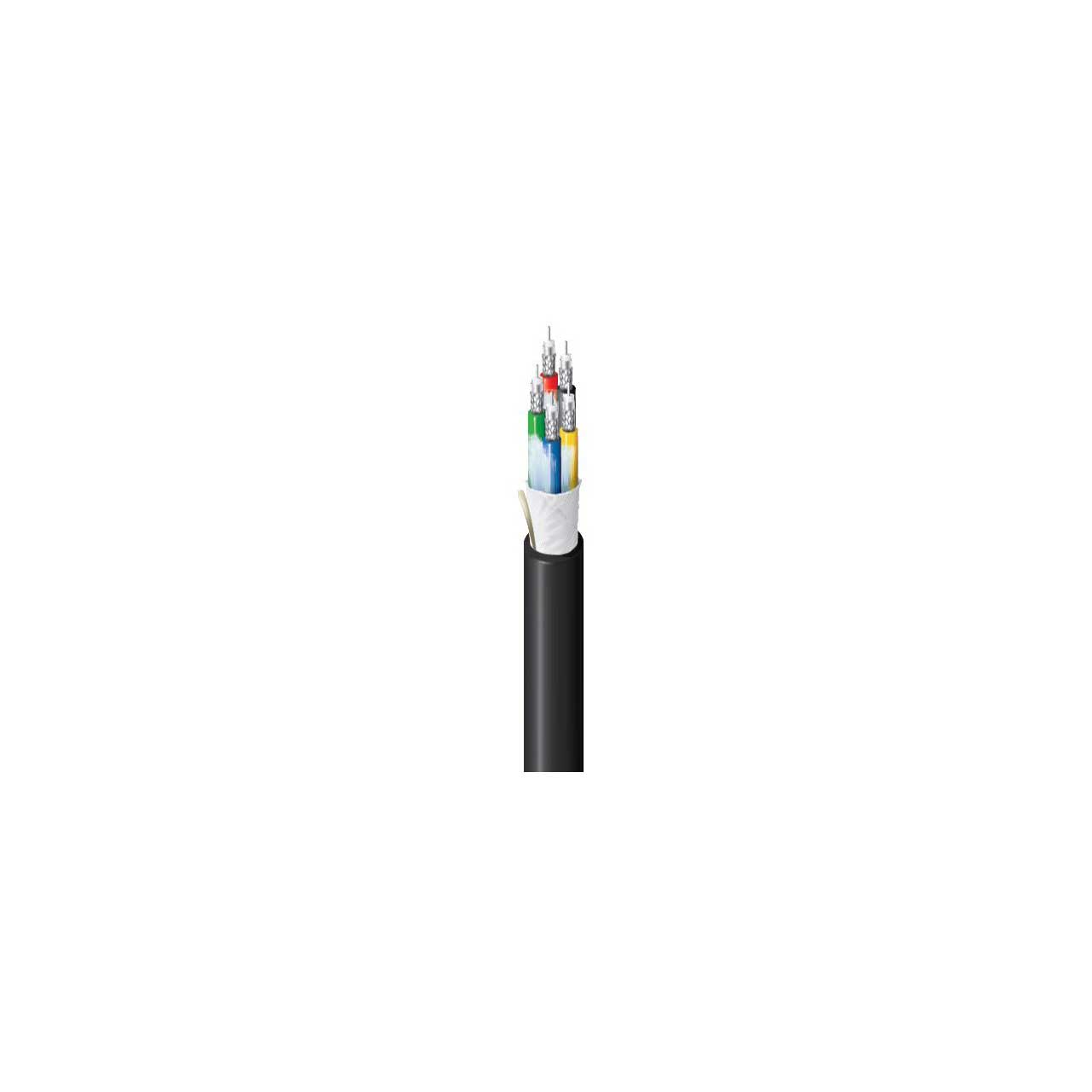

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3.05

Our Price:

$2.94

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1279R B59 PER FOOT - Overview

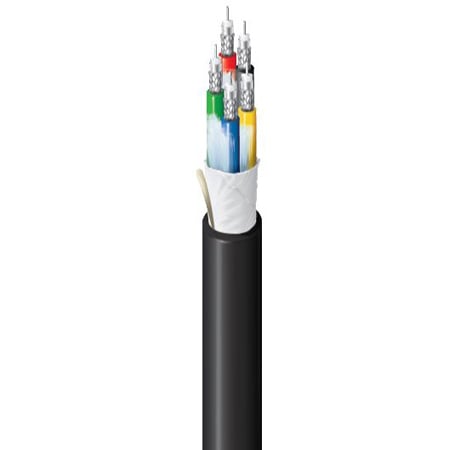

Belden 1279R is a CMR/Riser rated RGB Video Coax. Ir features 5-25 AWG tinned copper conductors, foam HDPE insulation, a Duobond® foil + 95% tinned copper interlocked serve shield with inner PVC jackets in an overall PVC jacket.

Choose the right copper cable to meet your application's requirements. Belden has invested in a cross-functional team of research and development, product management, production, quality and purchasing experts to ensure that Belden's cable products comply with CPR (Construction Products Regulation) rules being implemented by the European Commission (EC). Reference product listing to identify all the different types of CPR rated copper cables.

Applications
RGB Projectors
LCD Projectors
Video Distribution
Component Video
Graphic Displays
Special Effects Editing
Animation
Video Post Production
Home Theater
Offices
Boardrooms
Auditoriums
Teleconferencing
Theaters

  • Specifications:

    • Conductor AWG: 25
    • Conductor Stranding: Solid
    • Conductor Material: TC - Tinned Copper
    • Conductor Nominal Diameter: 0.018 in
    • Conductor No. of Coax: 5
    • Insulation Material: PE - Polyethylene (Foam) gas-injected
    • Insulation Nominal Diameter: 0.074 in
    • Inner Jacket Material: PVC - Polyvinyl Chloride
    • Inner Jacket Nominal Diameter: 0.114 in
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nominal Diameter 0.382 in
    • Nominal Conductor DCR: 34 Ohm/1000ft
    • Nominal Conductor DCR Conductor Resistance: 34 Ohm/1000ft
    • Nominal Inner Shield DCR: 5.4 Ohm/1000ft
    • Outer Conductor DCR: 5.4 Ohm/1000ft
    • Nom. Capacitance Conductor to Shield: 17 pF/ft
    • Nominal Inductance: 0.087 µH/ft
    • Nominal Characteristic Impedance: 75 Ohm
    • Nominal Delay: 1.24 ns/ft
    • UL Voltage Rating: 300 V RMS
    • Non-UL Temp Rating: 75°C
    • UL Temp Rating: 60°C
    • Operating Temp Range: -40°C To +75°C
    • Bulk Cable Weight: 71 lbs/1000ft
    • Max. Pull Tension: 130 lbs
    • Min Bend Radius (Overall): 3.75 in
    • Min Bend Radius (Each Coax): 1.1 in
    • NEC/(UL) Compliance: CMR
    • CEC/C(UL) Compliance: CMG
    • CPR Euroclass: Eca
    • RG Type: Sub-miniature 59
    • Environmental Space: Indoor - Riser


  • Item Includes:

    • 1279R RGB Video Coax Shld/Solid TC 5-25AWG - Per Foot


  • Warranty:

    • 10 Year Limited Warranty
