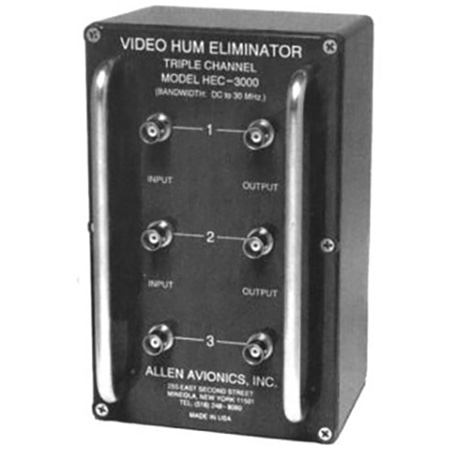

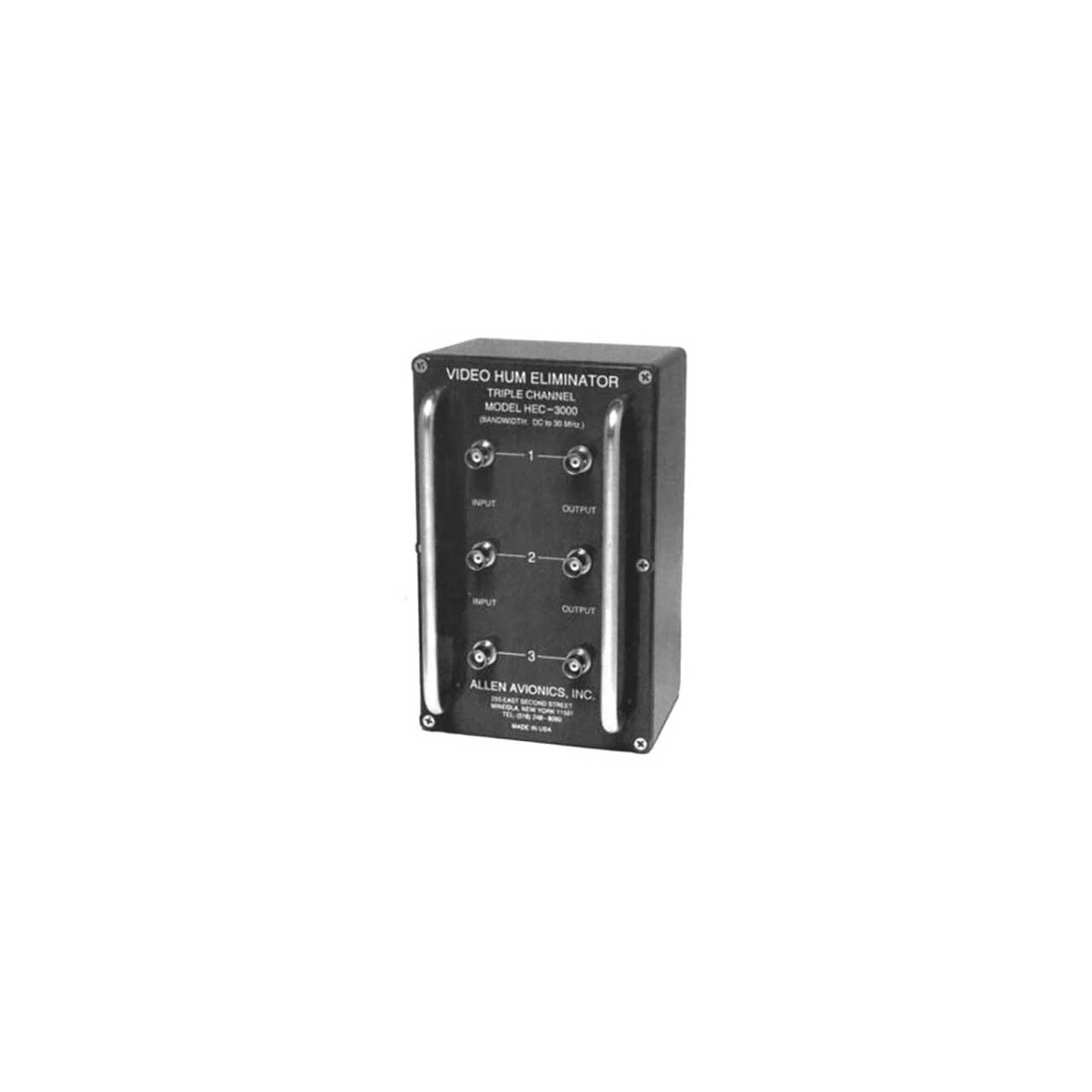

Allen Avionics HEC-3000 3-Channel 75 Ohm Hum Eliminator

ITEM #: HEC-3000 MFG #: HEC-3000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$427.95

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


HEC-3000 - Overview

The HEC-3000 eliminates hum and greatly reduces interferences in video lines caused by differences in ground potential. Features flat response, bandwidth up to 30 MHz, four color or monochrome, no low frequency or high frequency roll off, passive device, failure free, use on 50 Hz or 60 Hz systems. Applications in field: between remote truck and Telco, between remote truck and microwave, for VTR units. In Studio: between buildings, installations with long cable runs, between studio and transmitter. Comes in aluminum die cast box. Preferred by America's leading broadcasters.

  • Features:

    • Impedance: 50Ω & 75Ω, unbalanced
    • Connectors: BNC Type
    • Bandwidth: DC to 30 MHz (0.6 dB @ 10 MHz)
    • Hum Reduction: to 60 dB depending on system
    • Insertion Loss: 0.2 dB maximum

  • Specifications:

    • Impedance: 75Ω unbalanced
    • Bandwidth: DC to 30 MHz; (0.75 dB at 10 MHz); (1.20 dB @ 20 MHz); (1.50 dB @ 30 MHz)


HEC-3000 - Required Accessories
