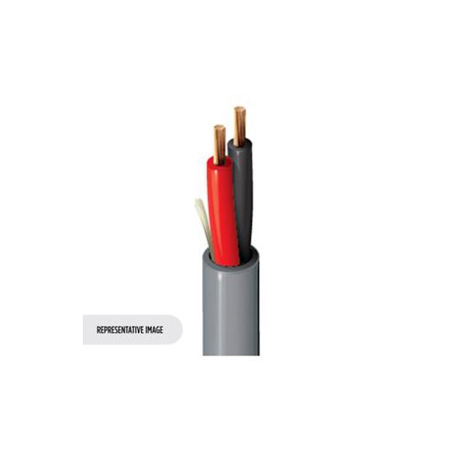

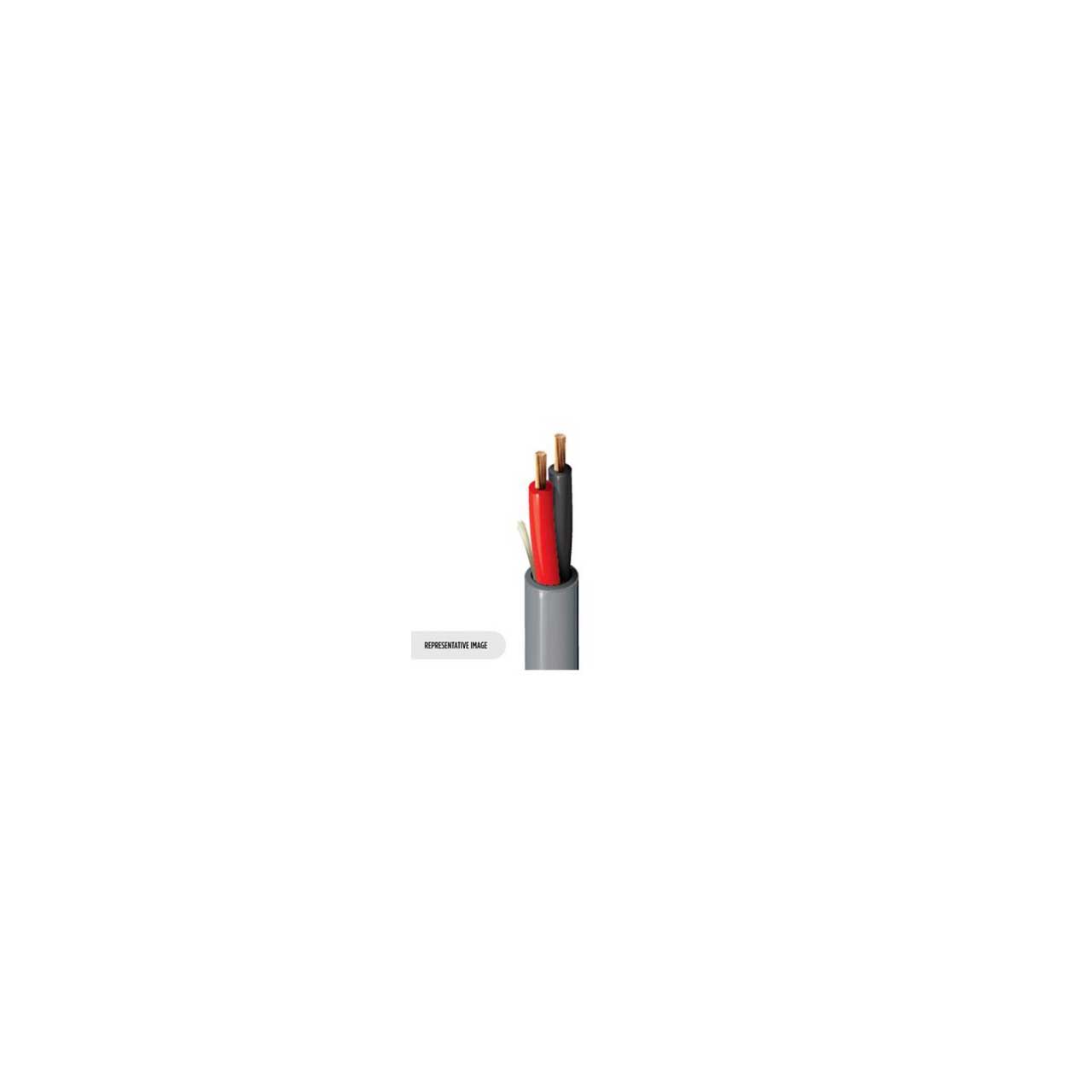

Belden 1313A CM Indoor/Outdoor Direct Burial Flexible 2 Conductor Speaker Cable Str/BC-OFHC - 10AWG - Black - 500 Foot

1313A 010500 - Overview

• Features:

  • Built to Last: Unique cable construction maintains structure in rugged environments
  • Easy to Pull and Strip: Belden's jackets save money and installation time
  • Solid Construction: Cables feature electrolytic tough pitch (ETP) virgin copper construction—the highest purity tough pitch copper


• Specifications:

  • Conductor Number of Element: 2
  • Conductor AWG: 10
  • Conductor Stranding: 259x34
  • Conductor Material: BC - Bare Copper (High Conductivity)
  • Insulation Element: Conductor(s)
  • Insulation Material: PE - Polyethylene
  • Insulation Nom. Thickness: 0.019 in (0.48 mm)
  • Nom. Insulation Diameter: 0.17 in (4.3 mm)
  • Insulation Color Code: Black, Red
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Thickness: 0.044 in (1.1 mm)
  • Outer Jacket Nom. Insulation Diameter: 0.428 in (10.9 mm)
  • Overall Cable Diameter (Nominal): 0.428 in (10.9 mm)
  • UL Voltage Rating: 300 V (CM, CL3)
  • UL Rating Temp: 75°C
  • Operating Temp: -20°C To +75°C
  • Max. Pull Tension: 275 lbs
  • Bulk Cable Weight: 100 lbs/1000ft
  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Outdoor
  • Flammability / Fire Resistance: UL1666 Riser, IEC 60332-1-2
  • NEC / UL Compliance: Article 725, Article 800, CL3, CM


• Item Includes:

  • Belden 1313A 2 Conductor Speaker Cable Str/BC-OFHC - 10AWG - Black - 500 Foot


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825111733
