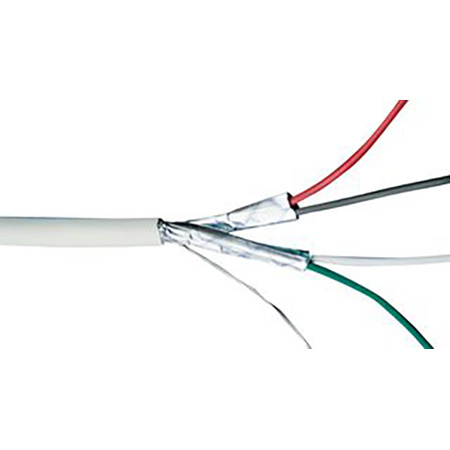

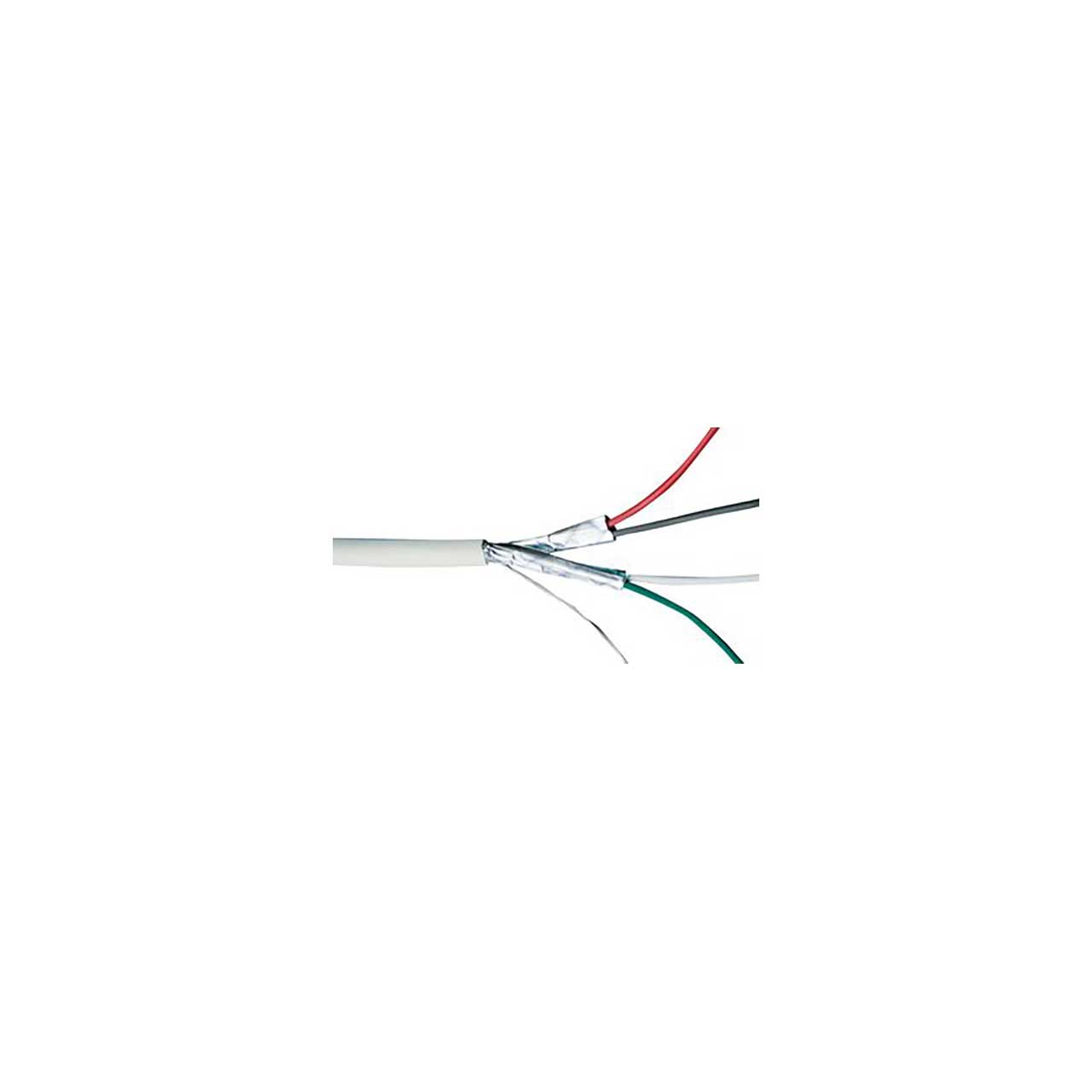

Belden 1325A Flamarrest Plenum Multi-Conductor-Double-Pair Cable 2-22 AWG - Black - 1000 Foot

1325A 0101000 - Overview

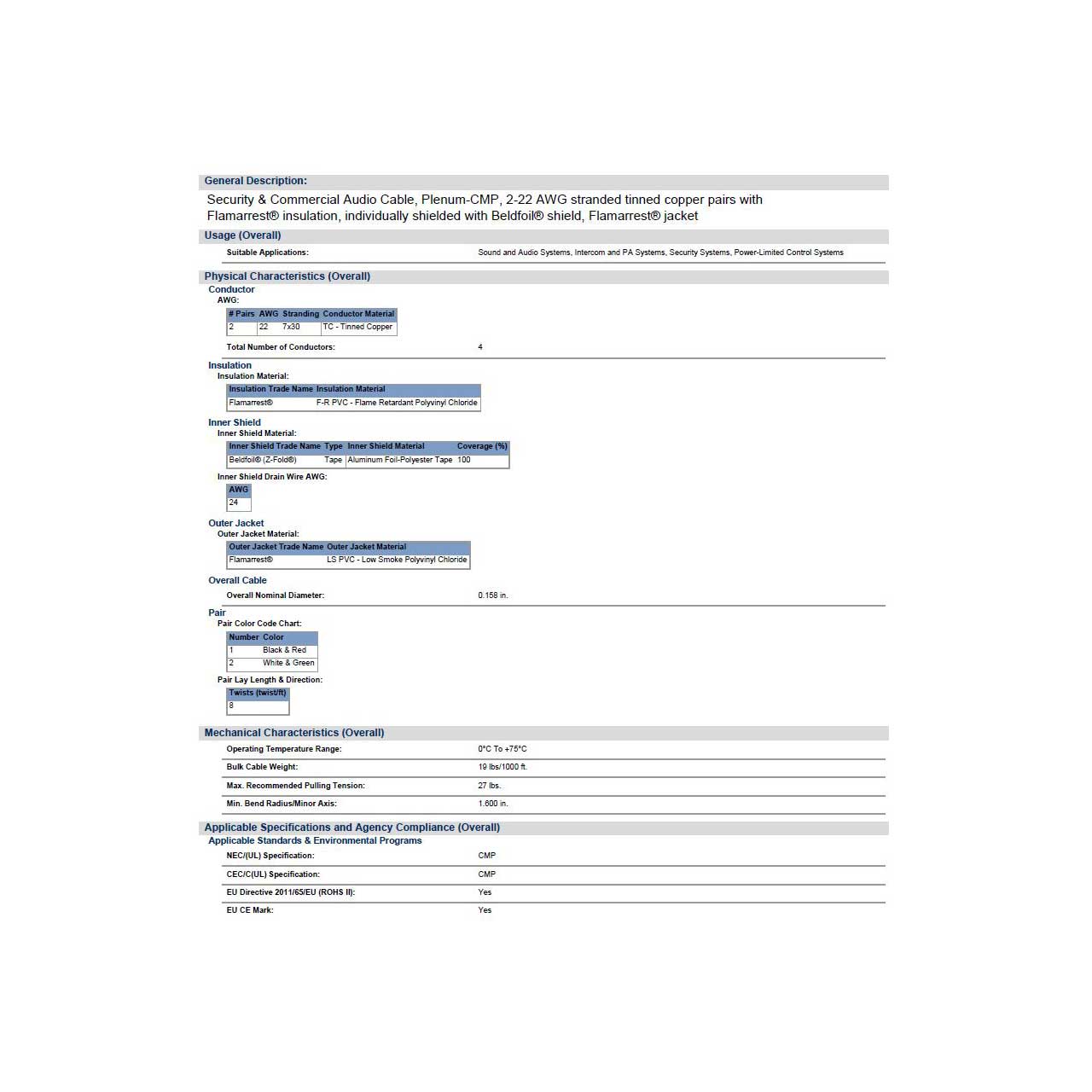

• Specifications:

  • Physical Characteristics
  • Conductor AWG: 2 Pairs, AWG 22, Tinned Copper
  • Total Number of Conductors: 4
  • Insulation Material: Flamarrest F-R PVC - Flame Retardant Polyvinyl Chloride
  • Inner Shield Material: Beldfoil (Z-Fold) Tape Aluminum Foil-Polyester Tape
  • Inner Shield Drain Wire AWG: 24
  • Outer Jacket Material: Flamarrest LS PVC - Low Smoke Polyvinyl Chloride
  • Overall Nominal Diameter: 0.158 in.
  • Pair Lay Length & Direction: 8 Twists (twist/ft)
    Mechanical Characteristics
  • Operating Temperature Range: 0°C To +75°C
  • Bulk Cable Weight: 19 lbs/1000 ft.
  • Maximum Recommended Pulling Tension: 27 lbs.
  • Minimum Bend Radius/Minor Axis: 1.600 in.
    Applicable Specifications and Agency Compliance
  • Applicable Standards & Environmental Programs
  • NEC/(UL) Specification: CMP
  • CEC/C(UL) Specification: CMP
  • EU Directive 2011/65/EU (ROHS II): Yes
  • EU CE Mark: Yes
  • EU Directive 2000/53/EC (ELV): Yes
  • EU Directive 2002/95/EC (RoHS): Yes
  • EU RoHS Compliance Date (mm/dd/yyyy): 05/30/2006
  • EU Directive 2002/96/EC (WEEE): Yes
  • EU Directive 2003/11/EC (BFR): Yes
  • CA Prop 65 (CJ for Wire & Cable): Yes
  • MII Order #39 (China RoHS): Yes
  • UL Flame Test: UL910 Steiner Tunnel
  • CSA Flame Test: FT6
  • Plenum (Y/N): Yes
  • Non-Plenum Number: 8723

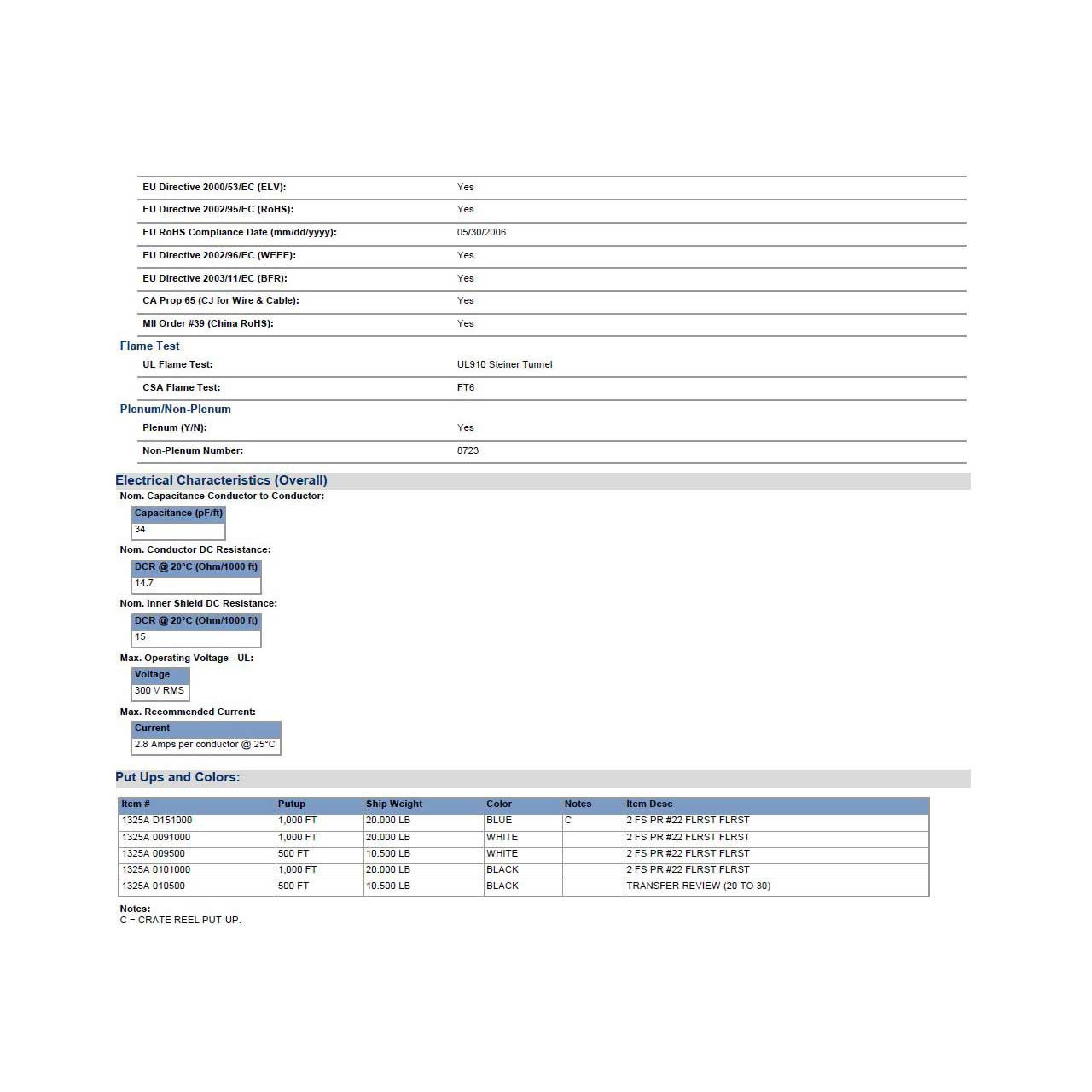

    Electrical Characteristics
  • Nom. Capacitance Conductor to Conductor: 34 (pF/ft)
  • Nom. Conductor DC Resistance: 14.7 DCR at 20°C (Ohm/1000 ft)
  • Nom. Inner Shield DC Resistance: 15 DCR at 20°C (Ohm/1000 ft)
  • Max. Operating Voltage - UL: 300 V RMS
  • Max. Recommended Current: 2.8 Amps per conductor at 25°C


• GTIN:

  0612825111931
