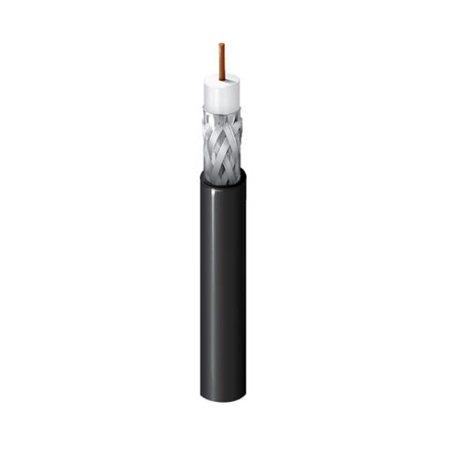

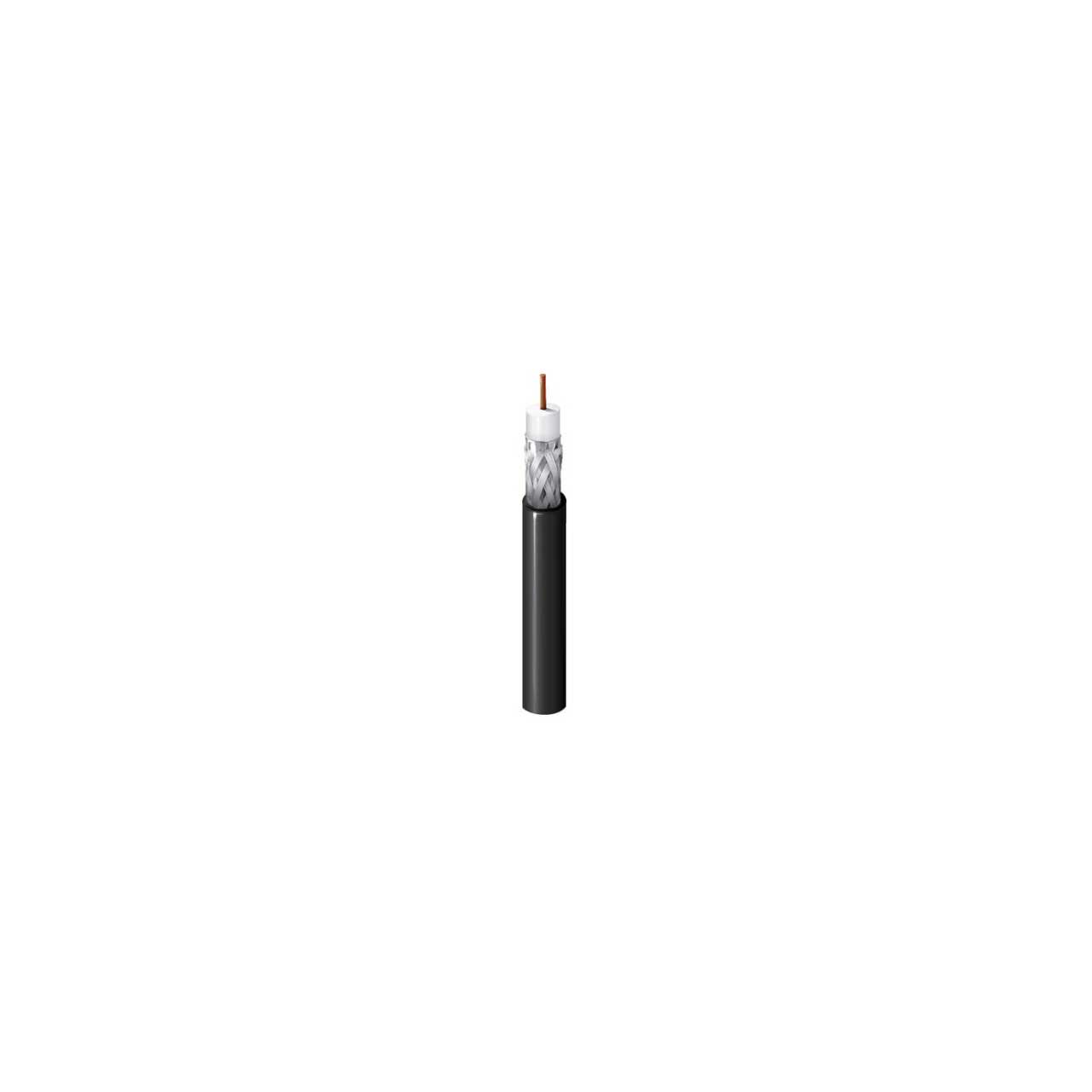

Belden 1695A CMP/Plenum Rated RG6 6G-SDI/UHDTV Coaxial Video Cable 18AWG - Black - Per Foot

BL-1695A - Overview

• Features:

  • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
  • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
  • Easy Identification: Cable jackets feature footage room and zone markings

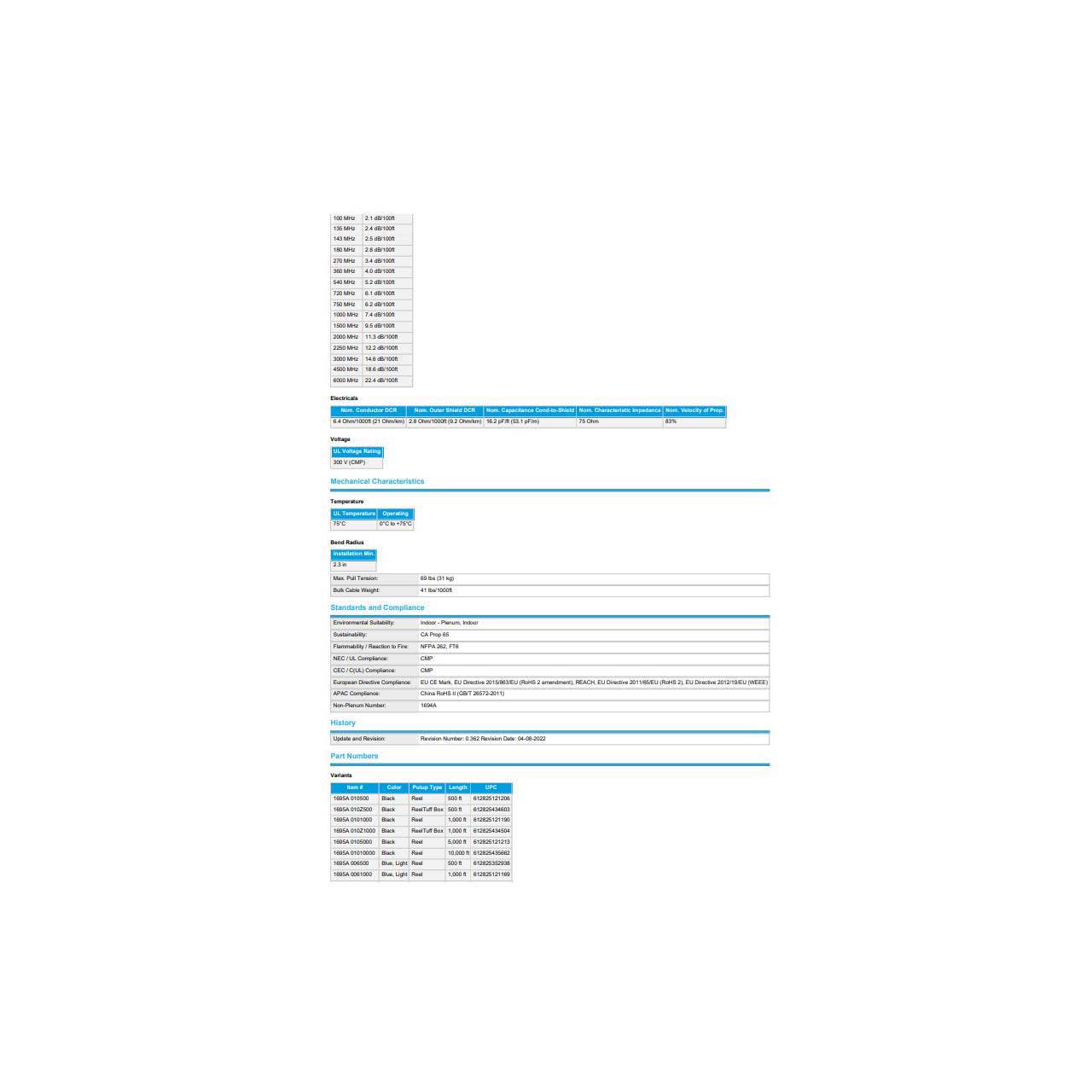

• Specifications:

  • RG Type: 6
  • Conductor AWG: 18
  • Conductor Stranding: Solid
  • Overall Cable Diameter (Nominal): 0.229 in (5.82 mm)
  • Conductor Nom Diameter: 0.040in
  • Conductor Material: Bare Copper
  • Nom. Conductor DCR: 6.4 Ohm/1000ft
  • Insulation Material: FEP - Fluorinated Ethylene Propylene (Foam)
  • Nom. Insulation Diameter: 0.170 in (4.32 mm)
  • Nom. Outer Shield DCR: 2.8 Ohm/1000ft
  • Nom. Capacitance Cond-to-Shield: 16.2 pF/ft
  • Nom. Impedence: 75 Ohm
  • Nom. Velocity: 83%
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Diameter: 0.229 in (5.82 mm)
  • UL Voltage Rating: 300 V (CMP)
  • UL Rating Temp: 75°C
  • Operating Temp: 0°C to +75°C
  • Bulk Cable Weight: 41 lbs/1000ft
  • Max. Pull Tension: 69 lbs
  • Environmental Suitability: Indoor - Plenum, Indoor
  • Sustainability: CA Prop 65
  • Flammability / Fire Resistance: NFPA 262, FT6
  • NEC / UL Compliance: CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)


• Item Includes:

  • 1695A RG6 Plenum Coaxial Video Cable - Black - Per Foot


• Warranty:

  • Limited 10 Year Warranty
