Belden 1794A 16 AWG High Density SMPTE 424M Digital Coax Ruggedized Unreel Cable - Black - 1000 Foot

ITEM #: BL-1794A-1000NBK MFG #: 1794A 010N1000

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$2,319.60

Our Price:

$1,629.24

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1794A 010N1000 - Overview

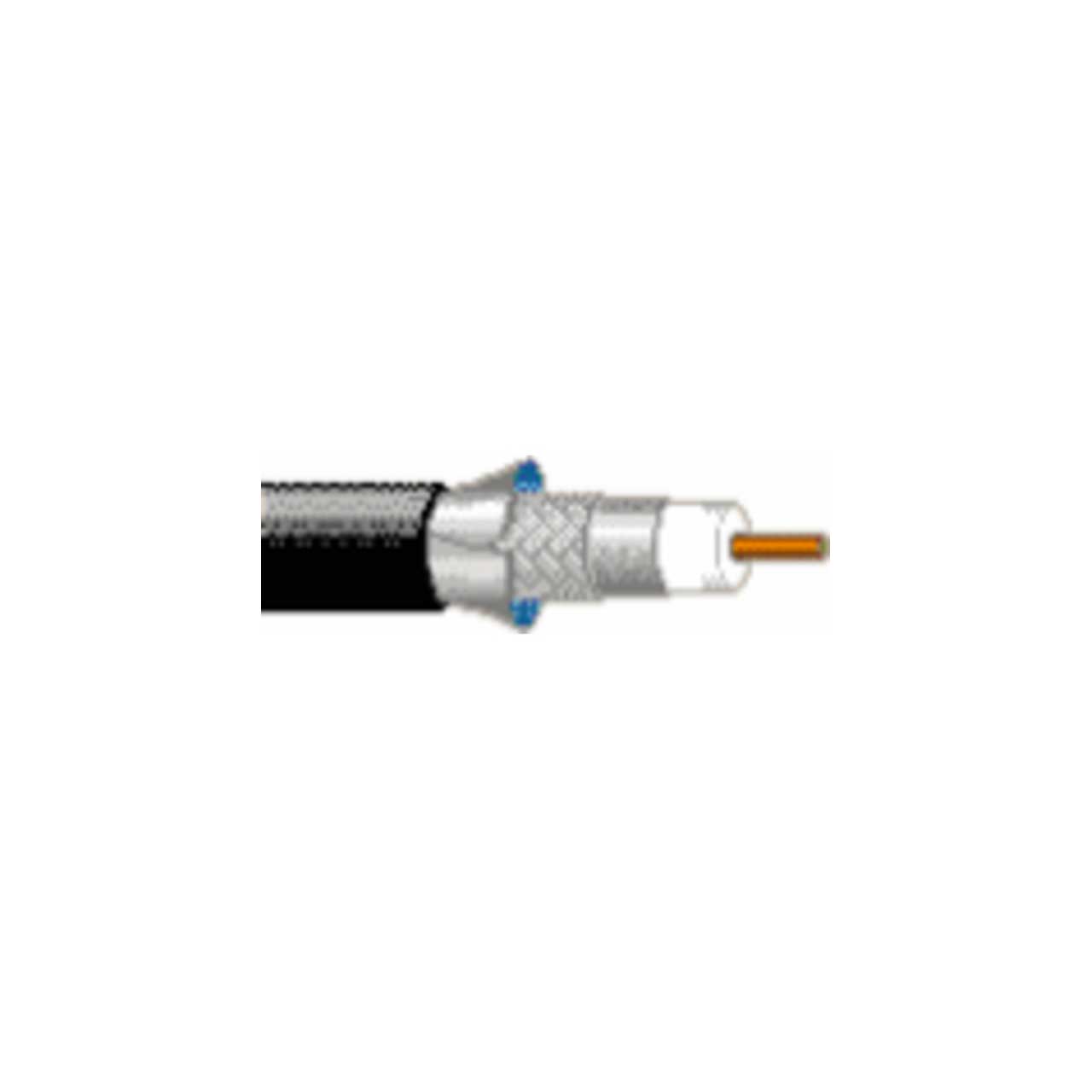

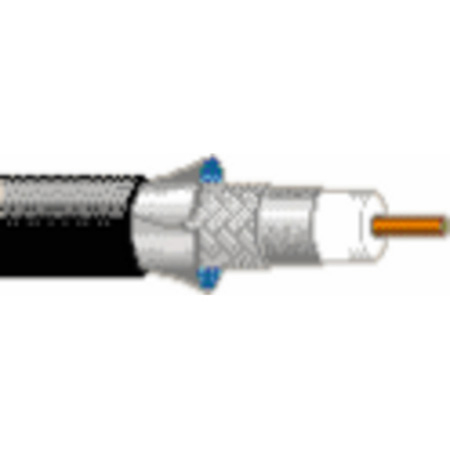

Belden 1794A is a low loss serial digital coax cable with Riser-CMR, 16 AWG solid bare copper conductor, foam HDPE core, BeldFoil, +95% tinnd copper braid, Duofoil, and PVC jacket.

  • Specifications:

    • Environmental Space: Outdoor - Aerial
    • Suitable Applications: SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p
    • Conductor Count: 1
    • Conductor Size: 16 AWG

      Temperature Range
    • Operating Temp Range: -30°C To +75°C
    • Mechanical Characteristics
    • UV Resistance: Yes
    • Bulk Cable Weight: 59 lbs/1000ft
    • Max Recommended Pulling Tension: 111 lbs
    • Min Bend Radius/Minor Axis: 3.25 in
