Belden 1800F Flexible CL2R-rated Single Pair Shielded Digital Microphone Cable Str BC 24 AWG - Blue - Per Foot

ITEM #: BL-1800F-BE MFG #: 1800F G7XU1000 PER FT.

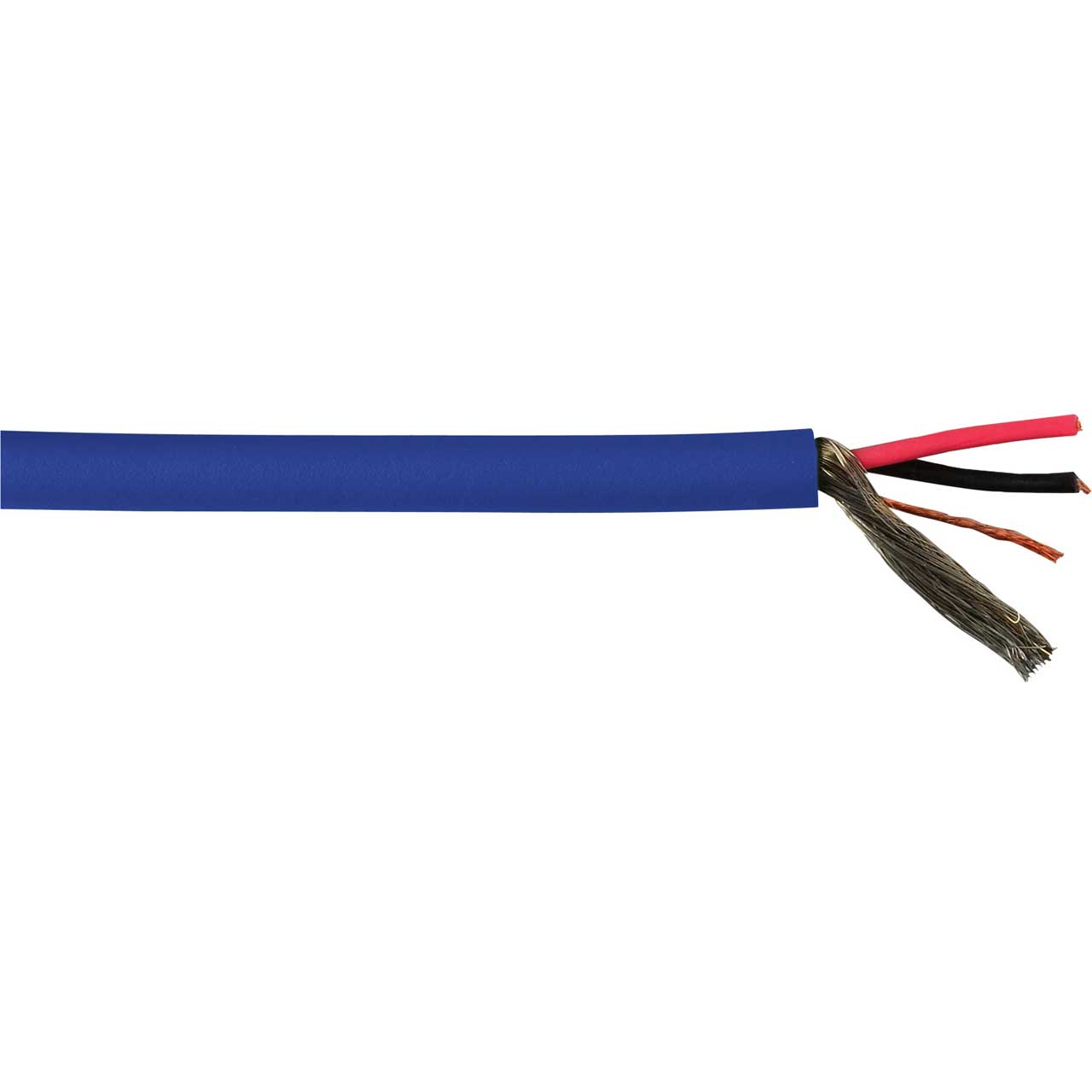

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2.68

Our Price:

$2.01

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1800F G7XU1000 PER FT. - Overview

Belden 1800F is a Single-Pair, Bare Copper, 24 AWG (42x40) Digital Microphone Cable. It features PE insulation, a 95% Tinned Copper French Braid Shield in a flexible, CL2R-rated (Class 2 riser rated) Matte PVC jacket.

Belden Microphone Cables are available in a variety of high-performance analog and digital options that withstand constant handling and use, as well as deployable cables for harsh environments. Belden also offers a variety of cables with specialty options, such as small diameters, high flexibility and pulling tensions up to 250 lbs.

Applications
Digital microphone
Flexible interconnect cable for digital audio

  • Features:

    • High Performance: Belden microphone cables are made with high-conductivity copper
    • Withstands Constant Use: Flexible EPDM rubber jackets are built to last
    • Experience Less Distortion: Cables feature low capacitance


  • Specifications:

    • Conductor Number of Pairs: 1
    • Total Number of Conductors: 2
    • Conductor AWG: 24
    • Conductor Stranding: 42x40
    • Conductor Material: BC - Bare Copper
    • Insulation Material: PE - Polyethylene (Foam)
    • Insulation Nom. Thickness: 0.017 in (0.43 mm)
    • Nom. Insulation Diameter: 0.058 in (1.5 mm)
    • Insulation Color Code: Red & Black
    • Insulation Notes: HDPE
    • Outer Shield Type: French Braid
    • Outer Shield Material: TC - Tinned Copper 95%
    • Outer Shield Drainwire Type: 26 AWG (30x40) BC
    • Outer Shield Notes: Paper tape under braid with drain over tape
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.037 in (0.94 mm)
    • Outer Jacket Nom. Diameter: 0.211 in (5.36 mm)
    • Overall Cable Diameter (Nominal): 0.211 in (5.36 mm)
    • Plenum (Y/N): N
    • Voltage Rating: 100 V
    • Nom. Conductor DCR: 23.7 Ohm/1000ft
    • Nom. Capacitance Cond-to-Cond: 12 pF/ft
    • Nom. Capacitance Cond-to-Other (Conds + Shield): 26 pF/ft
    • Characteristic Impedence: 110 Ohm
    • Nom. Velocity of Prop.: 76%
    • Max. Current: 2.75 Amps per conductor @ 25°C
    • Nom Outer Shield DCR: 6.42 Ohm/1000ft
    • Max. Pull Tension: 41.5 lbs
    • Bulk Cable Weight: 23 lbs/1000ft
    • Environmental Suitability: Indoor - Riser, Indoor
    • Flammability / Fire Resistance: UL1666 Riser
    • NEC / UL Compliance: Article 725, CL2R


  • Item Includes:

    • 1800F Digital Microphone Cable - Blue - Per Foot


  • Warranty:

    • Limited 10 Year Warranty
