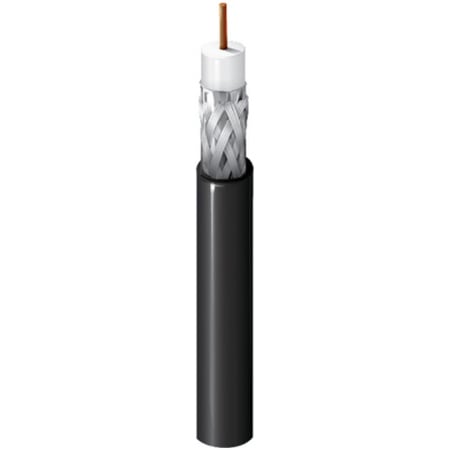

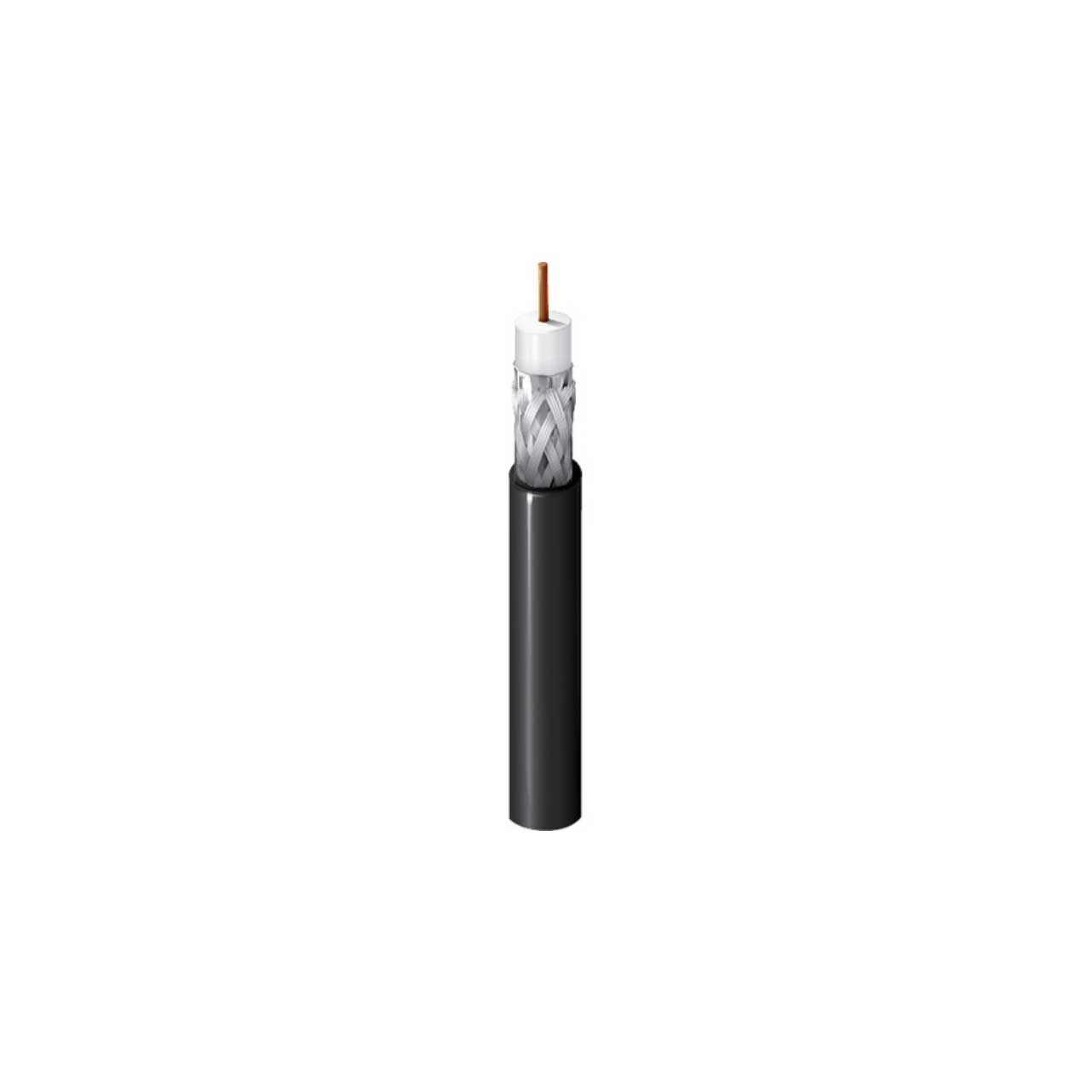

Belden 1855P CMP/Plenum 75 Ohm SDI Mini RG-59 Coax Cable - Solid BC/Shielded 23AWG - Black - Per Foot

1855P 0101000 FT - Overview

• Features:

  • Specially formulated gas injected high density foam polyethylene is more crush-resistant than standard polyethylene. Even with rough handling during installation, it resists deformation and maintains impedance and return loss characteristics.
  • Belden's skin/foam insulation process provides the right amount of conductor adhesion for easier stripping and improved connector reliability.
  • Compared to SMPTE's return loss limit, Belden's Precision Video Coax provides significant RL headroom to account for potential losses elsewhere in the transmission line.

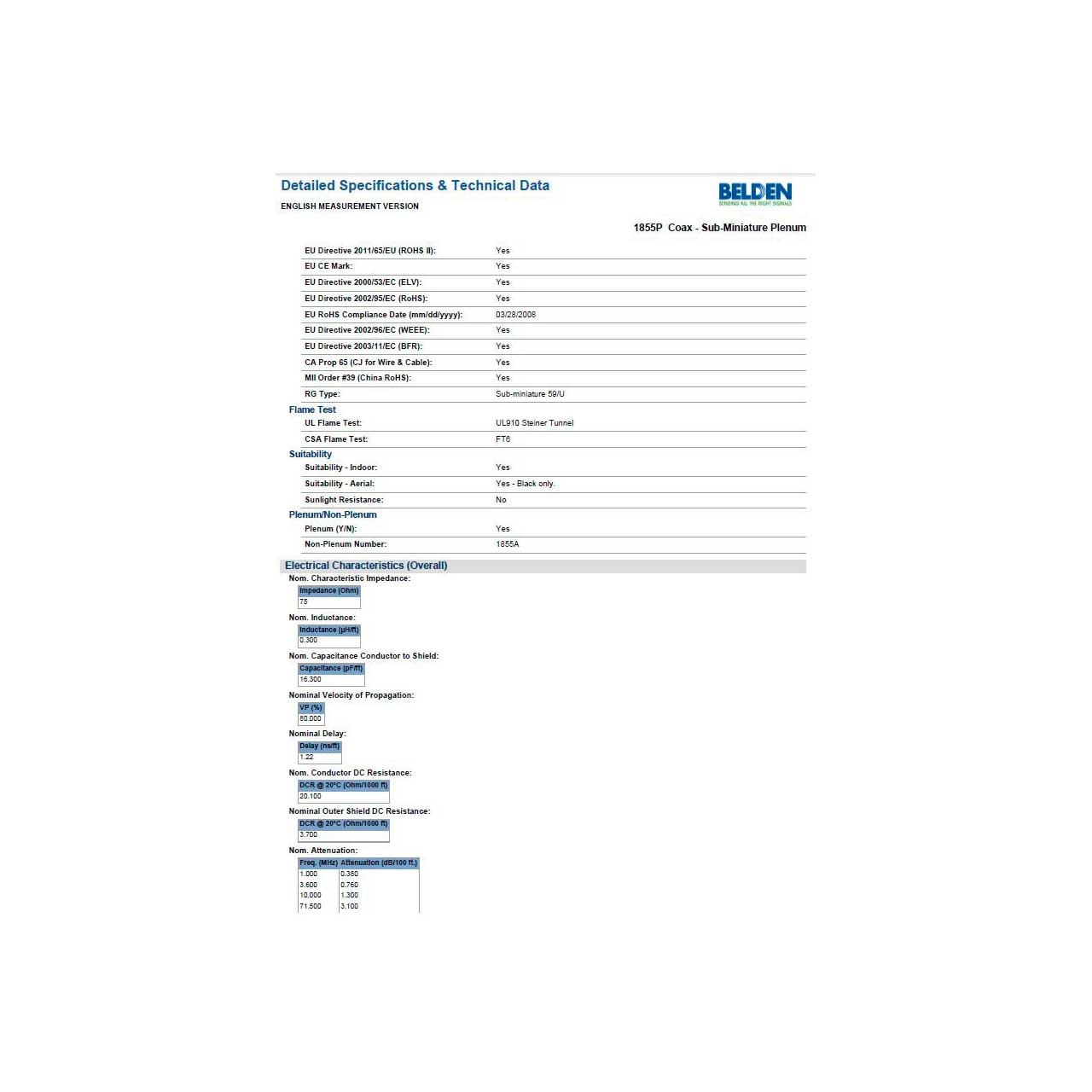

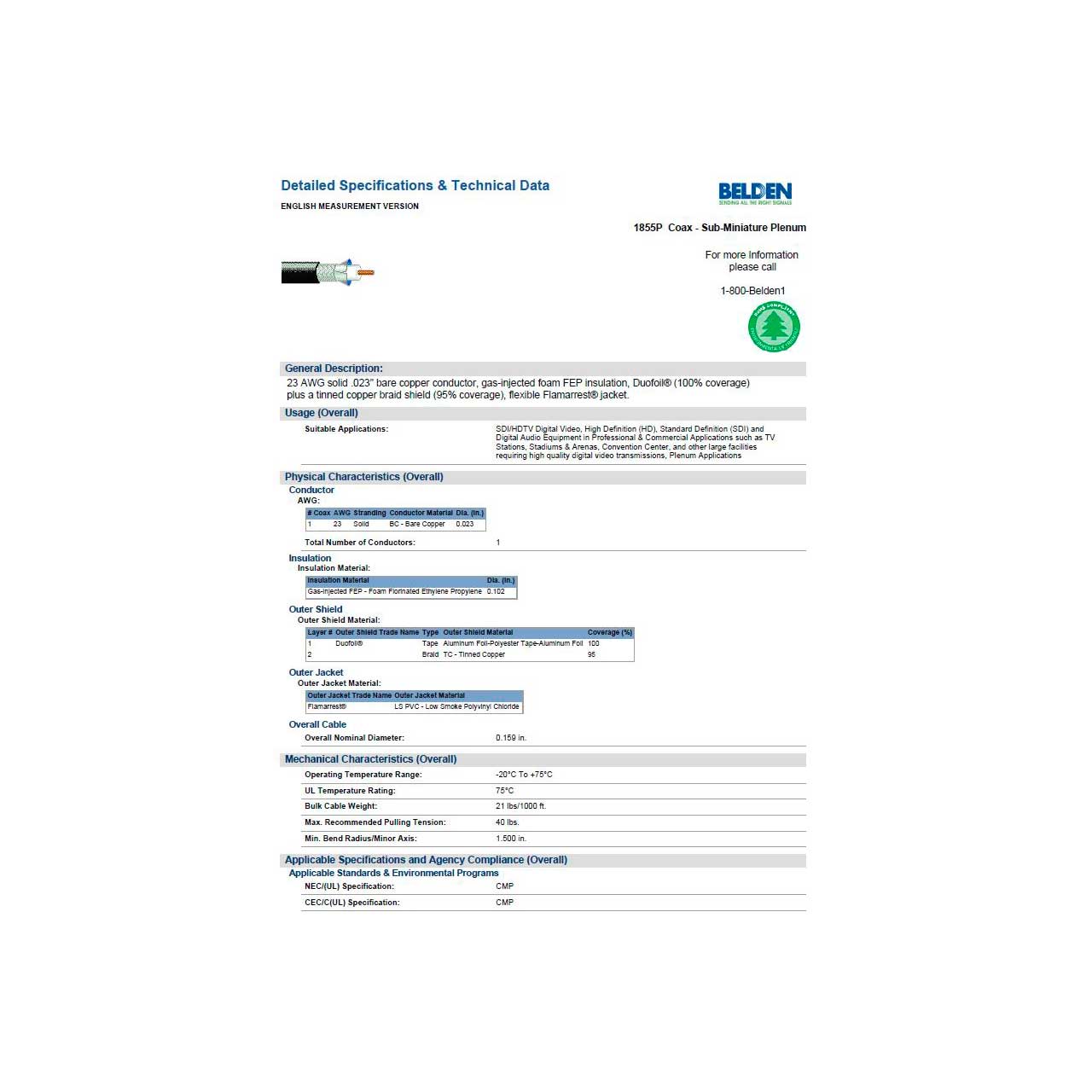

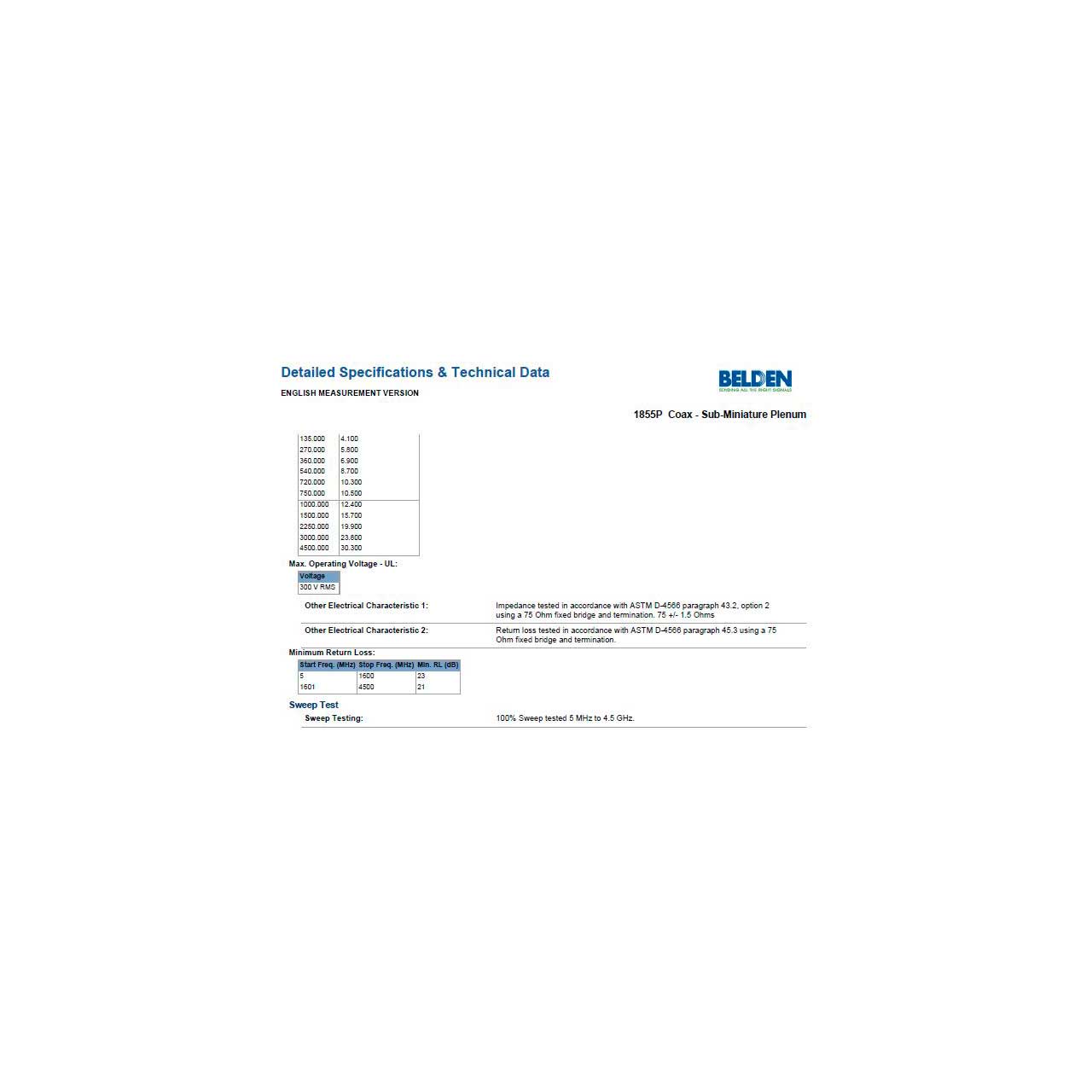

• Specifications:

  • Conductor RG Type: Mini 59
  • Conductor AWG: 23
  • Conductor Stranding: Solid
  • Conductor Nom. Diameter: 0.023in
  • Conductor Material: BC - Bare Copper
  • Insulation Material: FEP - Fluorinated Ethylene Propylene (Foam)
  • Insulation Color Code : White
  • Nom. Insulation Diameter: 0.102 in (2.59 mm)
  • Outer Shield Layer 1: Tri-Laminate (Alum+Poly+Alum) Duofoil® Tape - 100%
  • Outer Shield Layer 2: Tinned Copper (TC) Braid - 95%
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. and Overall Cable Diameter: 0.159 in (4.04 mm)
  • Nom. Conductor DCR: 20.1 Ohm/1000ft
  • Nom. Outer Shield DCR: 3.7 Ohm/1000ft
  • Nom. Capacitance Cond-to-Shield: 16.6 pF/ft
  • Nom. Impedence: 75 Ohm
  • Nom. Velocity: 80%
  • UL Voltage Rating: 300 V (CMP)
  • Operating Temperature: 0°C to +75°C
  • Bend Radius Installation Min.: 4 in
  • Bulk Cable Weight: 21 lbs/1000ft
  • Max. Pull Tension: 40 lbs
  • Environmental Suitability: Indoor - Plenum, Indoor
  • Sustainability: CA Prop 65
  • Flammability / Fire Resistance: NFPA 262, FT6
  • NEC / UL Compliance: CMP
  • CEC / C(UL) Compliance: CMP
