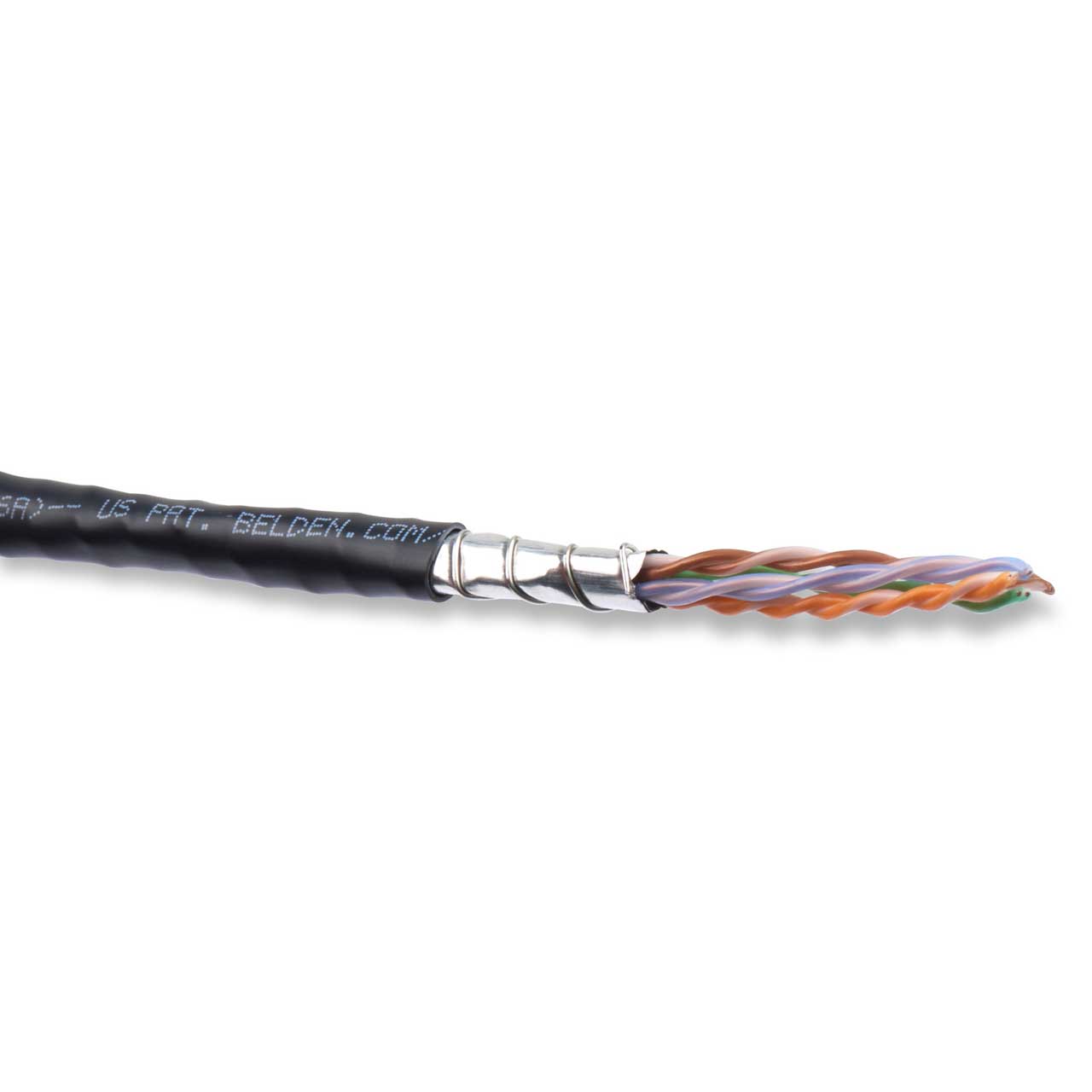

Belden 2183P is a CMP-LP(0.6A)/Plenum F/UTP 4K UHD HDBaseT Ethernet Media Cable. It's designed for HDBaseT applications with 4 Pair 23 AWG Solid Bare Copper Conductors, FEP Insulation and a Helical TC Drain with Ripcord in a Flamarrest® Plenum CMP-LP (0.6A) Jacket.
To support requirements for higher resolutions and more bandwidth, Belden has a full line of broadcast video cables including commercial-grade video cables to support 4K HDBase-T. Regardless of the application, Belden ensures reliable signal integrity and exceptional quality. No other cable manufacturer has invested in this technology like Belden has, so no other manufacturer can assure you performance like Belden.
This cable ships in Belden's Reel-In-Box installer packaging.
Belden's Reel-In-Box packaging makes cable installation quick and easy, featuring dual cut-outs on the top and side of the packaging to enable a clean cable payout. Handle holes on all four sides make for easy carrying and positioning. The Reel-In-Box corrugated fiberboard box has plastic inserts for easy handling and there is a tension control feature that can be adjusted manually for optimum payout during installation. A twist-and-tighten mechanism on the accessible reel hub is convenient for either locking in place during transit or adjusting the tension for the best pulling tension.
Applications
HDBaseT
Full 5-Play
4K (UHD/DCI)
POH, POE
