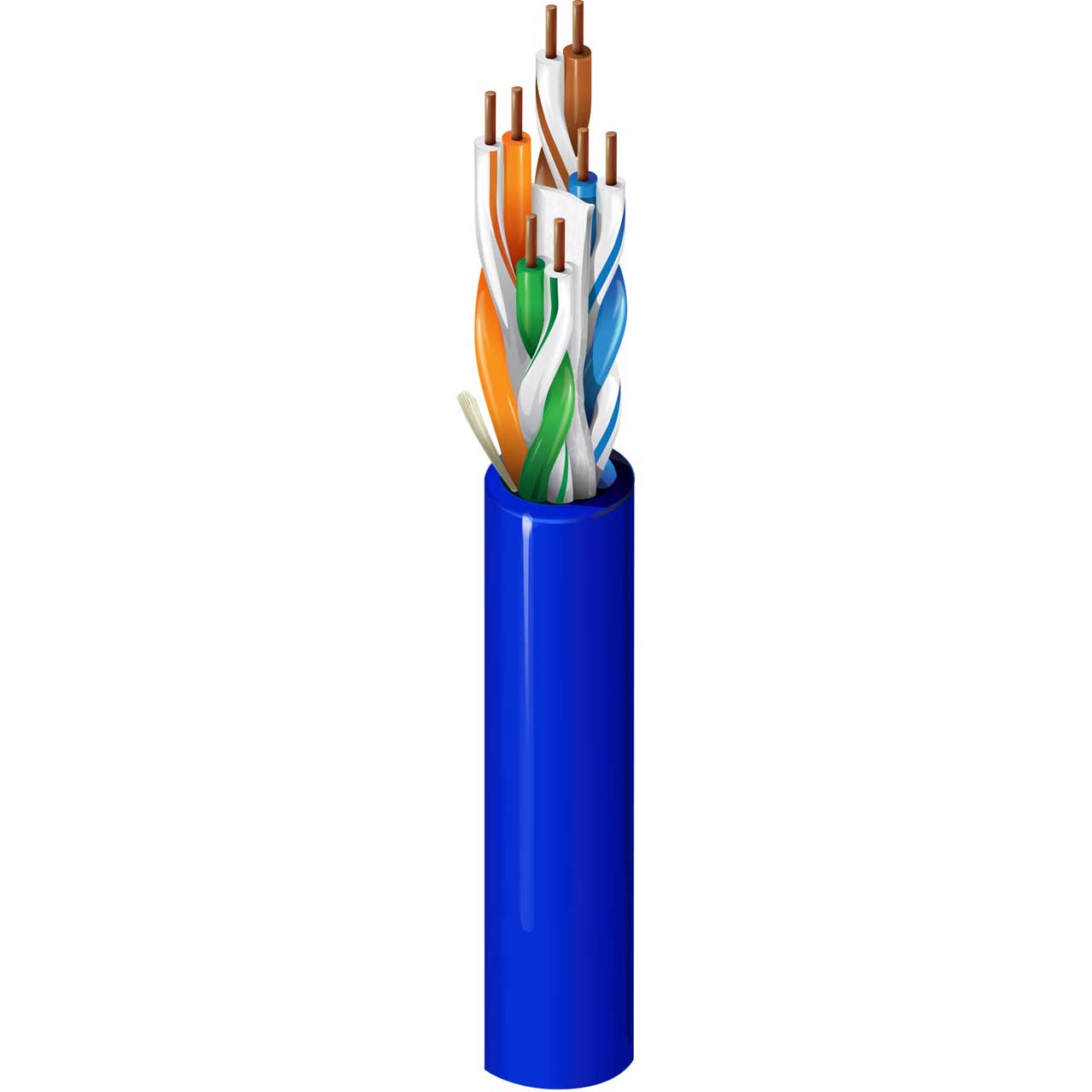

Belden 2412 CMR Enhanced Premise 350MHz CAT6+ 4 Pair U/UTP Cable Solid Copper 23 AWG - Blue - 1000 Ft

2412 0061000 - Overview

Nonbonded-Pair Cable

• Features:

  • Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
  • Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
  • Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
  • Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radius


• Specifications:

  • Environmental Space: Riser
  • Conductor Count: 8
  • Total Number of Pairs: 4
  • Conductor Size: 23 AWG
  • Material: Bare Copper
  • Ripcord: Yes
  • Insulation Material: PO-Polyolefin
  • Outer Jacket Material PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Diameter: 0.224 in (5.69 mm)
  • Overall Cable Diameter (Nominal): 0.224 in (5.69 mm)
  • Installation Temp Range: 0°C To +50°C
  • UL Temp Rating: 75°C
  • Storage Temp Range: -20°C To +75°C
  • Operating Temp Range: -20°C To +75°C
  • Bulk Cable Weight: 22 lbs/1000ft
  • Max Recommended Pulling Tension: 25 lbs
  • Min Bend Radius/Minor Axis: 1.0 in
  • Min Bend Radius/Installation: 2.25 in
  • NEC Articles: 800
  • NEC/(UL) Specification: CMR
  • CEC/C(UL) Specification: CMR
  • ISO/IEC Compliance: 11801 ed 2.2 (2011) Class E
  • CPR Euroclass: Eca
  • Data Category: Category 6
  • ANSI Compliance: S-116-732-2013 Category 6, ANSI/NEMA WC-66 Category 6
  • Telecommunications Standards: ANSI/TIA-568-C.2 Category 6
  • IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
  • Third Party Performance Verification: Category 6


• Item Includes:

  • 2412 - Blue - 1000 Ft Reel


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825061045
