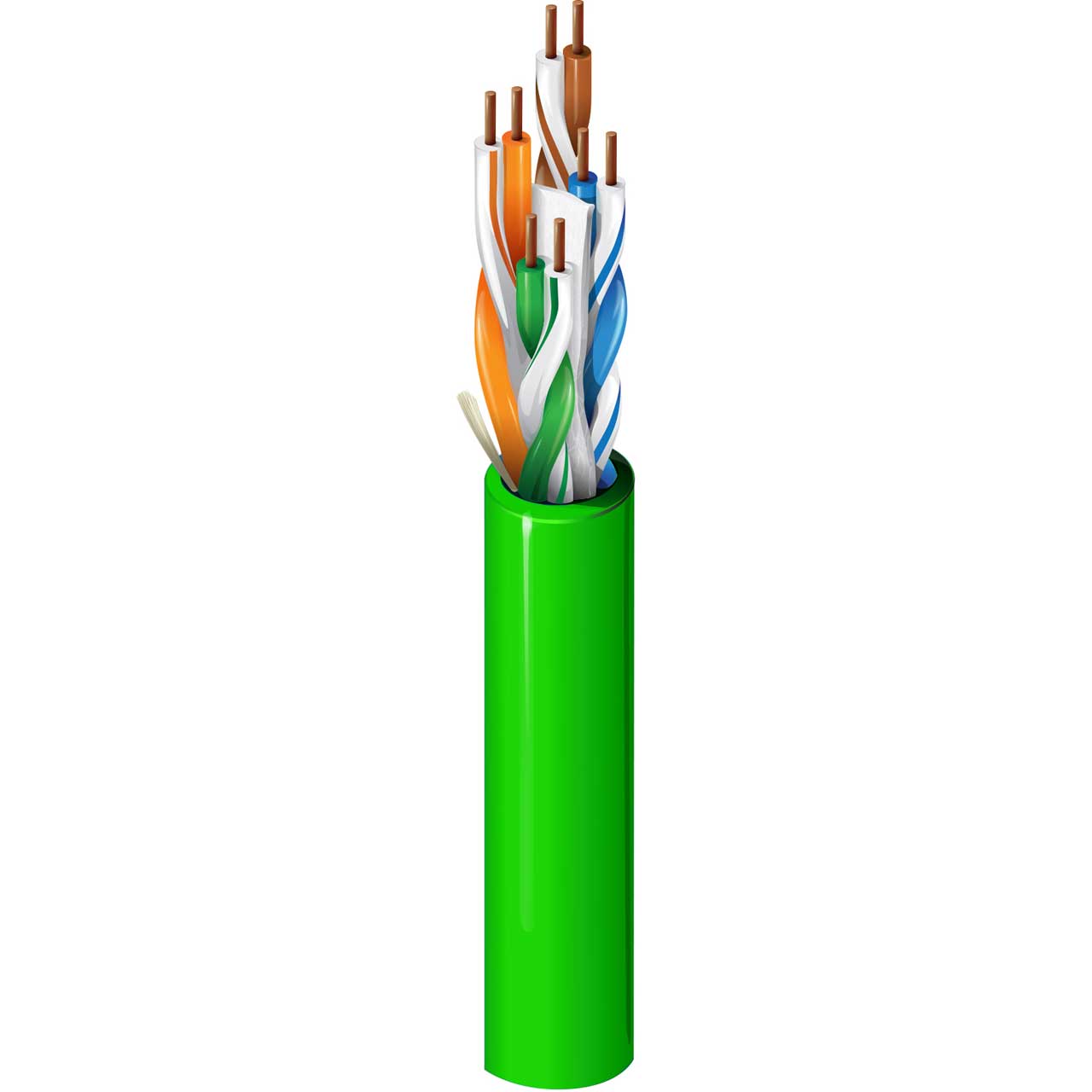

Belden 2412 CMR Enhanced Premise 350MHz CAT6+ 4 Pair U/UTP Cable Solid Copper 23 AWG - Green - 1000 Ft

ITEM #: BL-2412-1000GN MFG #: 2412 0051000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$344.60

Our Price:

$240.82

Availability: In Stock
iAvailability Description Popup


2412 0051000 - Overview

Nonbonded-Pair Cable

Belden 2412 is a Category 6+, U/UTP Enhanced Premise Horizontal Cable (350MHz). It's 4 Pair, 23 AWG with Solid Bare Copper Conductors in a Riser-CMR rated PVC Jacket.

Belden 2400 Series Cables consist of 4-pair UTP cables that exceed Category 6 requirements as per ANSI/TIA-568-C.2. When used as the horizontal cable in the REVConnect 2400 System, the channel provides at least 250 MHz of bandwidth.

Applications
Premise Horizontal Cable
Ethernet 1000BASE-T
Ethernet 100BASE-TX
Ethernet 10BASE-T
PoE++/PoE+/PoE

  • Features:

    • Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
    • Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
    • Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
    • Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radius

  • Specifications:

    • Environmental Space: Riser
    • Conductor Count: 8
    • Total Number of Pairs: 4
    • Conductor Size: 23 AWG
    • Material: Bare Copper
    • Ripcord: Yes
    • Insulation Material: PO-Polyolefin
    • Outer Jacket Material PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.224 in (5.69 mm)
    • Overall Cable Diameter (Nominal): 0.224 in (5.69 mm)
    • Installation Temp Range: 0°C To +50°C
    • UL Temp Rating: 75°C
    • Storage Temp Range: -20°C To +75°C
    • Operating Temp Range: -20°C To +75°C
    • Bulk Cable Weight: 22 lbs/1000ft
    • Max Recommended Pulling Tension: 25 lbs
    • Min Bend Radius/Minor Axis: 1.0 in
    • Min Bend Radius/Installation: 2.25 in
    • NEC Articles: 800
    • NEC/(UL) Specification: CMR
    • CEC/C(UL) Specification: CMR
    • ISO/IEC Compliance: 11801 ed 2.2 (2011) Class E
    • CPR Euroclass: Eca
    • Data Category: Category 6
    • ANSI Compliance: S-116-732-2013 Category 6, ANSI/NEMA WC-66 Category 6
    • Telecommunications Standards: ANSI/TIA-568-C.2 Category 6
    • IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
    • Third Party Performance Verification: Category 6

  • Item Includes:

    • 2412 - Green - 1000 Ft Reel

  • Warranty:

    • Limited 10 Year Warranty

  • GTIN:

    0612825061083
