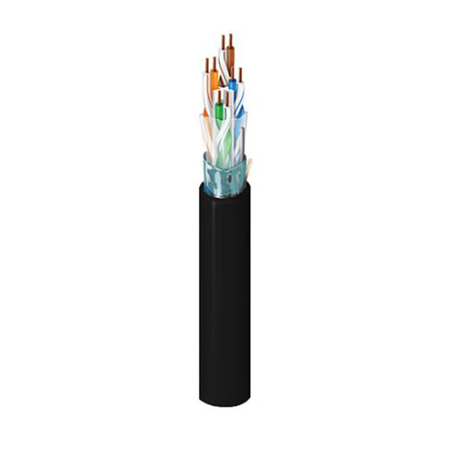

Belden 2412FS Riser/CMR CAT6+ Enhanced Premise Horizontal 4-Pr Cable (350MHz) F/UTP Foil-Shld 23AWG - Black - 1000 Ft

Name: Belden 2412FS Riser/CMR CAT6+ Enhanced Premise Horizontal 4-Pr Cable (350MHz) F/UTP Foil-Shld 23AWG - Black - 1000 Ft
Brand: Belden
SKU: BL-2412FS-1000BK
Price: 722.28 USD
Availability: InStock

ITEM #: BL-2412FS-1000BK MFG #: 2412FS 0101000

Belden

Colors:

Colors

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$742.60

Our Price:

$722.28

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

2412FS 0101000 - Overview

Belden 2412FS is a Category 6+, F/UTP, Enhanced Premise Horizontal Cable (350MHz). It features 4 Pair, 23 AWG Solid Bare Copper Conductors and is Foil Shielded in a CMR/Riser rated PVC Jacket.

Belden offers several Category 6 performance levels with every level exceeding TIA-568-C.2 performance and produced with Belden's superior quality. Bonded-Pair technology is an option to make your installation as robust as possible.

Applications
Premise Horizontal Cable
Ethernet 1000BASE-T
Ethernet 100BASE-TX
Ethernet 10BASE-T
Surveillance
PoE++, PoE+, PoE
Noisy Environments

Features:
- Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
- Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
- Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
- Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radii
- Easy, Mess-free Outdoor Installations: Dry Core Outside Plant and Indoor/Outdoor Plenum cables contain no inconvenient water-blocking gels, tapes, or powders
Specifications:
- Conductor AWG: 23 AWG
- Conductor Number of Pairs: 4
- Conductor Stranding: Solid
- Conductor Material: BC - Bare Copper
- Insulation Material: PO - Polyolefin
- Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
- Outer Shield Type: tape
- Outer Shield Material: Polyester + Bi-Laminate (Alum+Poly)
- Outer Shield Coverage: 100%
- Outer Shield Drain Wire Type: 26 AWG (7x34) TC
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Diameter: 0.265 in (6.73 mm)
- Outer Jacket Ripcord: No
- Outer Jacket Separator: Center Member (Patented X-Spline®)
- Overall Cable Diameter (Nominal): 0.265 in (6.73 mm)
- Environmental Suitability: Riser, Indoor
- Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
- Flammability / Reaction to Fire: UL 1666 Riser, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMR
- CEC / C(UL) Compliance: CMR
Item Includes:
- 2412FS Category 6+ Enhanced Premise Horizontal Cable (350MHz) - 1000 Foot Reel - Black
Warranty:
- Limited 10 Year Warranty
