Belden 4505P 12 GHz 4K UHD Plenum RG59 Video Cable 20 AWG Solid - Black - 1000 Foot

ITEM #: BL-4505P-1000BK MFG #: 4505P 0101000

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,936.70

Our Price:

$3,806.28

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4505P 0101000 - Overview

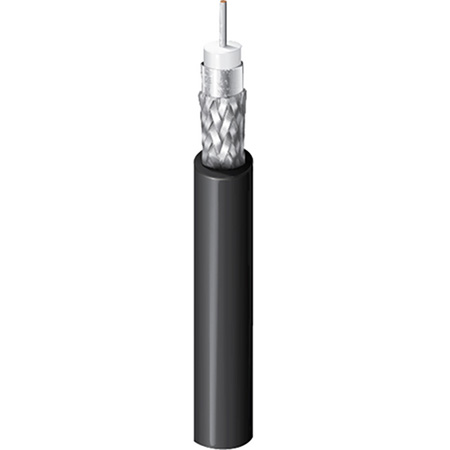

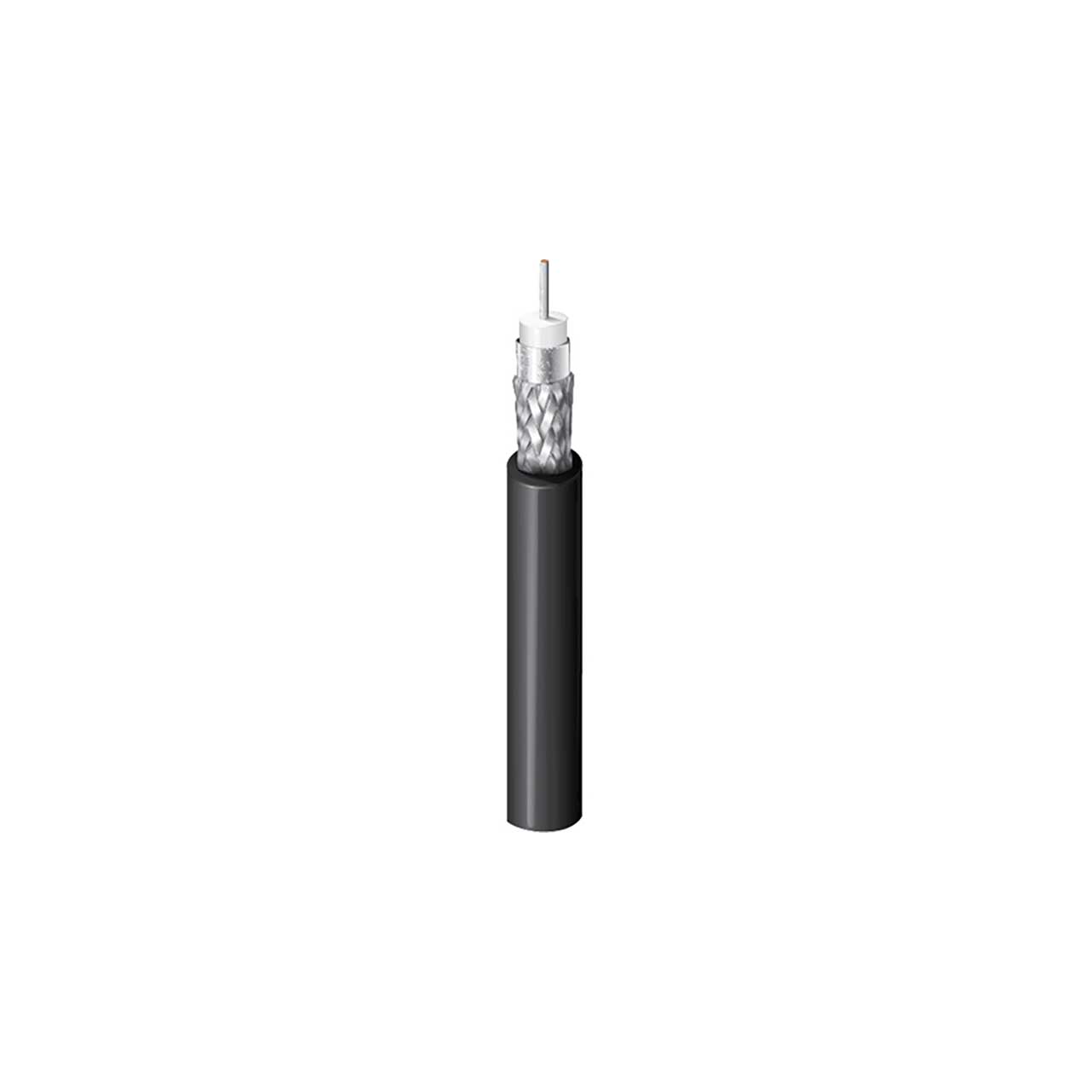

Belden 4505P 12 GHz, 4K UHD Precision Video Cable, 75 Ohm RG-59 Type 20 AWG solid silver plated copper conductor, foam FEP core, Duofoil bonded to core+95% tinned copper braid, CMP, Flamarrest jacket. Suitable for SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, and SMPTE 424M 3 Gb/s HD-SDI 1080P applications.

  • Specifications:

    • AWG: 20
    • Stranding: Solid
    • Material: SC - Silvered Copper
    • Nominal Diameter: 0.032 in
    • No. of Coax: 1
    • Nominal Conductor DCR: 10.1 Ohm/1000ft
    • Outer Conductor DCR: 2.5 Ohm/1000ft
    • Nom. Capacitance Conductor to Shield: 16.1 pF/ft
    • Nominal Inductance: .3 µH/ft
    • Nominal Characteristic Impedance: 75 Ohm
    • UL Voltage Rating: 300 V RMS
    • UL Temp Rating: 75°C
    • Operating Temp Range: -20°C To +75°C
    • UV Resistance: No
    • Bulk Cable Weight: 30 lbs/1000ft
    • Max. Pull Tension: 55 lbs
    • Min Bend Radius/Minor Axis: 2 in


  • Item Includes:

    • 1x Belden 4505P 12 GHz 4K UHD Precision Video Cable - RG-59 - 75 Ohm - 20 AWG Solid - CMP - Black - 1000 Foot
