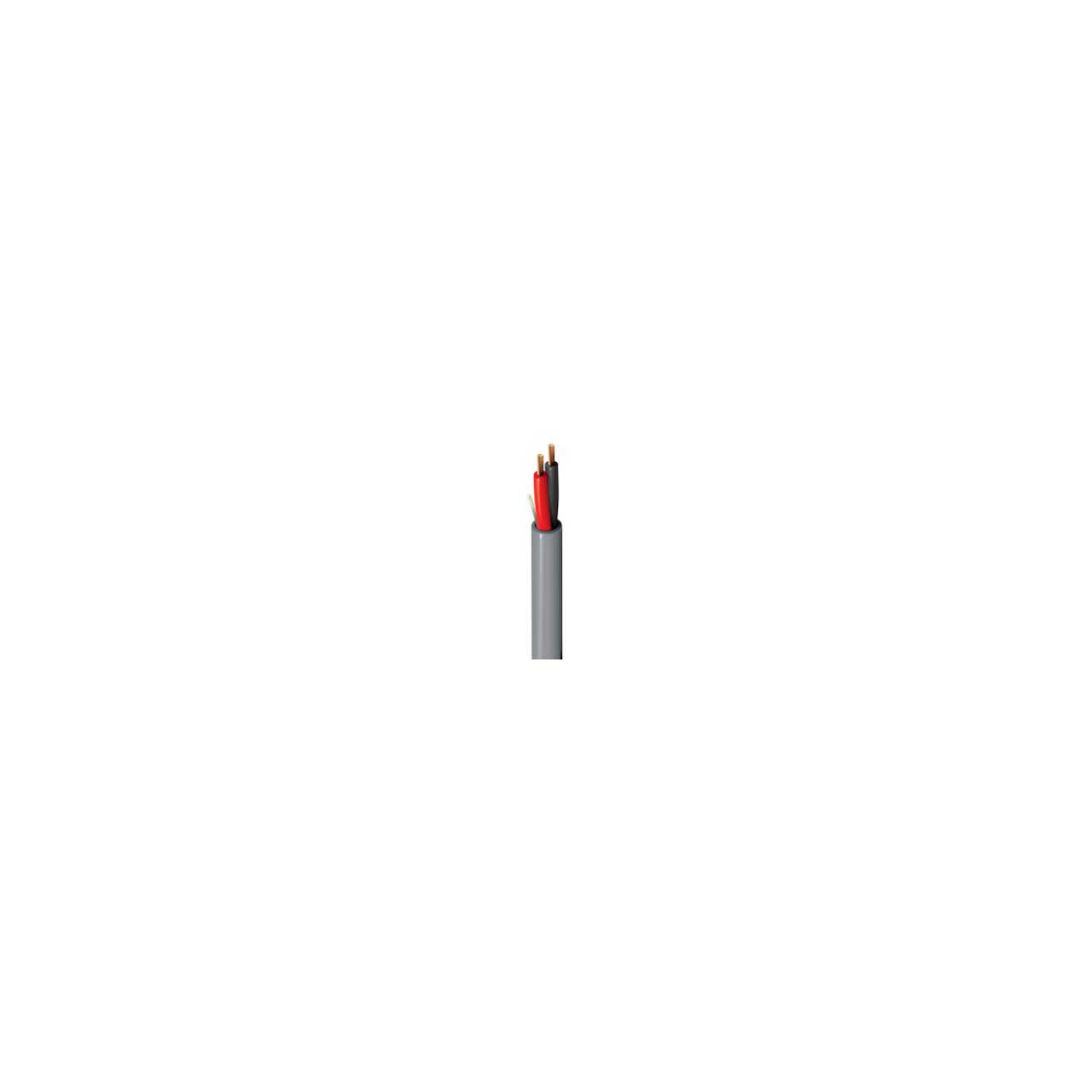

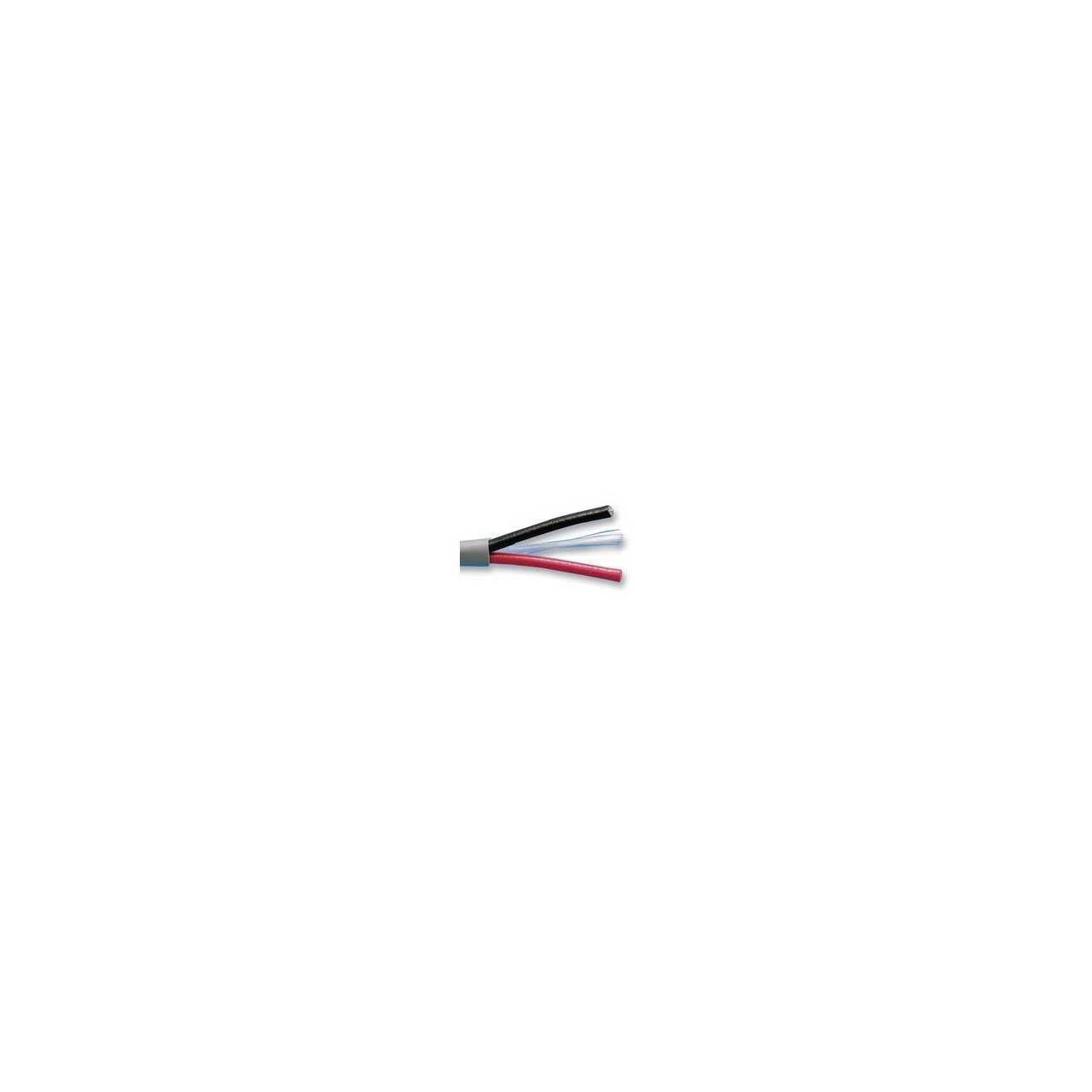

Belden 5200UE Riser/CMR Security & Commercial Audio Cable BC/16AWG - Gray - 1000 Ft

5200UE 0081000 - Overview

• Features:

  • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
  • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
  • Easy Identification: Cable jackets feature footage room and zone markings


• Specifications:

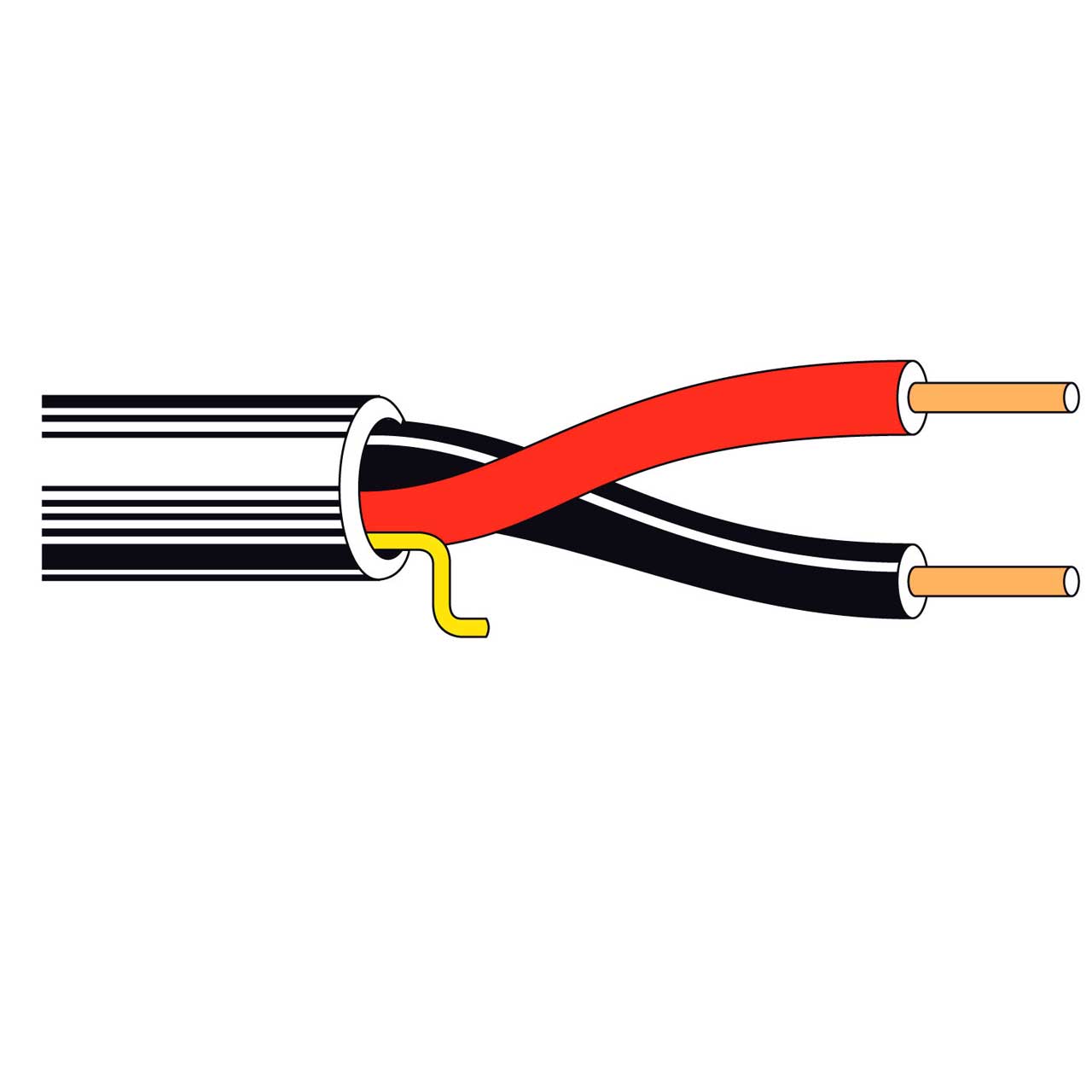

  • Number of Conductors: 2
  • Total Number of Conductors: 2
  • Conductor AWG: 16
  • Conductor Stranding: 19x29
  • Conductor Material: BC - Bare Copper
  • Insulation Material: PVC - Polyvinyl Chloride
  • Insulation Element: Conductor(s)
  • Insulation Nom. Thickness: 0.008 in (0.20 mm)
  • Insulation Color Code: Black, Red
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Thickness: 0.017 in (0.43 mm)
  • Outer Jacket Nom. Diameter: 0.180 in (4.57 mm)
  • Outer Jacket Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.180 in (4.57 mm)
  • Outer Shield Material: Unshielded
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Plenum (Y/N): N
  • Plenum Number: BL-6200UE
  • Nom. Conductor DCR: 4.2 Ohm/1000ft
  • Nom. Capacitance Cond-to-Cond: 23 pF/f
  • Max. Current: 6.25 Amps per conductor @ 25°C
  • UL Voltage Rating: 300 V (CMR)
  • UL Rating Temp: -20°C to +75°C
  • Operating Temp: 75°C
  • Max. Pull Tension: 59 lbs
  • Bulk Cable Weight: 24 lbs/1000ft
  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Fire Resistance: UL1666 Riser, FT4, IEC 60332-1-2
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMG


• Item Includes:

  • 5200UE Security & Commercial Audio Cable - Gray - 1000 Ft


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825336532
